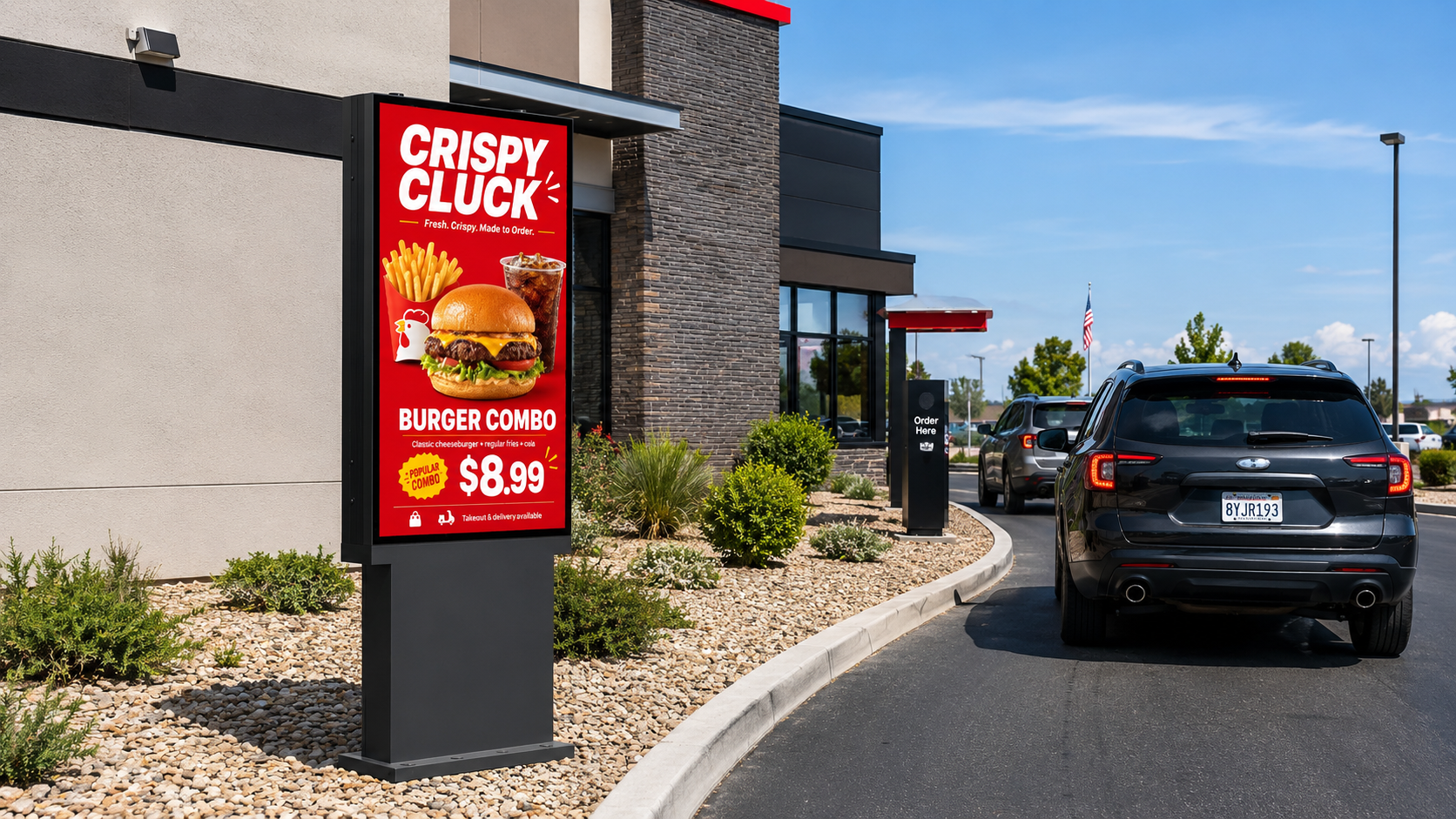

1 × 55″ Digital Preview Board for Drive-Thru Lane
IP66 high-brightness outdoor digital signage display designed for QSR drive-thru lanes. This single-screen preview board supports pre-sell menus, promotional content, customer information, and compact drive-thru digital signage installations.
Real Project Video
IP66 Drive-Thru Digital Menu Board Project
This project video shows the outdoor enclosure, installation structure, accessories, inspection process, and export packing used in AISICAN drive-thru digital signage and digital menu board projects.
- Application: QSR Drive-Thru Lane
- Display Type: Outdoor Digital Menu Board
- Protection: IP66 Outdoor Enclosure
- Brightness: Up to 3000 nits
- Installation: Floor-Standing Structure
- Status: Pre-Shipment Inspection
Product Gallery
Review the front, side, and rear structure of the 55-inch single-screen outdoor digital signage preview board for drive-thru installations.

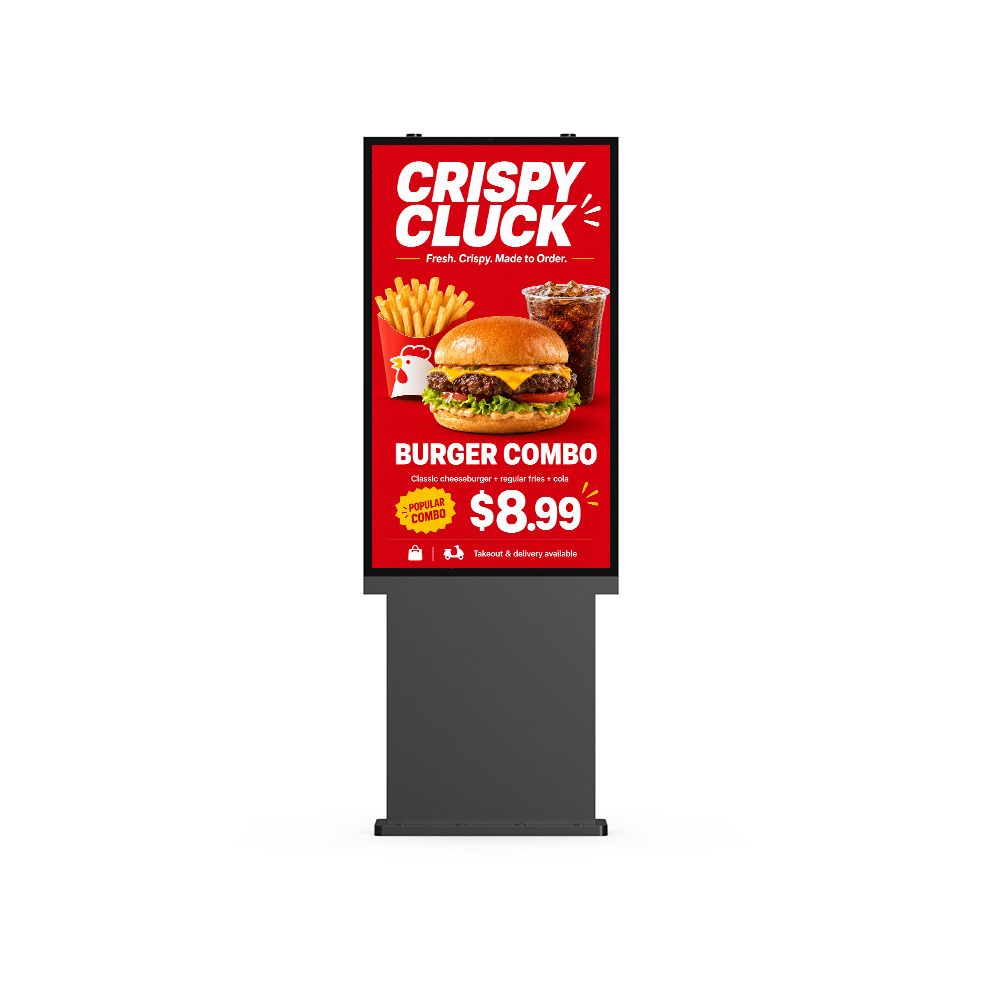

Front View

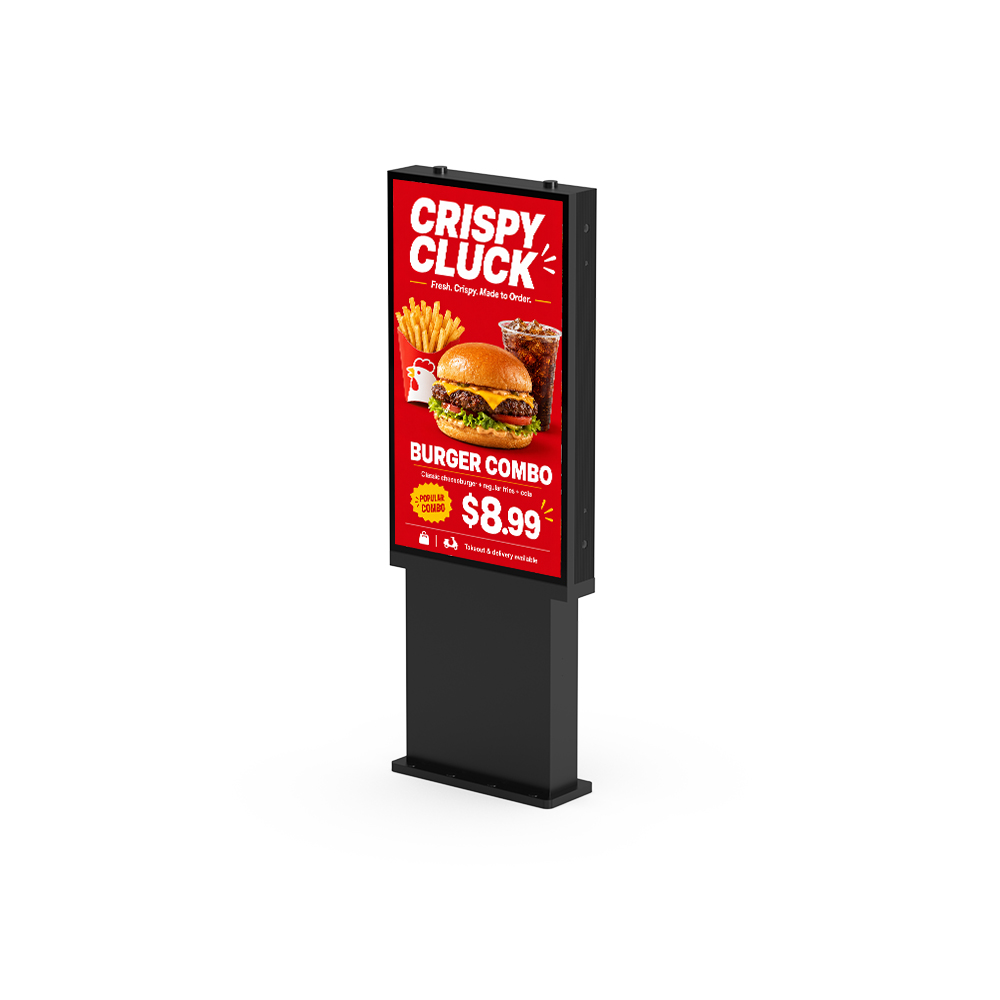

Side View

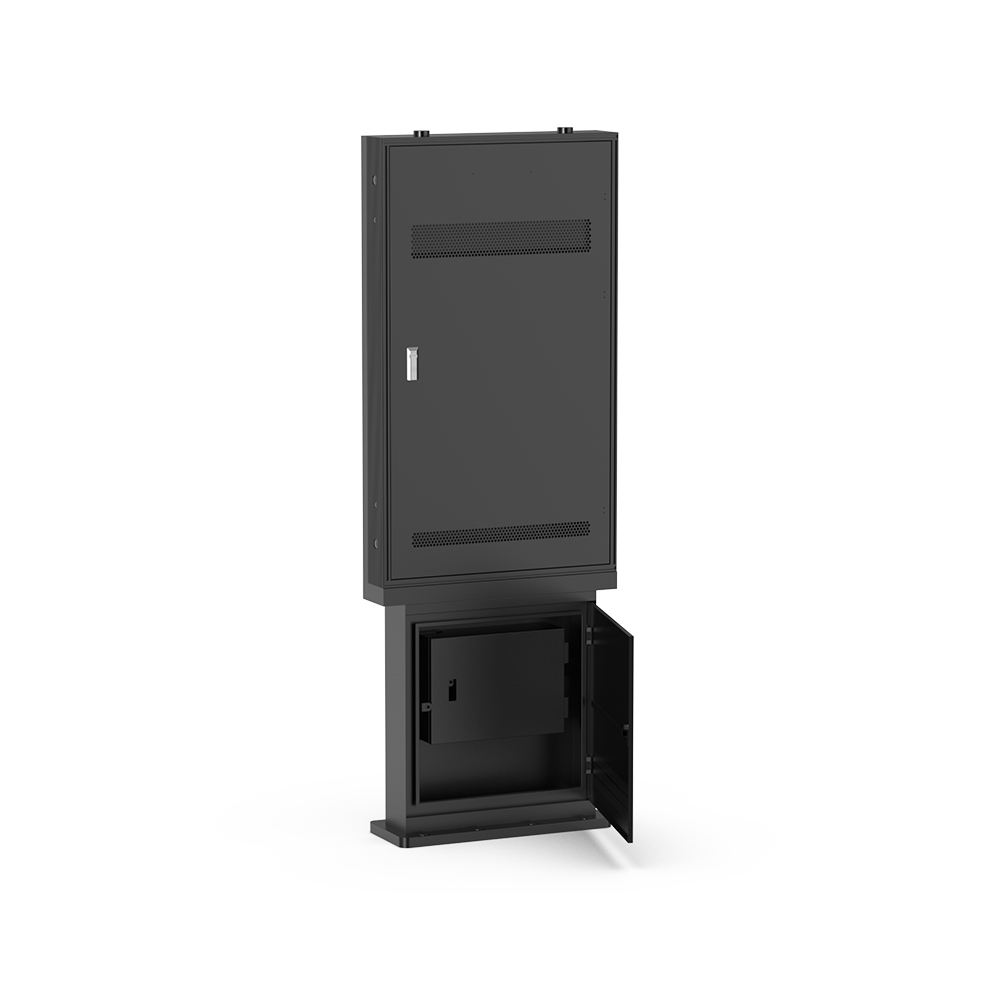

Rear Structure #1

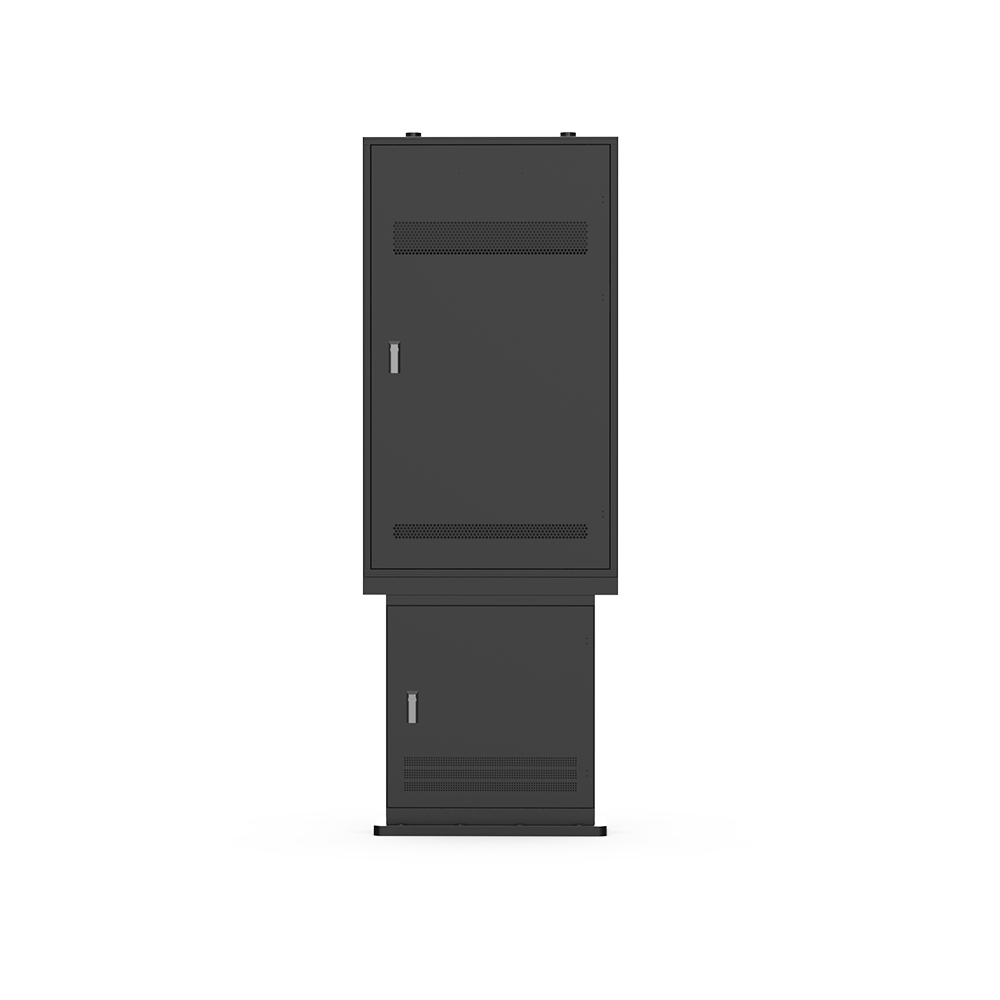

Rear Structure #2

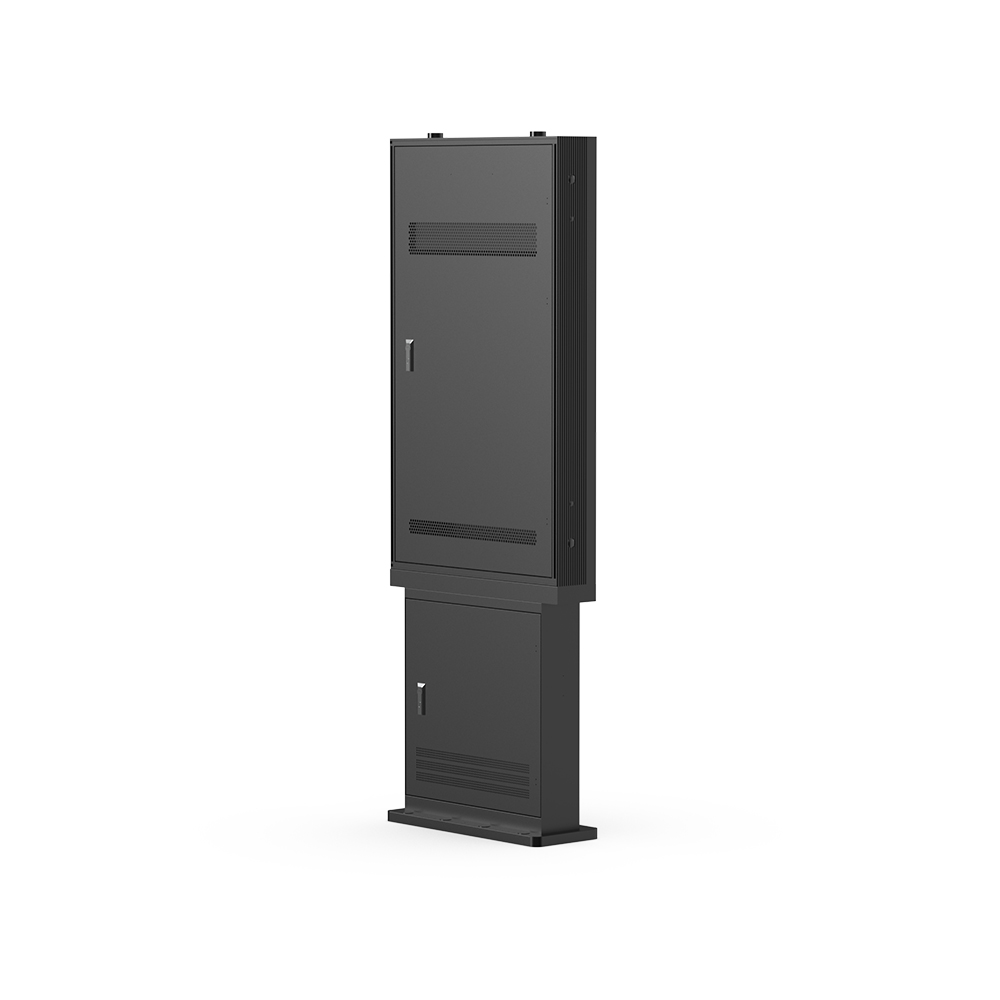

Rear Structure #3
Key Features for Outdoor Drive-Thru Digital Signage
Designed for compact QSR drive-thru applications where daylight visibility, weather protection, installation structure, and long daily operating hours are important project considerations.
IP66 Weatherproof Structure
Outdoor enclosure designed to protect the display against rain, dust, and typical exterior drive-thru environmental exposure.
Sunlight-Readable 3000 nits Brightness
Up to 3000 nits brightness helps digital menu and promotional content remain visible in outdoor daylight and high ambient light.
Single-Screen Preview Display
Compact 55-inch outdoor digital signage format for pre-sell menus, promotional content, and customer-facing information along drive-thru lanes.
Anti-Glare Glass + UV Film
5mm AG glass combined with full-lamination UV film provides an additional protective layer for outdoor display applications.
Thermal Management Design
Thermal management is designed to support outdoor operation across the specified operating temperature range.
Long-Hour Commercial Operation
Commercial display platform designed for long daily operating schedules in QSR and drive-thru environments.
Flexible System Input Options
Android OS, Windows OS, Linux OS, HDMI input, USB, and VGA options provide flexibility for digital signage system integration.
Practical Maintenance Design
Enclosure and structural design are developed with ongoing inspection and project maintenance requirements in mind.
Why It Works for Drive-Thru Digital Signage Projects
This single-screen digital preview board is designed for QSR drive-thru lanes where operators need a compact outdoor digital signage display for pre-sell menus, promotional messages, or other customer-facing information.
Technical Specifications
Key specifications for project evaluation, quotation, and 55-inch outdoor drive-thru digital signage configuration.
1 × 55″
Up to 3000 nits
IP66
UHD 3840 × 2160
| Model | AS-WD550D-IP66X1 |
|---|---|
| Screen Size | 55″ |
| Number of Screens | 1 |
| Brightness | Max 3000 nits |
| Resolution | UHD 3840 × 2160 |
| IP Rating | IP66 |
| Operating Temperature | -20°C to +55°C |
| Glass | 5mm AG glass combined with full-lamination UV film |
| UV Film | Yes |
| System | Android OS / Windows OS / Linux OS / HDMI input |
| Input | HDMI input optional / USB / VGA |
| Touch | PCAP touch optional |
| Installation | Concrete pedestal installation |
| Structure Customization | Yes |
Dimensions & Installation Footprint
Dimension information helps project teams evaluate installation space, concrete pedestal planning, drive-thru lane layout, transportation, and on-site structural fit.
Overall Size
732.8 × 1999.6 × 250 mm
Screen Size
1210 × 680 mm
Structure Width
732.8 mm
Structure Height
1999.6 mm
Structure Depth
148 mm
Installation Type
Concrete pedestal installation
Installation & Outdoor Structure
The single-screen preview board uses a floor-standing outdoor structure designed for concrete pedestal installation, cable routing, weather protection, and drive-thru digital signage deployment.
Drive-Thru Digital Signage Applications
The 55-inch single-screen display is primarily designed for QSR drive-thru preview, pre-sell, promotional, and compact outdoor digital signage applications.
Drive-Thru Preview Board
QSR Drive-Thru Lanes
Pre-Sell Menu Display
Restaurant Exterior Digital Signage
Franchise Restaurant Upgrade Projects
