21.5″ Desktop Self-Service Kiosk
Compact countertop touchscreen kiosk for counter ordering, self-check-in, payment, ticketing, reception desks, café ordering, retail service counters, and small-space self-service applications.
Product Gallery
Review the front view, side view, and countertop application scene of the 21.5-inch desktop self-service kiosk.
Front View

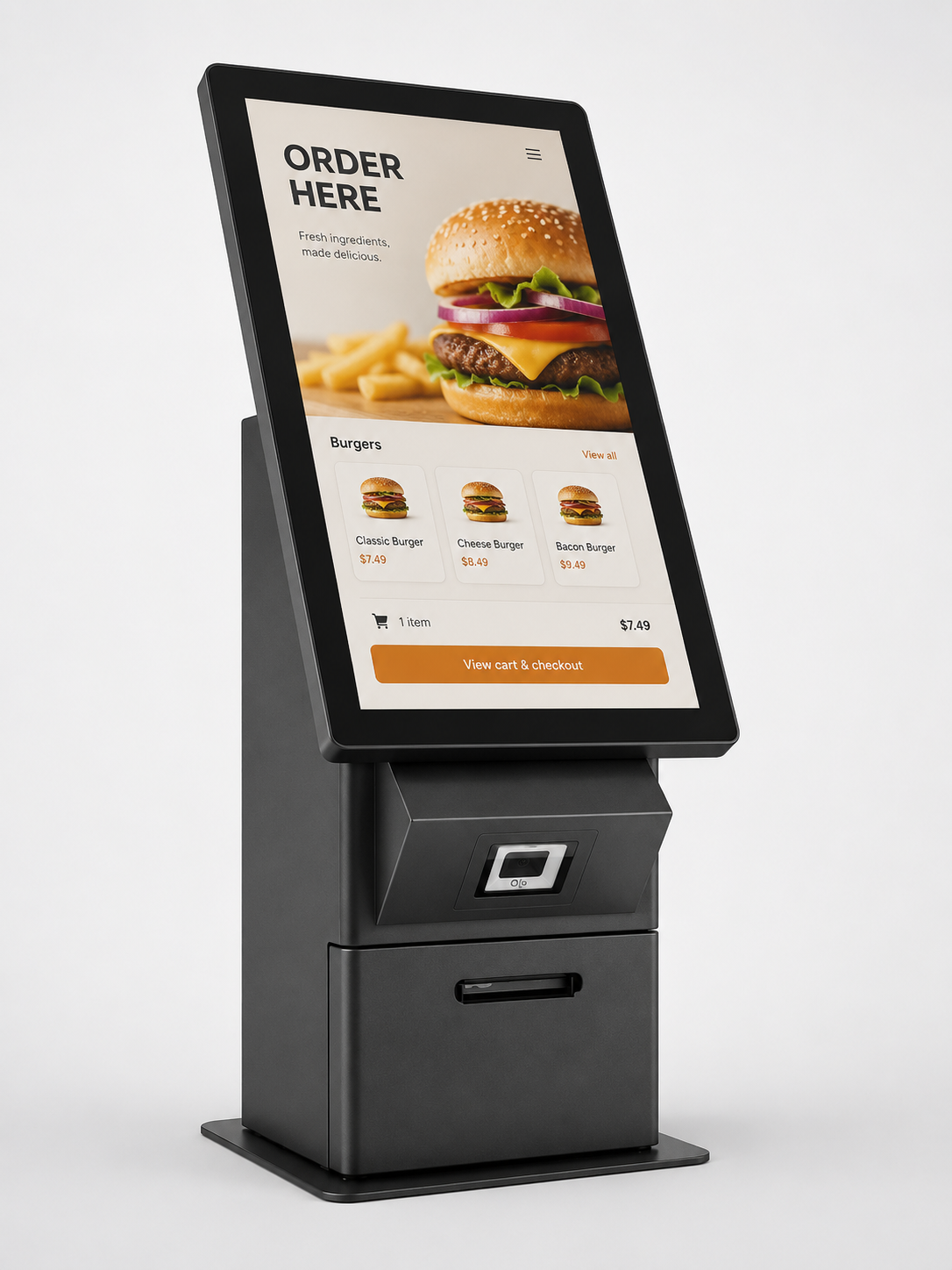

Side View

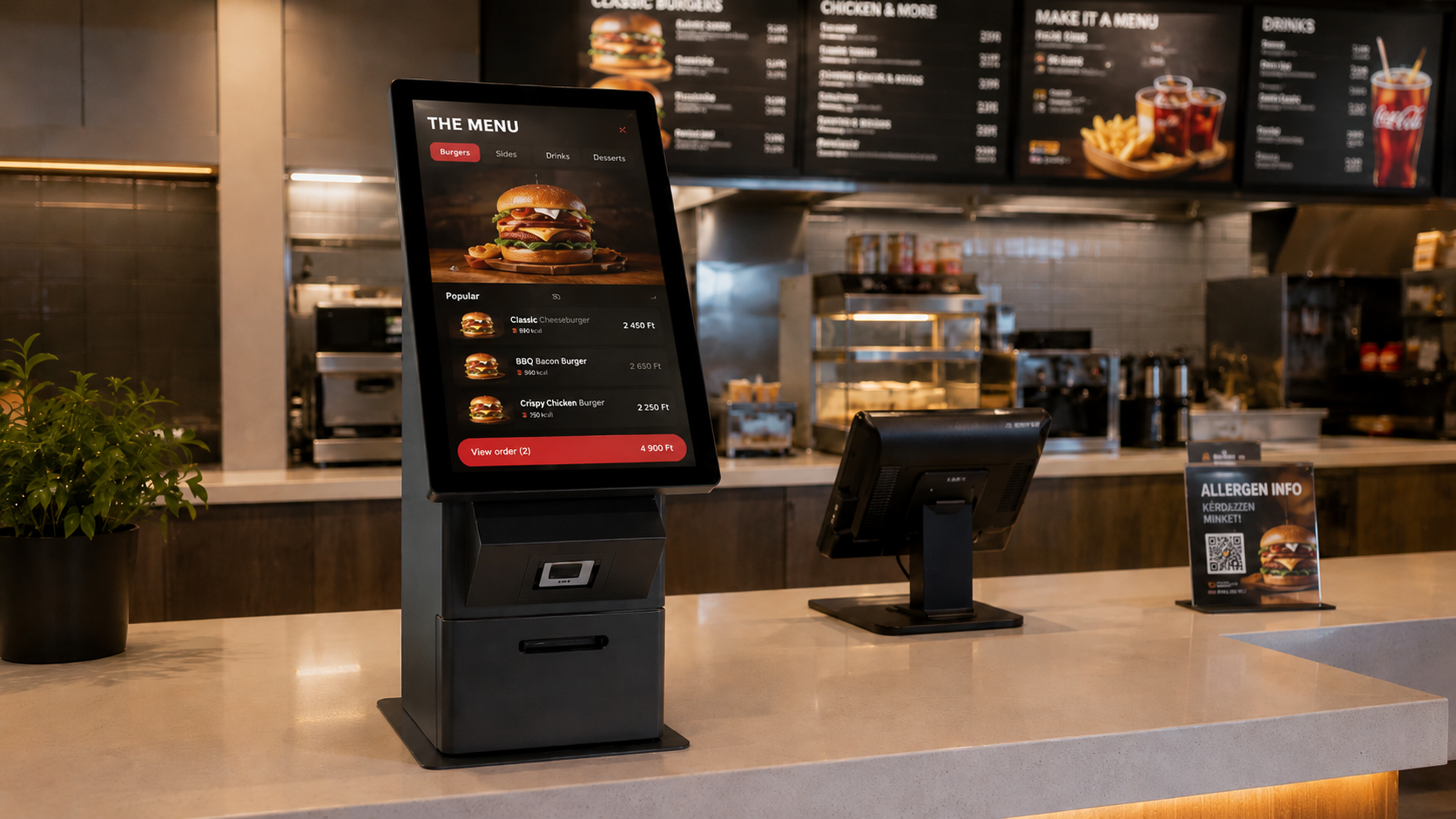

Application Scene
Key Features
Designed for countertop service points where compact size, touch interaction, and flexible configuration are required.
21.5″ PCAP Touchscreen
Responsive capacitive touchscreen for customer-facing ordering, check-in, payment, and service interaction.
Compact Desktop Design
Compact hardware format designed for countertops, reception desks, café counters, and limited installation space.
Android / Windows / Linux Optional
Flexible system options support different software platforms and project integration requirements.
Countertop Installation
Designed for desktop and counter placement without requiring a full-size floor-standing kiosk structure.
Peripheral Integration Optional
Supports project-based integration of printer, scanner, NFC, camera, payment terminal bracket, and network modules.
Custom Housing Color / Logo
Housing color, logo branding, and appearance details can be customized for project and brand requirements.
Small-Space Deployment
Suitable for cafés, small restaurants, reception counters, ticket desks, and compact service points.
Project-Based Configuration
Hardware structure, system, modules, I/O, and installation details can be configured for specific project needs.
Peripheral Options
Peripheral modules are optional and can be configured based on application, software platform, and integration requirements.
Thermal Printer
QR / Barcode Scanner
NFC Reader
POS Terminal Bracket
Camera
Speaker
WiFi
Ethernet
4G Optional
Custom I/O
Technical Specifications
Key specifications for project evaluation, quotation, and desktop kiosk hardware configuration.
21.5″
PCAP Touch
Android / Windows / Linux
Countertop Installation
| Model Reference | SK215 Desktop Series |
|---|---|
| Screen Size | 21.5″ |
| Touch | PCAP touch |
| System | Android OS / Windows OS / Linux OS |
| Installation | Countertop installation |
| Orientation | Portrait |
| Network | RJ45 / WiFi |
| Peripheral Options | Thermal printer / QR barcode scanner / NFC reader / POS payment terminal bracket / Camera / Speaker / WiFi / Ethernet / 4G / Custom I/O |
| Printer | 58 / 80mm thermal printer / Customized |
| Scanner | QR scanner |
| NFC | Optional |
| Camera | Optional |
| Speaker | Yes / Optional |
| Enclosure Color | Black / Gray / White |
| Logo Customization | Yes |
| Structure Customization | Yes |
| Power Input | 100V–250V |

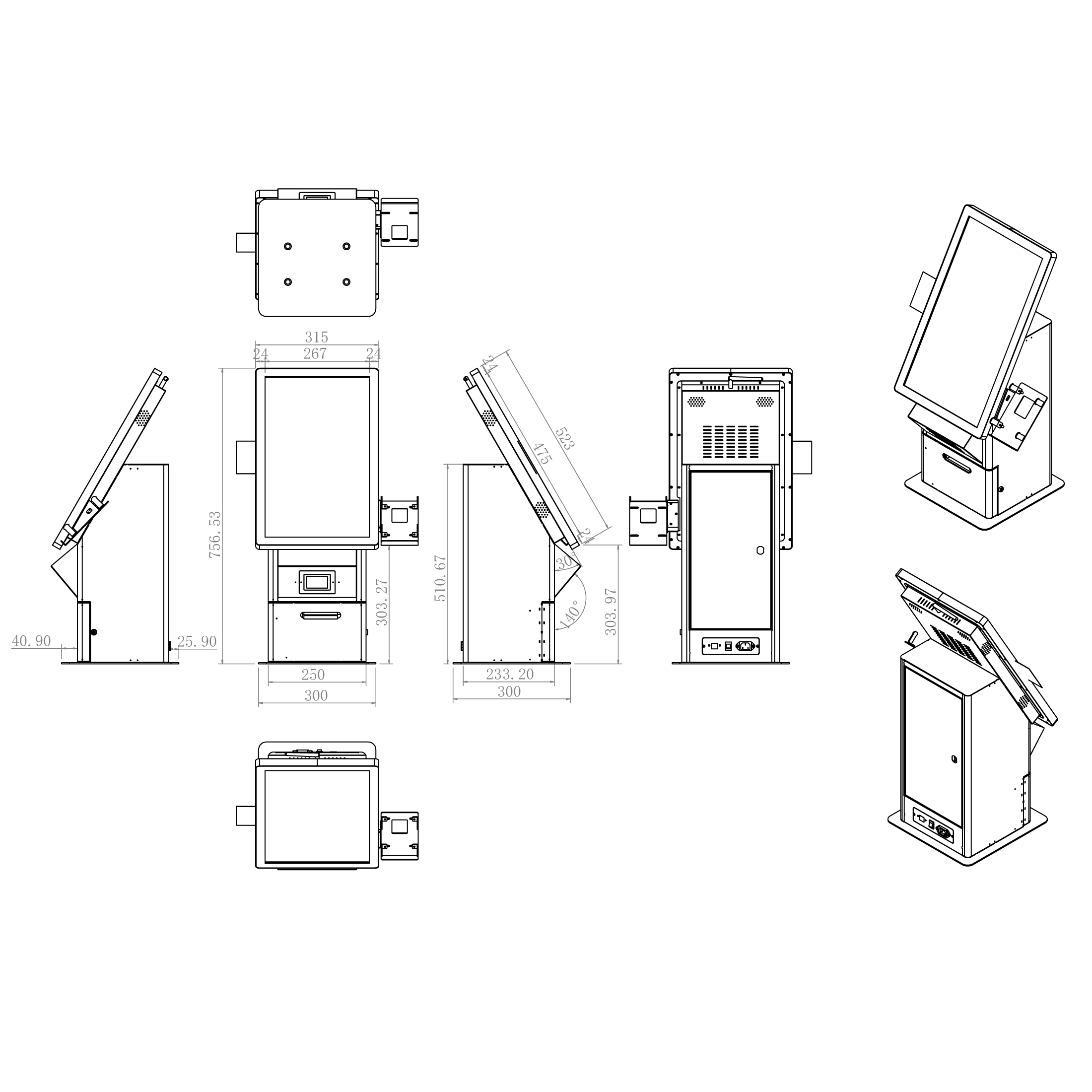

Dimensions & Countertop Footprint
The compact desktop structure is designed for countertop placement, small-space deployment, and customer-facing service counters.
Applications
Suitable for countertop self-service projects in restaurants, cafés, reception areas, retail counters, and compact service environments.
Counter Ordering
Self-Check-In
Payment Terminal
Ticketing
Reception Desk
Café Ordering
Retail Service Counter
Small-Space Self-Service
