Interactive Digital Whiteboard
4K interactive flat panel display for meeting rooms, classrooms, training rooms, and collaborative workspaces. Available in 65″, 75″, 85″, and 100″ sizes with Android system, infrared touch, whiteboard writing, annotation, and optional OPS Windows system.
Product Gallery
Review front view, side view, rear structure, floor-stand installation, wall-mounted installation, and application scenes.

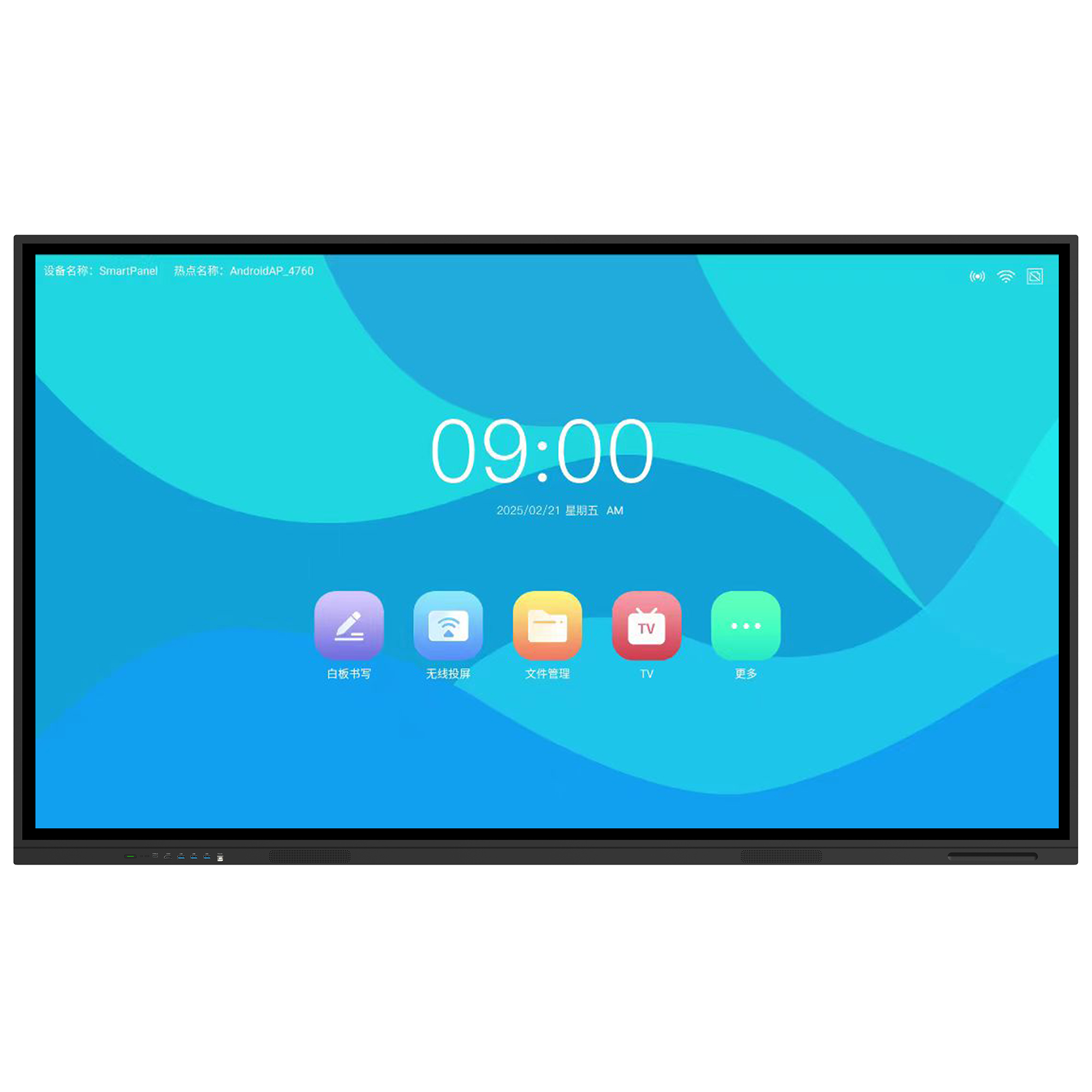

Front View

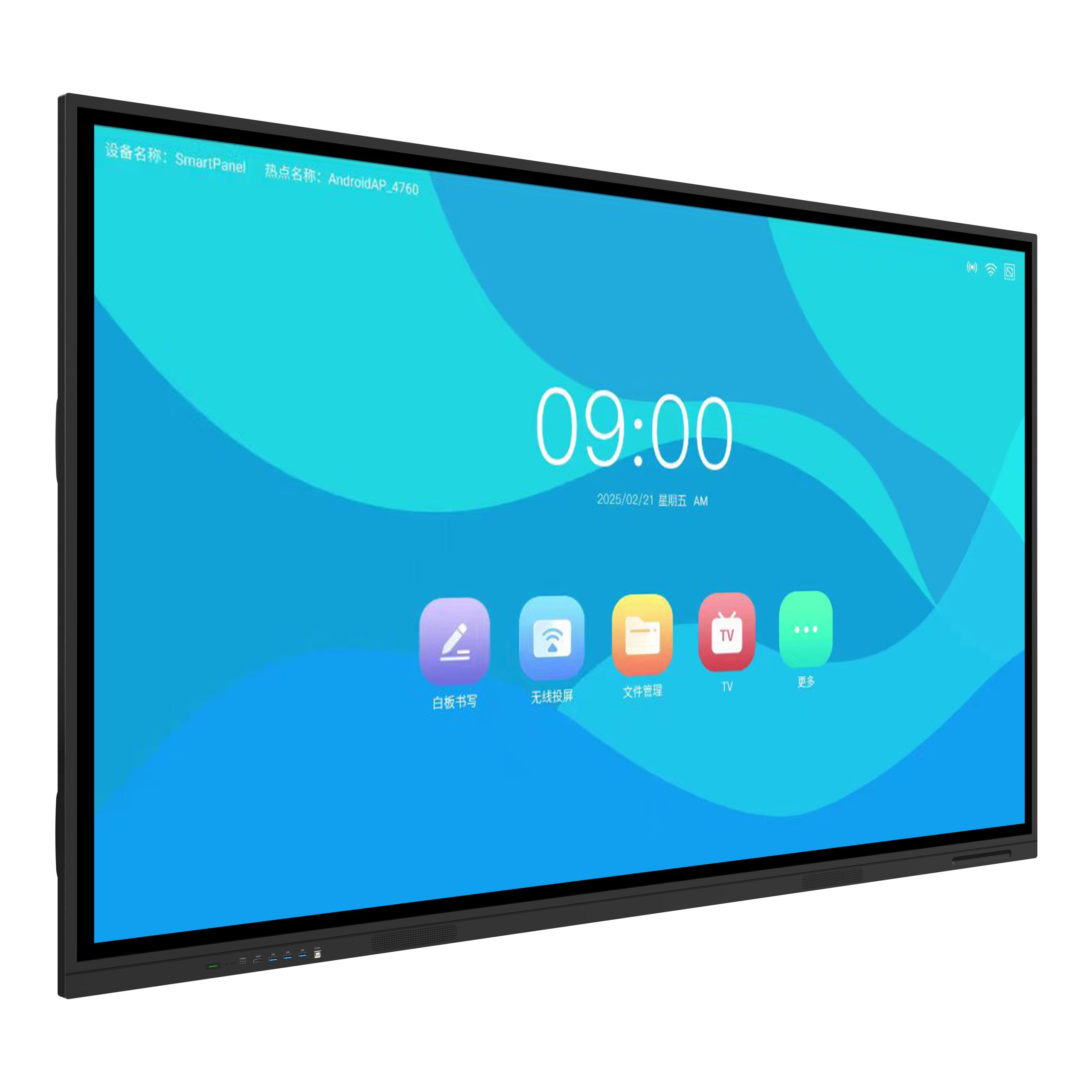

Side View

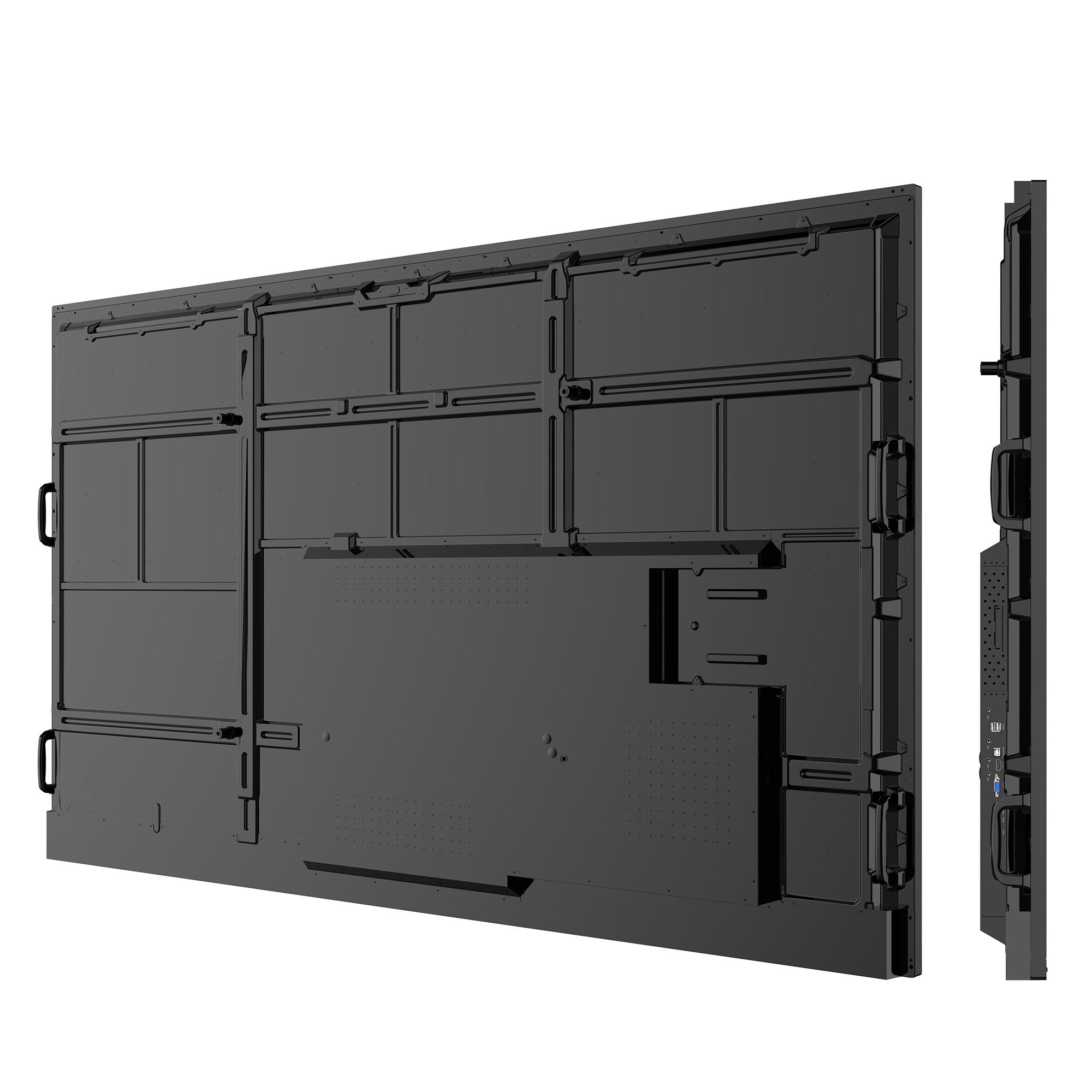

Rear Structure
Floor-Stand Installation
Wall-Mounted Installation

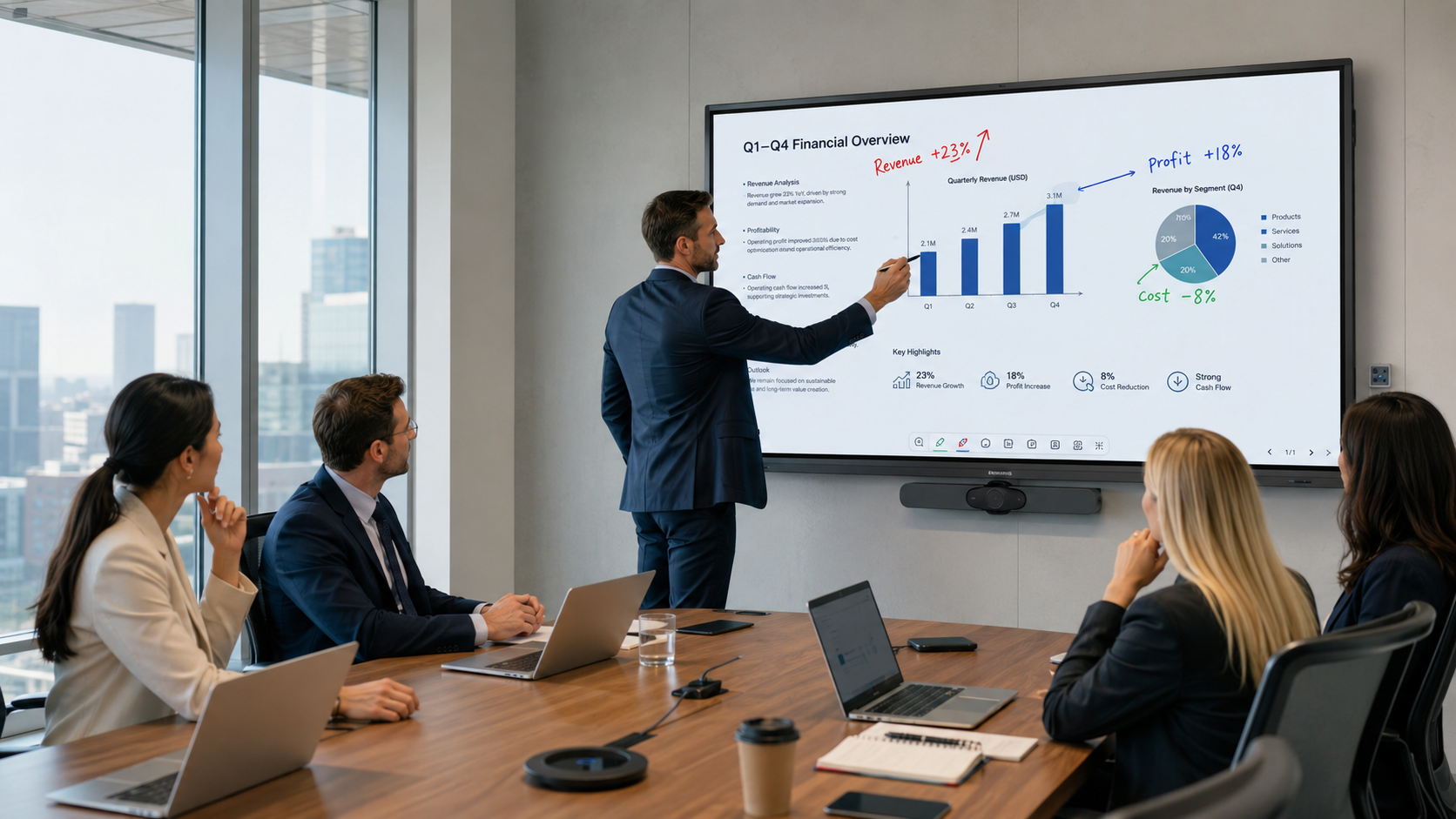

Meeting Room Scene

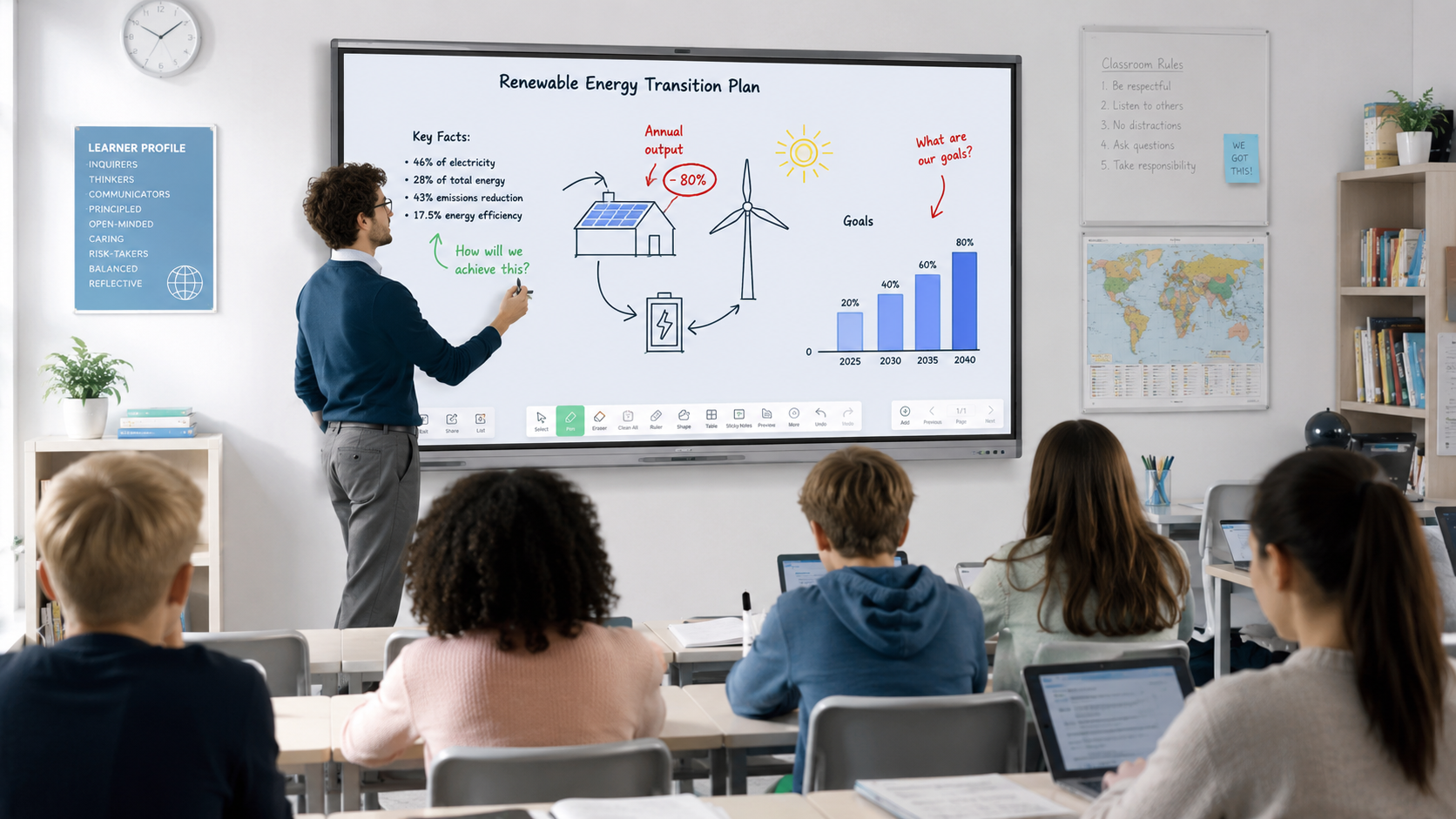

Classroom Scene
Built for Collaboration and Teaching
The interactive digital whiteboard is designed for both business collaboration and education environments.
Meeting Room Collaboration
Ideal for business meetings, presentations, brainstorming, document annotation, hybrid meetings, and collaborative discussions.
Classroom & Training
Suitable for smart classrooms, training centers, multimedia teaching, interactive writing, student engagement, and corporate training rooms.
Key Features
Designed as an all-in-one interactive flat panel display for modern meeting rooms, classrooms, and training environments.
4K UHD Interactive Display
3840 × 2160 resolution for clear presentation, teaching, annotation, and collaboration content.
20-Point Infrared Touch
High-precision infrared touch supports multi-user interaction under Android and Windows environments.
Android 14.0 Smart System
Built-in Android system supports smart operation, whiteboard functions, media playback, and daily collaboration use.
Whiteboard Writing & Annotation
Supports writing, annotation, page adding, zooming, roaming, and content sharing for meetings and teaching.
OPS Windows System Optional
OPS interface allows optional Windows system expansion for more software compatibility and project integration.
Wireless Sharing Support
Suitable for wireless presentation, classroom sharing, meeting collaboration, and multi-device content display.
Multiple I/O Ports
HDMI, USB, USB Touch, RJ45, Type-C, audio, and control interfaces support flexible project connection needs.
Wall-Mounted / Floor-Stand Installation
Supports wall-mounted installation and mobile floor-stand use for meeting rooms, classrooms, and training spaces.
Whiteboard Writing & Annotation Experience
More than a display screen, this interactive digital whiteboard supports real-time writing, teaching, annotation, and meeting collaboration.
Infrared Touch & Glass Protection
High-precision infrared touch and tempered glass provide reliable interaction for classrooms, meeting rooms, and training environments.
Technical Specifications
Key specifications for interactive digital whiteboard project evaluation, meeting room planning, and classroom display selection.
65″ / 75″ / 85″ / 100″
4K UHD 3840 × 2160
20-Point Infrared Touch
Android 14.0 / OPS Optional
Available Models & Interactive Whiteboard Configurations
| Model Reference | Screen Size | Series | Resolution | System | Touch | Application Theme |
|---|---|---|---|---|---|---|
| AS-IWB650 | 65″ | IWB Series | 4K UHD 3840 × 2160 | Android 14.0 / OPS optional | 20-point infrared touch | Meeting room / Education classroom |
| AS-IWB750 | 75″ | IWB Series | 4K UHD 3840 × 2160 | Android 14.0 / OPS optional | 20-point infrared touch | Meeting room / Education classroom |
| AS-IWB850 | 85″ | IWB Series | 4K UHD 3840 × 2160 | Android 14.0 / OPS optional | 20-point infrared touch | Meeting room / Education classroom |
| AS-IWB1000 | 100″ | IWB Series | 4K UHD 3840 × 2160 | Android 14.0 / OPS optional | 20-point infrared touch | Meeting room / Education classroom |
Note: Model references are based on screen size and interactive whiteboard series. Meeting room and education classroom themes are available for different usage scenarios. OPS Windows system, installation method, and accessory configuration can be adjusted according to project requirements.
| Screen Size | 65″ / 75″ / 85″ / 100″ |
|---|---|
| Resolution | 3840 × 2160 |
| Brightness | 300 cd/m² |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 178° / 178° |
| Touch Type | Infrared touch |
| Touch Points | 20-point touch |
| Glass | 3.2mm tempered glass |
| System | Android 14.0 |
| CPU | Quad-core Cortex-A73 |
| GPU | Mali-G52 |
| RAM / ROM | 4GB / 32GB |
| OPS | Optional, Windows 7 / 10 / 11 compatible |
| Speaker | 10W × 2 |
| Input / Output | HDMI / USB / USB Touch |
| Installation | Wall-mounted / Floor-standing |
| VESA | Yes |
| Power Input | 100–250V |

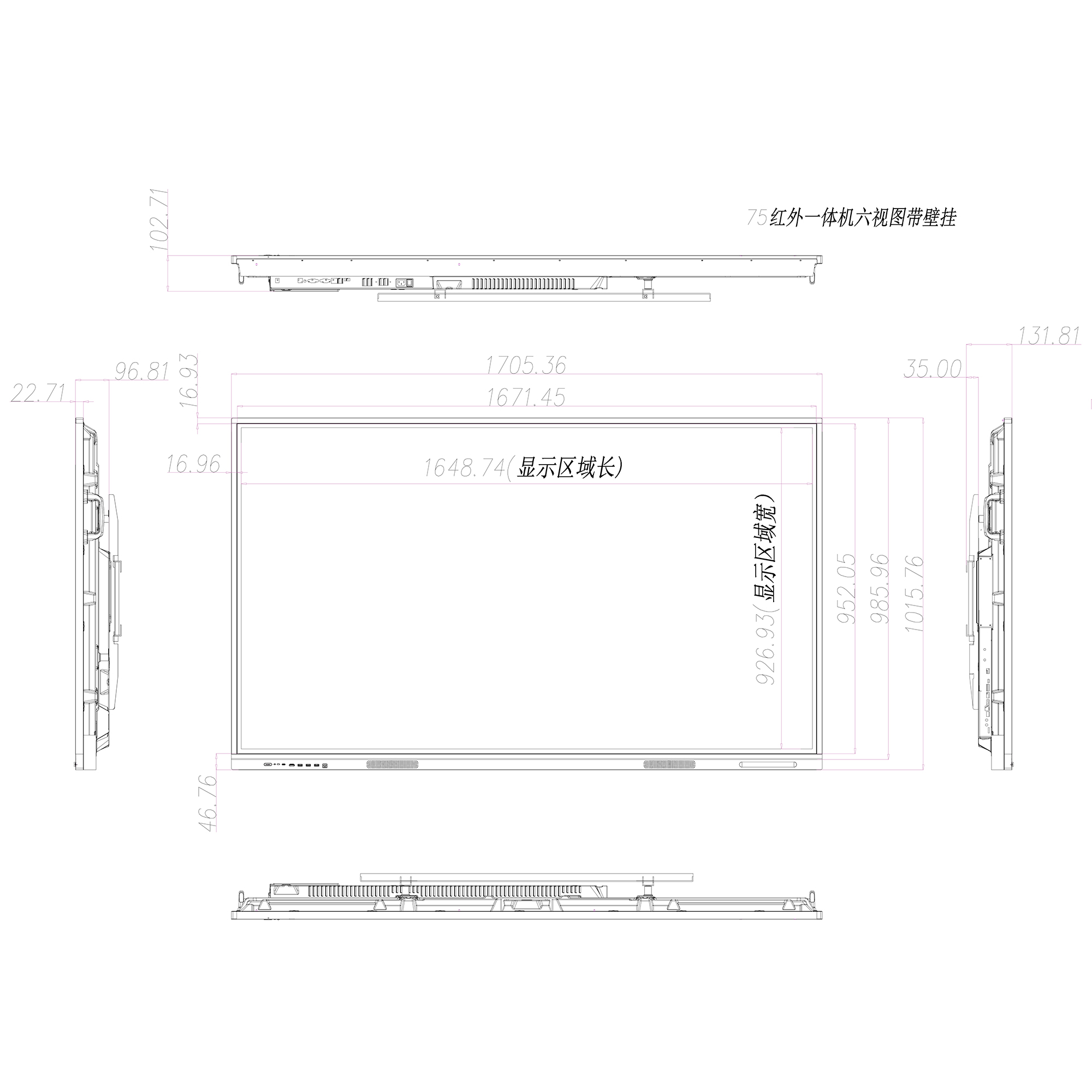

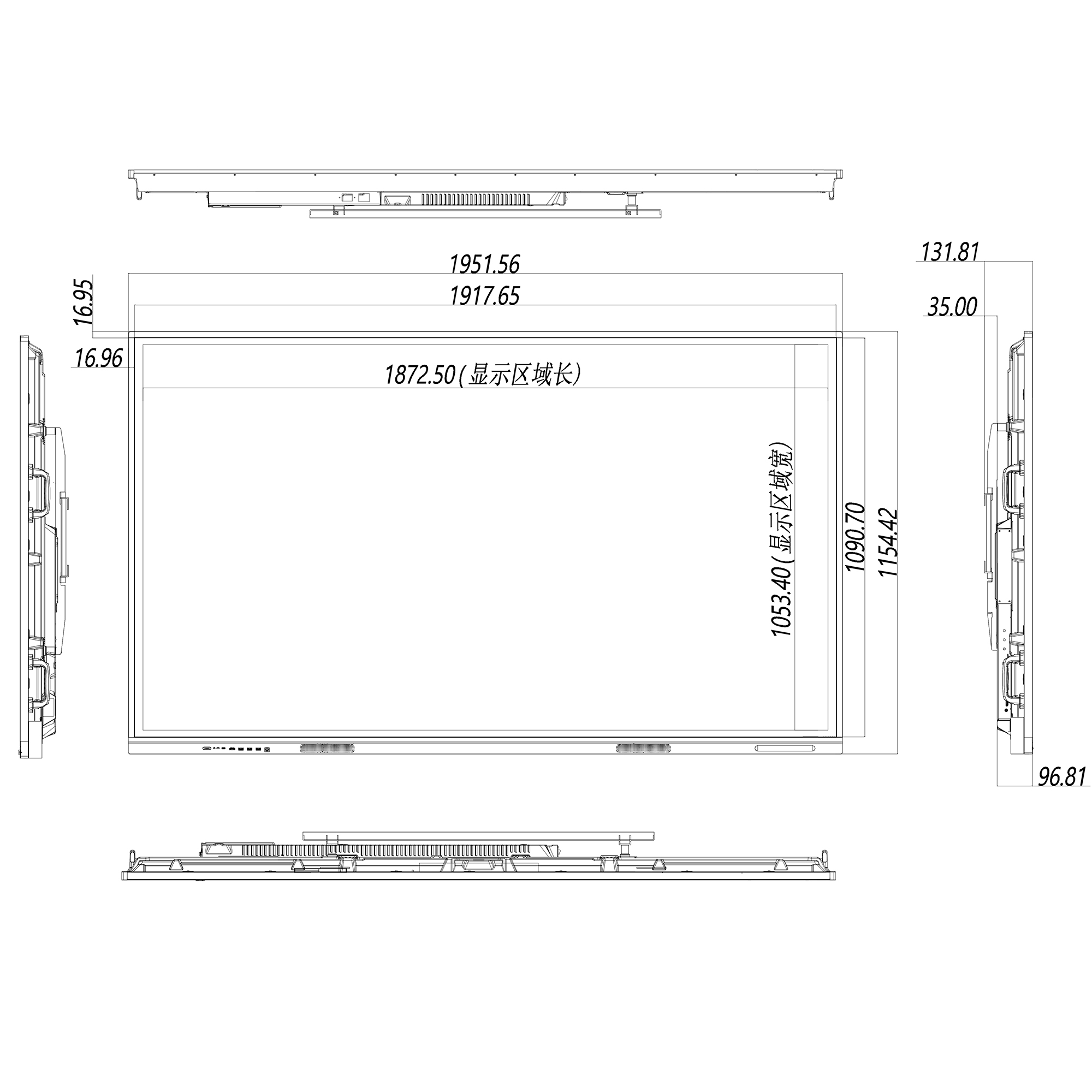

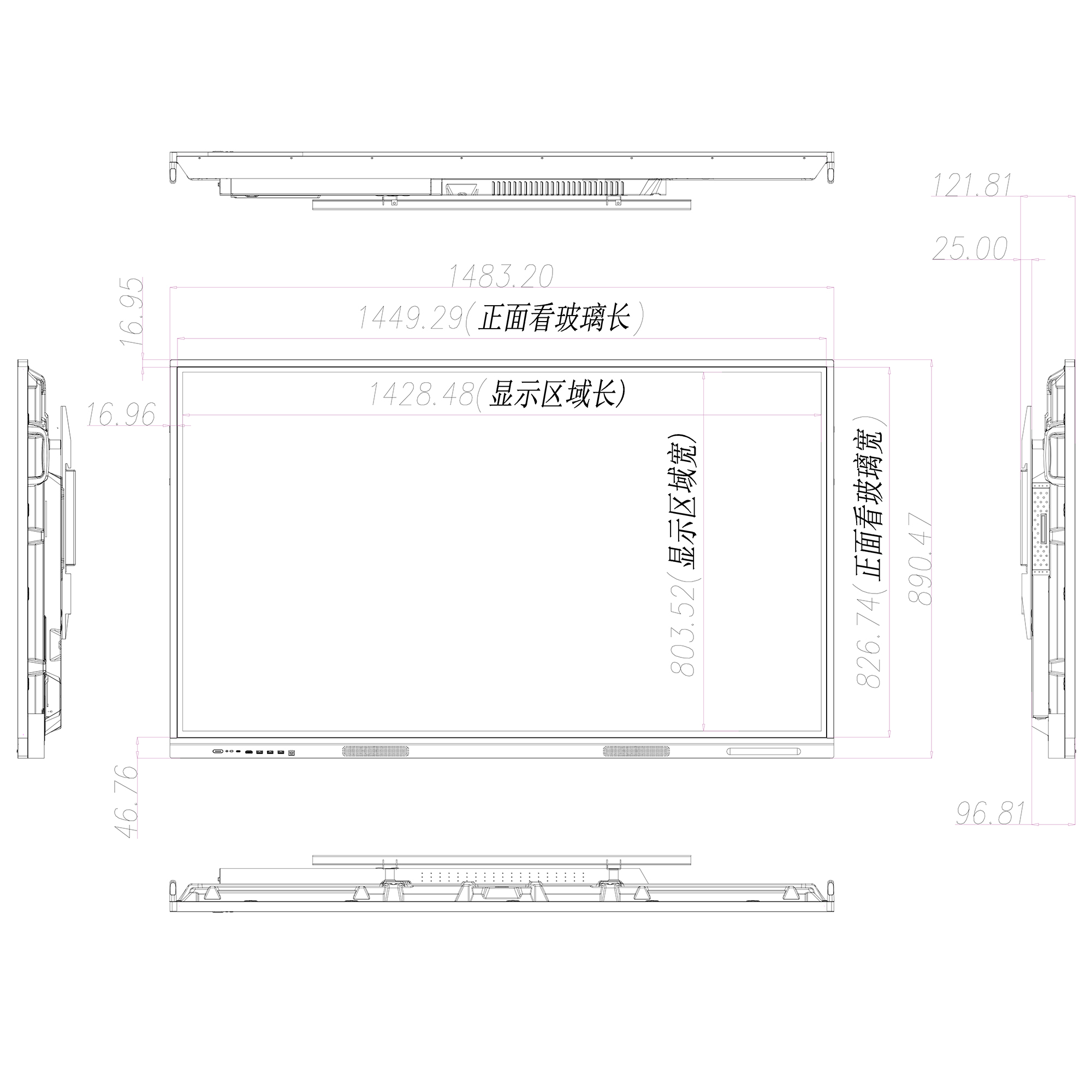

Dimensions & Installation Drawings

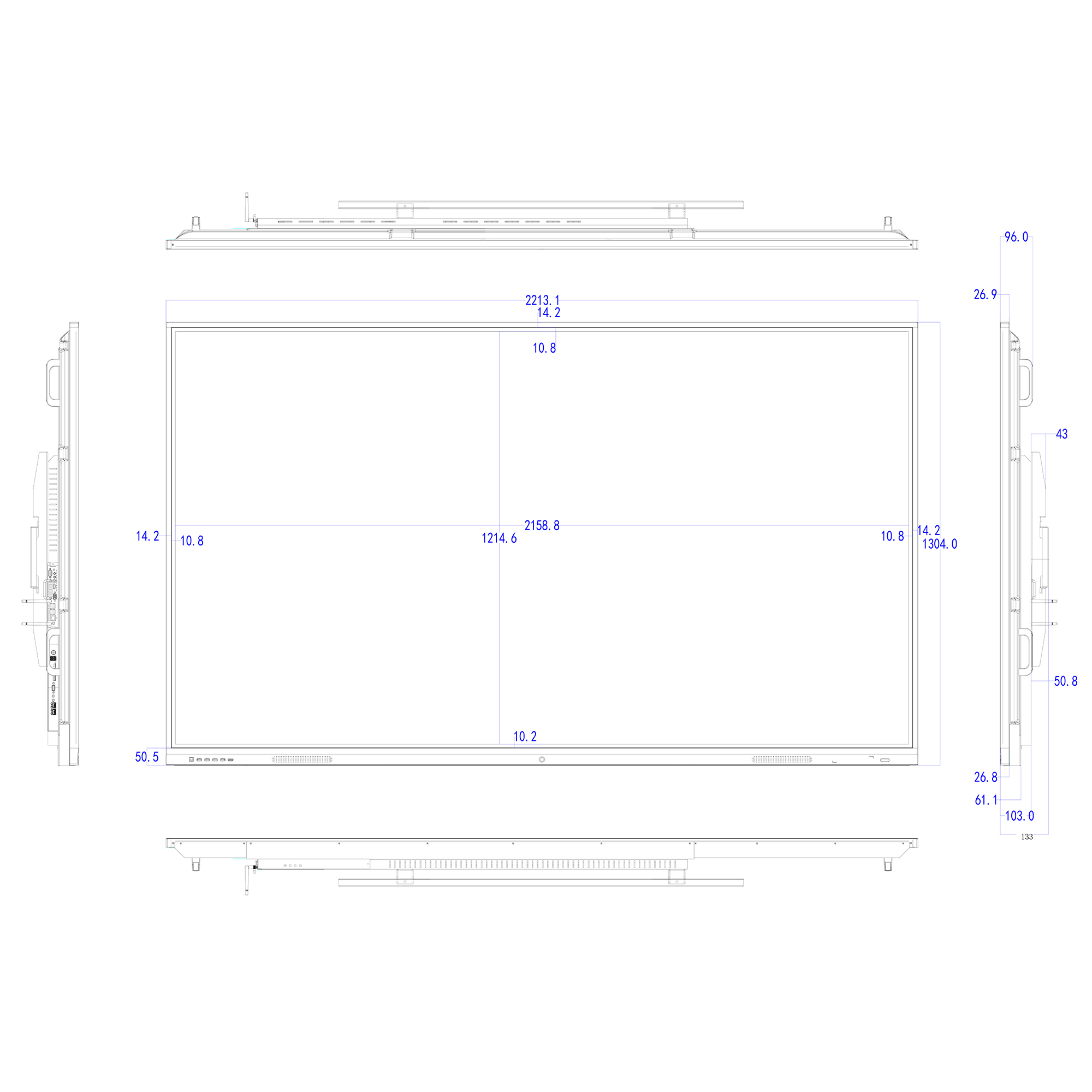

Select a size to view the corresponding dimension drawing. The 100-inch option uses the available 98-inch drawing reference.
Note: The specification shown on this page is based on the standard interactive whiteboard platform. Final dimensions and parameters can be confirmed according to selected size and project requirements.
Applications
Suitable for interactive collaboration, teaching, training, presentation, and hybrid communication environments.
Meeting Room Collaboration
Conference Room Presentation
Smart Classroom
Training Room
Corporate Office
Education Institution
Government Meeting Room
Hybrid Meeting / Remote Collaboration
