Slim-Bezel Indoor Digital Signage Display
Ultra-slim indoor LCD display with an 8mm narrow bezel, 58.3mm slim body, metal frame structure, and flexible wall-mounted, hanging, or floor-stand installation for commercial display projects.
Product Gallery
Review front view, slim body, narrow bezel, rear structure, wall-mounted, hanging, floor-stand, and application scene views.

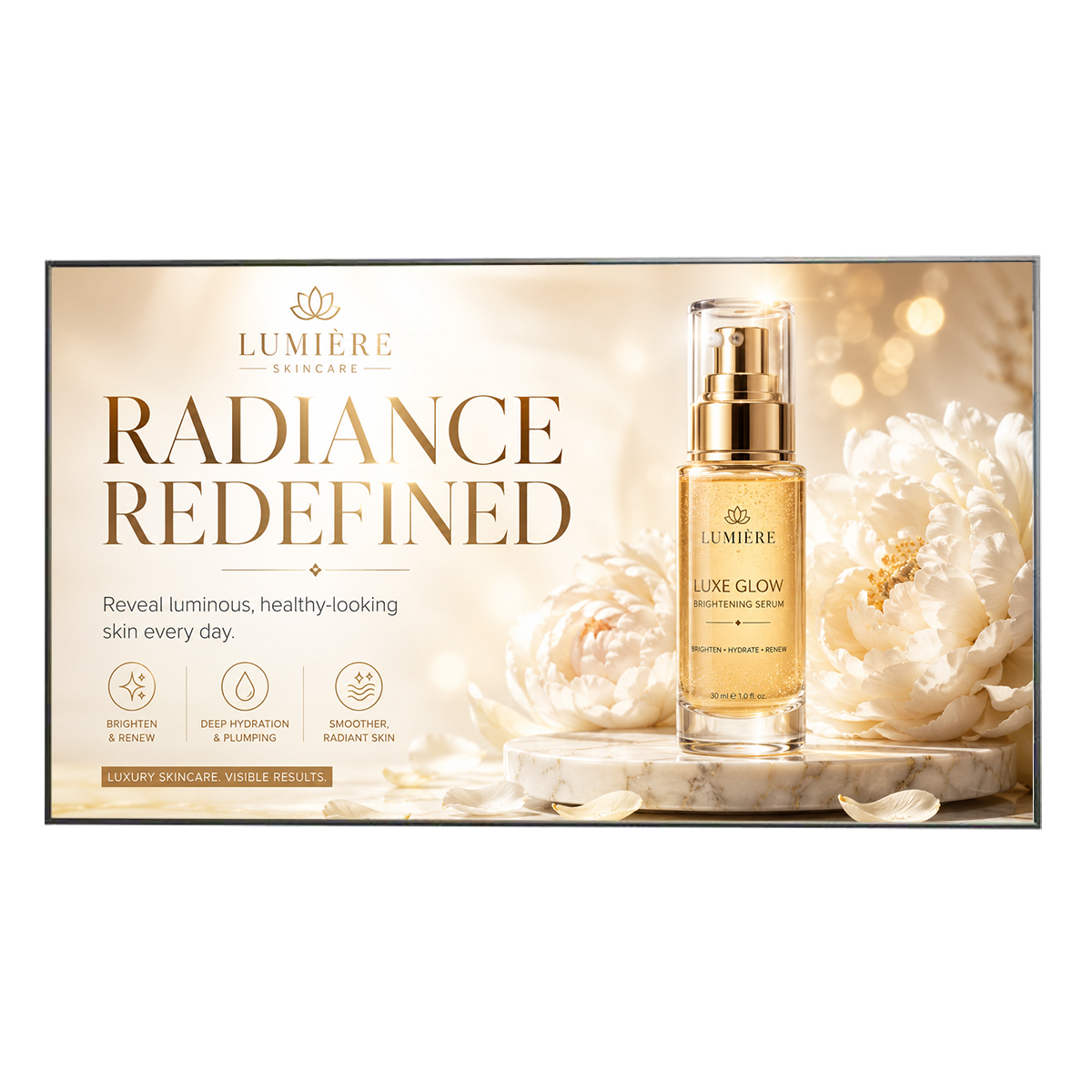

Front View

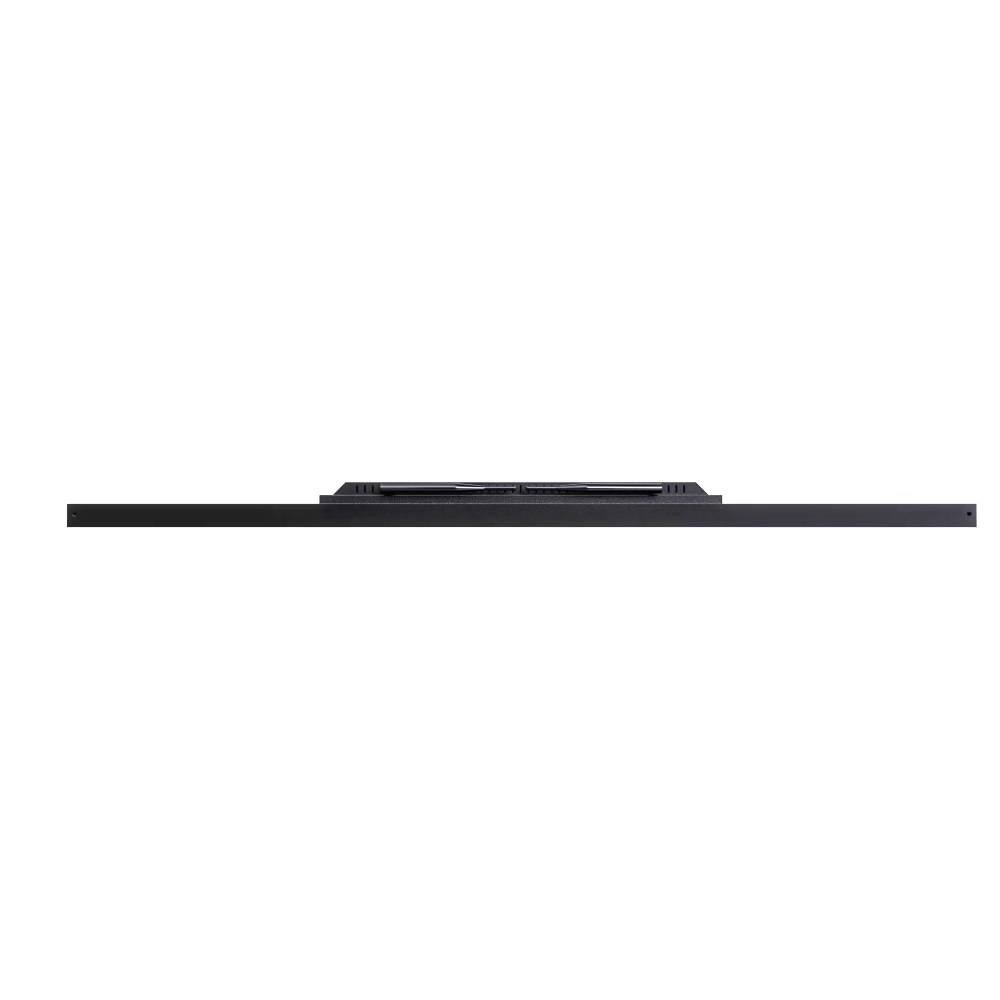

Slim Body

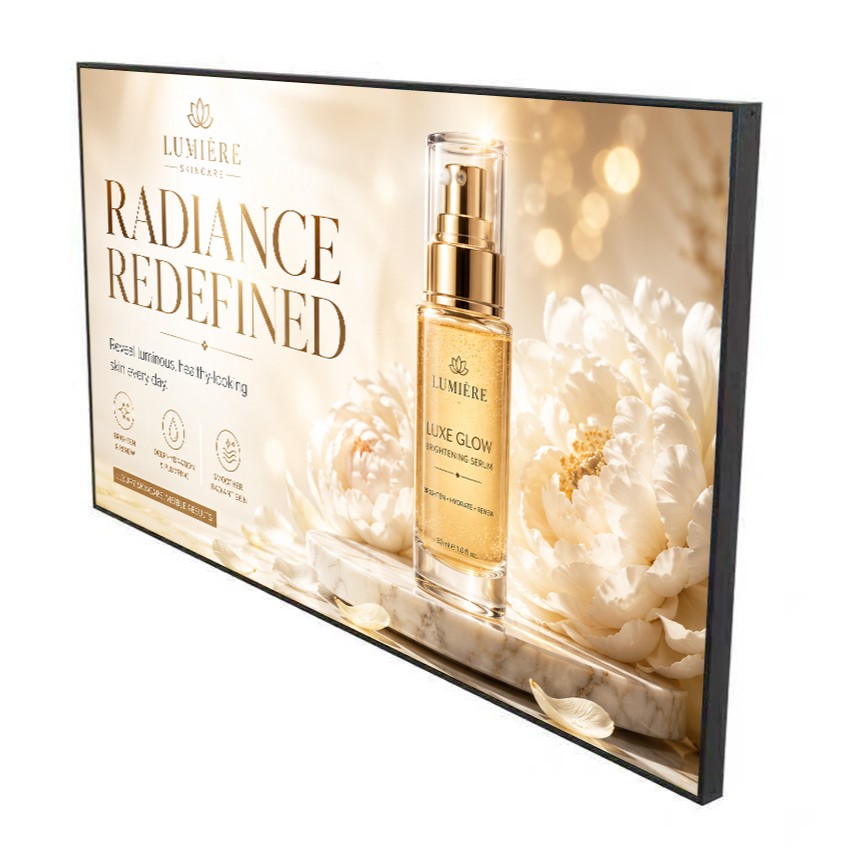

Slim Bezel Detail

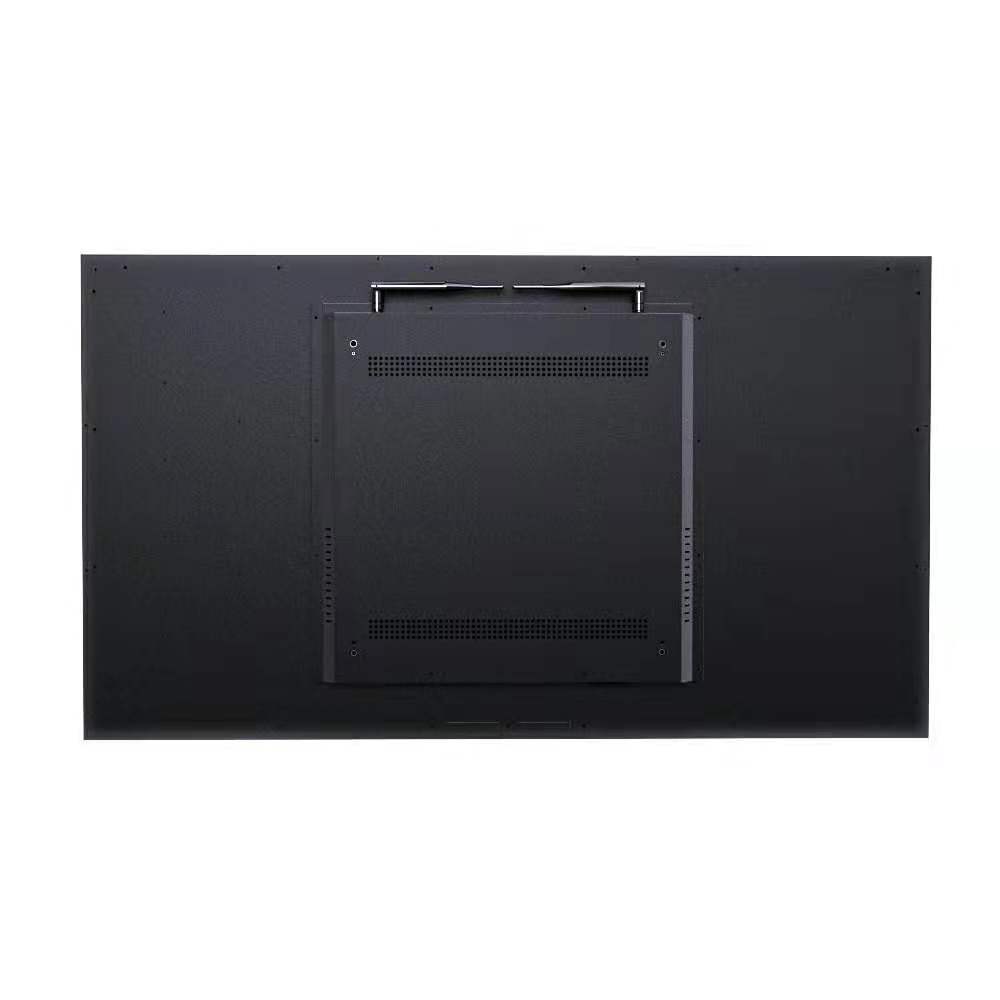

Rear Structure
Wall-Mounted Installation

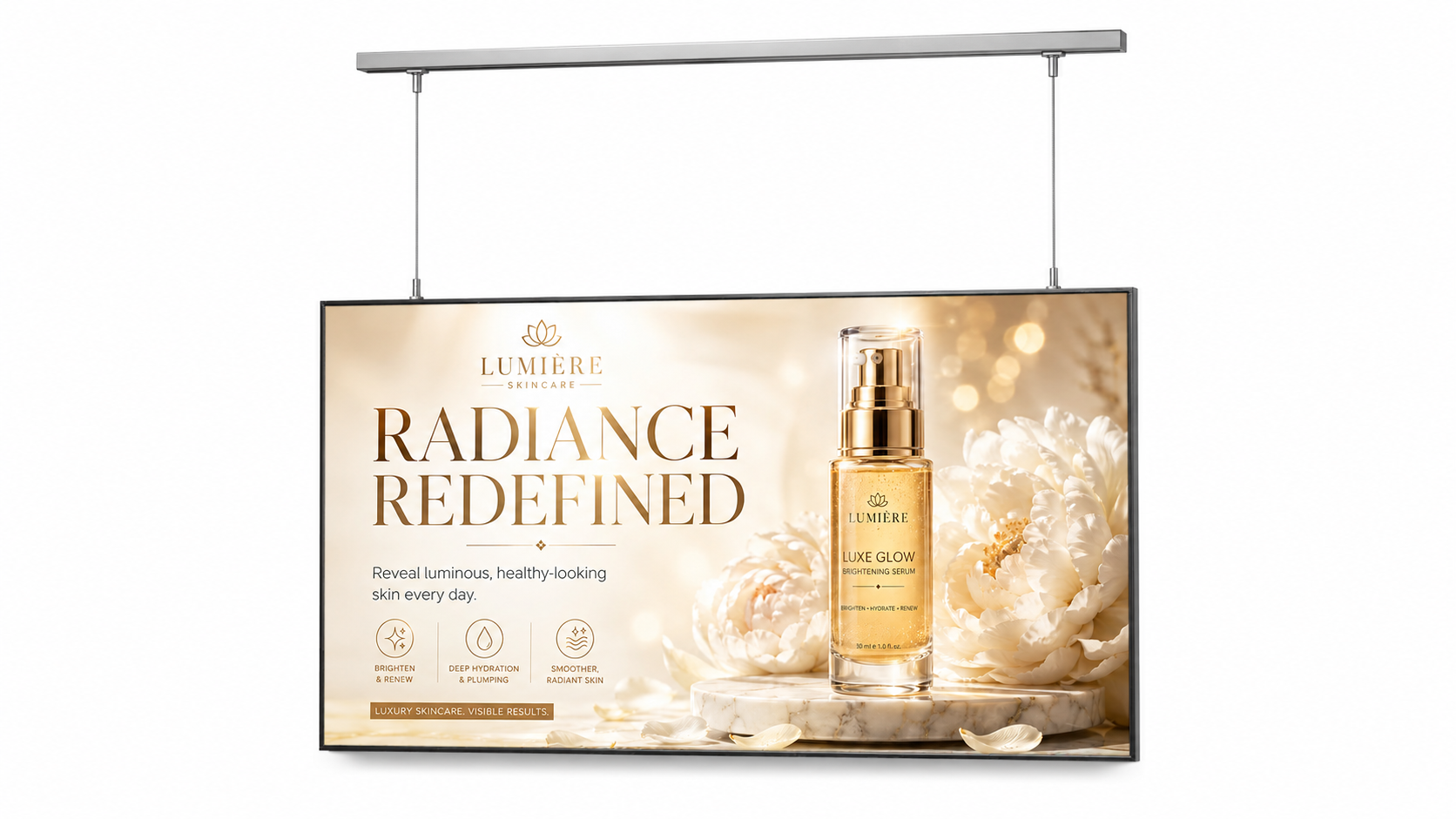

Hanging Installation

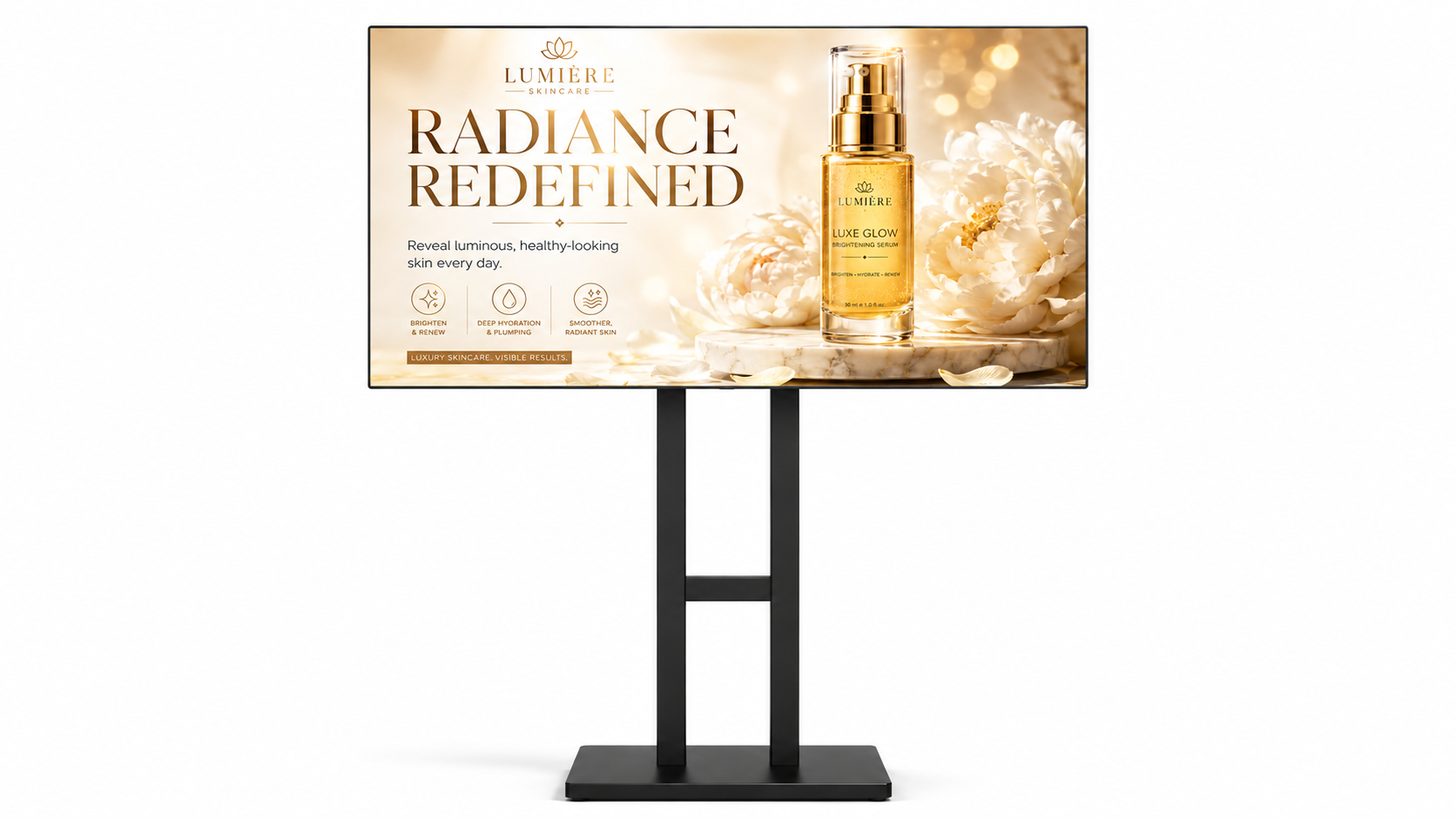

Floor-Stand Installation
Application Scene
Design Advantage
Built for commercial display projects that require a cleaner appearance, slimmer structure, easier installation, and better project logistics.
8mm Slim Bezel Design
The narrow bezel creates a cleaner screen-to-body ratio and a more refined visual appearance for indoor digital signage projects.
Four-Side Symmetrical Front Design
The front frame is visually balanced on all four sides, making it suitable for both portrait and landscape display applications.
58.3mm Slim Body
The slim body breaks the traditional impression that commercial displays must be bulky, helping reduce packing volume and logistics pressure.
Modern Metal Frame Structure
SPCC steel structure and refined industrial design provide a durable, professional appearance for commercial environments.
Structure & Material
Designed with a slim industrial structure and stable internal assembly for long-term indoor commercial display use.
Installation Options
Standard mounting holes and flexible installation methods make this indoor digital signage display suitable for different commercial display projects.
Wall-Mounted Installation
For indoor advertising, retail signage, menu boards, commercial wall display, and public information projects.
Hanging Installation
For restaurant counter menu boards, commercial entrance displays, and suspended indoor signage projects.
Floor-Stand Installation
For digital poster display, retail promotion, shopping mall advertising, and flexible indoor placement.
Key Features
A slim-bezel indoor digital signage display built for commercial display projects, restaurant menu boards, retail advertising, and digital poster applications.
8mm Ultra-Slim Bezel
Clean narrow-bezel front appearance for modern indoor signage and commercial LCD display projects.
58.3mm Slim Body
Slim body design helps reduce product bulk, packing volume, and logistics pressure for project buyers.
Four-Side Symmetrical Front Design
Balanced front frame design supports a cleaner appearance in portrait or landscape installation.
Full-Metal Frame Structure
Durable SPCC steel structure with refined surface treatment for commercial display environments.
Portrait / Landscape Supported
Suitable for menu boards, digital posters, retail signage, and commercial information displays.
Multiple Installation Options
Supports wall-mounted, hanging, and floor-stand installation for different indoor display layouts.
Android / Windows / HDMI Optional
Flexible system options support signage software, media playback, external HDMI input, and integration.
Project-Based Customization
Screen size, touch function, system, structure, logo, and installation details can be configured by project.
Why Slim Design Matters
For B2B commercial display projects, slim structure is not only about appearance. It also affects installation, packaging, shipping cost, and project handling.
| Traditional Indoor Display | AISICAN Slim-Bezel Indoor Display |
|---|---|
| Wider bezel, often around 15mm | 8mm narrow bezel for cleaner visual appearance |
| Body thickness often over 80mm | 58.3mm slim body for a more modern industrial design |
| Bulkier packaging and larger shipping volume | More compact packing volume helps reduce logistics pressure |
| Heavier structure increases installation and handling difficulty | Optimized metal structure helps reduce product weight and improve handling efficiency |
| Less refined front appearance for retail-facing environments | Four-side symmetrical front design for balanced portrait and landscape display projects |
Technical Specifications
Key specifications for indoor digital signage display project evaluation, quotation, and configuration.
32″ / 43″ / 49″ / 55″ / 65″ / 75″ / 85″
8mm
58.3mm
Portrait / Landscape
Available Models & Indoor Signage Configurations
| Model Reference | Screen Size | Series | Brightness Options | Installation Configuration | Orientation |
|---|---|---|---|---|---|
| AS-WD320D-MT1 | 32″ | MT1 Series | 400–1200 nits / 1300–2000 nits optional | Wall-mounted / Hanging / Floor stand | Portrait / Landscape |
| AS-WD430D-MT1 | 43″ | MT1 Series | 400–1200 nits / 1300–2000 nits optional | Wall-mounted / Hanging / Floor stand | Portrait / Landscape |
| AS-WD490D-MT1 | 49″ | MT1 Series | 400–1200 nits / 1300–2000 nits optional | Wall-mounted / Hanging / Floor stand | Portrait / Landscape |
| AS-WD550D-MT1 | 55″ | MT1 Series | 400–1200 nits / 1300–2000 nits optional | Wall-mounted / Hanging / Floor stand | Portrait / Landscape |
| AS-WD650D-MT1 | 65″ | MT1 Series | 400–1200 nits / 1300–2000 nits optional | Wall-mounted / Hanging / Floor stand | Portrait / Landscape |
| AS-WD750D-MT1 | 75″ | MT1 Series | 400–1200 nits / 1300–2000 nits optional | Wall-mounted / Hanging / Floor stand | Portrait / Landscape |
Note: Model references are based on the slim-bezel indoor digital signage display body series. Brightness level, installation method, system configuration, and touch function can be adjusted according to project requirements.
| Screen Size | 32″ / 43″ / 49″ / 55″ / 65″ / 75″ |
|---|---|
| Brightness | 400–1200 nits and 1300-2000 nits are optional |
| Resolution | Max 3840 × 2160 |
| Bezel Width | 8mm |
| Body Thickness | 58.3mm |
| Frame Material | SPCC steel |
| Back Cover Material | SPCC steel |
| Installation | Wall-mounted / Hanging / Floor stand |
| Orientation | Portrait / Landscape |
| System | Android / Windows / Linux |
| Input | HDMI / USB |
| Touch | Optional |
| Operating Hours | 24/7 operation |
| Enclosure Color | Black |
| Logo Customization | Yes |
| Structure Customization | Yes |
| Power Input | 100–250V |

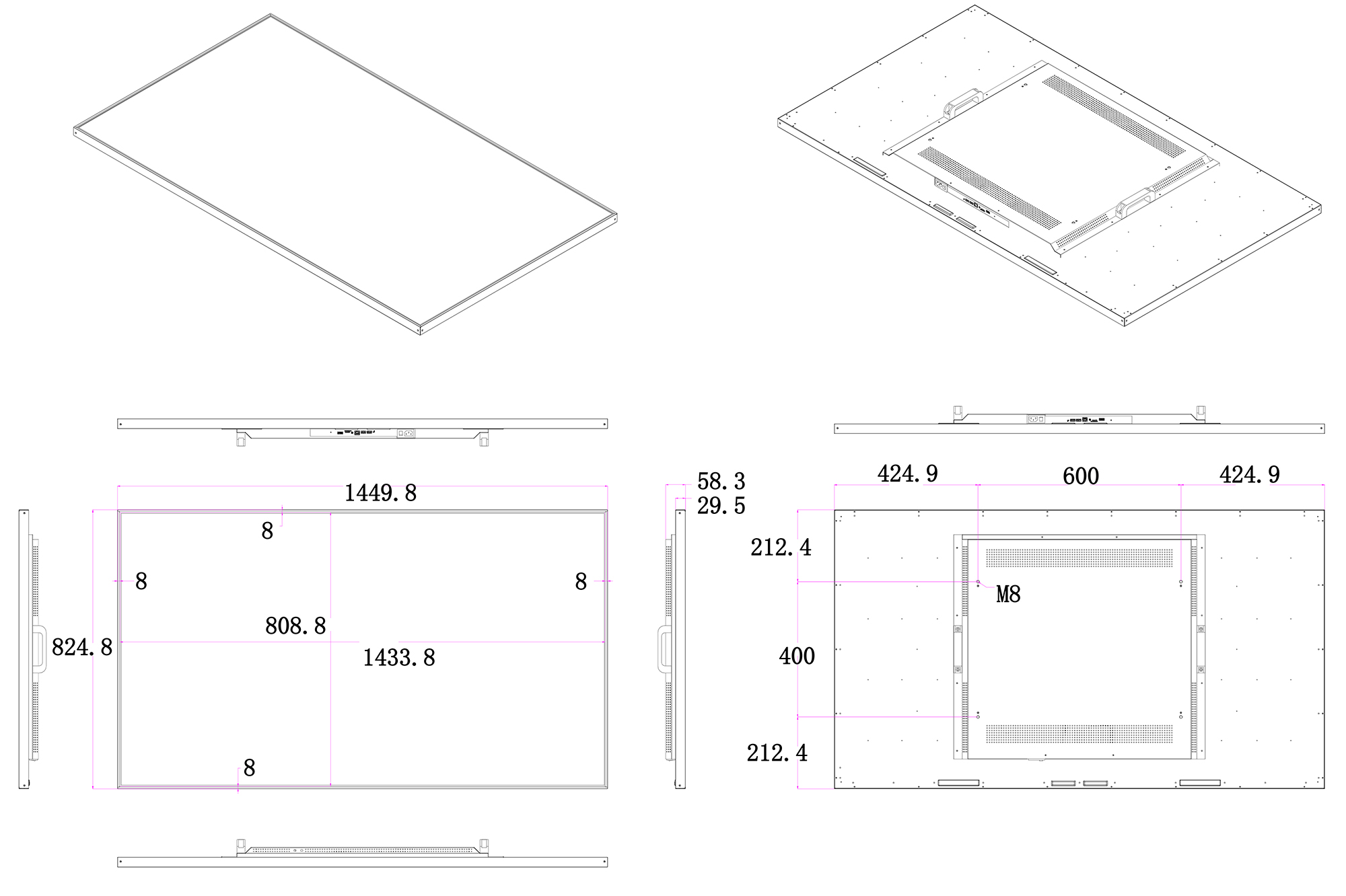

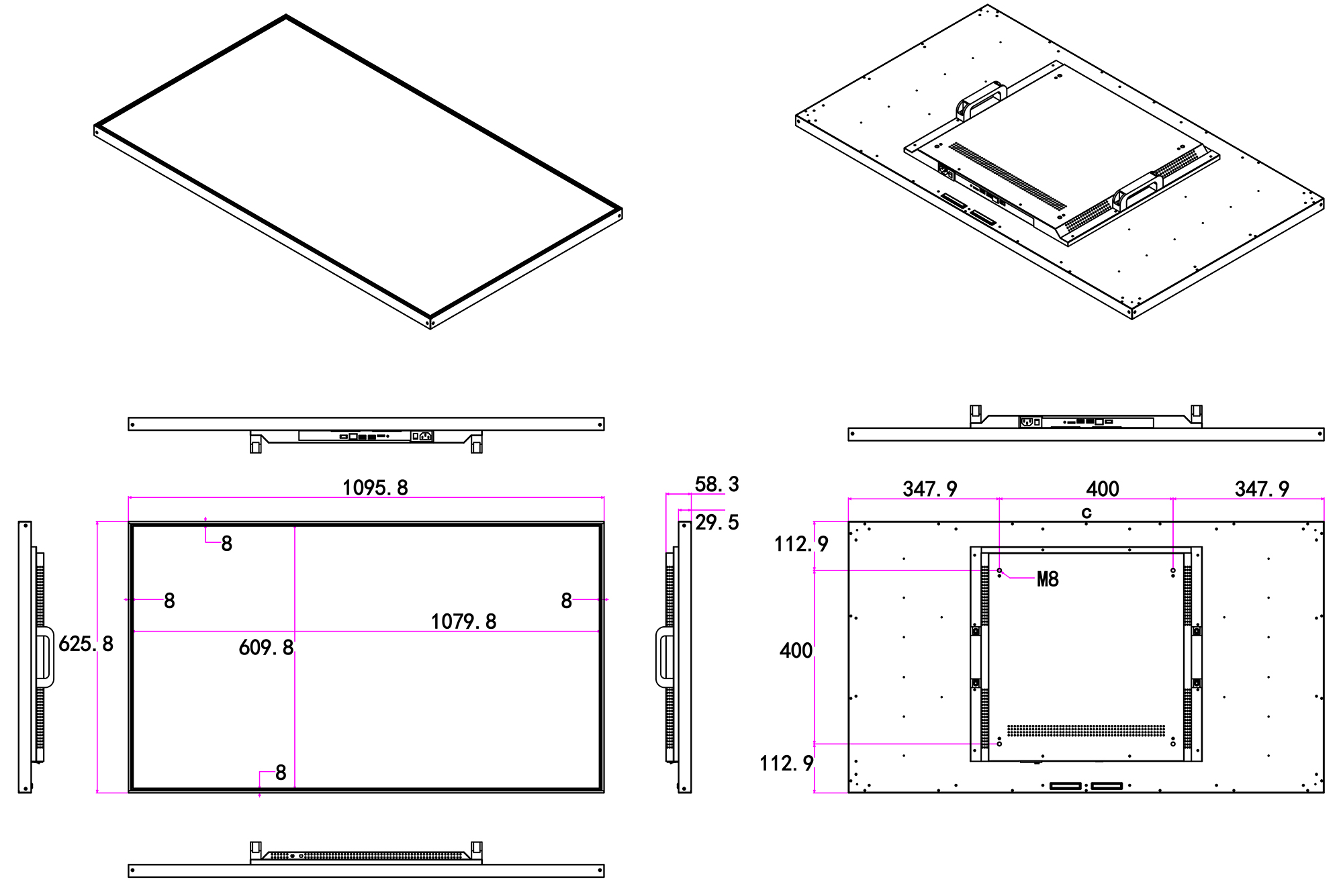

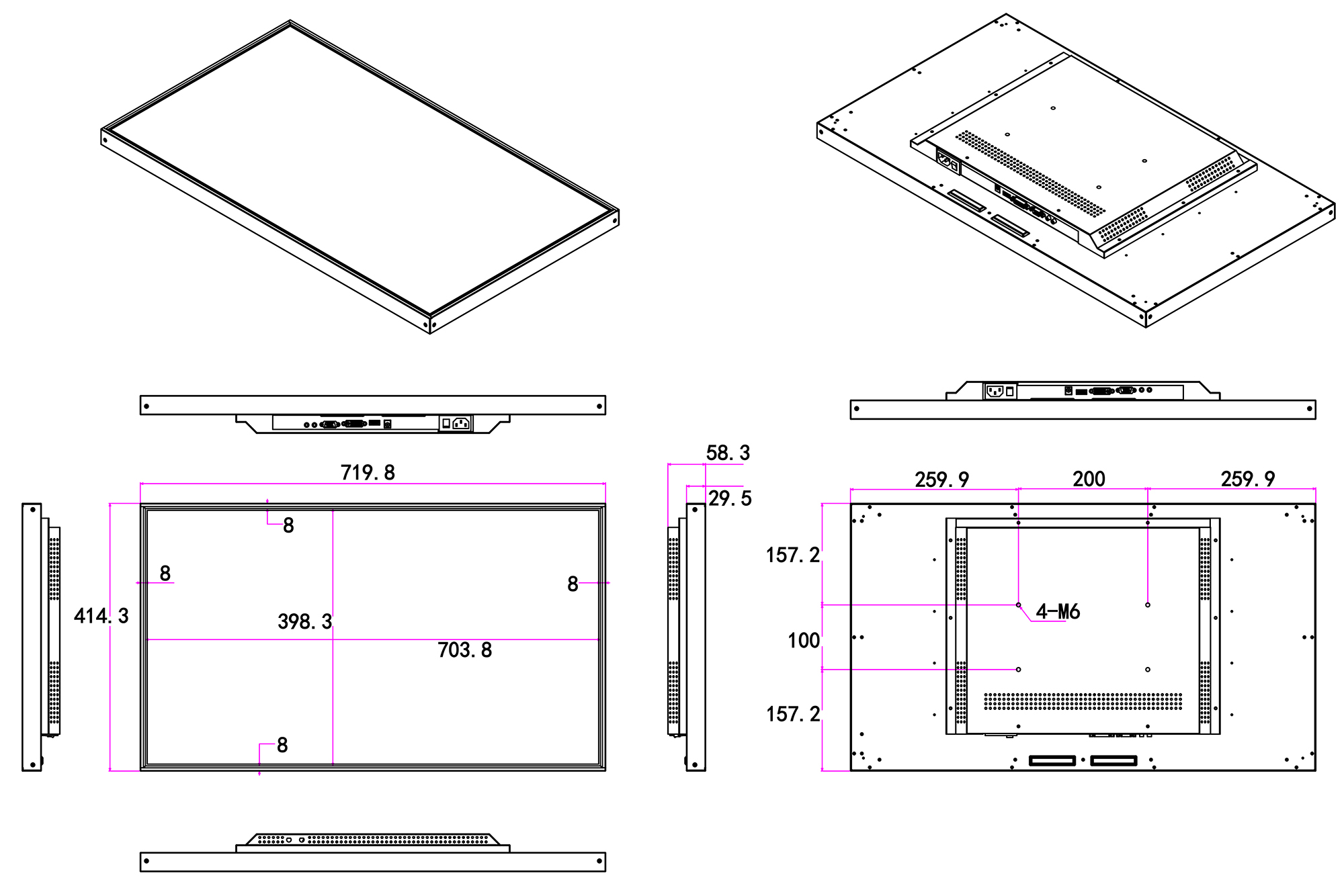

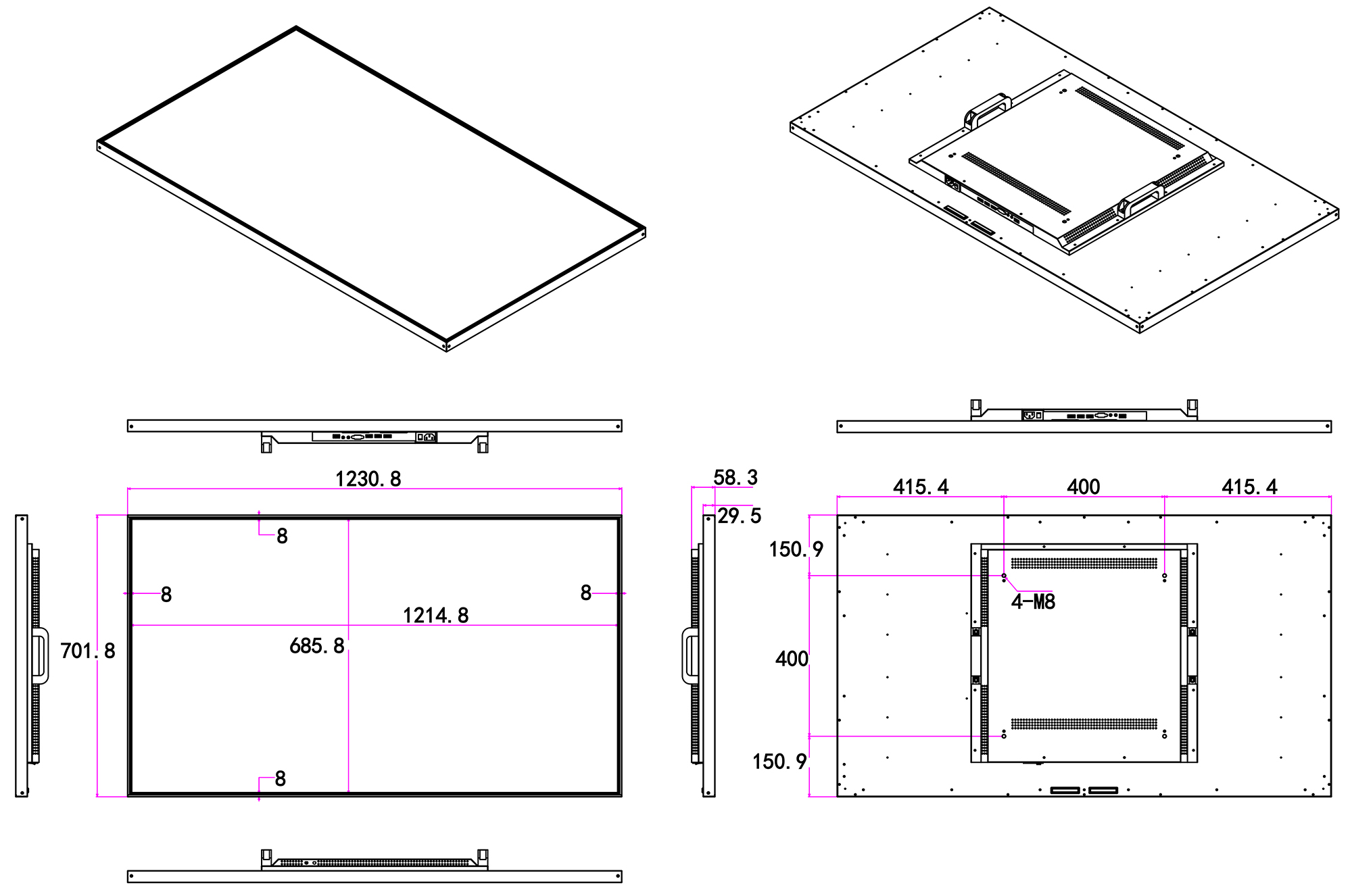

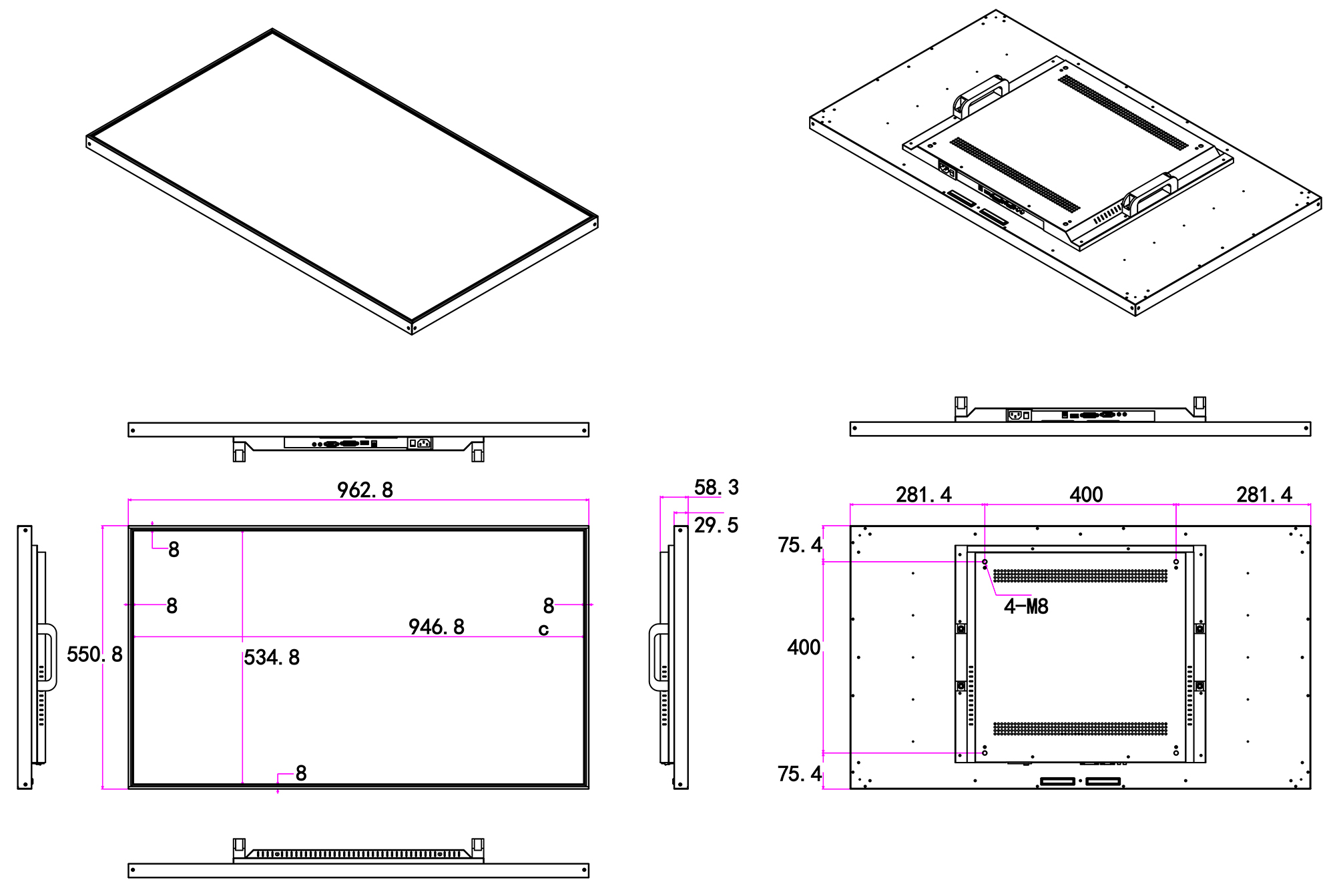

Dimensions & Installation Drawings
Select a screen size to view the available dimension drawing. Additional size and installation drawings can be provided based on project requirements.
Note: 75-inch dimension drawings can be provided based on selected project size and installation method.
Applications
Suitable for indoor commercial display projects, retail environments, restaurant menu boards, digital poster display, and public information signage.
Indoor Digital Signage Display

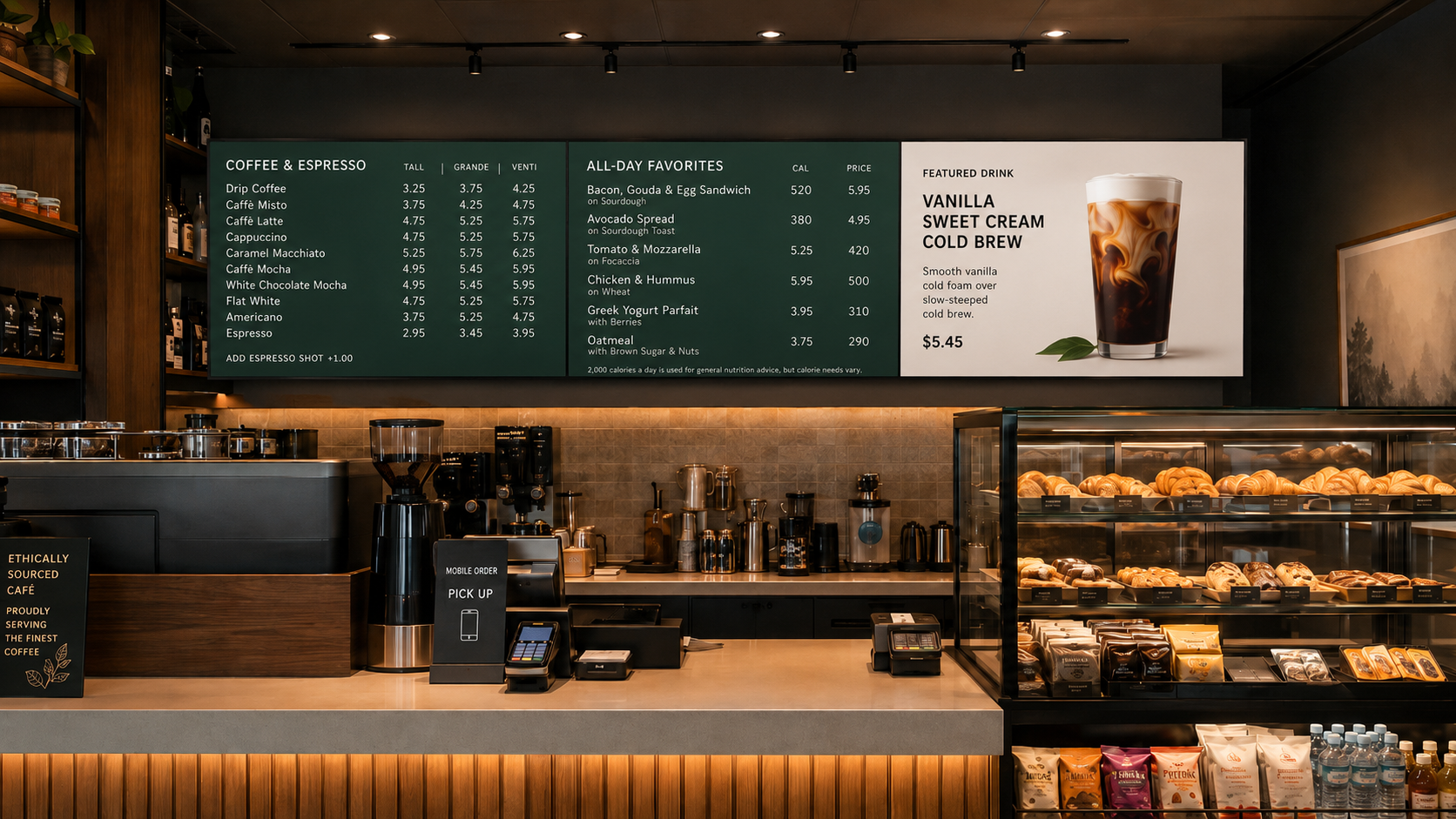

Restaurant Counter Menu Board
Commercial Entrance Signage
Digital Poster Display

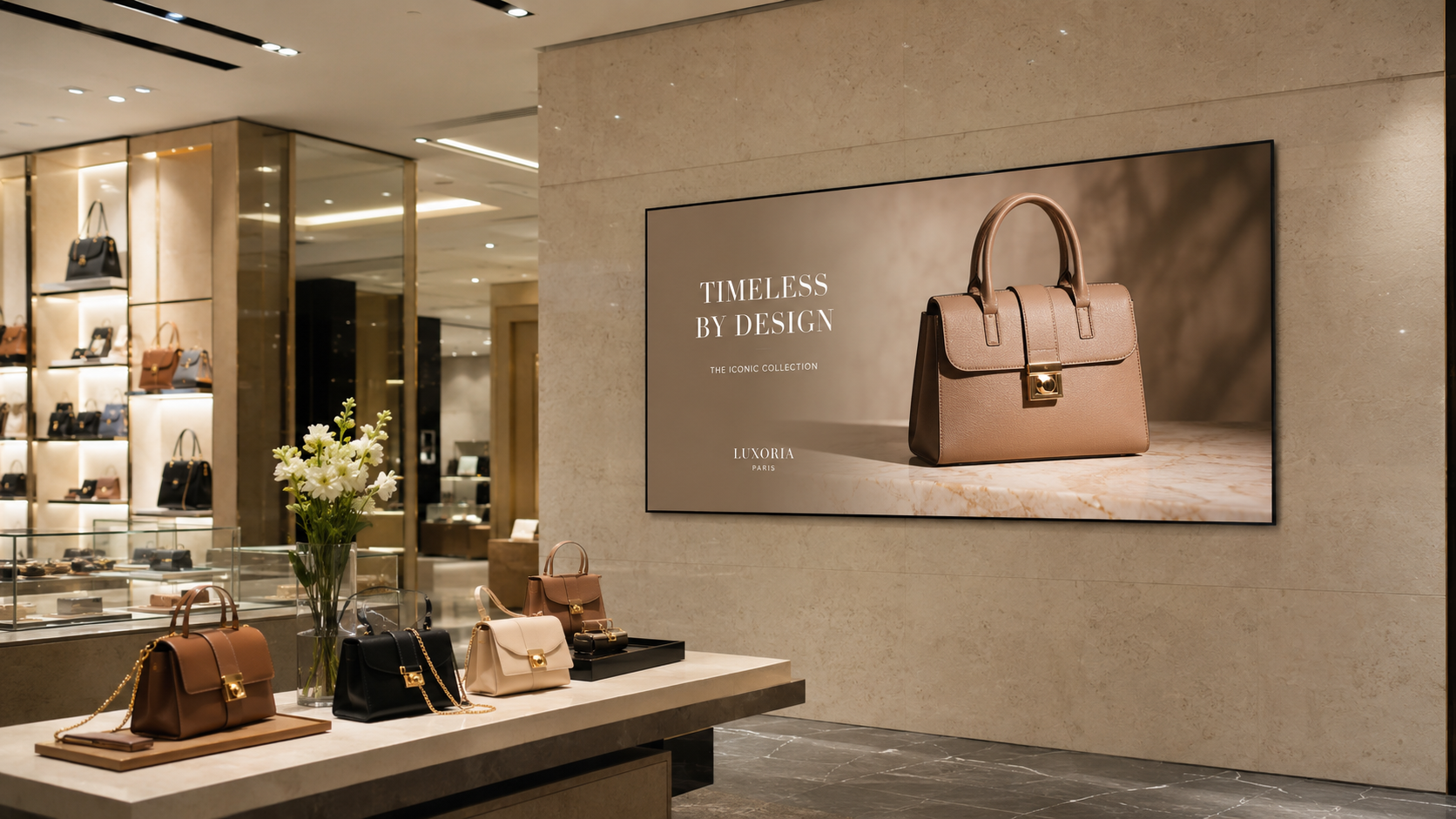

Retail Wall-Mounted Advertising
Video Wall / Monitor-Style Display
Shopping Mall Information Display
Corporate / Public Information Display
