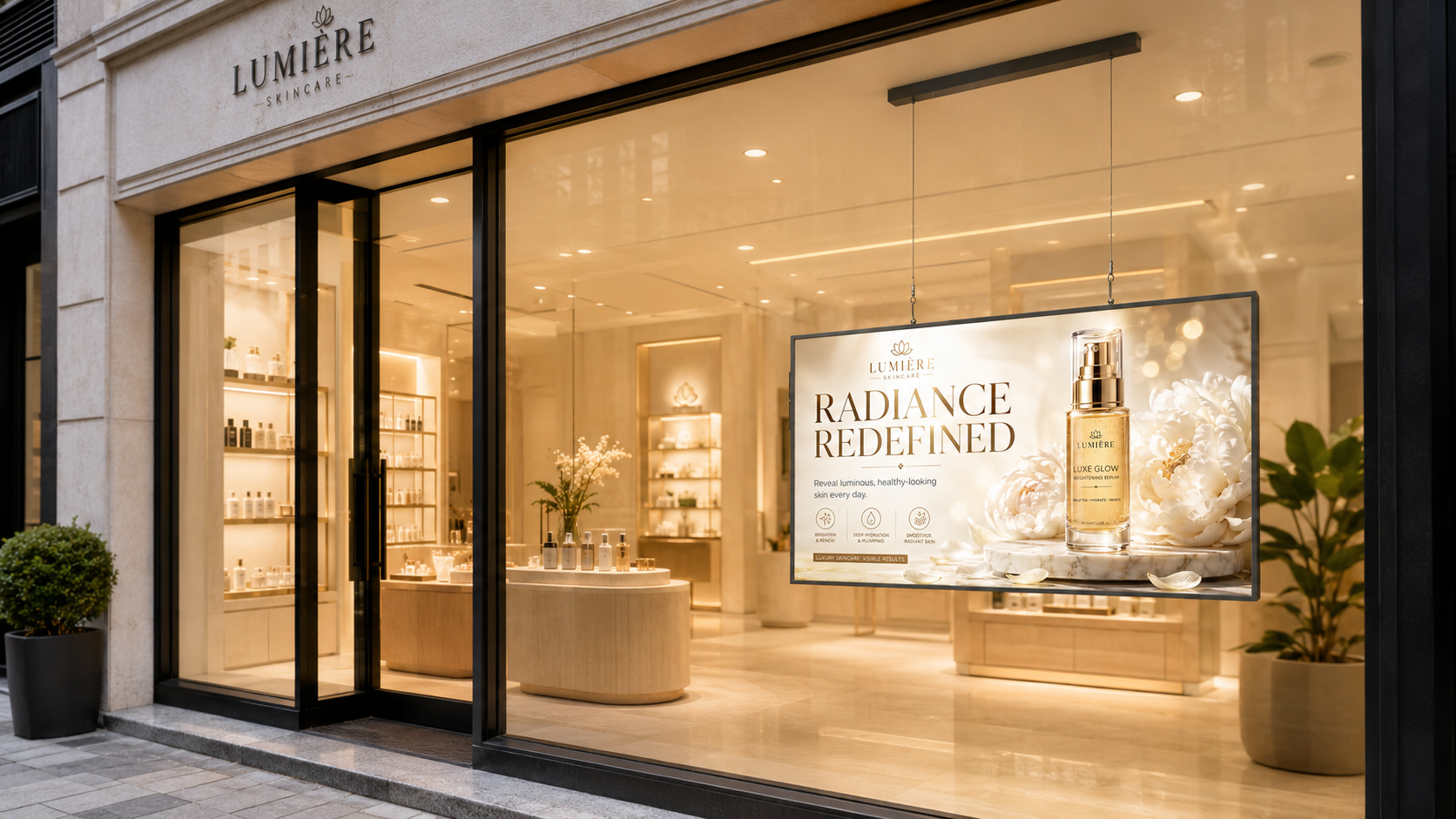

High-Brightness Window-Facing Hanging Display
Suspended high-brightness window-facing digital signage for retail storefronts, shopping malls, estate agencies, car dealerships, banks, telecom stores, and other street-facing commercial windows. Available in single-sided and double-sided configurations with rigid bracket or steel cable hanging options for different storefront layouts.
Hanging Window Display Gallery
Review single-sided and double-sided suspended displays, rigid bracket and steel cable installations, side profiles, and structural details for retail window digital signage projects.
Single-Side Hanging Display
Double-Side Hanging Display

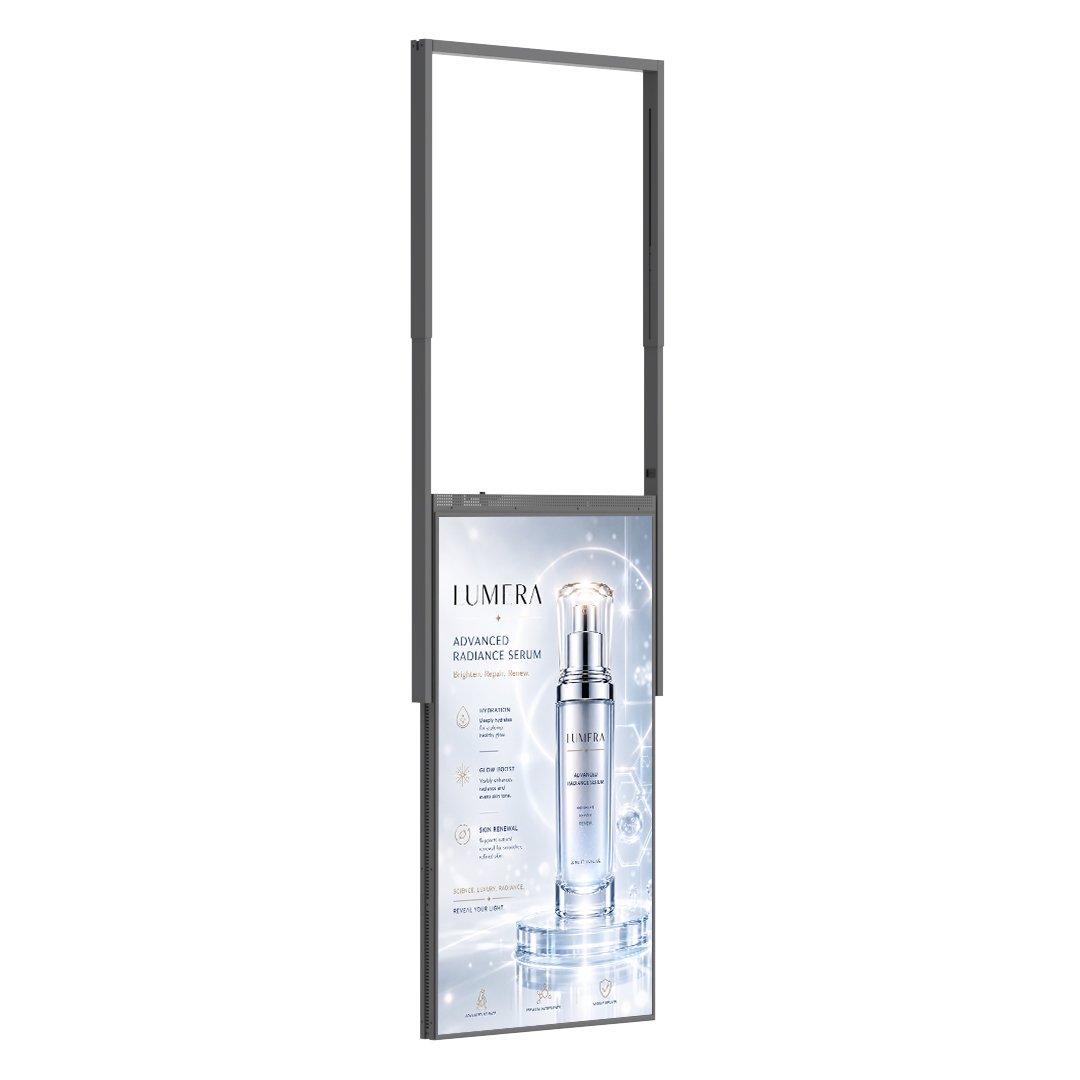

Rigid Bracket Hanging
Steel Cable Hanging

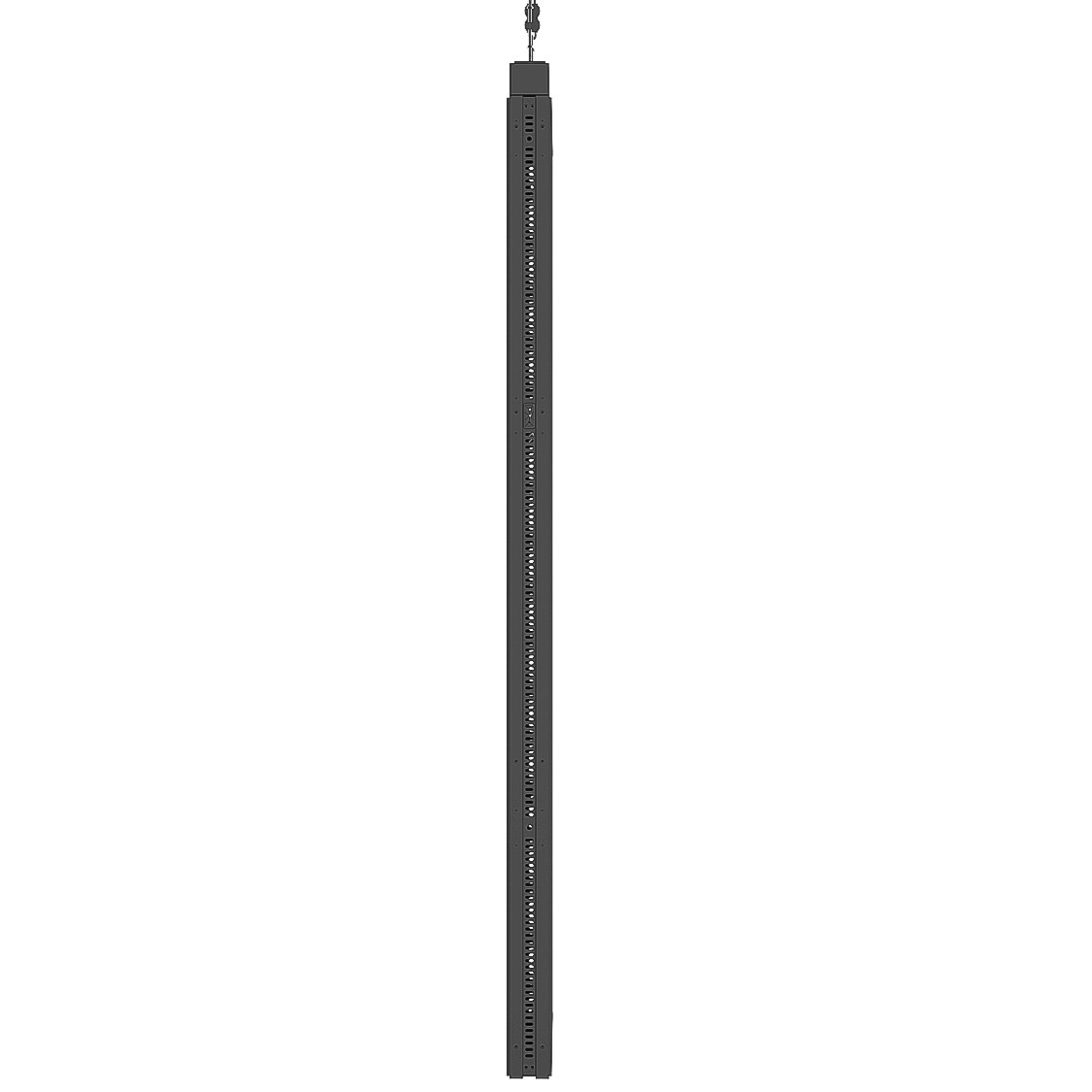

Double-Side Profile

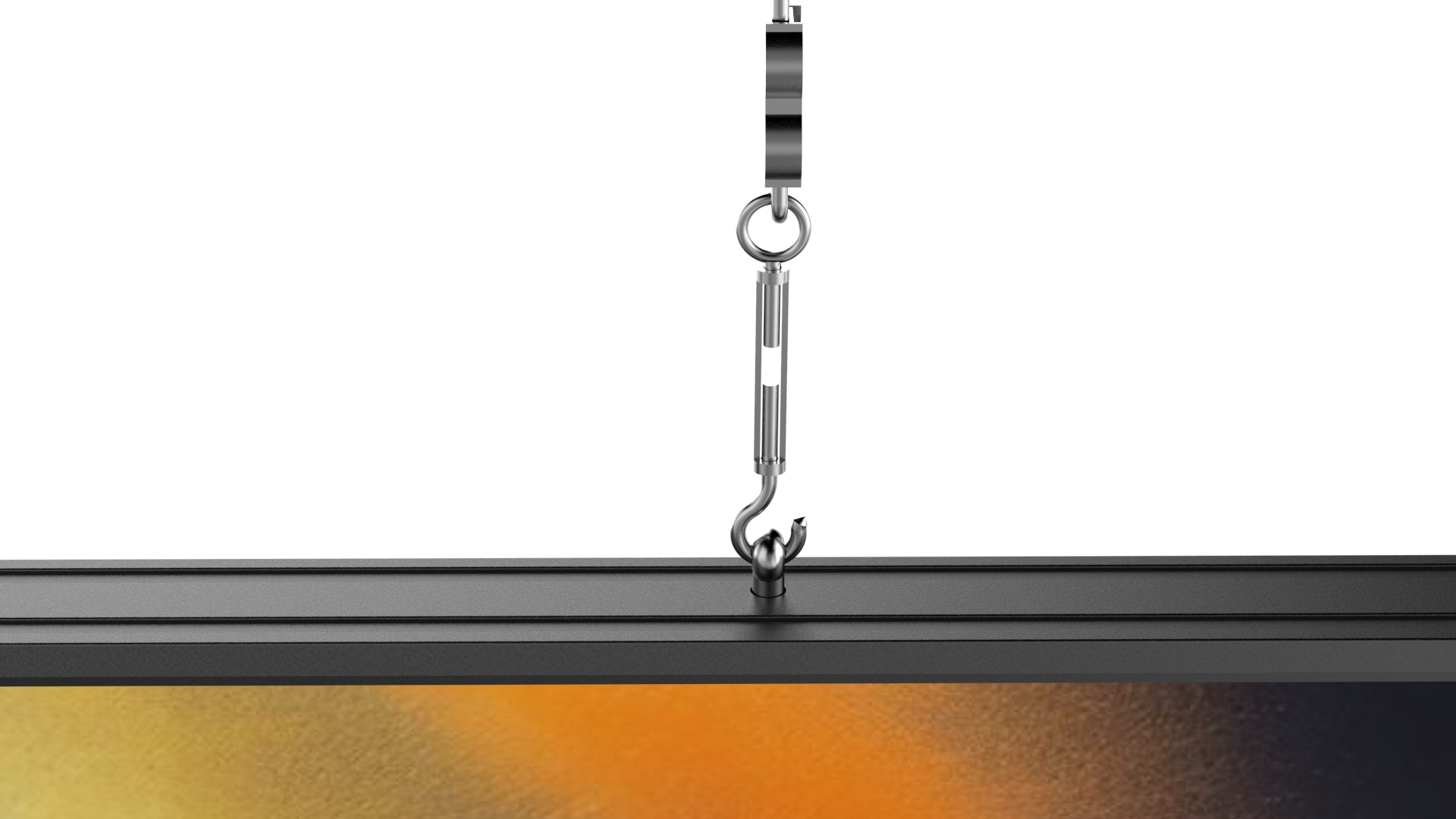

Steel Cable Detail

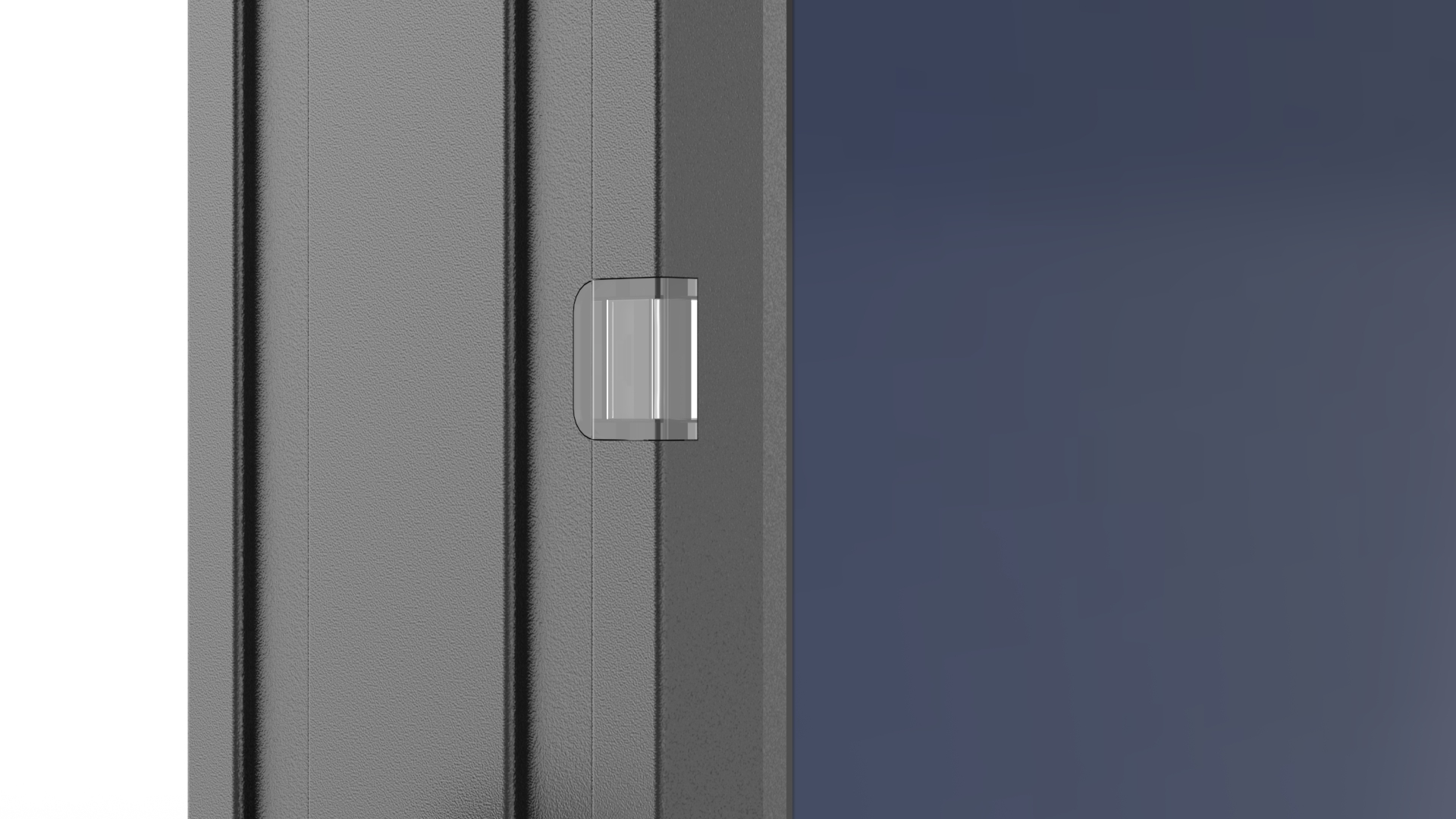

Sensor Detail
Suspended Window Digital Signage Configurations
Choose the display side and hanging structure according to storefront layout, viewing direction, available ceiling structure, window position, and installation requirements.
Single-Side Hanging Window-Facing Display
Designed for storefront windows where digital advertising primarily faces pedestrians outside while keeping floor space clear.

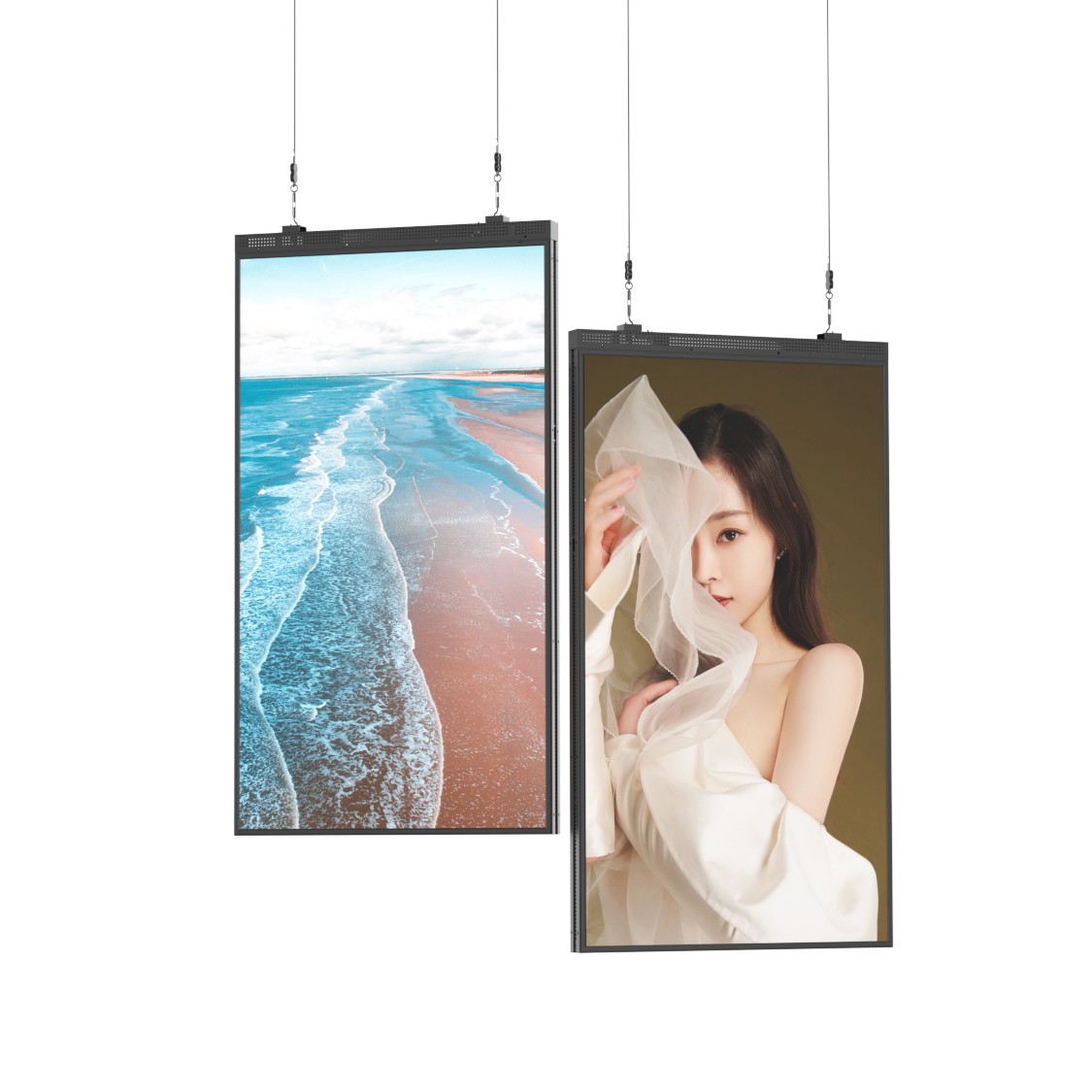

Double-Side Hanging Window-Facing Display
Combines a 2500–3000 nits outward-facing screen with an internal-facing side rated at 700 nits for storefront advertising and in-store communication.

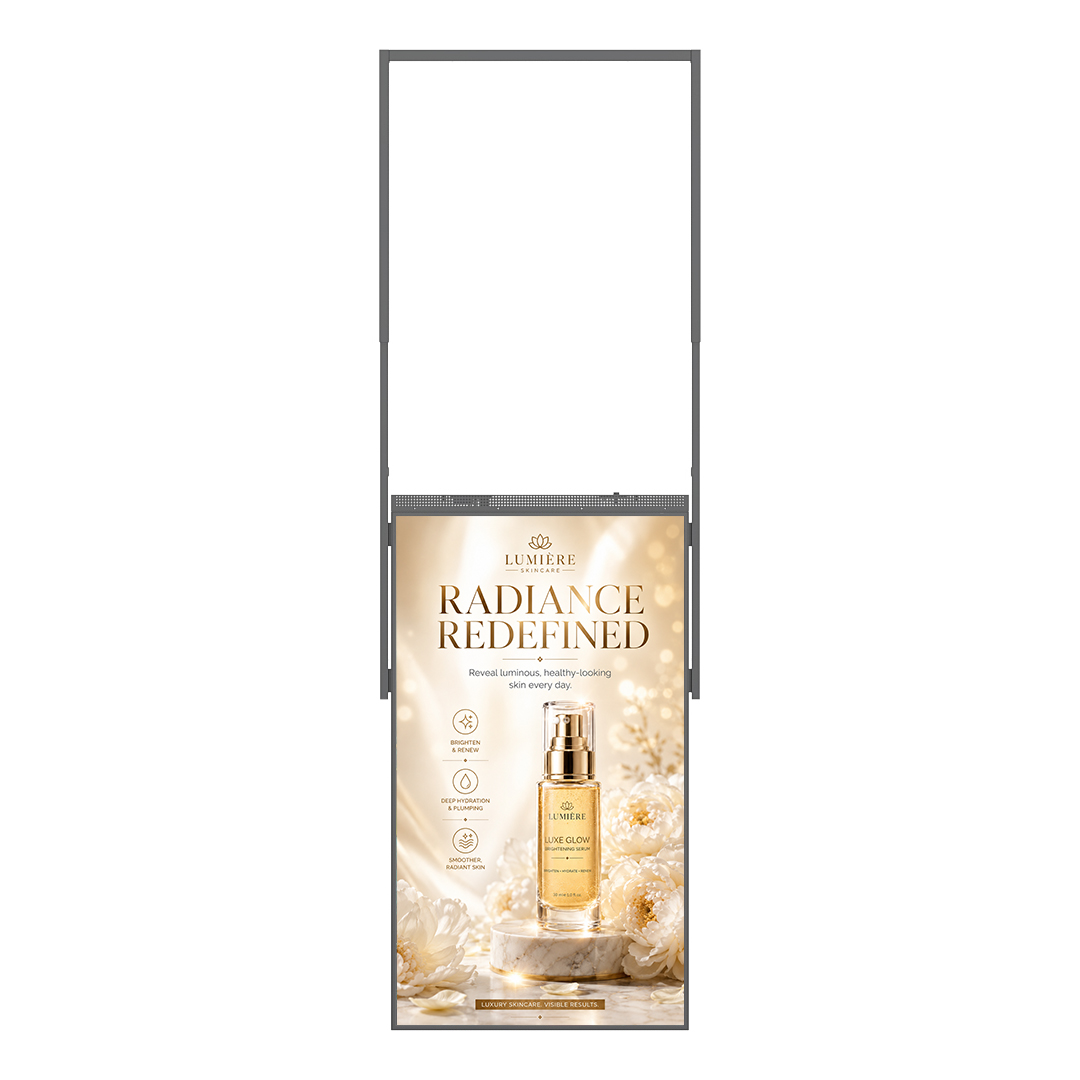

Rigid Bracket Hanging Installation
Fixed bracket-based suspension for storefront projects that require a defined hanging position and structured mounting arrangement.
Steel Cable Hanging Installation
Cable-suspended installation creates a visually lighter presentation for shop windows, estate agencies, showrooms, and other commercial storefronts.
Key Features of the Hanging Window Display
Designed for suspended storefront digital signage where high brightness, window visibility, floor-space efficiency, and flexible hanging structures are important.
2500–3000 nits Outdoor-Facing Brightness
High-brightness outdoor-facing panels help promotions, product advertising, property listings, and brand content remain visible through storefront glass in daylight-facing environments.
Designed for Storefront Window Visibility
Suitable for retail windows, shopping mall storefronts, estate agencies, dealership showrooms, banks, telecom stores, and other street-facing commercial windows.
Single-Side & Double-Side Options
Choose an outward-facing single display or a double-sided configuration with a high-brightness window-facing screen and an internal-facing display for in-store content.
Rigid Bracket & Steel Cable Hanging
Two hanging structures are available to support different storefront, ceiling, visual presentation, and installation requirements.
Space-Saving Suspended Installation
Suspended installation keeps floor space available while positioning digital signage directly within the storefront window viewing area.
Up to UHD 3840 × 2160
Available configurations support up to UHD resolution for detailed retail advertising, property listings, promotional graphics, and digital signage content.
Flexible Digital Signage System Options
Android, Windows, Linux, HDMI, and USB options support digital signage software, external media players, content management systems, and project integration.
Project-Based Configuration
Hanging structure, screen size, display side, system configuration, housing color, logo branding, and structural details can be selected according to project requirements.
Why Choose Suspended Digital Signage for Storefront Windows?
A hanging window-facing display places digital content directly in the storefront viewing area without occupying floor space. It is suited to commercial windows where outward visibility, a clean suspended presentation, and flexible positioning are important.
Hanging Window-Facing Display Specifications
Key specifications for suspended retail window digital signage project evaluation, model selection, quotation, hanging structure planning, and system configuration.
32″ / 43″ / 49″ / 55″ / 65″ / 75″ / 86″
2500–3000 nits
Up to 3840 × 2160
Rigid Bracket / Steel Cable
Available T-3 Models & Hanging Configurations
| Model Reference | Screen Size | Series | Display Side | Hanging Configuration |
|---|---|---|---|---|
| AS-WD430D-T3 | 43″ | T-3 Series | Single-side / Double-side | Steel cable / Rigid bracket |
| AS-WD490D-T3 | 49″ | T-3 Series | Single-side / Double-side | Steel cable / Rigid bracket |
| AS-WD550D-T3 | 55″ | T-3 Series | Single-side / Double-side | Steel cable / Rigid bracket |
| AS-WD650D-T3 | 65″ | T-3 Series | Single-side / Double-side | Steel cable / Rigid bracket |
| AS-WD750D-T3 | 75″ | T-3 Series | Single-side / Double-side | Steel cable / Rigid bracket |
Note: The current T-3 model references listed here cover 43″–75″. The broader window-facing product range includes 32″ and 86″ options; model and hanging structure details can be confirmed according to project requirements.
| Product Type | High-Brightness Suspended Window-Facing Digital Signage Display |
|---|---|
| Screen Size | 32″ / 43″ / 49″ / 55″ / 65″ / 75″ / 86″ |
| Brightness | Outdoor-facing: 2500–3000 nits; internal-facing: 700 nits |
| Resolution | Max 3840 × 2160 |
| Orientation | Portrait / Landscape |
| Display Side | Single-side / Double-side optional |
| Installation | Rigid bracket hanging / Steel cable hanging |
| System | Android / Windows / Linux optional |
| Input | HDMI / USB |
| Touch | No |
| Enclosure Color | Black / White / Gray |
| Logo Customization | Yes |
| Structure Customization | Yes |
| Power Input | 100–250V |
Hanging Display Dimensions & Installation Drawings
Review available double-sided dimension drawings for steel cable and rigid bracket hanging structures. The default preview is the 55-inch configuration in each group.

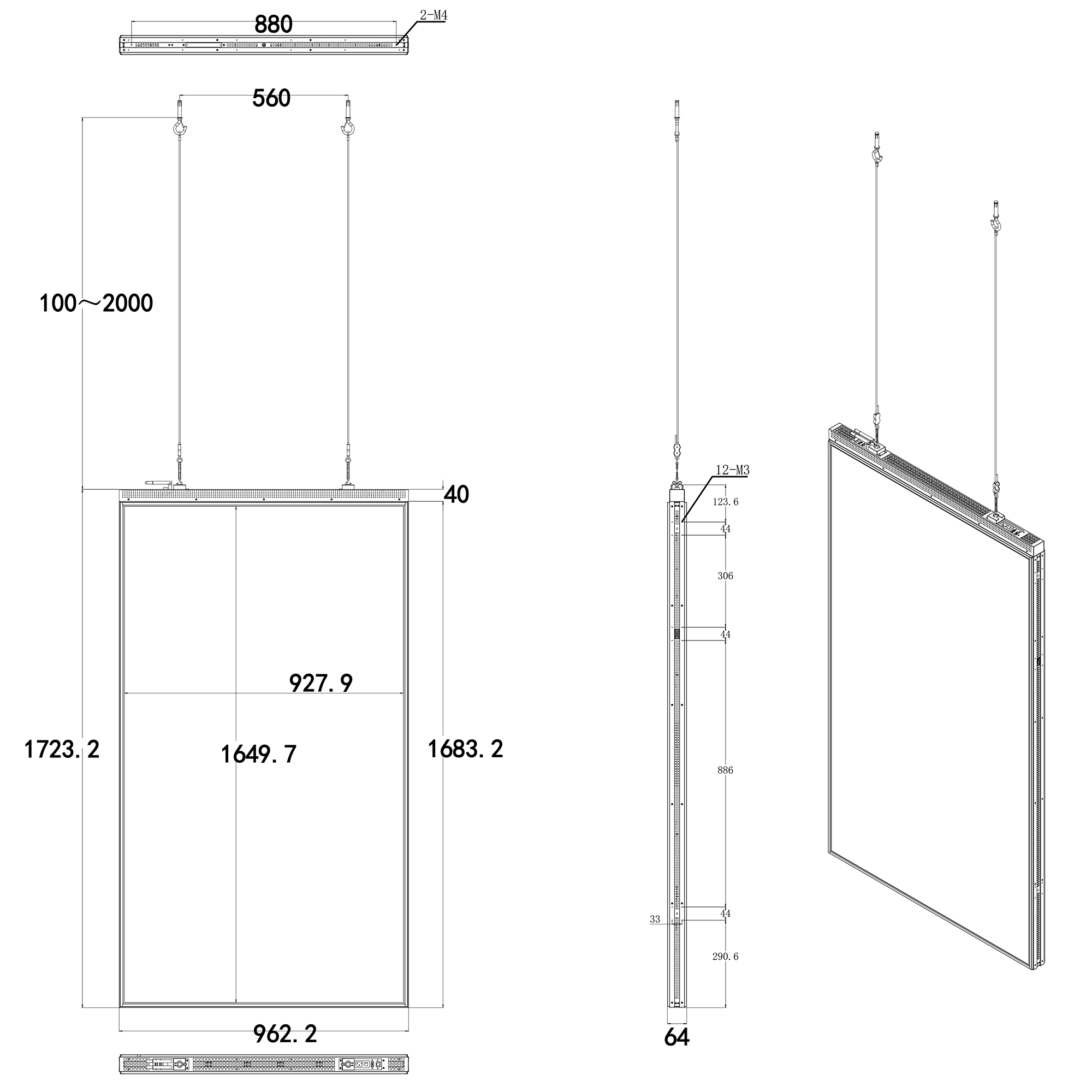

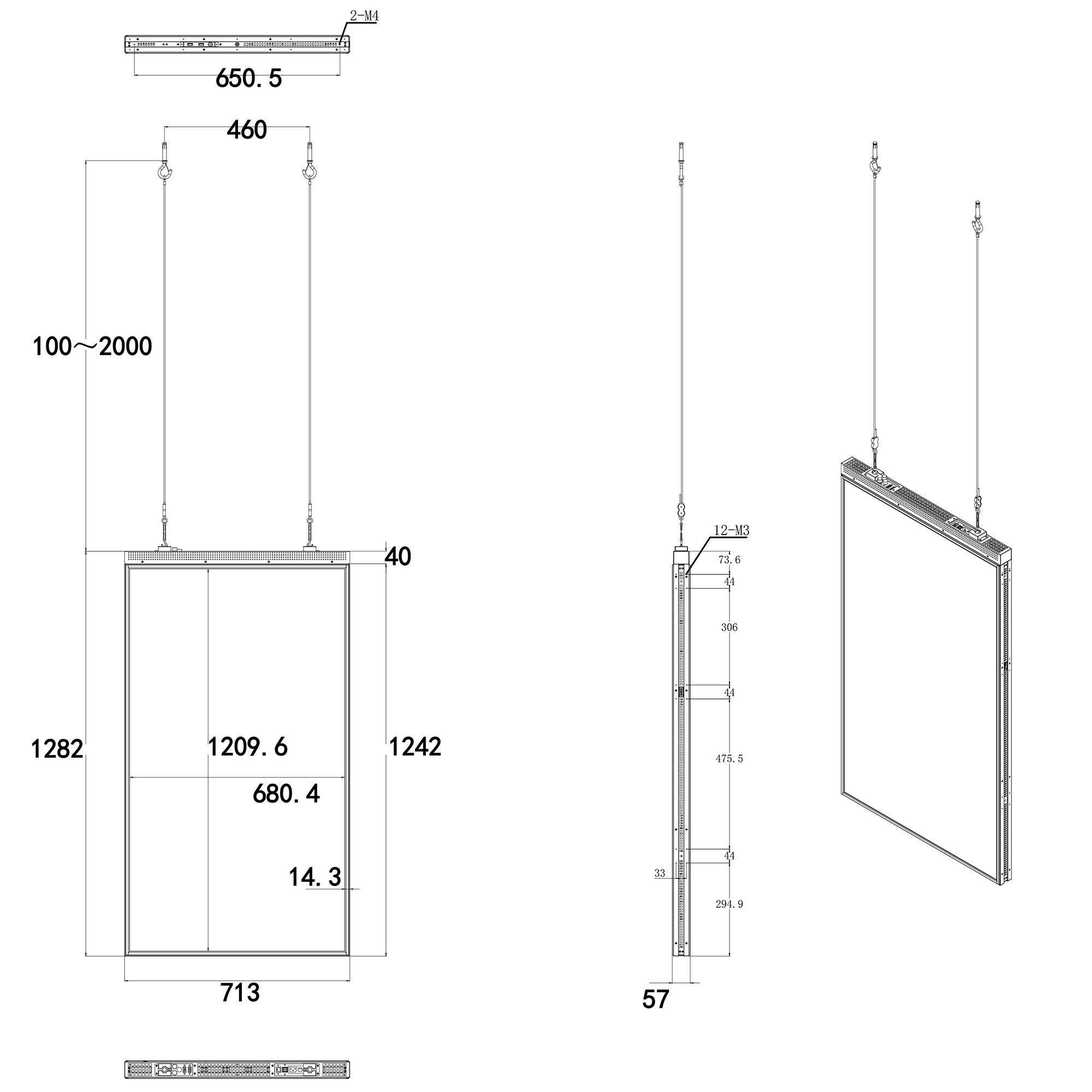

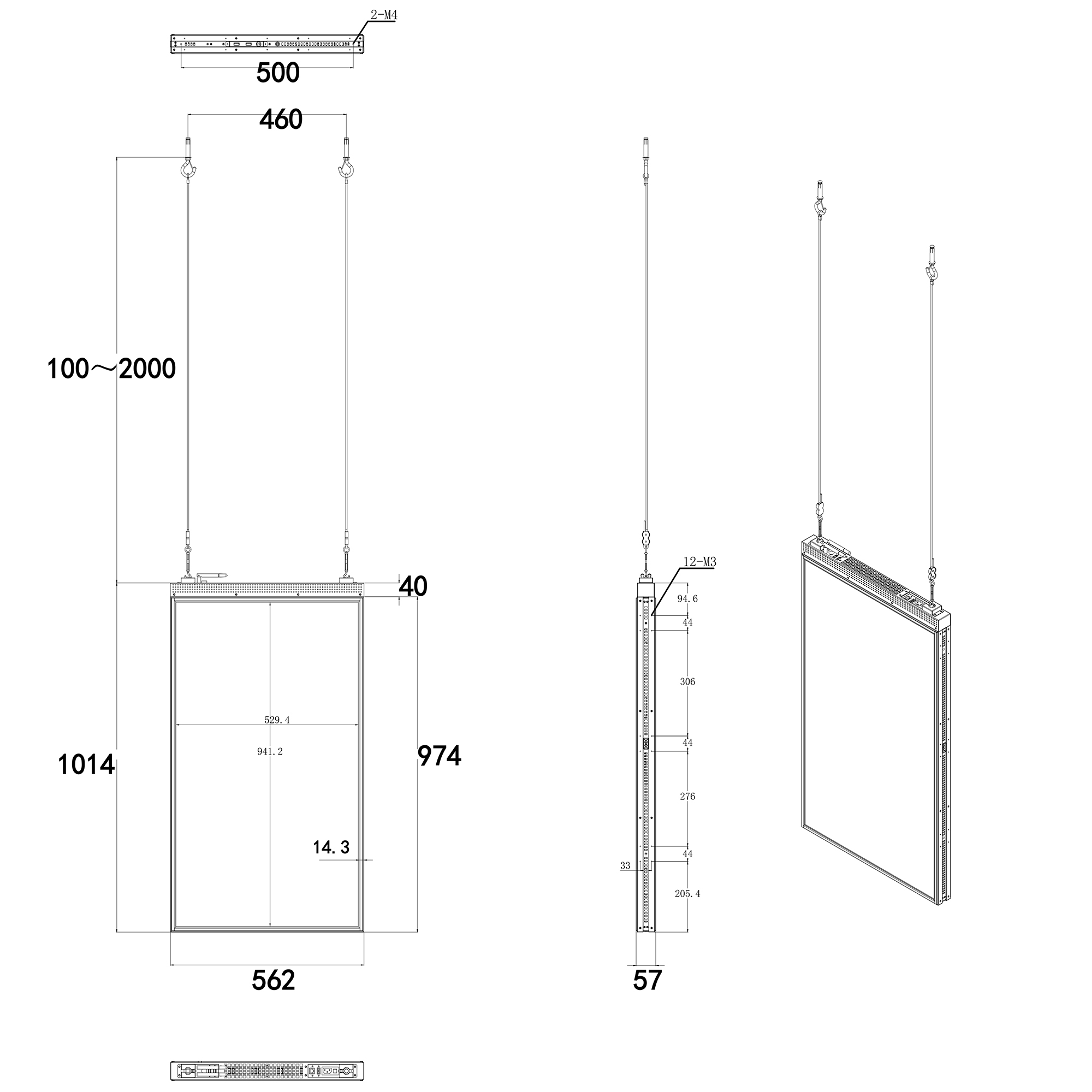

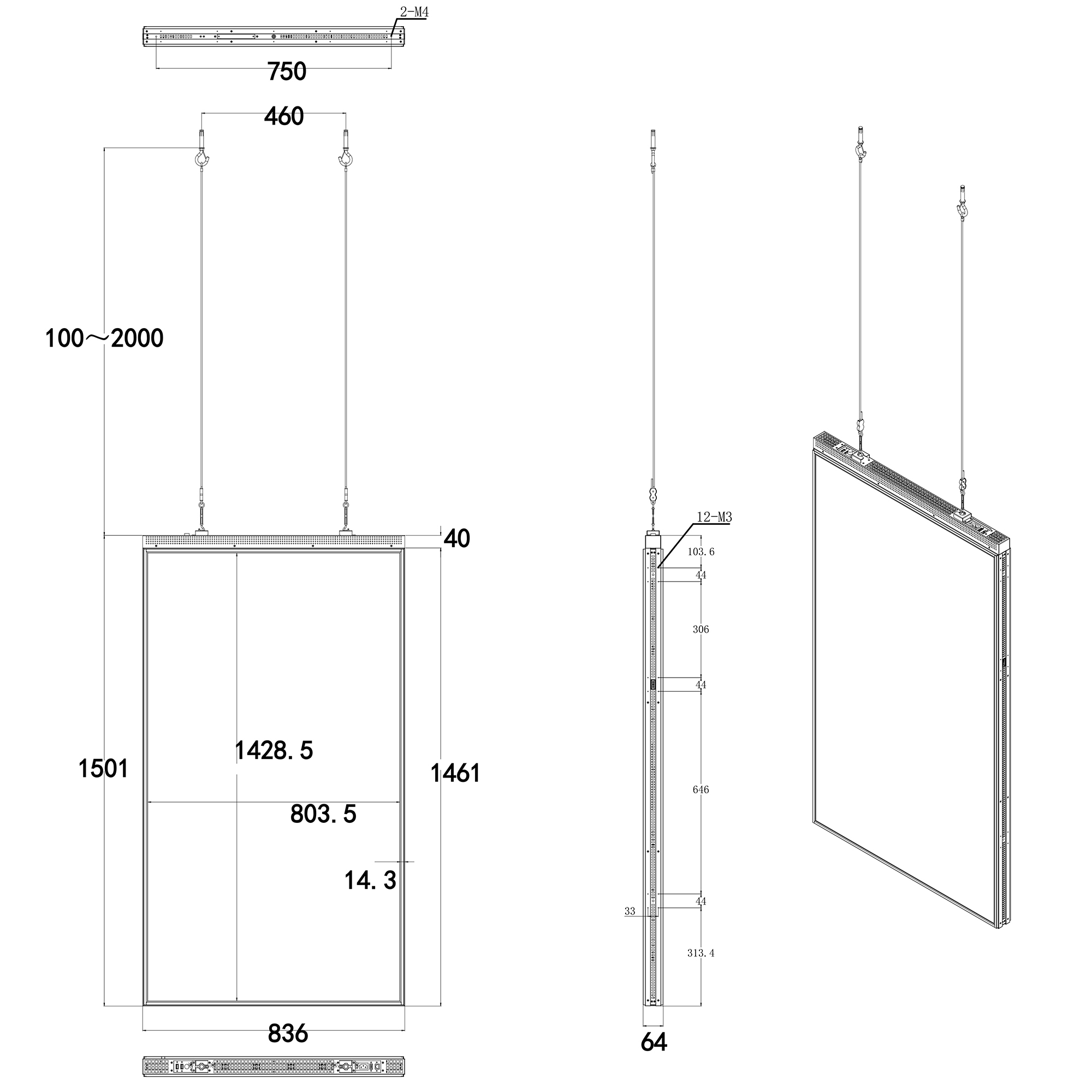

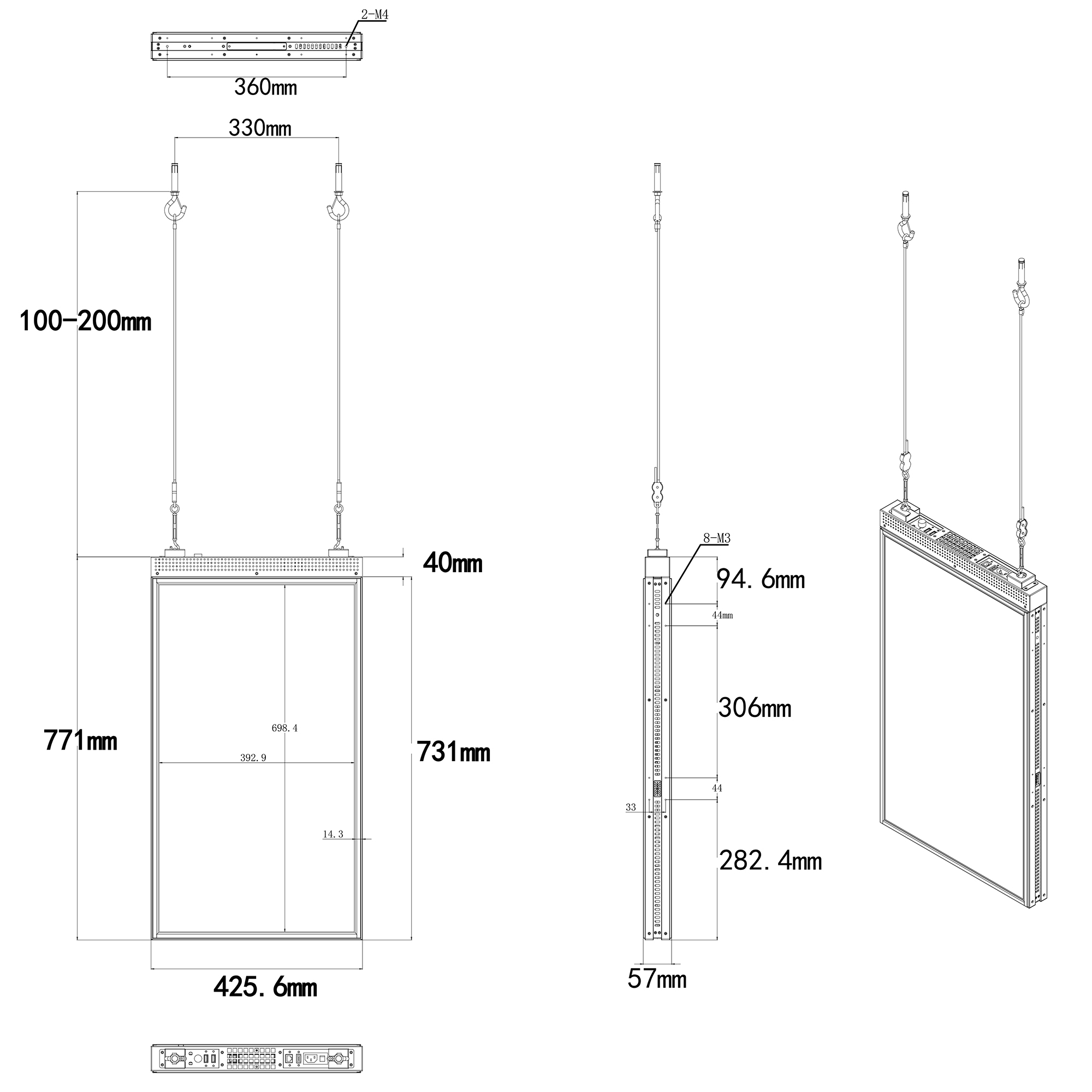

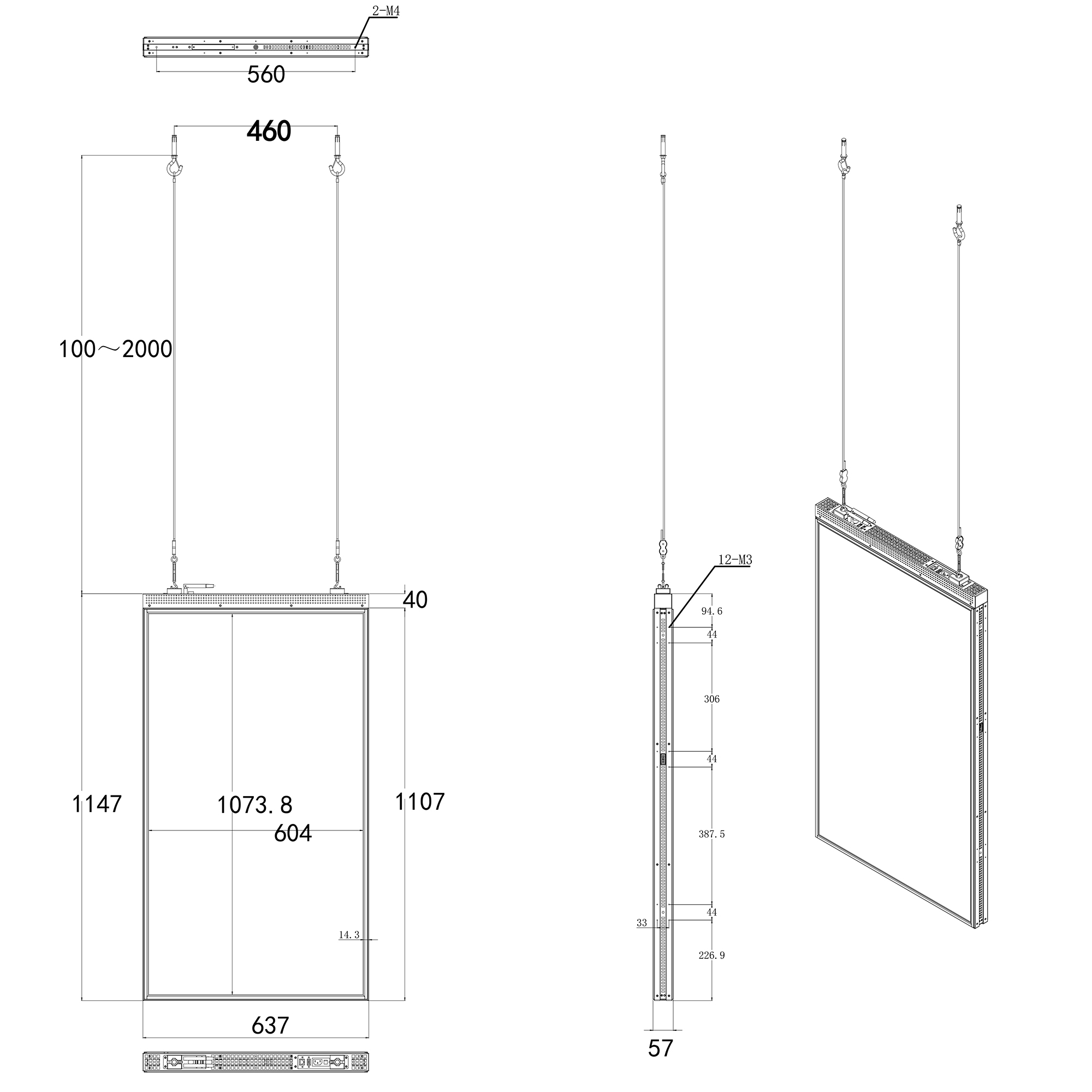

Steel Cable Hanging Installation Drawings
Available double-sided steel cable hanging drawings from 32″ to 75″.

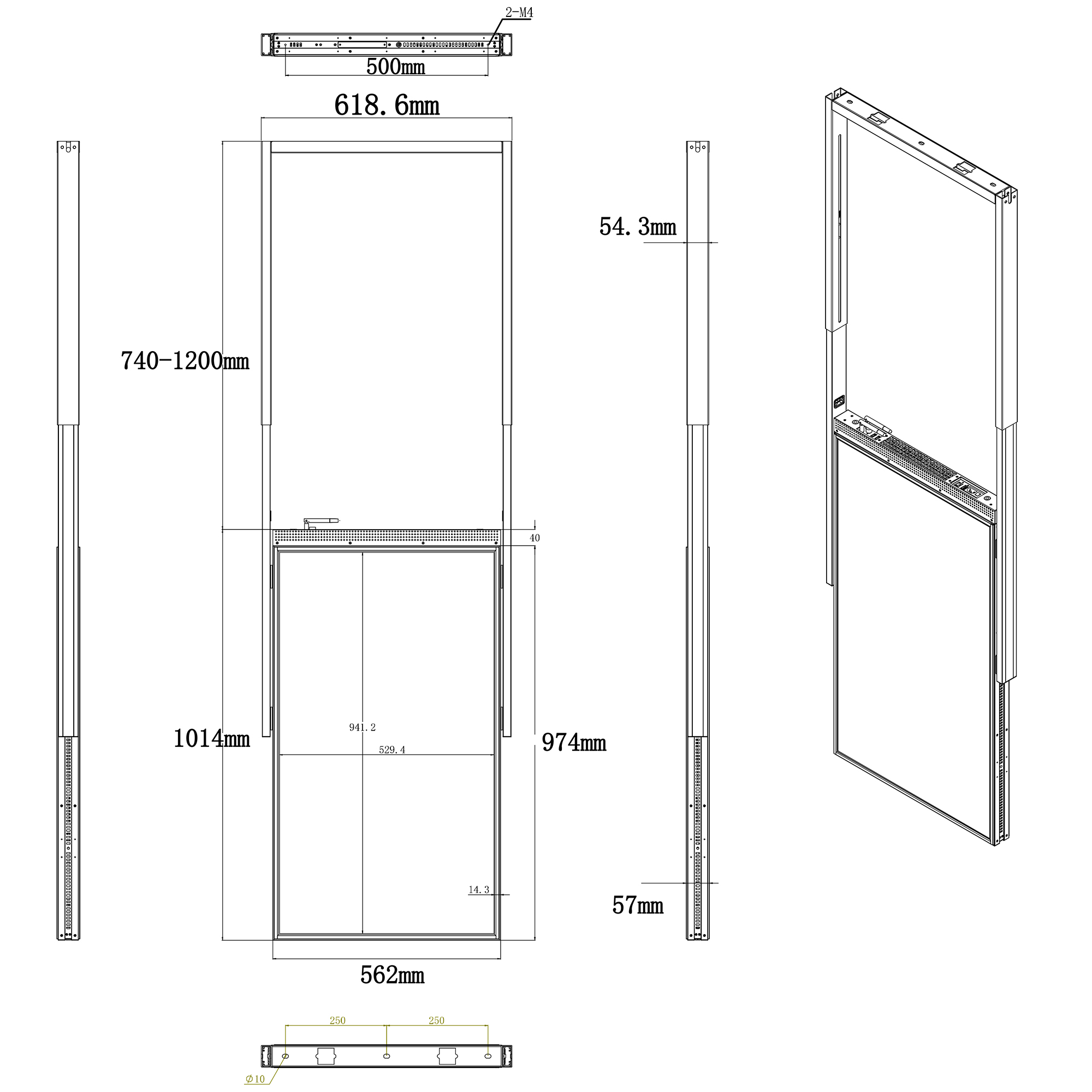

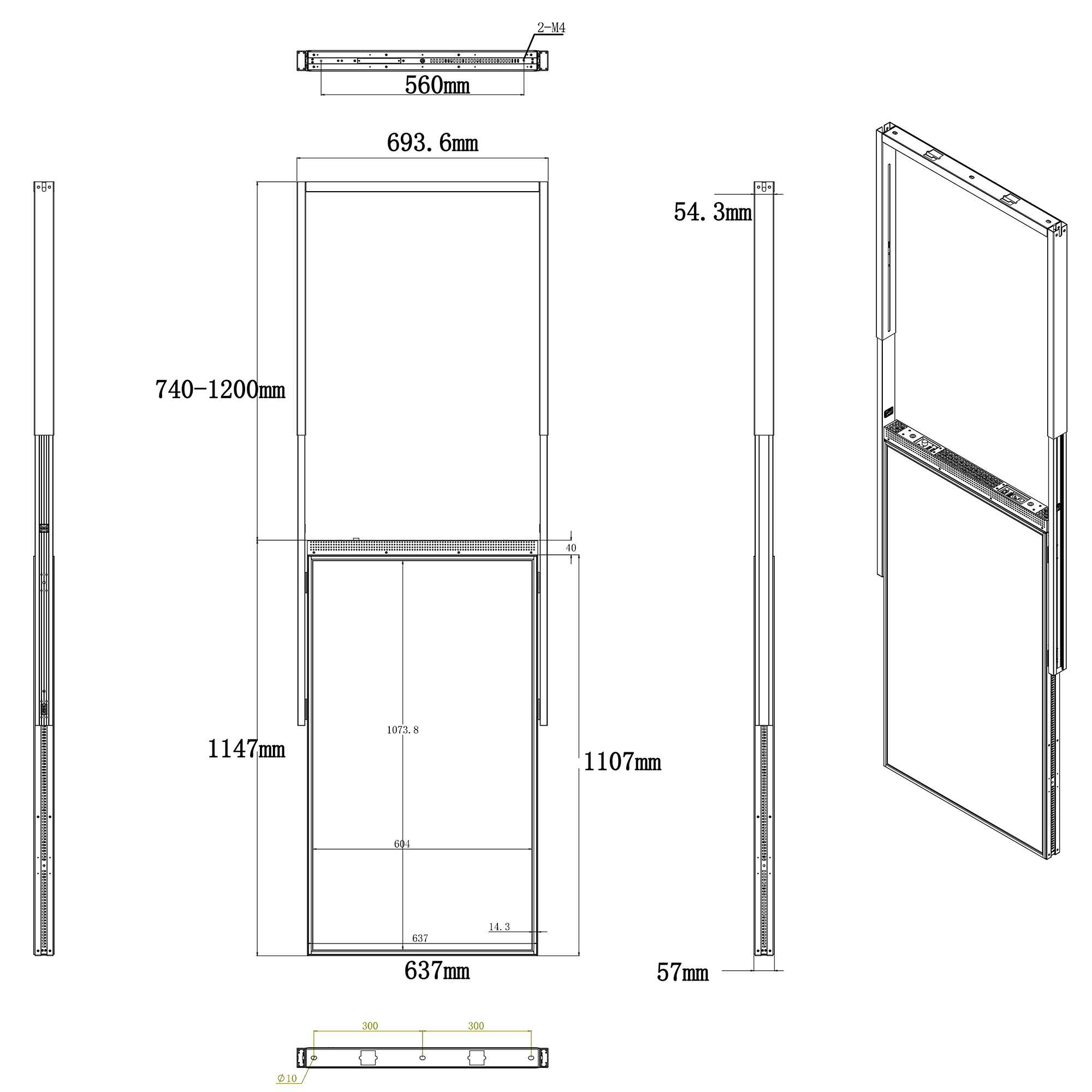

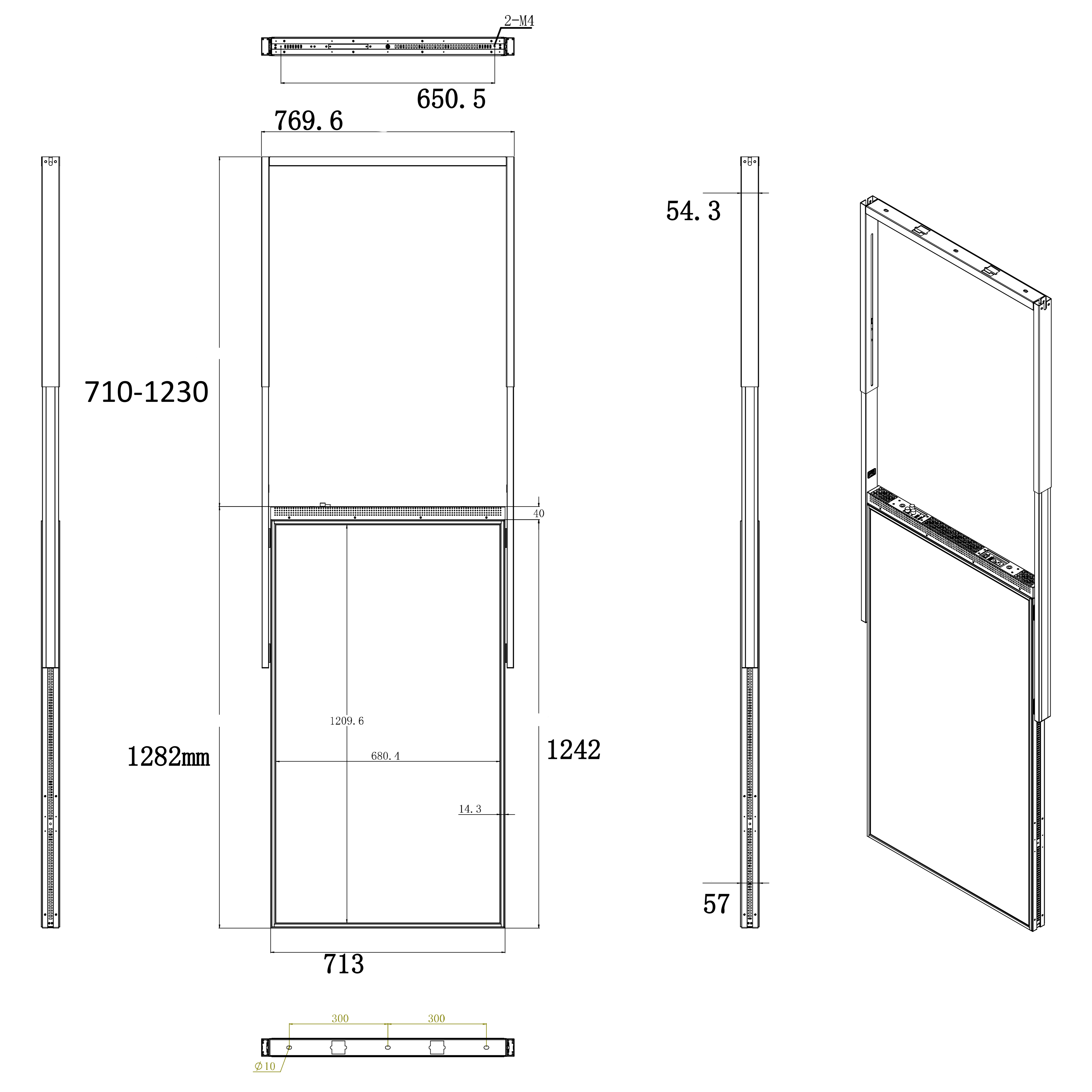

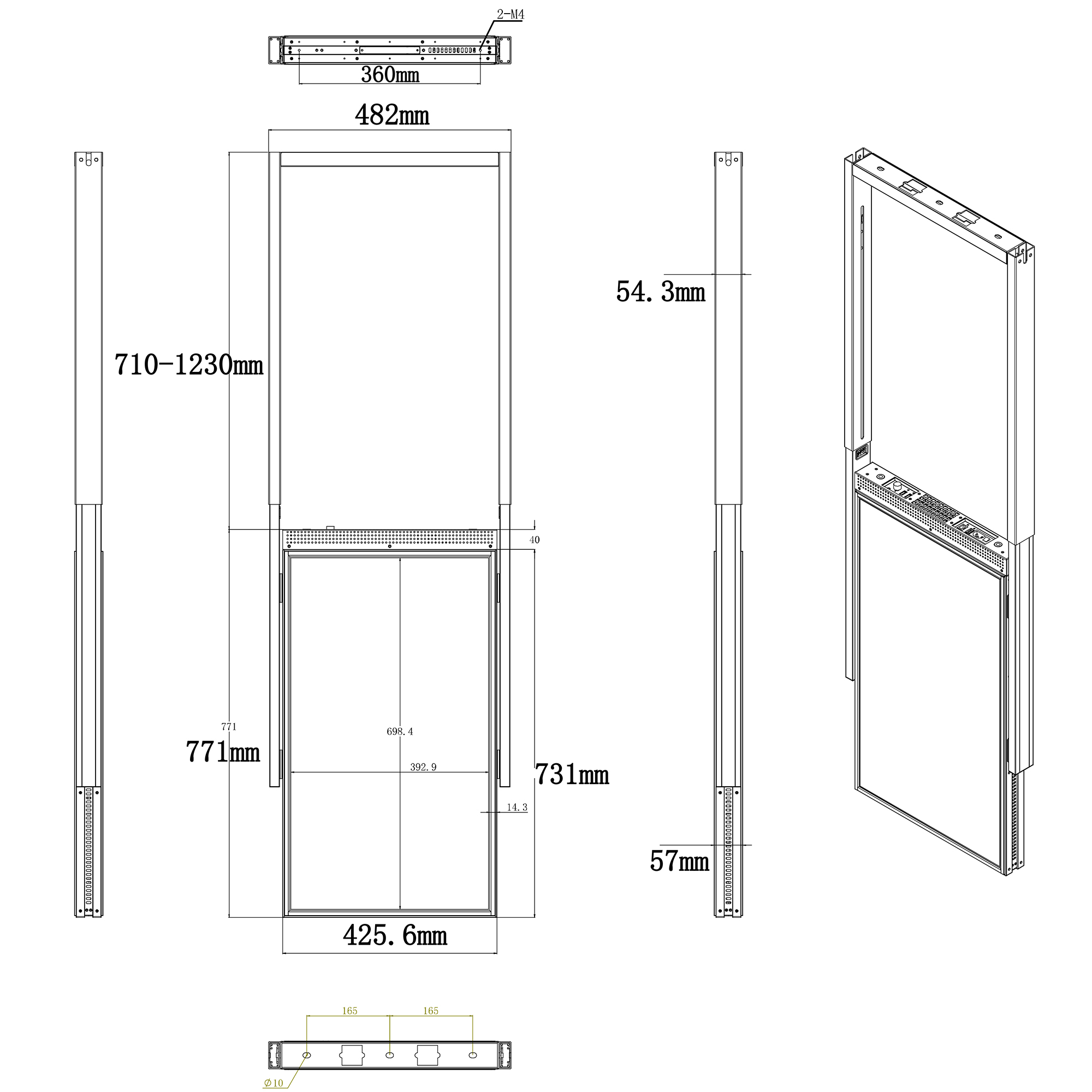

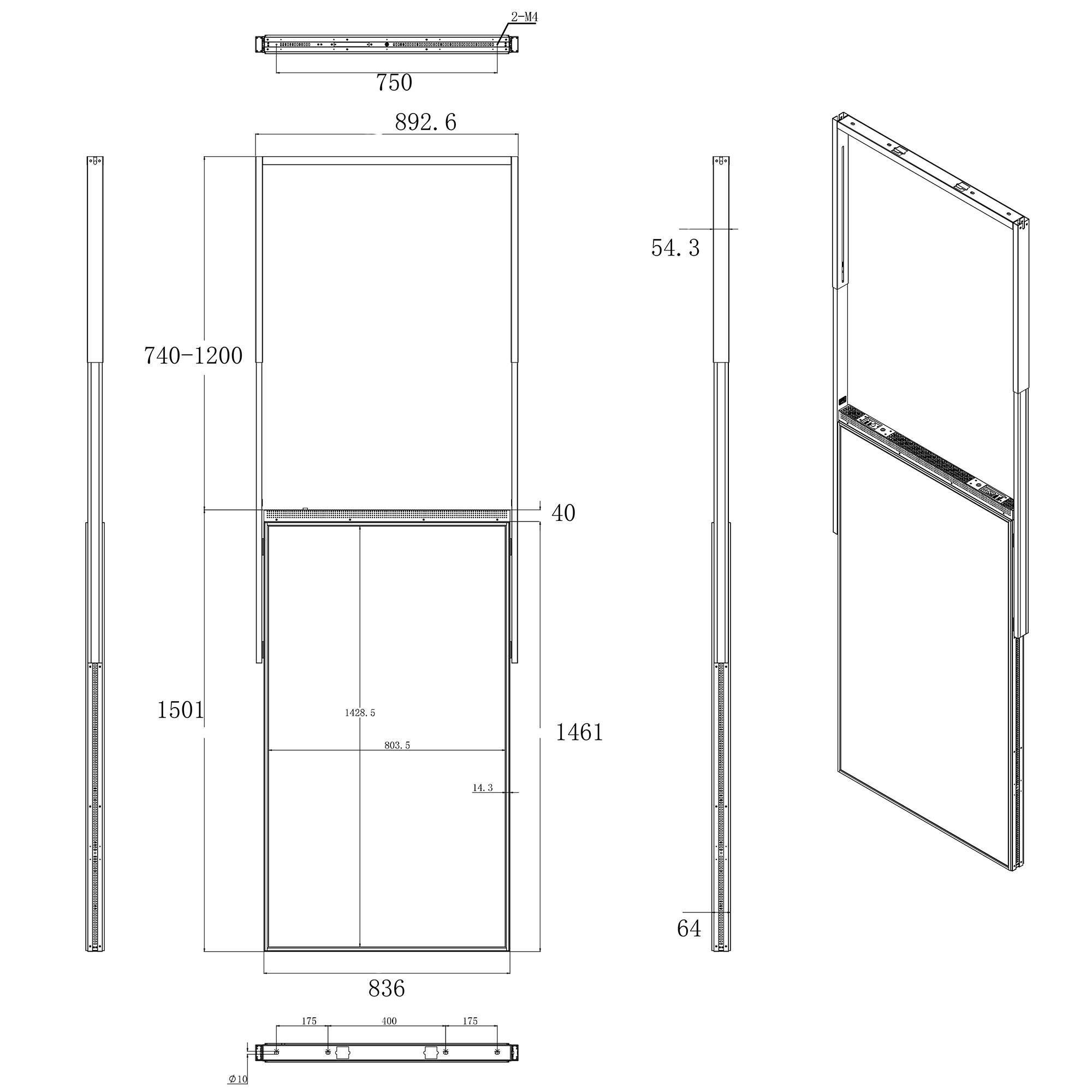

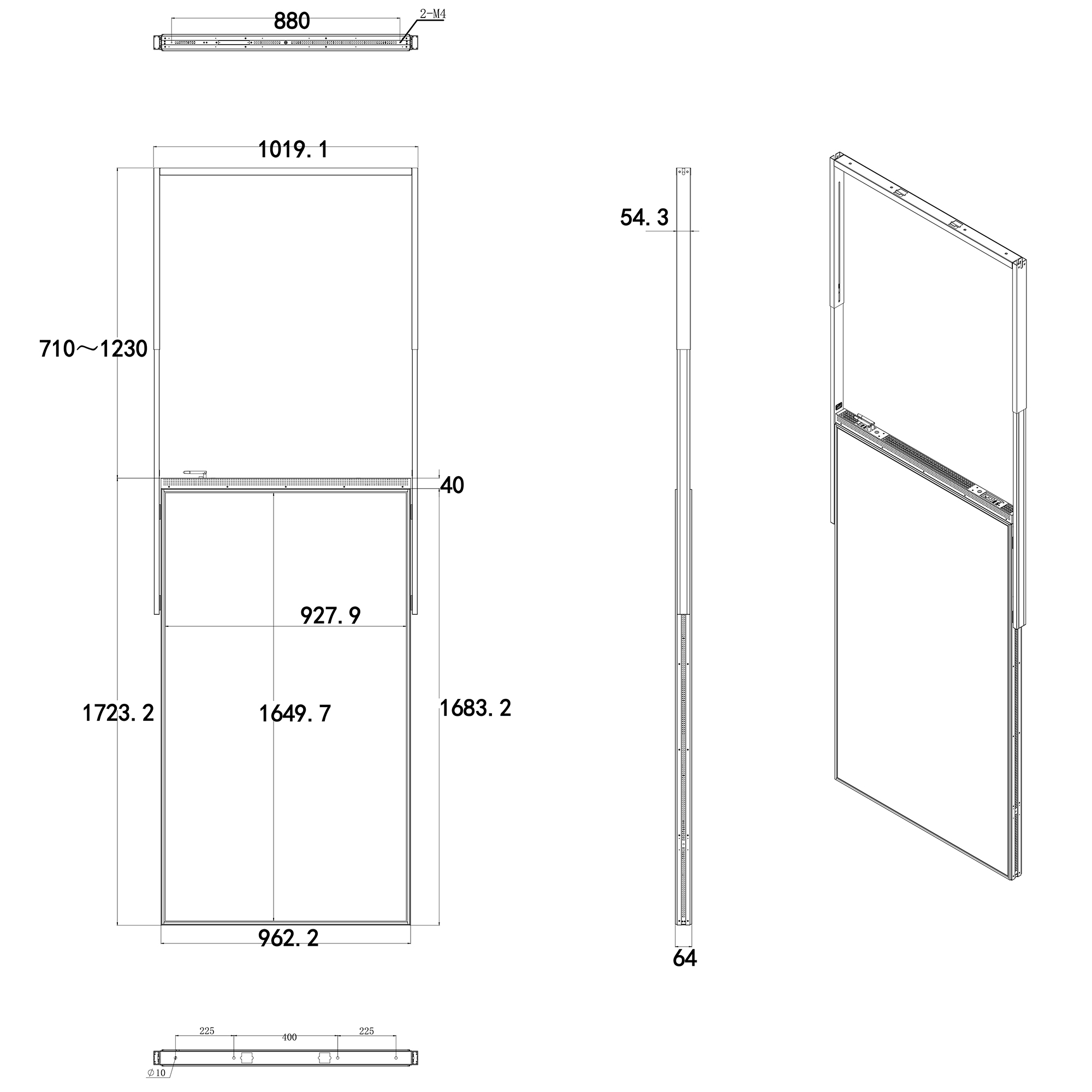

Rigid Bracket Hanging Installation Drawings
Available double-sided rigid bracket hanging drawings from 32″ to 75″.
Note: The drawings shown here are double-sided hanging configurations. Single-sided, 86-inch, and project-specific installation drawings can be provided according to the selected screen size and mounting structure.
Suspended Retail Window Digital Signage Applications
Suitable for commercial windows where high-brightness digital content needs to face street traffic while keeping floor space available.
Retail Storefront Digital Signage
Shopping Mall Storefront Displays
Estate Agent Window Displays
Car Dealership Window Advertising
Bank & Telecom Window Displays
Street-Facing Window Advertising
