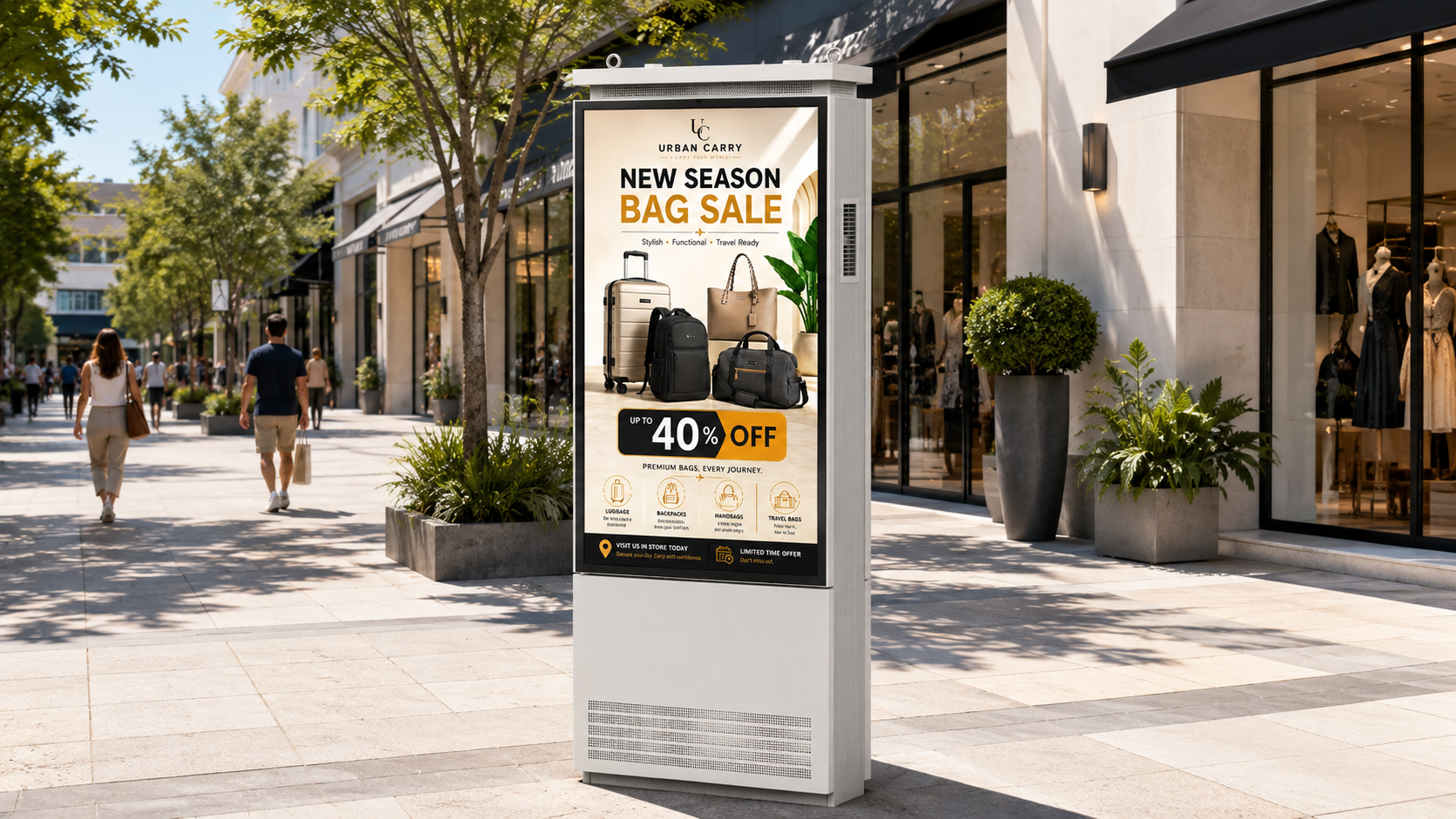

IP66 Floor-Standing Double-Side Outdoor Display
Weatherproof high-brightness double-sided outdoor LCD display for two-way pedestrian traffic, shopping mall entrances, commercial plazas, transportation stations, and street-level outdoor advertising.
Product Gallery
Review product appearance, side view, double-side structure, waterproof detail, and outdoor application view.

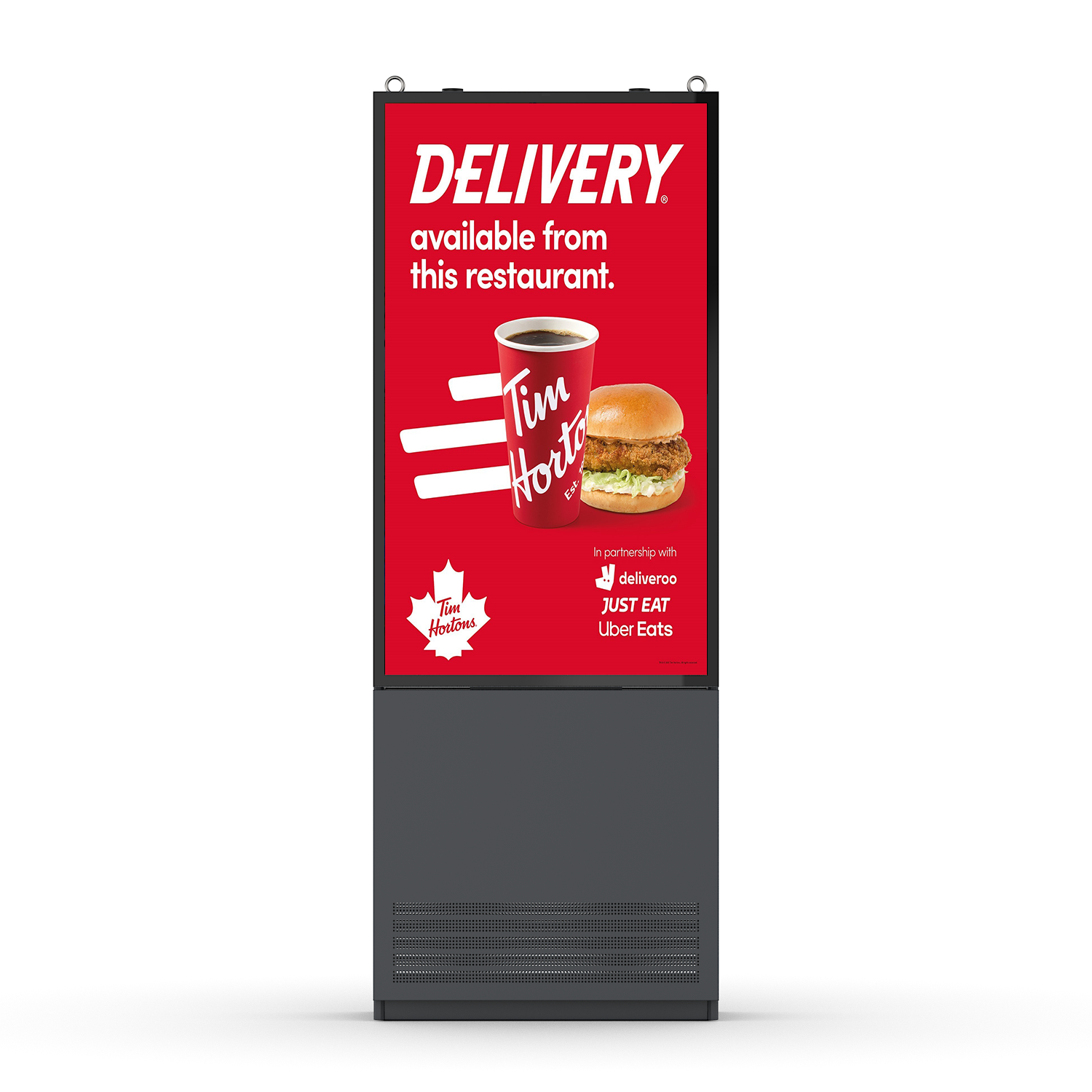

Front View #1

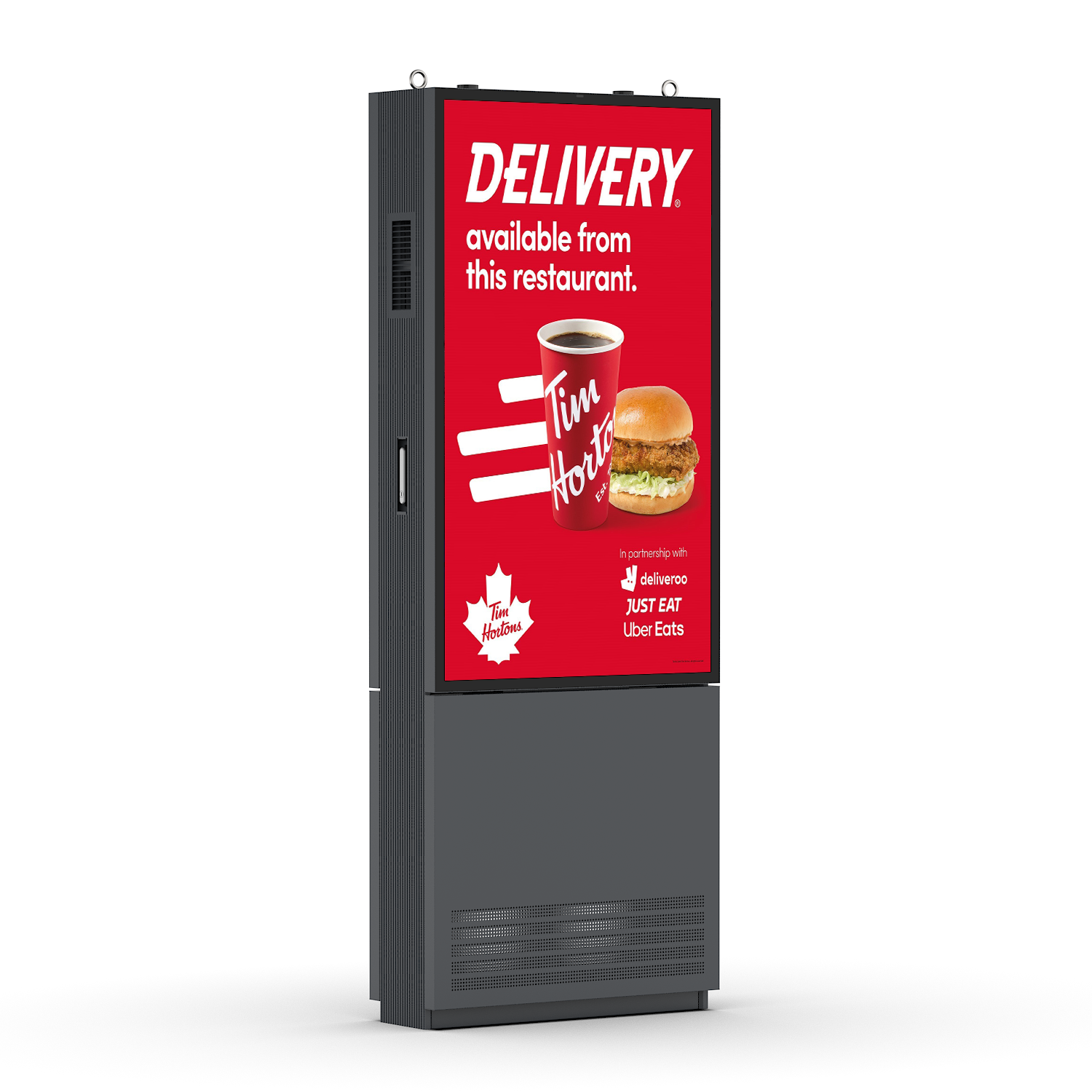

Front View #2

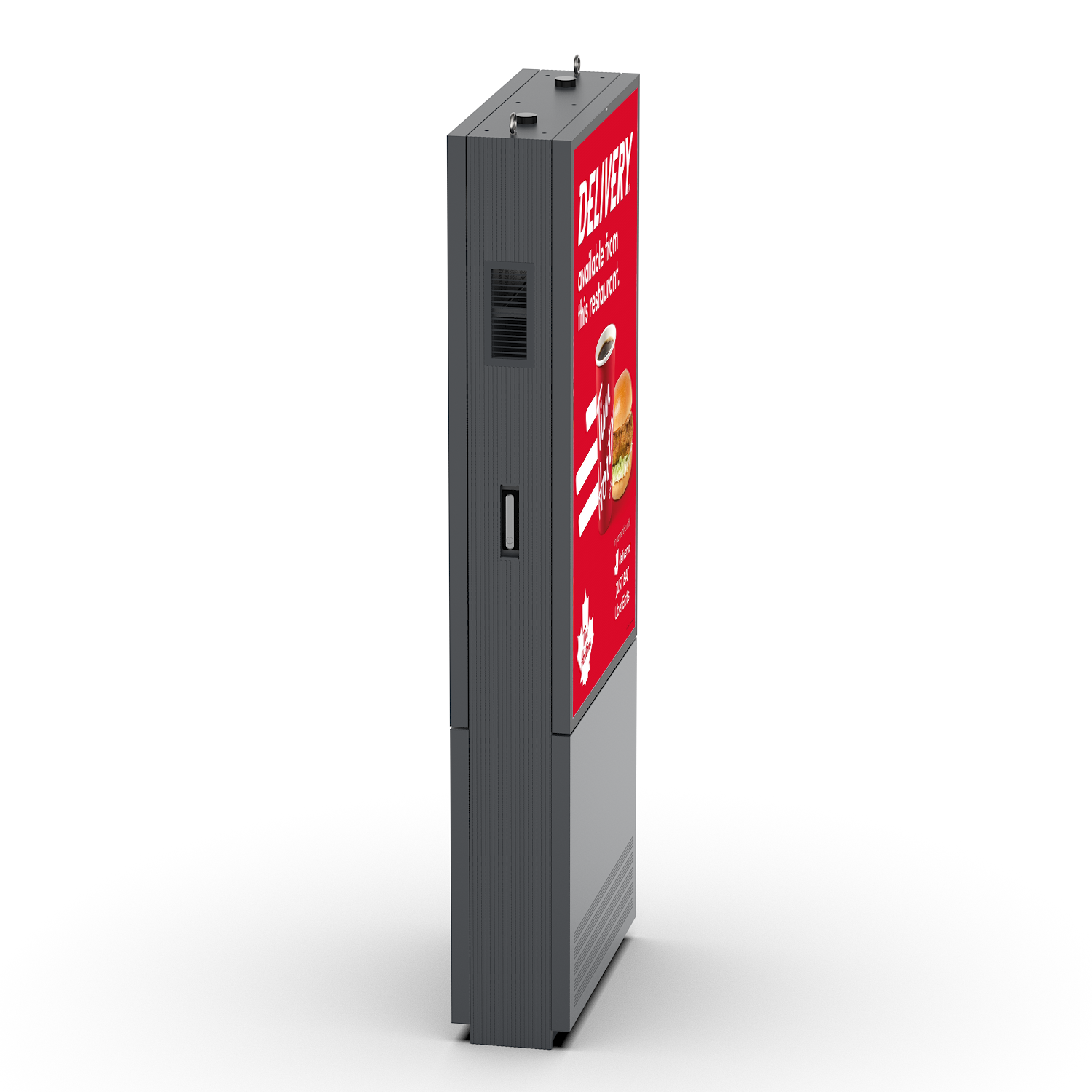

Side View

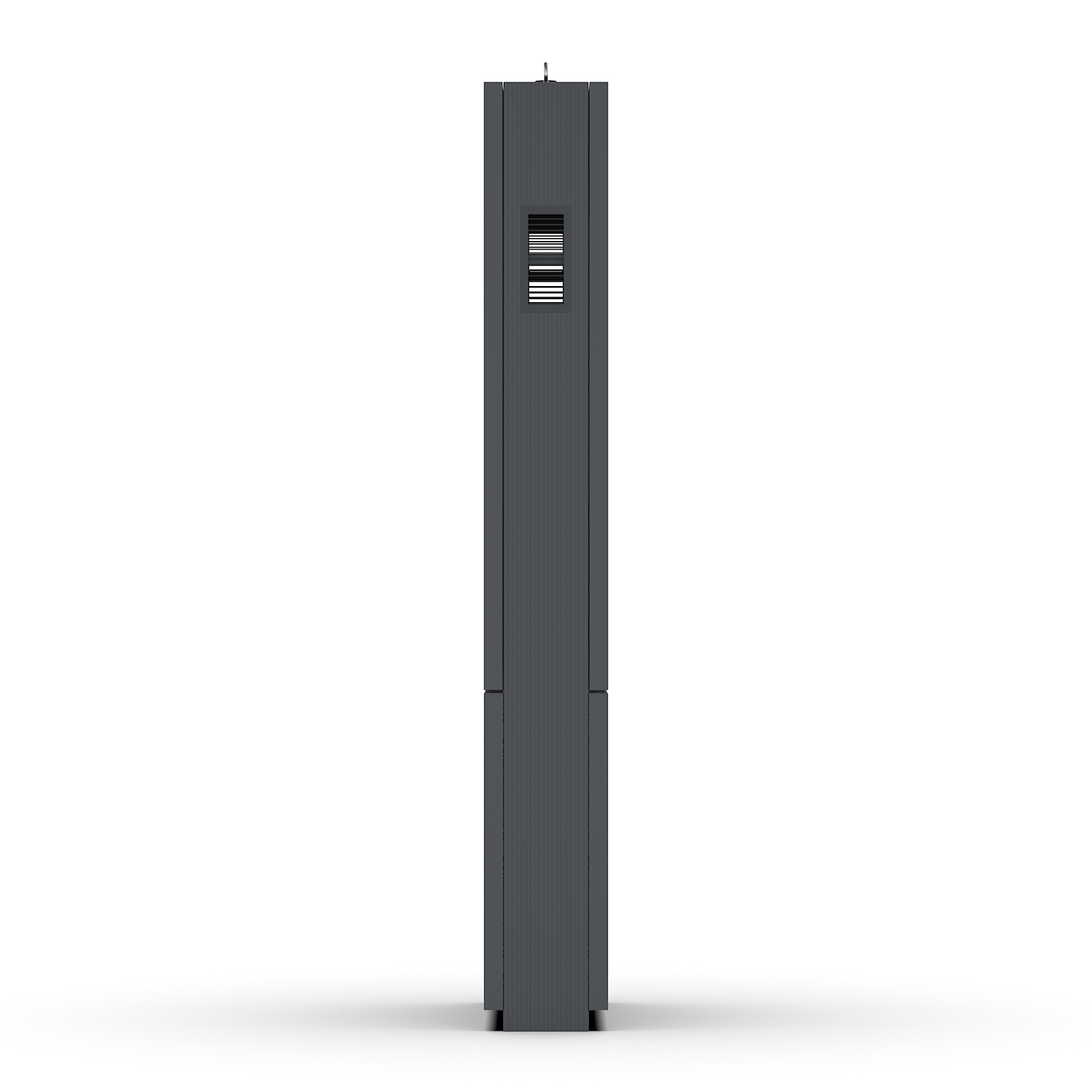

Double-Side Structure

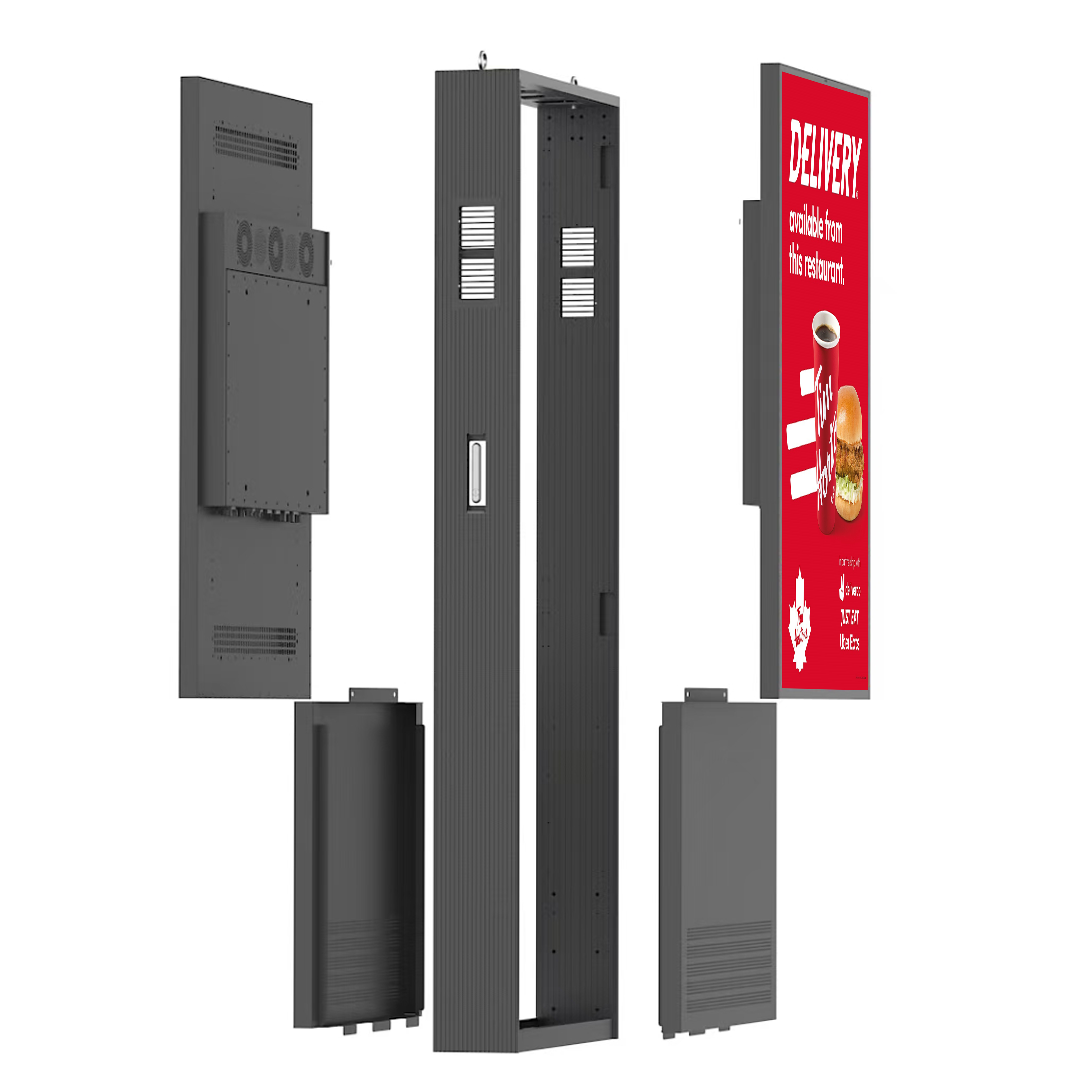

Detail View
Key Features
Built for outdoor commercial environments where two-way visibility, weather protection, brightness, and long daily operation matter.
IP66 Weatherproof Outdoor Structure
Designed for outdoor floor-standing applications with protection against rain, dust, moisture, and changing weather.
Double-Sided Visibility
Two-sided display structure improves visibility for walkways, entrances, plazas, and two-way pedestrian traffic areas.
Sunlight-Readable High Brightness
Max 3000 nits brightness supports clear visibility in outdoor daylight and high ambient light.
Anti-Glare Glass + UV Film Protection
5mm AG glass combined with full-lamination UV film helps protect the LCD and improve outdoor durability.
Smart Temperature Control
Thermal design supports stable outdoor operation in heat, direct sunlight, and long daily commercial use.
UHD Display Performance
Supports up to UHD 3840 × 2160 resolution for sharp digital signage content and clear outdoor presentation.
Android / Windows / HDMI Input Optional
Flexible system options support signage software, media playback, external player input, and project integration.
Project-Based Customization
Supports enclosure color, system configuration, screen size, touch, and project-based outdoor installation requirements.
Why It Works for Outdoor Projects
This double-side floor-standing outdoor display is designed for locations where people approach from both directions and both sides of the display need to deliver visible content.
Technical Specifications
Key specifications for project evaluation, quotation, and double-side outdoor display configuration.
43″ / 49″ / 55″ / 65″ / 75″
Max 3000 nits
IP66
Max UHD 3840 × 2160
Available Models
| Model Reference | Screen Size | Resolution |
|---|---|---|
| AS-WD430D-IP66-DS | 43″ | Full HD 1920 × 1080 |
| AS-WD490D-IP66-DS | 49″ | UHD 3840 × 2160 |
| AS-WD550D-IP66-DS | 55″ | UHD 3840 × 2160 |
| AS-WD650D-IP66-DS | 65″ | UHD 3840 × 2160 |
| AS-WD750D-IP66-DS | 75″ | UHD 3840 × 2160 |
| Screen Size | 43″ / 49″ / 55″ / 65″ / 75″ |
|---|---|
| Brightness | Max 3000 nits |
| Resolution | Max UHD 3840 × 2160 |
| IP Rating | IP66 |
| Operating Temperature | -20°C to +50°C |
| Glass | 5mm AG glass combined with full-lamination UV film |
| UV Film | Yes |
| System | Android OS / Windows OS / Linux OS / HDMI input |
| Input | HDMI / USB / VGA / RJ45 |
| Touch | PCAP touch optional |
| Installation | Floor-standing |
| Orientation | Portrait |
| Enclosure Color | Black / Gray / White |
| Structure Customization | Yes |
Dimensions & Installation Footprint
Select a screen size to view the corresponding dimension drawing. The default preview is the 55-inch model.
Click a size thumbnail to enlarge the corresponding dimension drawing on the right. 49-inch model is available; dimension drawing can be provided upon request.
Installation & Structure
The double-side floor-standing IP66 outdoor display is designed for two-way visibility, stable ground installation, waterproof protection, cable management, and project-based commercial deployment.
Applications
This product is suitable for outdoor locations where display visibility is needed from both directions.
Two-Way Pedestrian Traffic Areas
Shopping Mall Entrance
Commercial Plaza Display
Transportation Station Display
Street-Level Outdoor Advertising
