Flexible Transparent LED Display Film
Ultra-thin flexible transparent LED film screen designed for direct installation on glass windows, retail storefronts, shopping malls, showrooms, glass curtain walls, and curved glass surfaces. The self-adhesive transparent LED display combines 90%–95% transparency, a 2.0mm film structure, multiple pixel pitch options, and flexible sizing for commercial glass advertising projects.
Transparent LED Film Screen Gallery
Review the flexible LED film structure, adhesive glass installation, retail window applications, glass curtain wall installations, and commercial transparent display projects.

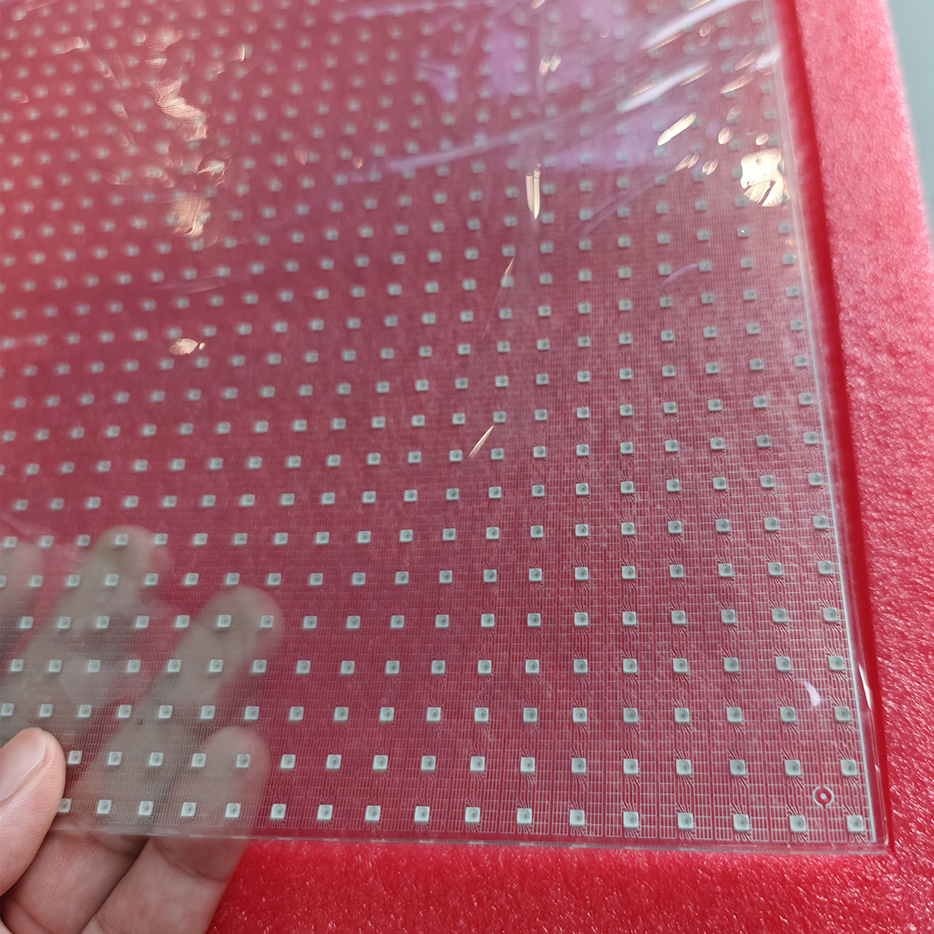

Transparent LED Film Body

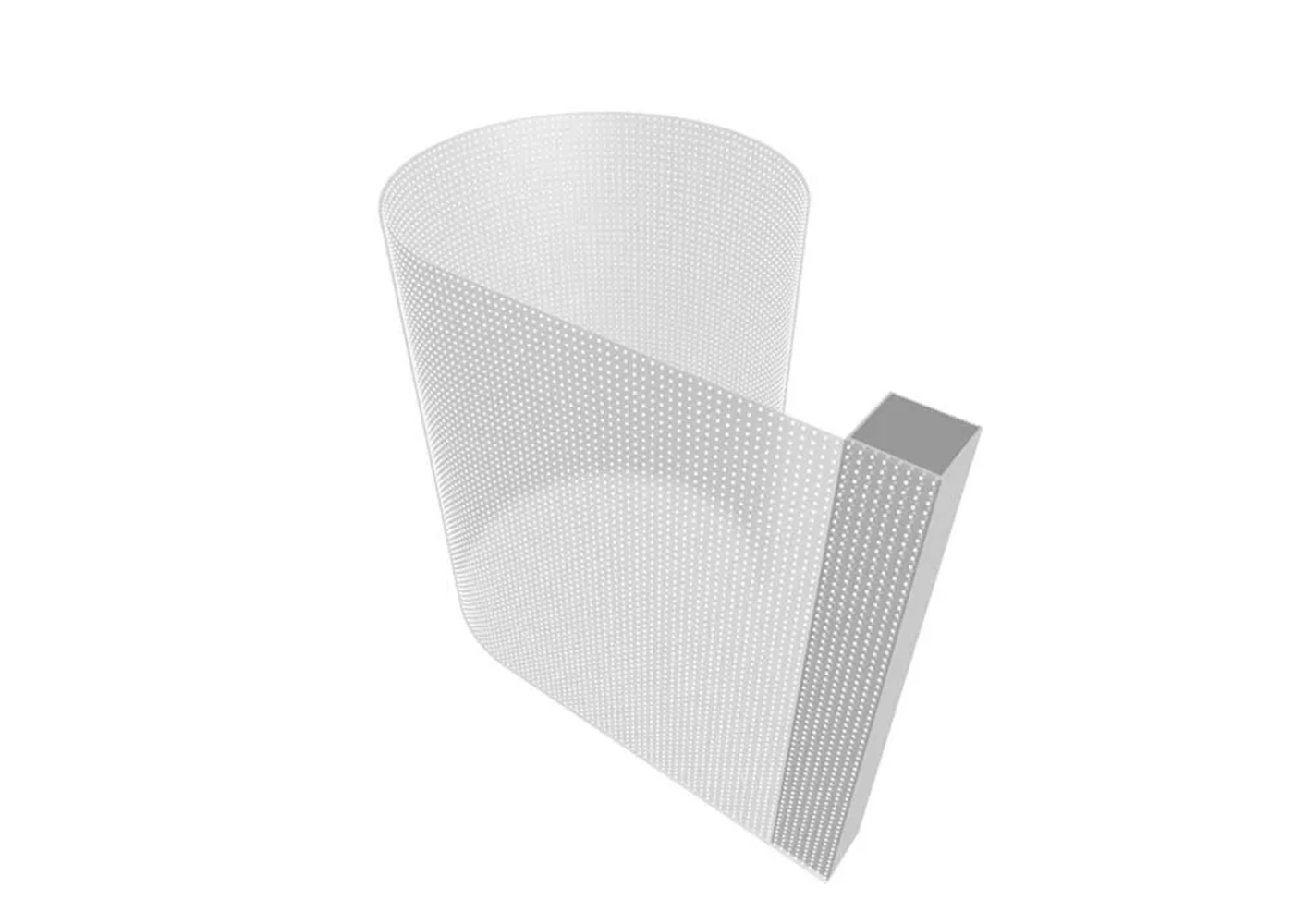

Flexible / Bendable Detail

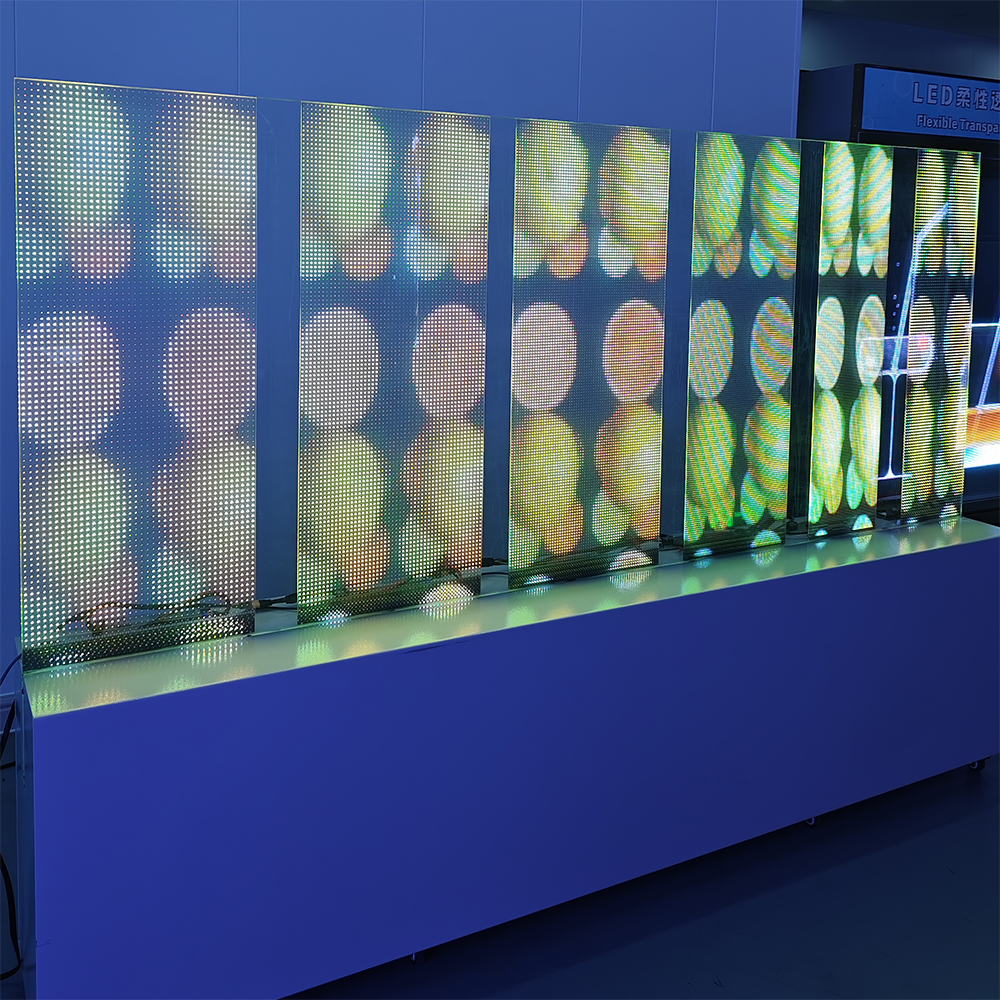

Adhesive Glass Installation
Retail Store Window
Glass Curtain Wall
Shopping Mall Storefront
Key Features of the Transparent LED Film Screen
A flexible transparent LED display solution for glass windows, storefront advertising, architectural glass, and commercial transparent display projects.
90%–95% High Transparency
High transparency allows the glass surface to remain visually open while the LED film displays advertising, branding, graphics, animation, and other digital content.
Ultra-Thin 2.0mm LED Film
The 2.0mm film structure provides a slim transparent display format that can be integrated directly with existing commercial glass surfaces.
Self-Adhesive Glass Installation
The adhesive transparent LED film can be applied directly to suitable existing glass surfaces without a conventional LED cabinet structure.
Flexible & Bendable Structure
Flexible LED film can be used on flat glass, curved glass, glass guardrails, and other project-specific transparent surfaces.
2000–4000 cd/m² Brightness Options
Available brightness varies by pixel pitch and LED configuration, with 2000, 2500, and 4000 cd/m² options across the product range.
3840Hz Refresh Rate
The specified 3840Hz refresh rate supports smooth digital content playback for retail advertising, branding, and commercial display applications.
Nova / Colorlight Control System
Supports Nova and Colorlight LED control systems for synchronous or asynchronous content control configurations according to project requirements.
UV Resistant & V1 Flame Retardant
The product specification includes UV-resistant material and V1 flame-retardant performance for commercial glass display applications.
Why Use Transparent LED Film on Glass Windows?
Transparent LED film turns suitable glass surfaces into digital display areas while preserving a high level of transparency. Unlike conventional cabinet-style LED screens, the film can be attached directly to glass and occupies very little interior space.
Transparent LED Film Product Series
Choose from standard modules, project-specific configurations, and sample units according to glass size, installation structure, and project evaluation requirements.
Standard Transparent LED Film Module
Standard flexible LED film modules for common glass window advertising, storefront display, showroom, and commercial glass installation projects.
Project-Specific LED Film Module
Project-specific transparent LED film configurations for customized glass dimensions, special structures, and tailored display layouts.
Transparent LED Film Sample
Sample units for product evaluation, demonstrations, technical review, and project testing before a larger installation.
Transparent LED Film Pixel Pitch Options
Select P5, P6.25, P8, P10, P15, or P20 according to viewing distance, transparency, brightness requirement, glass dimensions, and project budget.
| Model | Pixel Pitch | Transparency | Brightness | Pixels / m² | Typical Application |
|---|---|---|---|---|---|
| P5 | 5 × 5mm | 90% | 2500 cd/m² | 40000 | Closer viewing distances and retail glass display applications |
| P6.25 | 6.25 × 6.25mm | 92% | 2000 / 4000 cd/m² | 25600 | Retail window advertising and storefront glass displays |
| P8 | 8 × 8mm | 92% | 2000 / 4000 cd/m² | 15625 | Shopping mall glass and commercial storefront windows |
| P10 | 10 × 10mm | 94% | 2000 / 4000 cd/m² | 10000 | Larger glass windows and medium-to-long viewing distances |
| P15 | 15 × 15mm | 94% | 2000 / 4000 cd/m² | 4356 | Large glass façades and architectural transparent displays |
| P20 | 20 × 20mm | 95% | 2000 / 4000 cd/m² | 2500 | Large glass curtain walls and longer viewing distances |
Self-Adhesive Transparent LED Film Installation
The flexible transparent LED film is designed for direct attachment to suitable glass surfaces. After installation, power and signal connections are integrated according to the selected LED control system and project layout.
Flexible Transparent LED Film Specifications
Compare pixel pitch, transparency, brightness, module size, power consumption, refresh rate, operating conditions, and control system options.
90%–95%
2.0mm
3840Hz
100,000H
| Specification | P5 | P6.25 | P8 | P10 | P15 | P20 |
|---|---|---|---|---|---|---|
| Module Size | 320 × 1000mm | 400 × 1000mm | 400 × 1000mm | 400 × 1000mm | 390 × 990mm | 1000 × 400mm |
| Pixel Pitch | 5 × 5mm | 6.25 × 6.25mm | 8 × 8mm | 10 × 10mm | 15 × 15mm | 20 × 20mm |
| Brightness | 2500 cd/m² | 2000 / 4000 cd/m² | 2000 / 4000 cd/m² | 2000 / 4000 cd/m² | 2000 / 4000 cd/m² | 2000 / 4000 cd/m² |
| Transparency | 90% | 92% | 92% | 94% | 94% | 95% |
| Viewing Angle | 160° | 160° | 160° | 160° | 160° | 160° |
| Input Voltage | AC100–240V 50/60Hz | AC100–240V 50/60Hz | AC100–240V 50/60Hz | AC100–240V 50/60Hz | AC100–240V 50/60Hz | AC100–240V 50/60Hz |
| Peak Power | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 600W/m² |
| Average Power | 200W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
| Working Environment | Temperature: -20°C to +55°C / Humidity: 10%–90% | |||||
| Thickness | 2.0mm | |||||
| Control System | Nova / Colorlight | |||||
| Grayscale Level | 16bit | |||||
| Refresh Rate | 3840Hz | |||||
| Typical Lifetime | 100,000H | |||||

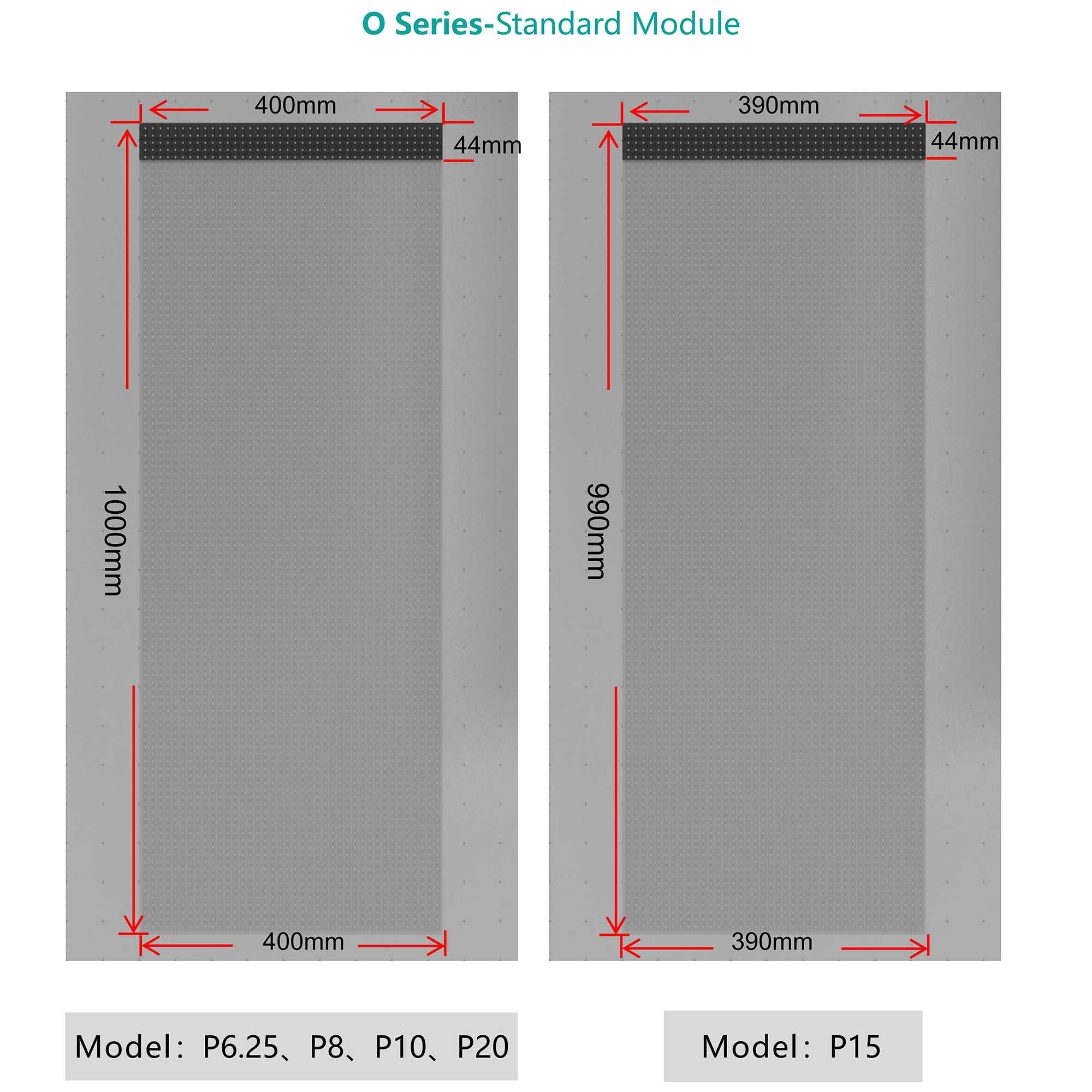

Transparent LED Film Module Dimensions
The O Series drawing shows standard module dimensions for the main P5, P6.25, P8, P10, P15, and P20 transparent LED film configurations.
Note: Final transparent LED screen dimensions, module arrangement, controller position, power supply layout, and wiring should be confirmed according to the glass dimensions and project installation requirements.
Transparent LED Film Screen Applications
Flexible transparent LED film is suitable for glass-based advertising, storefront displays, showrooms, shopping malls, architectural glass, and other transparent digital display projects.

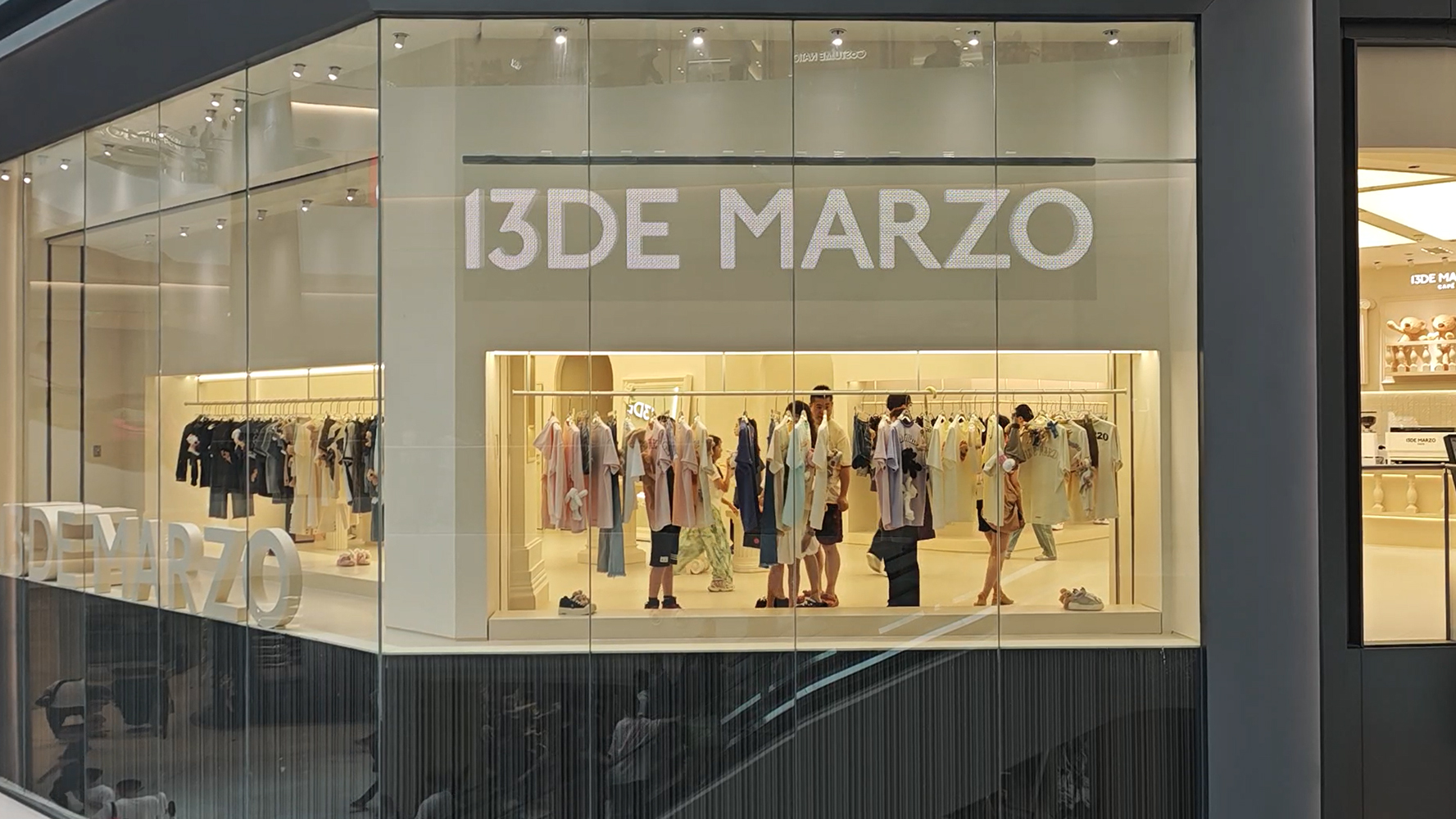

Retail Glass Window Advertising

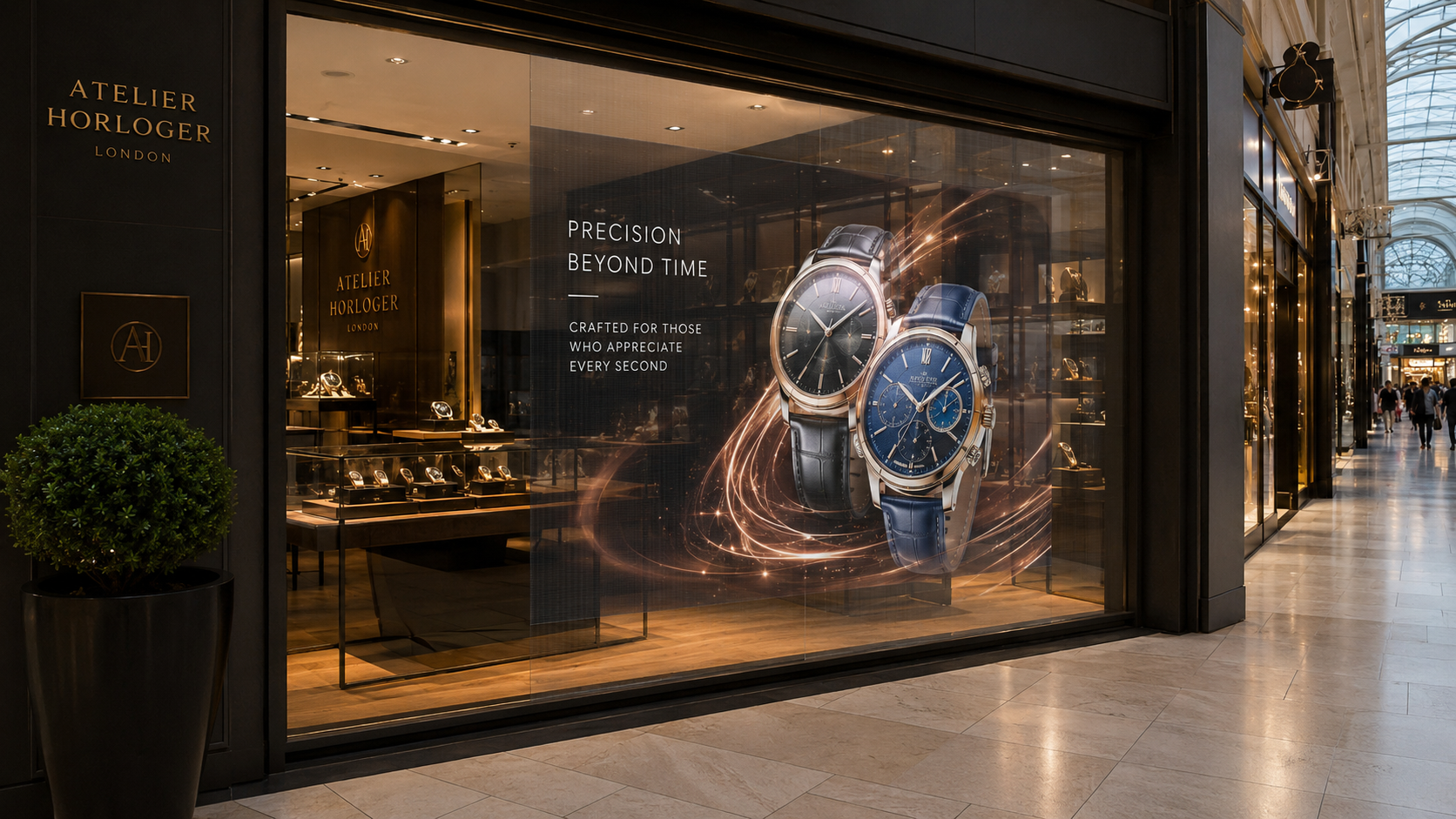

Luxury Storefront LED Display

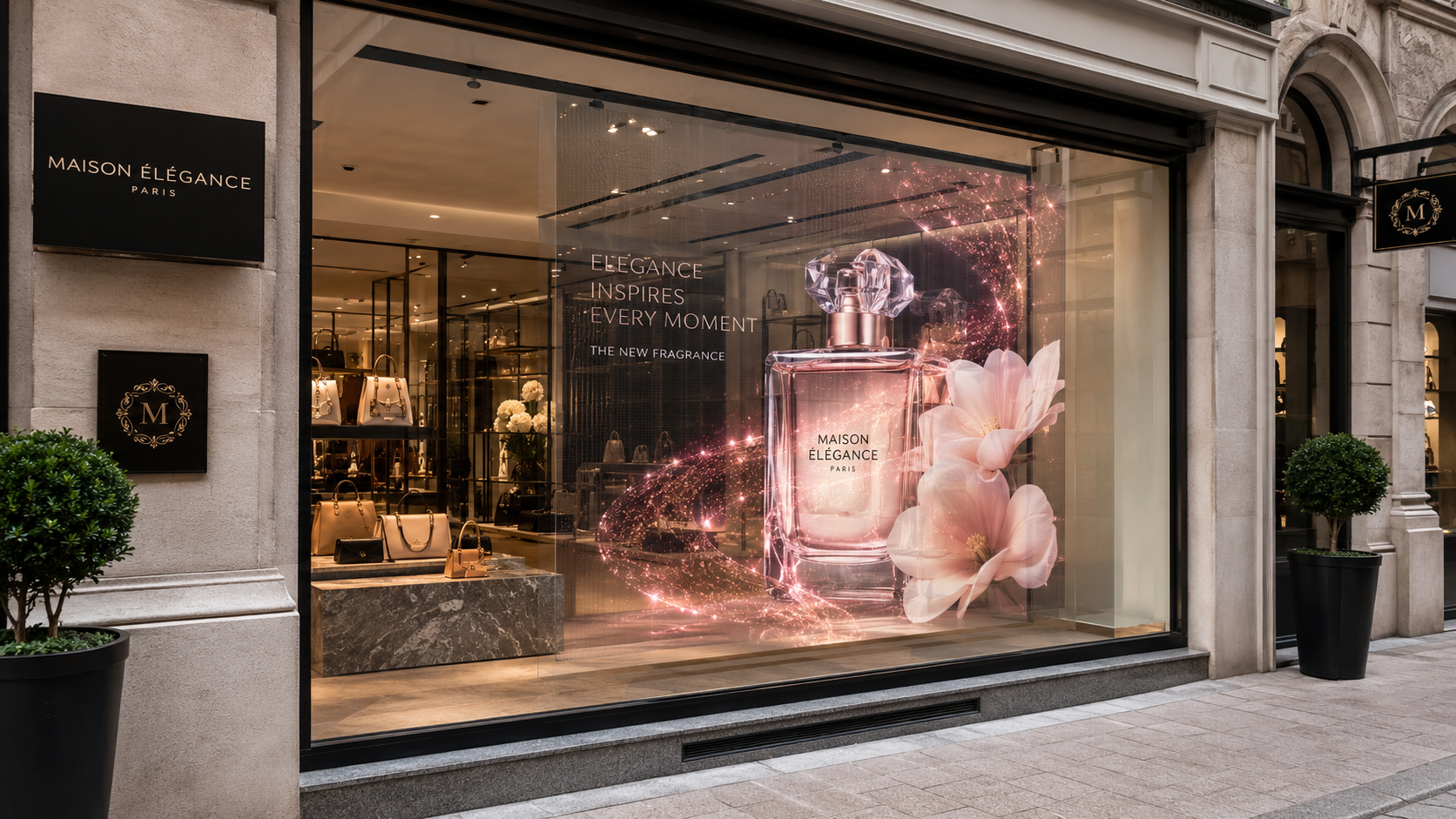

Shopping Mall Glass Storefront
Glass Curtain Wall LED Display
Curved Glass LED Display

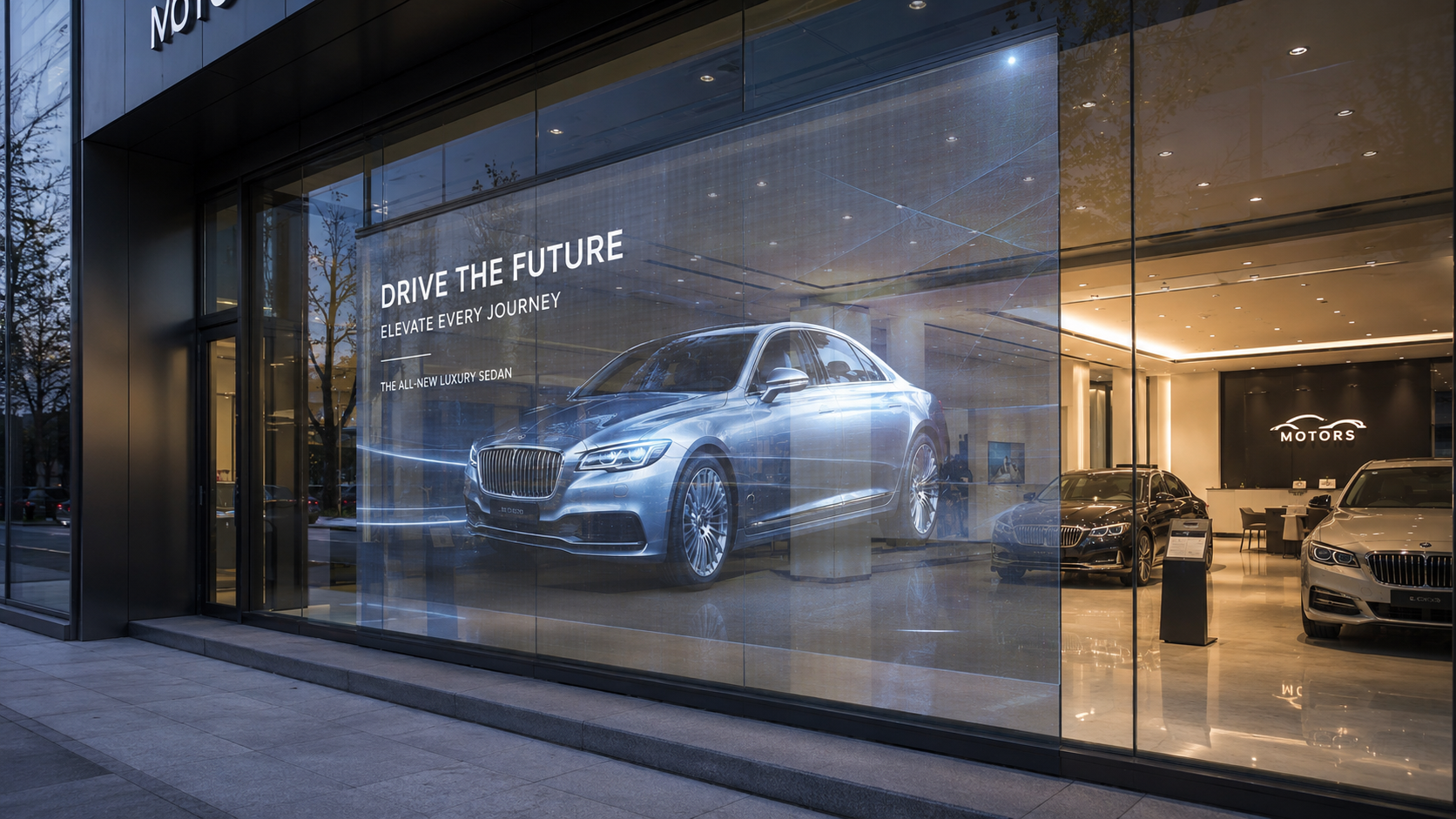

Car Dealership Glass Display
Exhibition Glass Display
Architectural Transparent LED Display
