2 × 55″ Digital Drive-Thru Menu Board
Dual-screen IP66 digital drive-thru menu board for QSR restaurants, combining two 55-inch high-brightness outdoor displays for menu pricing, meal combinations, promotions, and customer ordering information. Designed for drive-thru digital signage projects requiring daylight visibility, weather protection, and a compact two-screen menu layout.
Product Introduction Video
2 × 55″ IP66 Drive-Thru Digital Menu Board
This showroom video introduces the dual-screen drive-thru menu board, including its two-display layout, IP66 outdoor enclosure, physical structure, display appearance, and system configuration for QSR digital signage projects.
- Product Type: Dual-Screen Digital Drive-Thru Menu Board
- Application: QSR Drive-Thru Ordering Lane
- Configuration: 2 × 55″ Outdoor LCD Displays
- Protection: IP66 Outdoor Enclosure
- Brightness: Up to 3000 nits
- Installation: Floor-Standing Structure
Dual-Screen Drive-Thru Menu Board Gallery
Review the front, side, rear structure, and LCD display details of the 2 × 55″ outdoor digital menu board for QSR drive-thru installations.

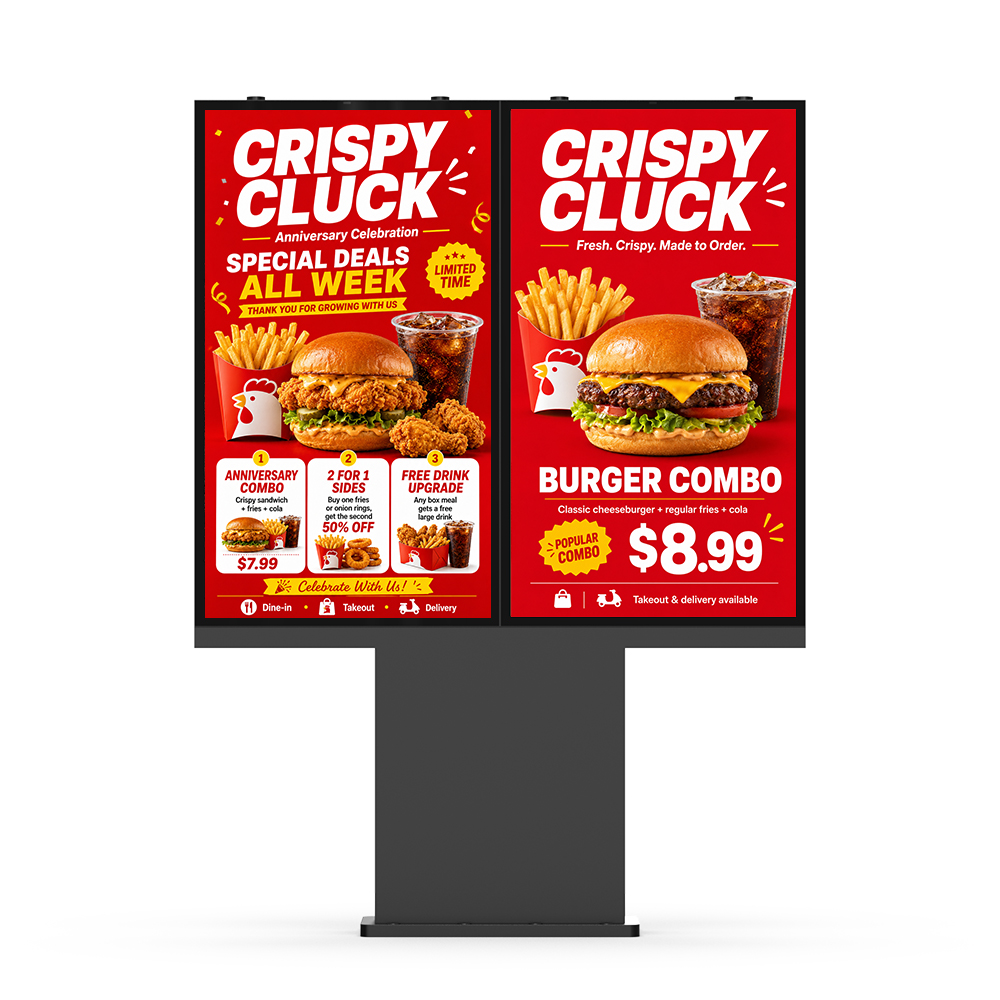

Front View

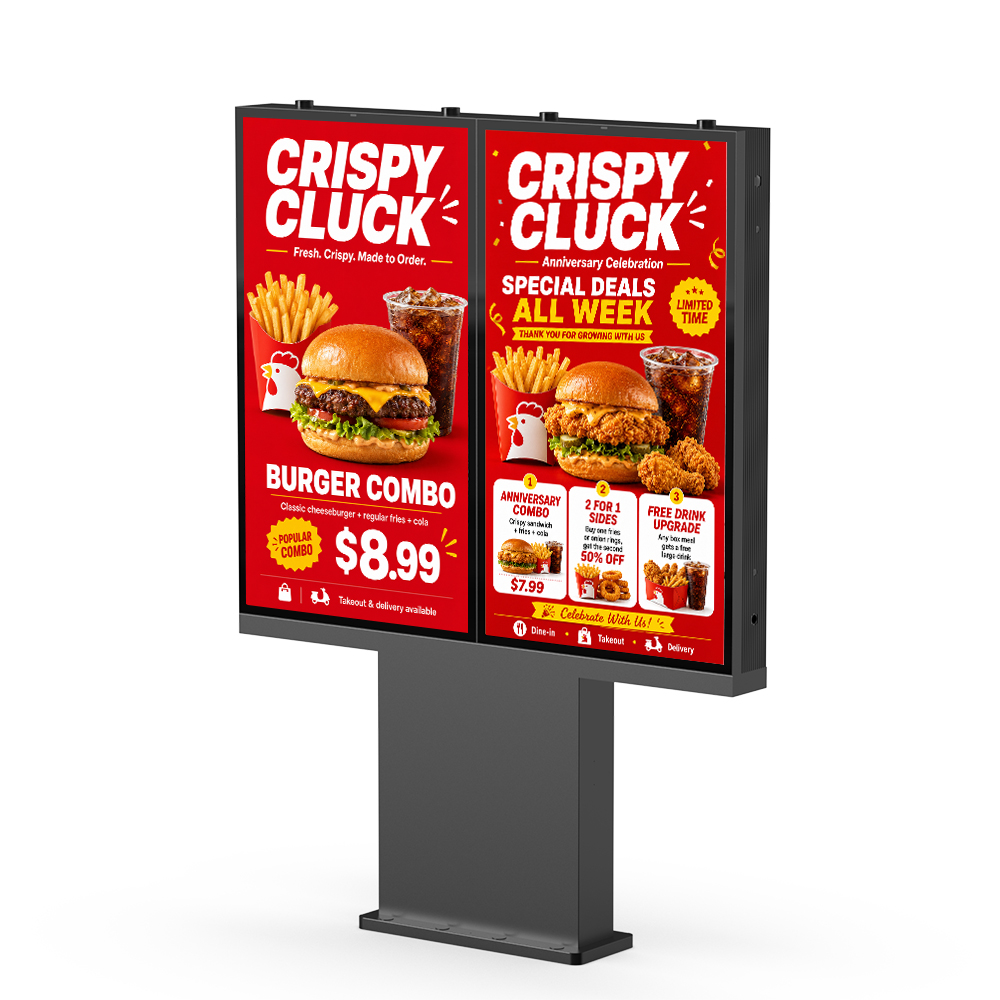

Side View

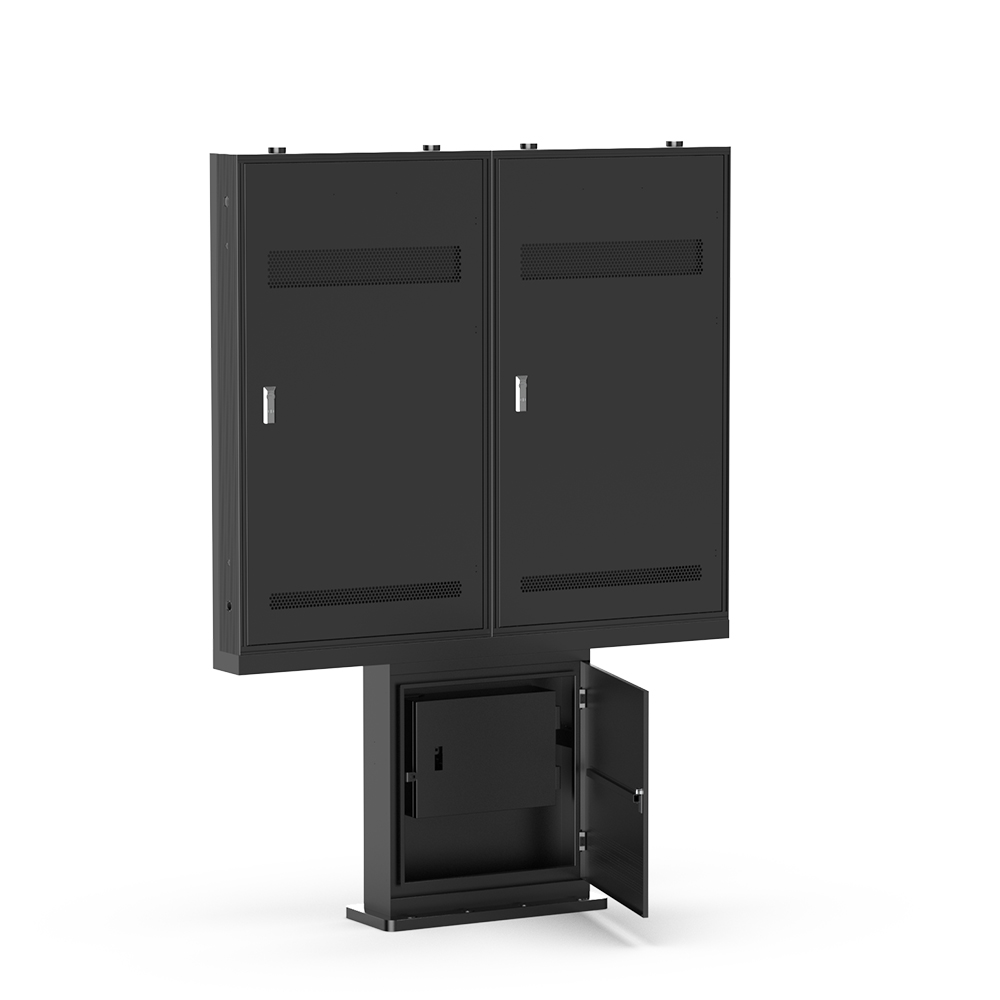

Rear Structure 1

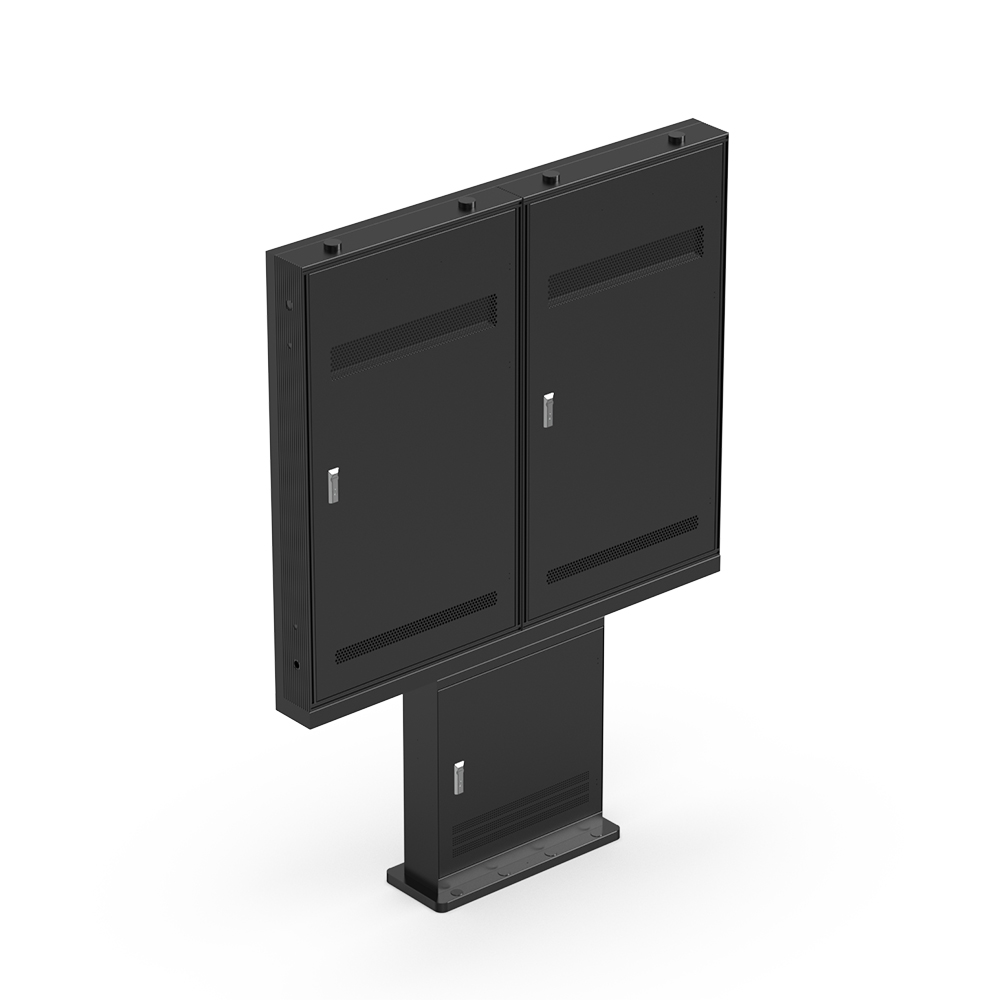

Rear Structure 2

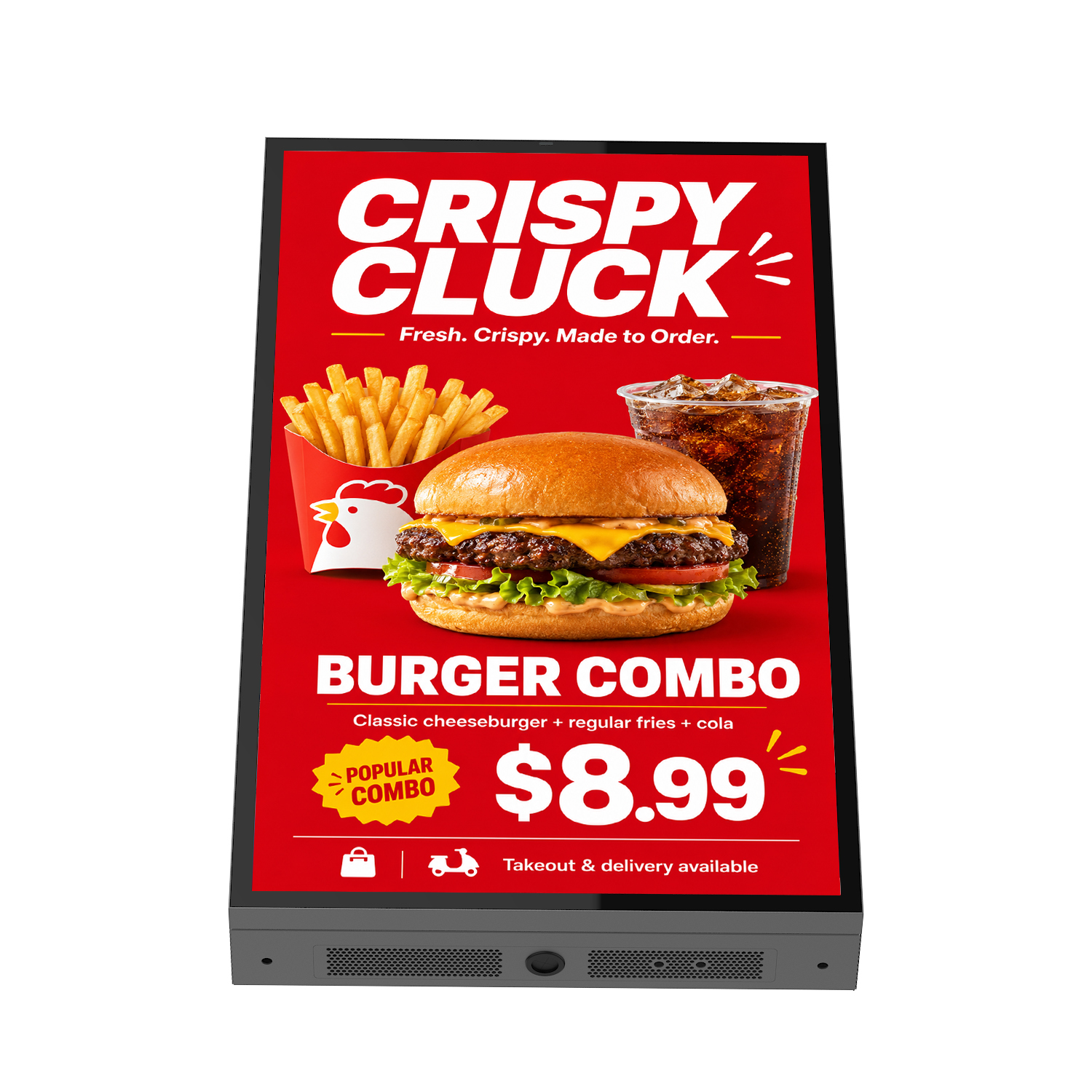

Screen Close-Up
Key Features of the 2-Screen Outdoor Digital Menu Board
Designed for QSR and restaurant drive-thru digital signage projects where outdoor readability, weather protection, menu capacity, system integration, and long daily operating schedules are important.
IP66 Outdoor Enclosure
IP66 enclosure protects the digital signage displays against rain, dust, and typical exterior conditions around restaurant drive-thru lanes.
High-Brightness 3000 nits LCD
Up to 3000 nits brightness helps menu prices, product images, promotions, and ordering information remain visible under outdoor daylight.
Dual-Screen Menu Layout
Two 55-inch screens provide more menu space than a single display while maintaining a compact footprint for drive-thru ordering lanes.
Anti-Glare Glass + UV Film
5mm AG glass combined with full-lamination UV film provides an additional protective layer for the outdoor LCD display.
Outdoor Thermal Management
Thermal management is designed to support outdoor operation across the specified -20°C to +55°C operating temperature range.
Commercial Display Platform
Designed for the long daily operating schedules commonly required by QSR restaurants, drive-thru lanes, and commercial digital signage projects.
Digital Signage System Options
Android, Windows, Linux, HDMI, USB, and VGA options support different digital signage CMS, media player, and system integration requirements.
Project-Oriented Structure
Floor-standing enclosure and support structure are designed for drive-thru installation, cable routing, inspection, and project maintenance.
Why Choose a Dual-Screen Drive-Thru Menu Board?
A 2 × 55″ digital menu board is suited to QSR drive-thru projects that need more menu capacity than a single-screen preview board without moving to a larger three-screen installation. It provides a balanced format for core menu items, pricing, promotions, and ordering information.
2 × 55″ Drive-Thru Menu Board Specifications
Technical information for QSR digital signage project evaluation, product comparison, quotation, installation planning, and system configuration.
2 × 55″
Up to 3000 nits
IP66
UHD 3840 × 2160
| Model | AS-WD550D-IP66X2 |
|---|---|
| Product Type | Dual-Screen Digital Drive-Thru Menu Board |
| Screen Size | 55″ |
| Number of Screens | 2 |
| Brightness | Max 3000 nits |
| Resolution | UHD 3840 × 2160 |
| IP Rating | IP66 |
| Operating Temperature | -20°C to +55°C |
| Glass | 5mm AG glass combined with full-lamination UV film |
| UV Film | Yes |
| System | Android OS / Windows OS / Linux OS / HDMI input |
| Input | HDMI input optional / USB / VGA |
| Touch | PCAP touch optional |
| Installation | Concrete pedestal installation |
| Structure Customization | Yes |
Dimensions & Installation Footprint
Dimensions help restaurant operators, signage integrators, and contractors evaluate drive-thru lane space, concrete pedestal layout, transportation requirements, cable routing, and installation clearance.
Overall Size
1465.6 × 1999.6 × 250 mm
Screen Size
1210 × 680 mm
Structure Width
1465.6 mm
Structure Height
1999.6 mm
Structure Depth
148 mm
Installation Type
Concrete pedestal installation

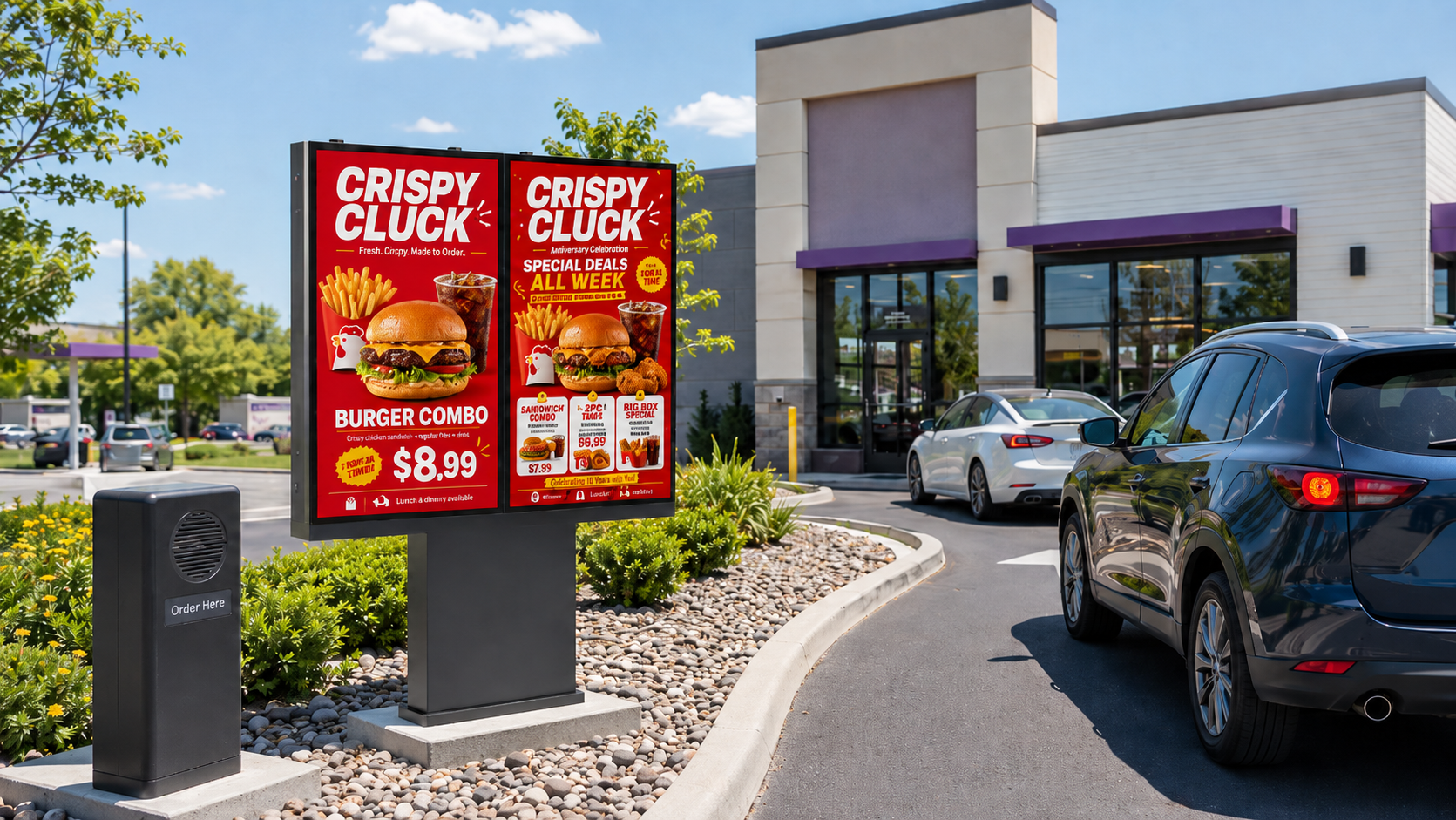

Outdoor Drive-Thru Installation & Structure
The dual-screen digital menu board uses a floor-standing outdoor structure designed for concrete pedestal installation, cable routing, weather protection, and QSR drive-thru lane deployment.
QSR & Restaurant Digital Signage Applications
The 2 × 55″ configuration is primarily designed for restaurant drive-thru digital menu boards, ordering lanes, pre-sell positions, exterior menu displays, and QSR digital signage upgrade projects.
QSR Drive-Thru Ordering Lanes
Outdoor Digital Menu Boards
Pre-Sell & Preview Menu Boards
Restaurant Exterior Digital Signage
Franchise & QSR Upgrade Projects
