IP66 Floor-Standing Outdoor Digital Signage Totem
Single-sided high-brightness outdoor digital signage totem with an IP66 floor-standing enclosure for advertising, retail exteriors, shopping plazas, building entrances, transportation areas, and public information projects. Also suitable as an outdoor advertising kiosk or freestanding digital signage display, with 43″ to 75″ screen options and up to 3000 nits brightness.
Real Project Video
IP66 Floor-Standing Outdoor Digital Signage Totem
This video shows a completed single-sided outdoor digital signage totem, highlighting the IP66 enclosure, front appearance, side profile, rear structure, installation details, and pre-shipment inspection.
Discuss a Similar ProjectOutdoor Digital Signage Totem Gallery
Review the front appearance, side profile, rear enclosure, and structural details of this single-sided freestanding outdoor advertising display.

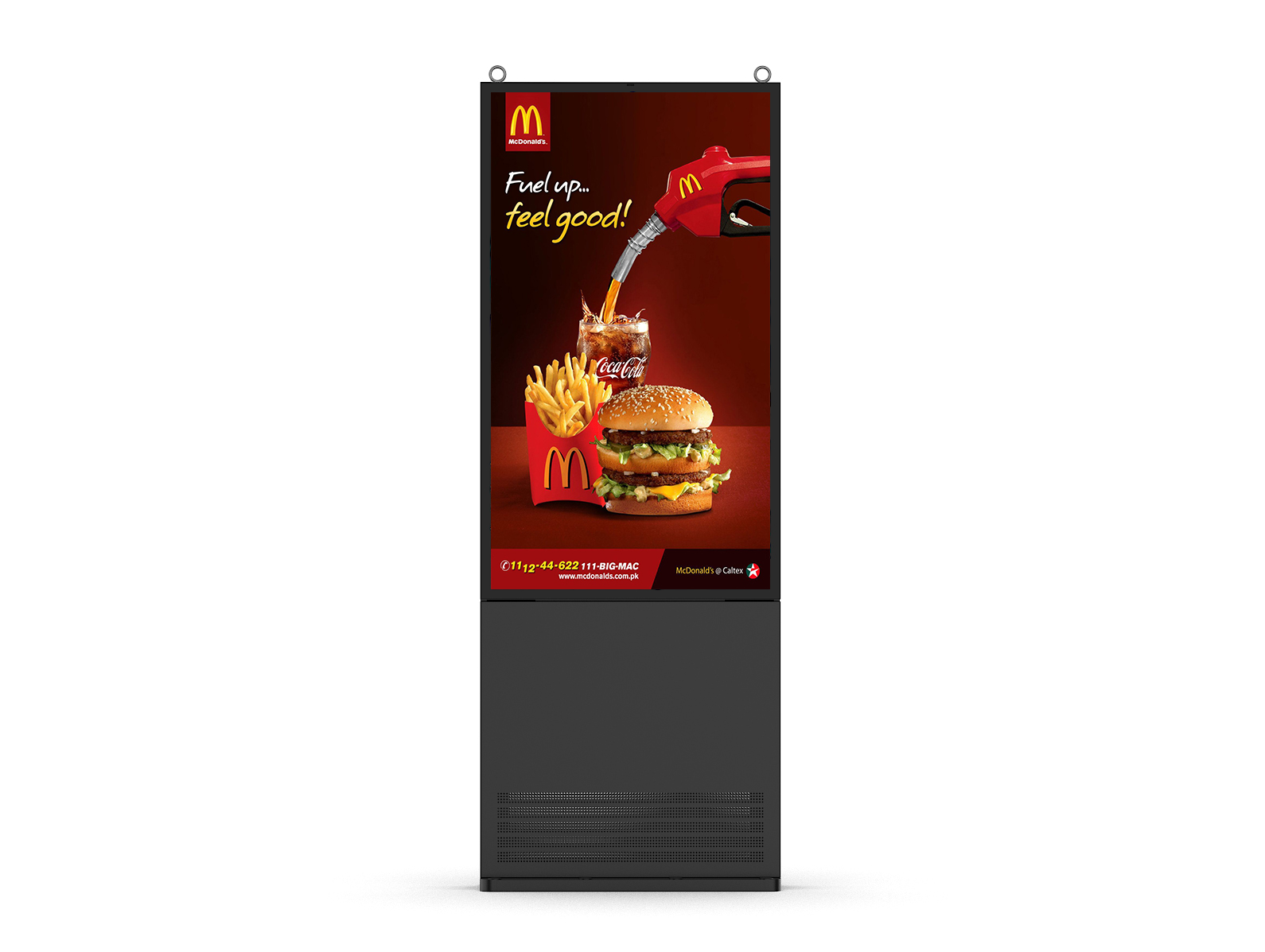

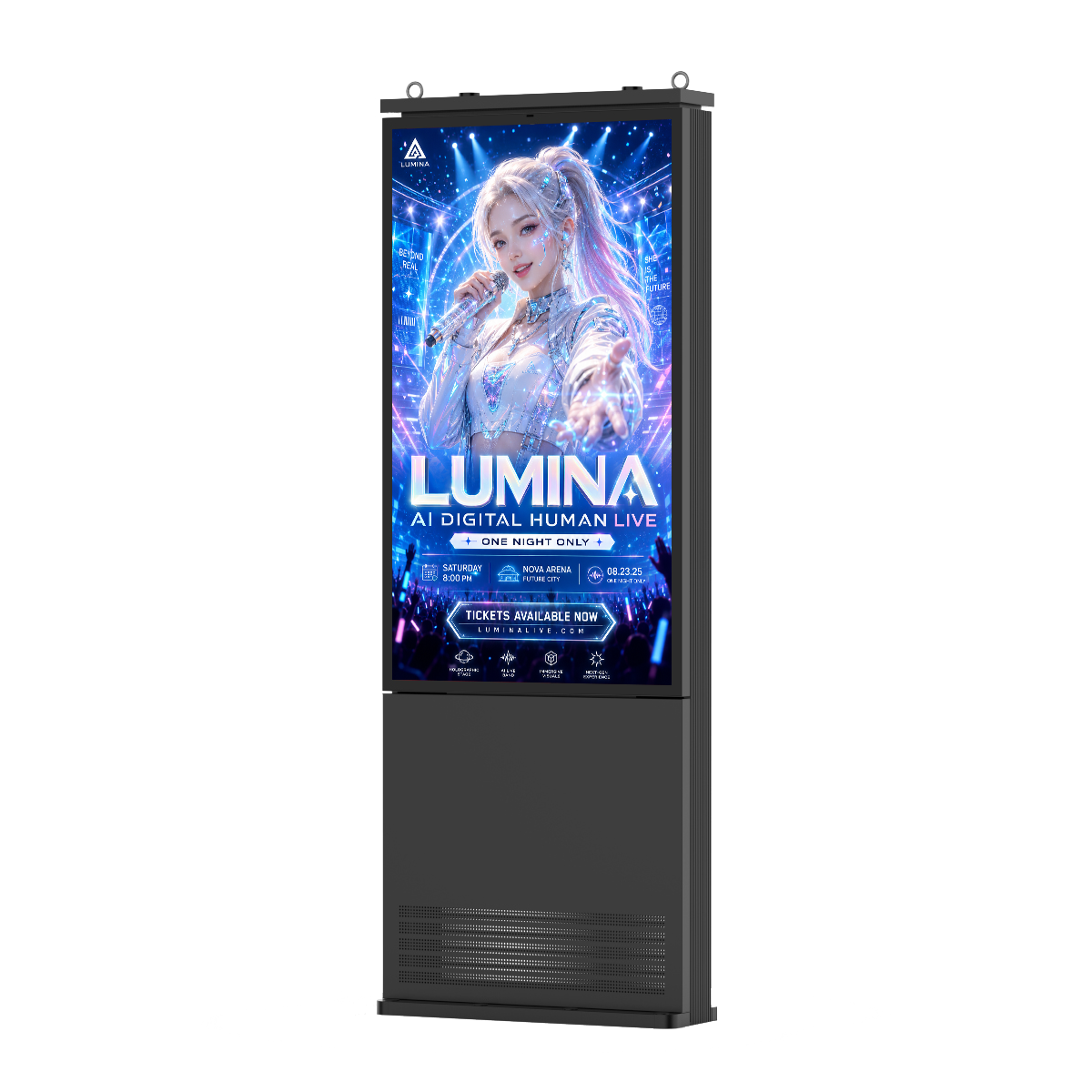

Front View #1
Front View #2

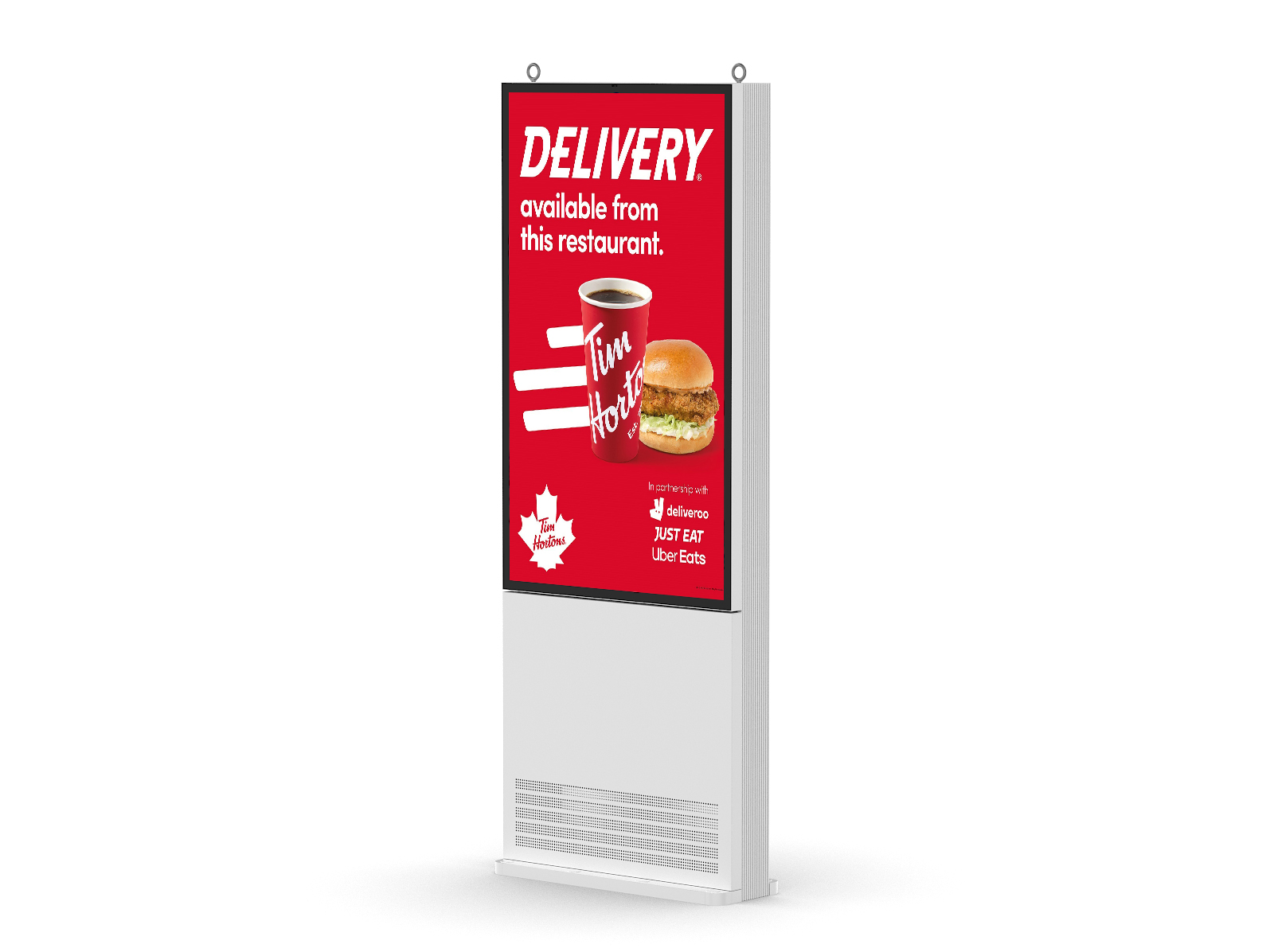

Side View

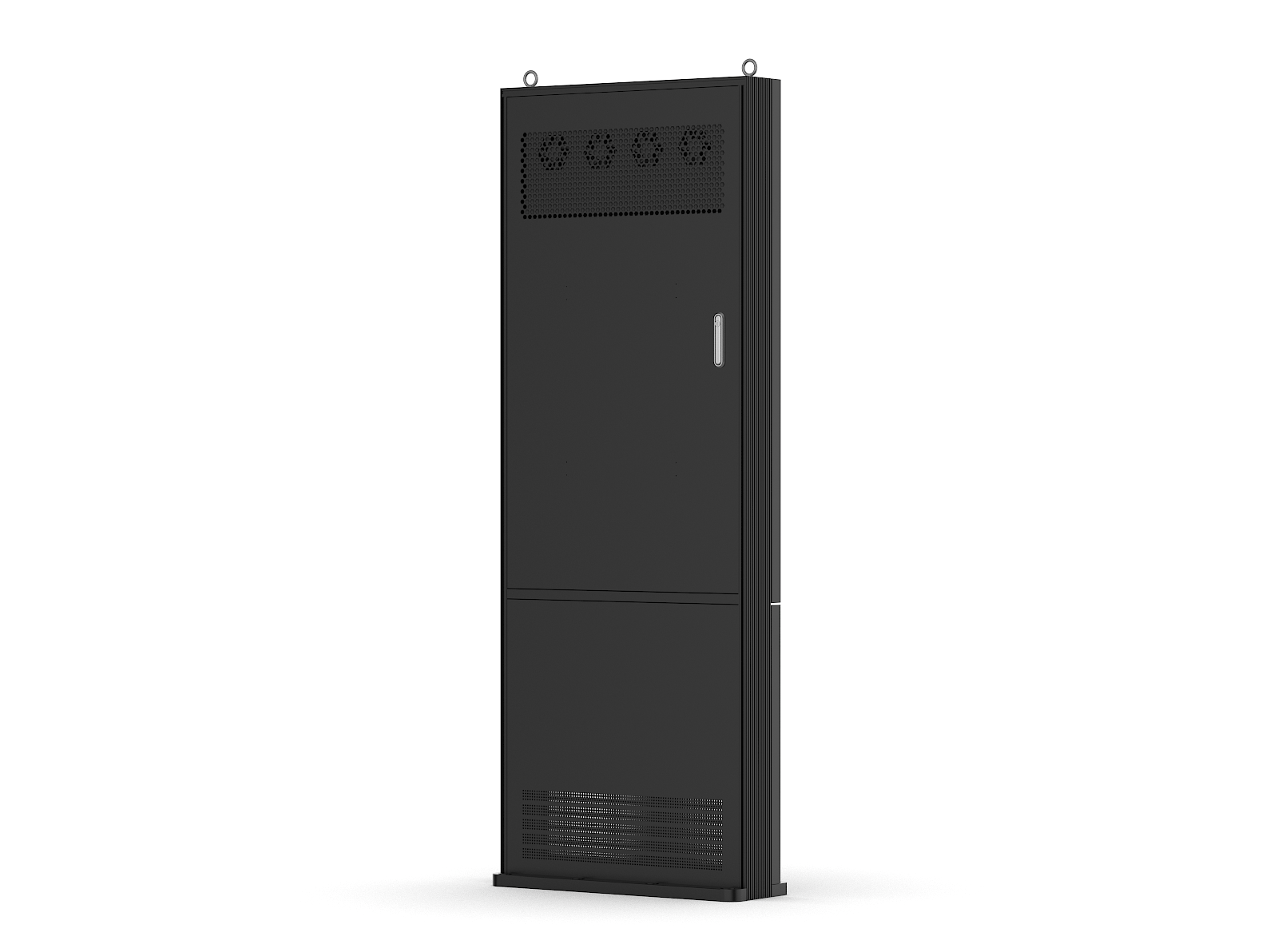

Rear Structure
Key Features of the Outdoor Digital Signage Totem
Designed for outdoor advertising and commercial digital signage projects where daylight readability, weather protection, thermal management, freestanding installation, and system integration are important.
IP66 Weatherproof Enclosure
IP66 enclosure is designed to protect the outdoor signage display against rain, dust, moisture, and typical exterior environmental exposure.
High-Brightness Outdoor LCD
Up to 3000 nits brightness helps advertising, promotions, wayfinding, and public information remain visible in outdoor daylight and high ambient light.
Anti-Glare Glass + UV Film
5mm AG glass combined with full-lamination UV film provides an additional protective layer for the outdoor LCD display.
Outdoor Thermal Management
Thermal management is designed to support outdoor operation across the specified -20°C to +50°C operating temperature range.
Full HD & 4K Display Options
Available models support Full HD or UHD 3840 × 2160 resolution, depending on screen size, for detailed advertising and digital signage content.
Flexible Digital Signage System Options
Android, Windows, Linux, HDMI, USB, VGA, and RJ45 options support digital signage software, external media players, content management systems, and project integration.
PCAP Touch Optional
Optional PCAP touch can turn the outdoor digital signage totem into an interactive information kiosk for wayfinding, visitor guidance, directories, and customer-facing applications.
Project-Based Configuration
Screen size, enclosure color, operating system, touch, orientation, and structural configuration can be selected according to outdoor signage project requirements.
Why Choose a Freestanding Outdoor Digital Signage Totem?
A floor-standing outdoor digital signage totem is useful where a dedicated freestanding advertising or information display is preferred over wall mounting. The single-sided format works well for customer-facing locations where content is primarily viewed from one direction.
Outdoor Digital Signage Totem Specifications
Key specifications for outdoor advertising totem selection, digital signage project evaluation, quotation, system configuration, and installation planning.
43″ / 49″ / 55″ / 65″ / 75″
Up to 3000 nits
IP66
Up to UHD 3840 × 2160
Available Floor-Standing Outdoor Totem Models
| Model Reference | Screen Size | Resolution |
|---|---|---|
| AS-WD430D-IP66-FS | 43″ | Full HD 1920 × 1080 |
| AS-WD490D-IP66-FS | 49″ | UHD 3840 × 2160 |
| AS-WD550D-IP66-FS | 55″ | UHD 3840 × 2160 |
| AS-WD650D-IP66-FS | 65″ | UHD 3840 × 2160 |
| AS-WD750D-IP66-FS | 75″ | UHD 3840 × 2160 |
| Product Type | Single-Sided Floor-Standing Outdoor Digital Signage Totem |
|---|---|
| Alternative Product Terms | Outdoor Digital Signage Kiosk / Outdoor Advertising Totem |
| Screen Size | 43″ / 49″ / 55″ / 65″ / 75″ |
| Brightness | Max 3000 nits |
| Resolution | Max UHD 3840 × 2160 |
| IP Rating | IP66 |
| Operating Temperature | -20°C to +50°C |
| Glass | 5mm AG glass combined with full-lamination UV film |
| UV Film | Yes |
| System | Android OS / Windows OS / Linux OS / HDMI input |
| Input | HDMI / USB / VGA / RJ45 |
| Touch | PCAP touch optional |
| Installation | Floor-standing / Freestanding |
| Orientation | Portrait / Landscape |
| Enclosure Color | Black / Gray / White |
| Structure Customization | Yes |

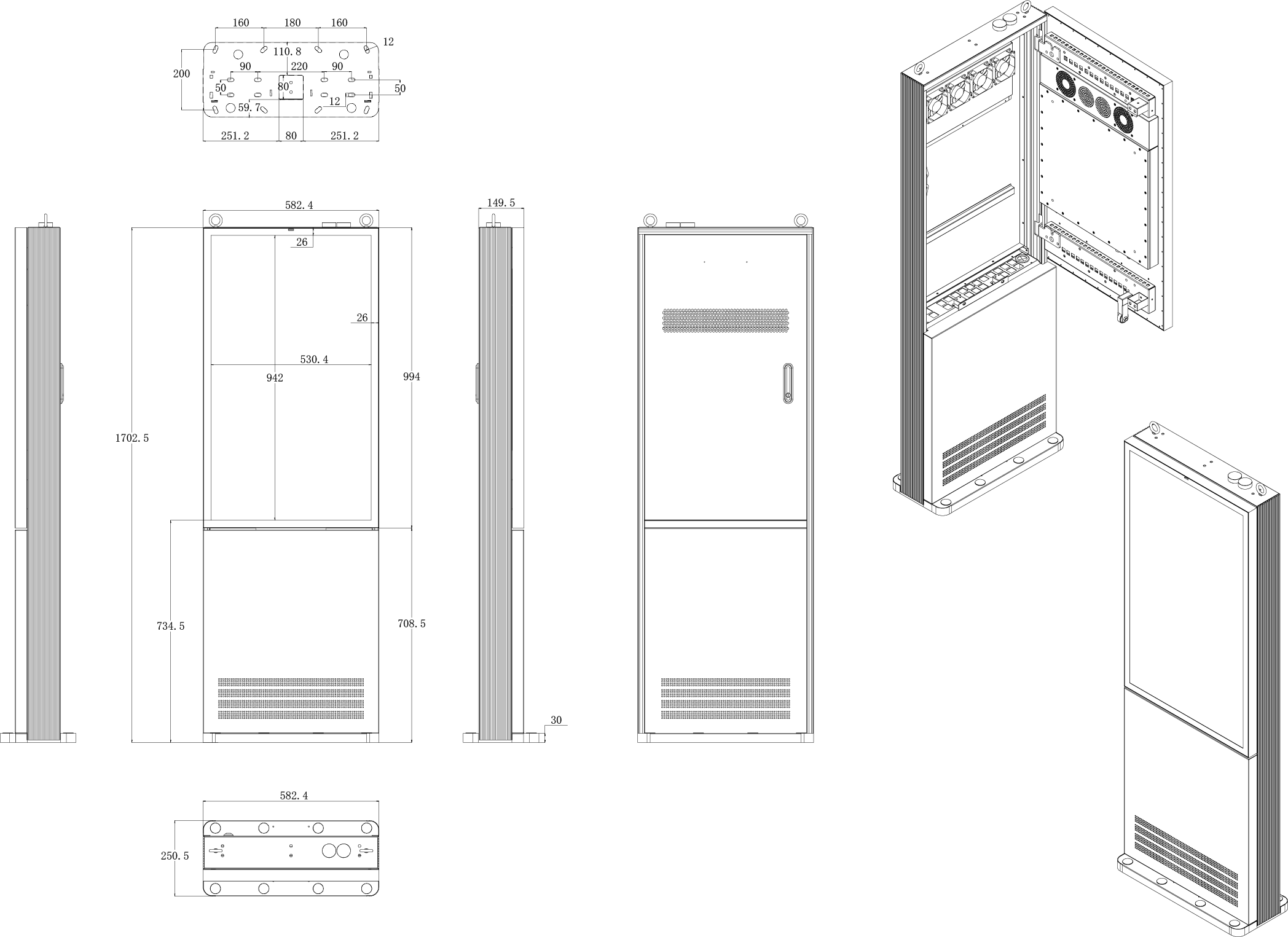

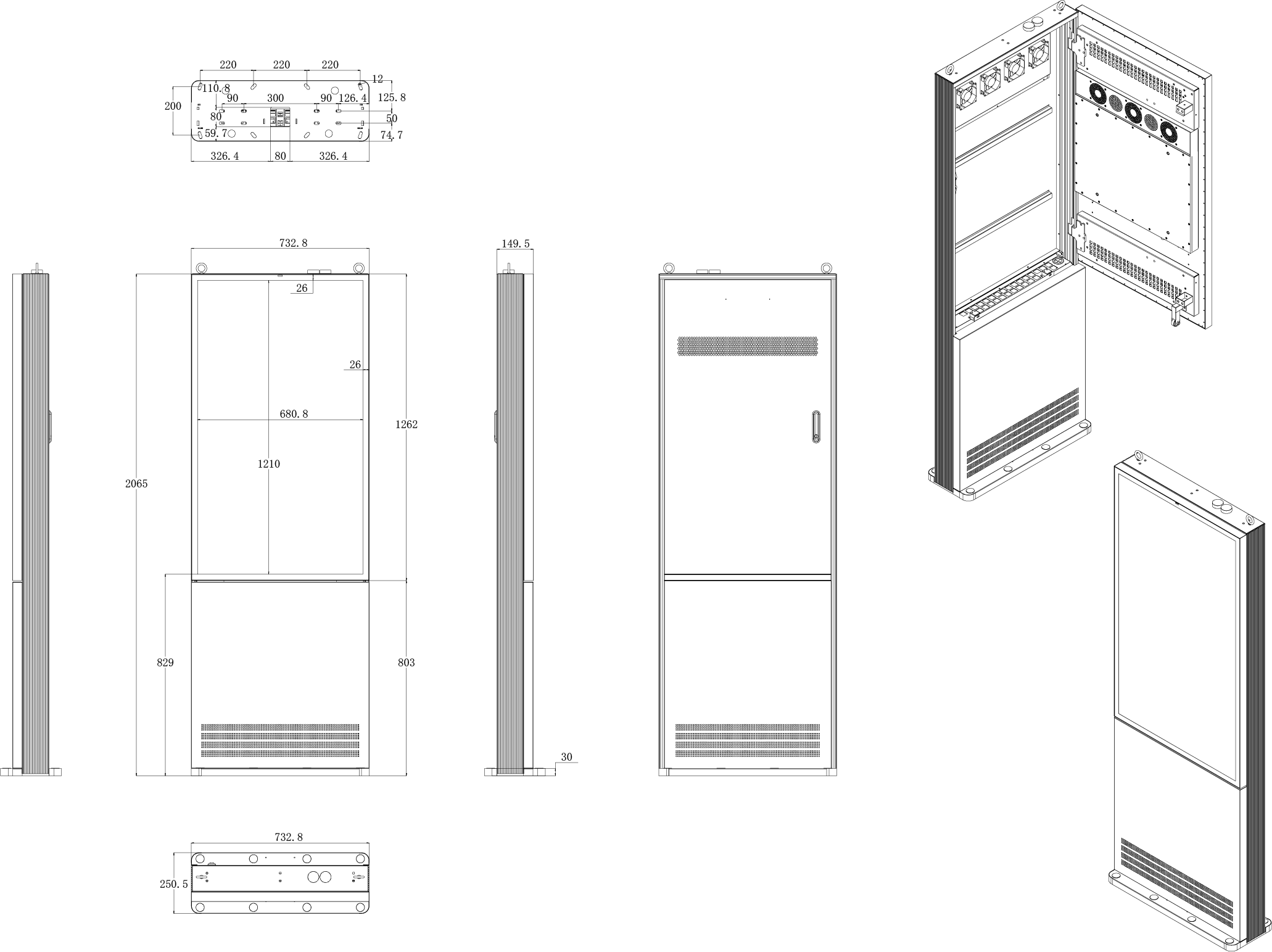

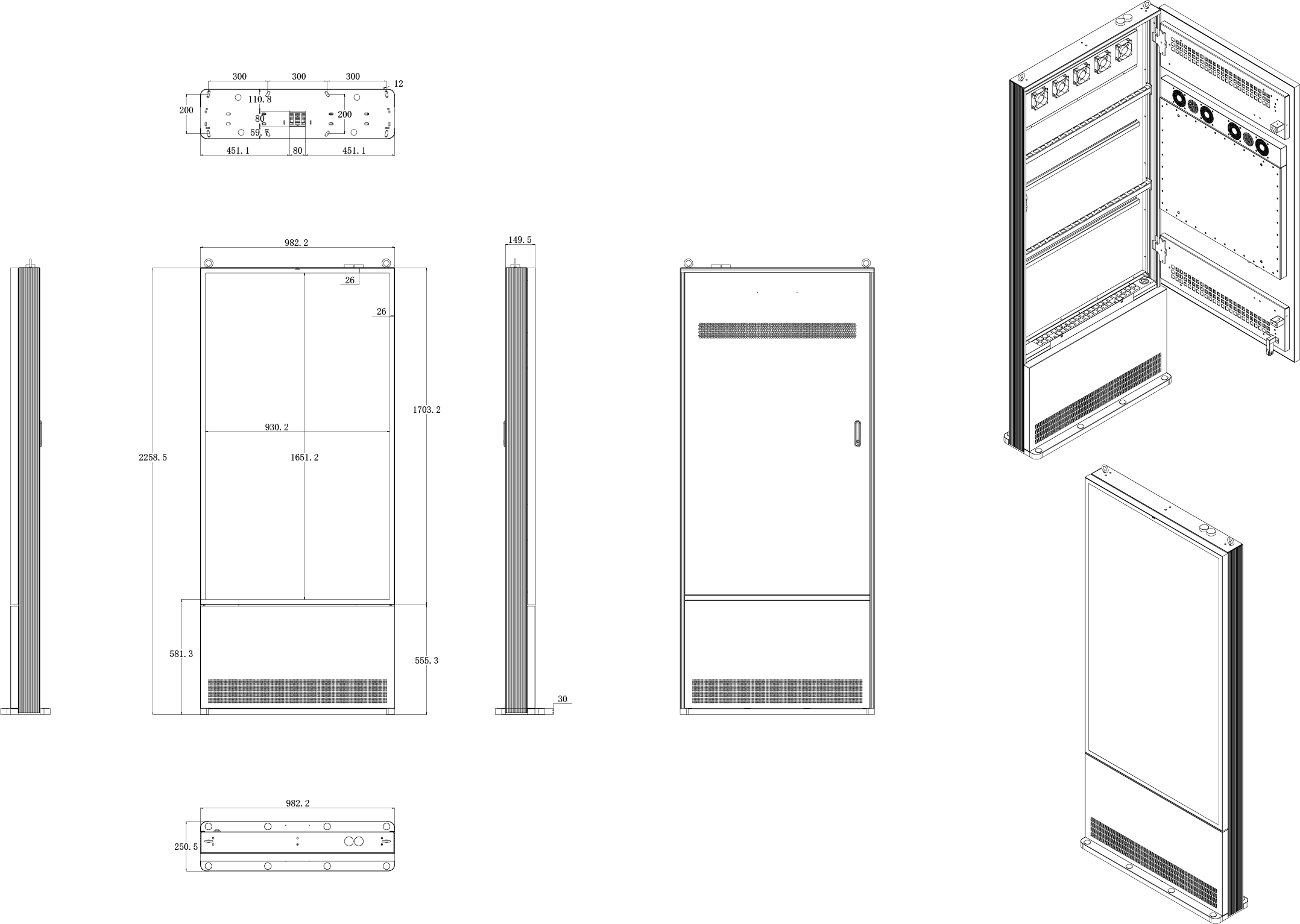

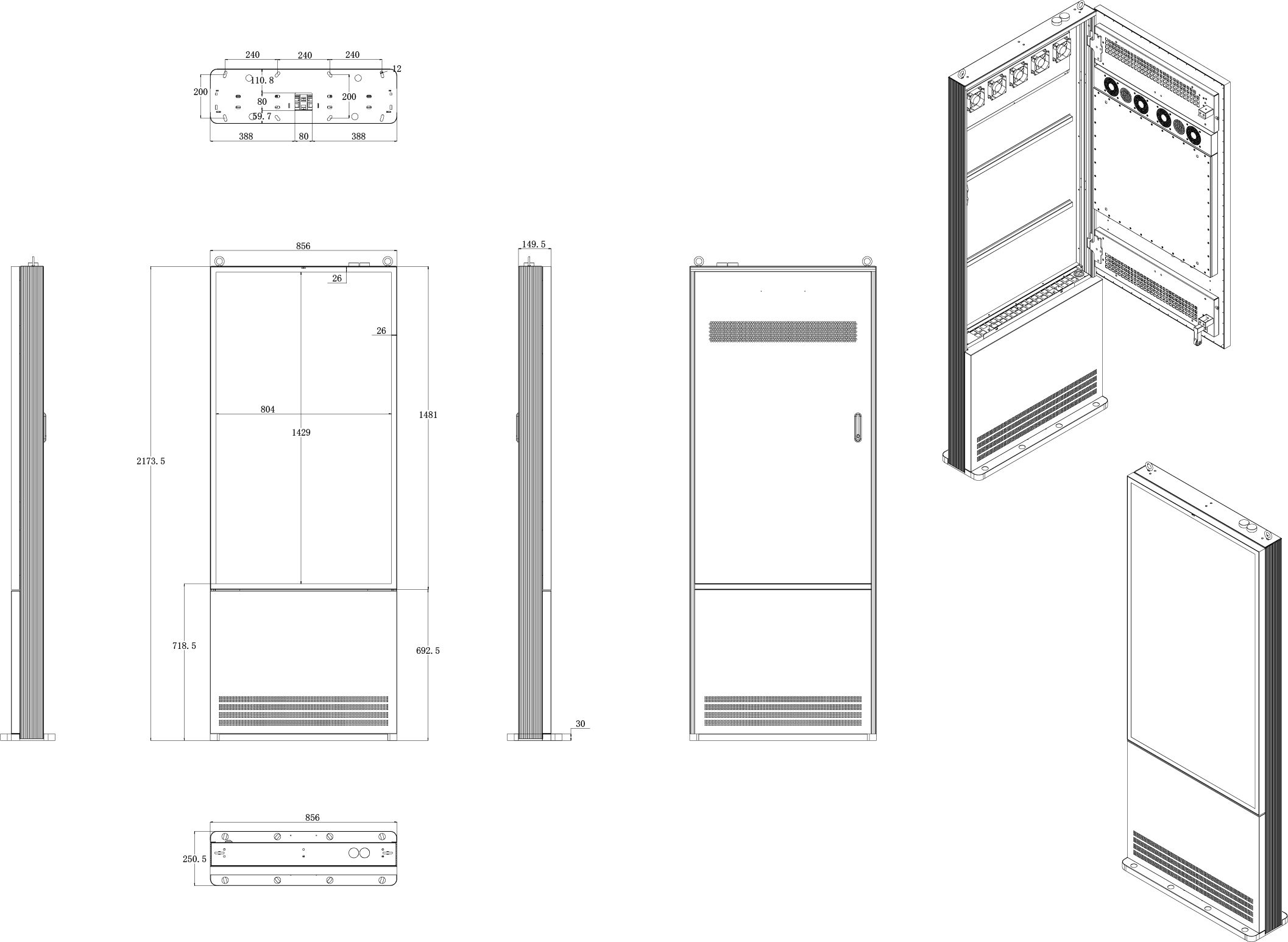

Outdoor Digital Signage Totem Dimensions by Screen Size

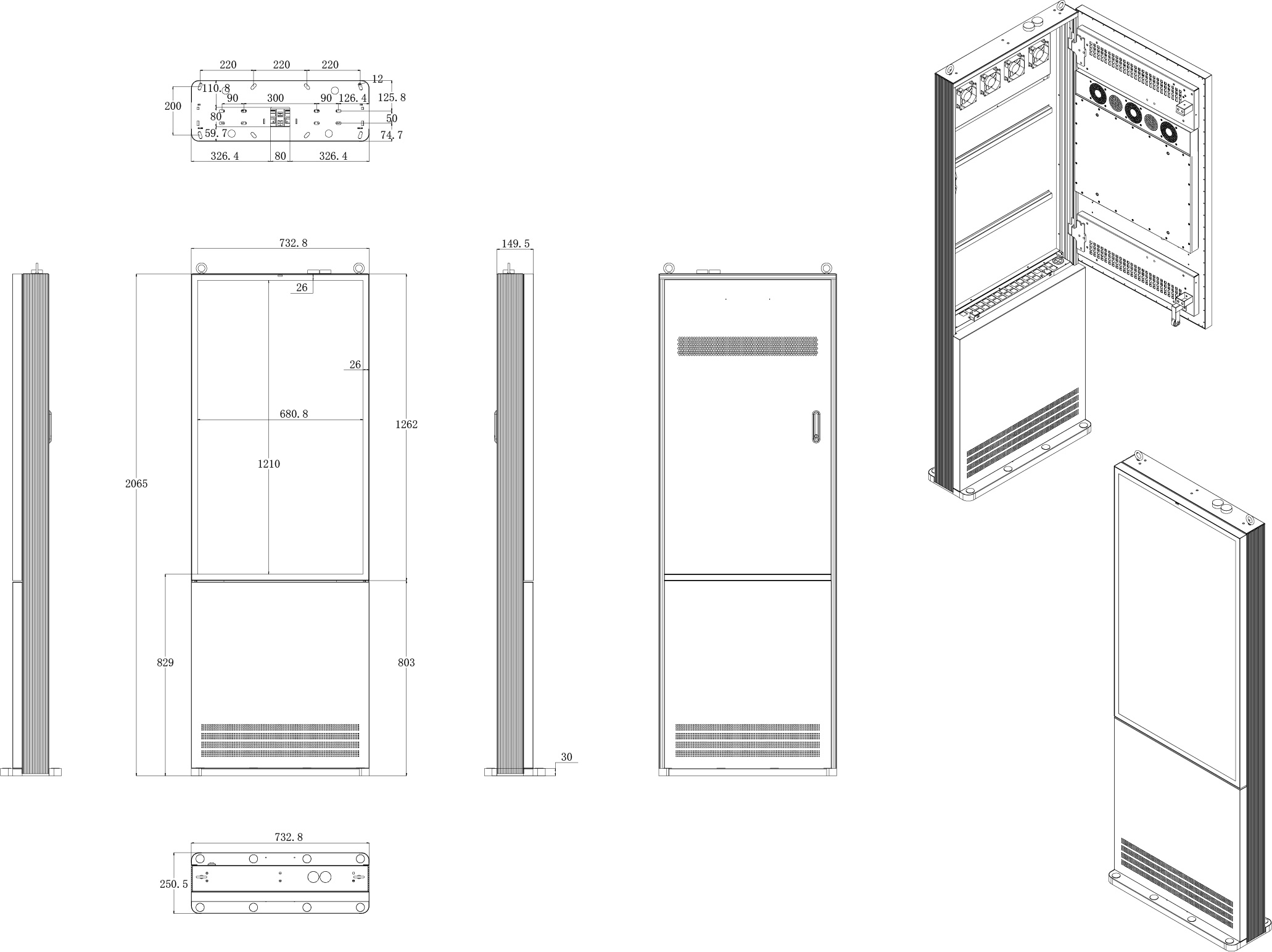

Select a 43″, 49″, 55″, 65″, or 75″ model to review the corresponding freestanding outdoor display dimension drawing. The default preview is the 55-inch model.
Click a size thumbnail to enlarge the corresponding dimension drawing on the right.

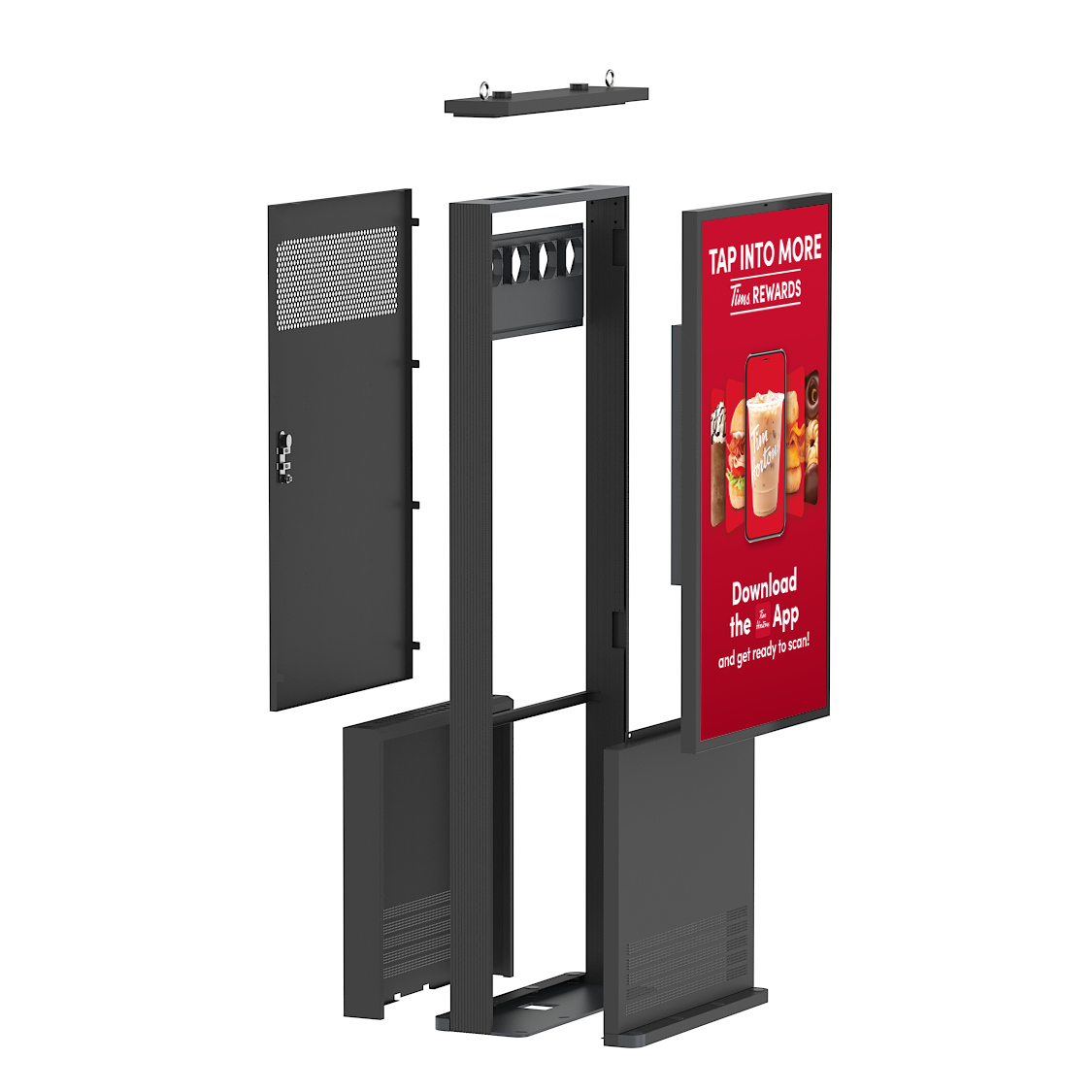

Freestanding Outdoor Digital Signage Installation
The single-sided IP66 outdoor signage totem uses a floor-standing structure designed for fixed outdoor placement, cable routing, enclosure protection, and project-specific installation requirements.
Outdoor Digital Signage Totem Applications
This single-sided freestanding display is suitable for outdoor advertising, retail signage, public information, transportation, wayfinding, and other customer-facing digital signage projects.

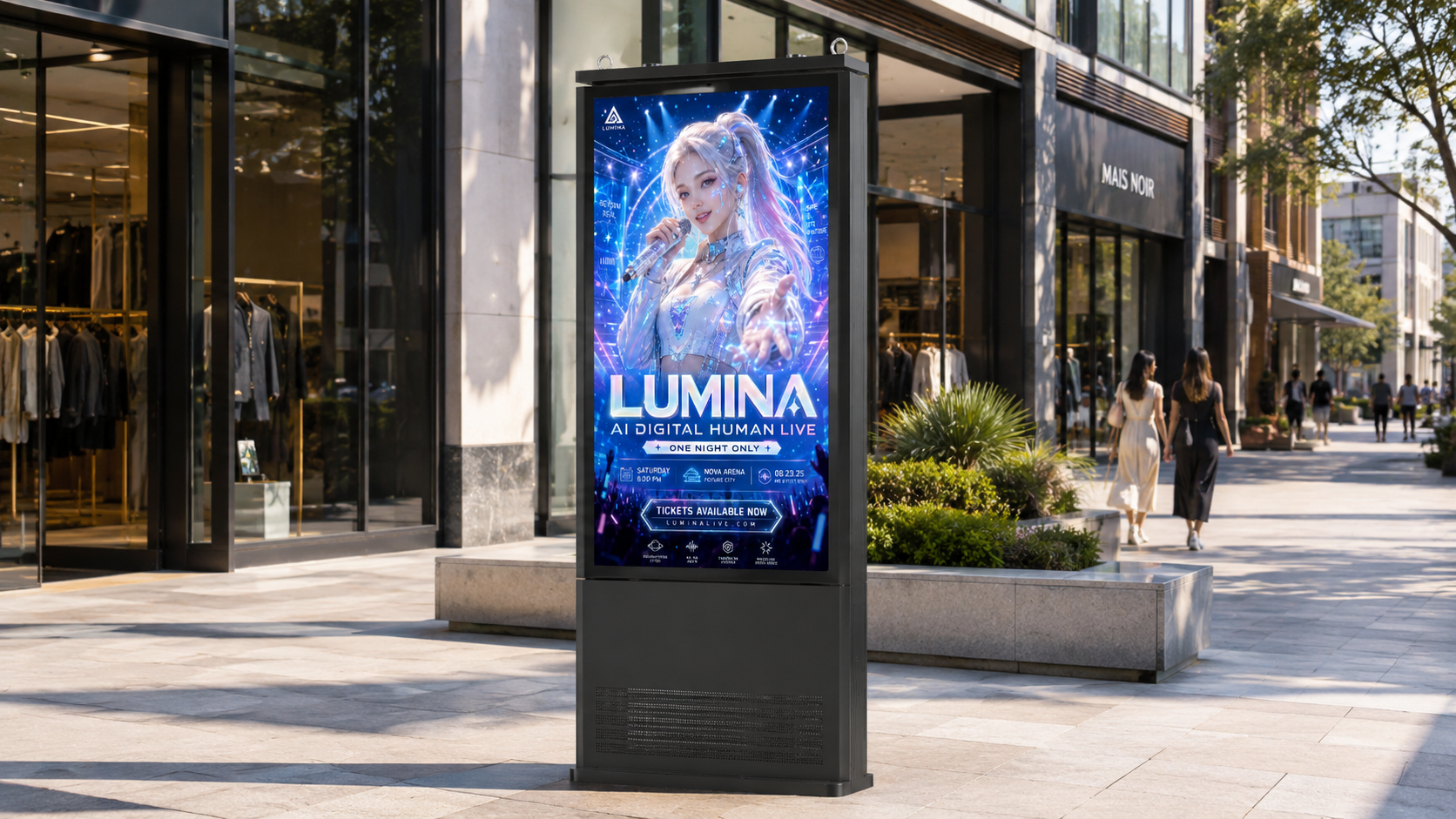

Outdoor Advertising Totem
Shopping Plaza Digital Signage
Retail Exterior Digital Signage
Building Entrance Digital Kiosk
Public Information & Wayfinding
