32″ Self-Service Kiosk
Flexible touchscreen kiosk hardware platform for ordering, payment, check-in, ticketing, wayfinding, queue management, and interactive self-service applications. Available in floor-standing, wall-mounted, double-sided, and IP44 dust & splash resistant configurations.
Product Gallery
Review the main installation configurations of the 32-inch self-service kiosk platform.
Single-Side Floor-Standing
Wall-Mounted
Double-Side Floor-Standing
IP44 Dust & Splash Resistant Version
Configuration Options
Choose the right kiosk structure based on installation space, service flow, customer traffic, and protection requirements.
Single-Side Floor-Standing Kiosk
For ordering, payment, check-in, ticketing, wayfinding, and queue management in commercial service areas.
Wall-Mounted Kiosk
Space-saving self-service terminal for check-in, ticketing, information access, and compact installation areas.
Double-Side Floor-Standing Kiosk
For two-way service areas, mall corridors, public venues, and high-traffic locations requiring access from both sides.

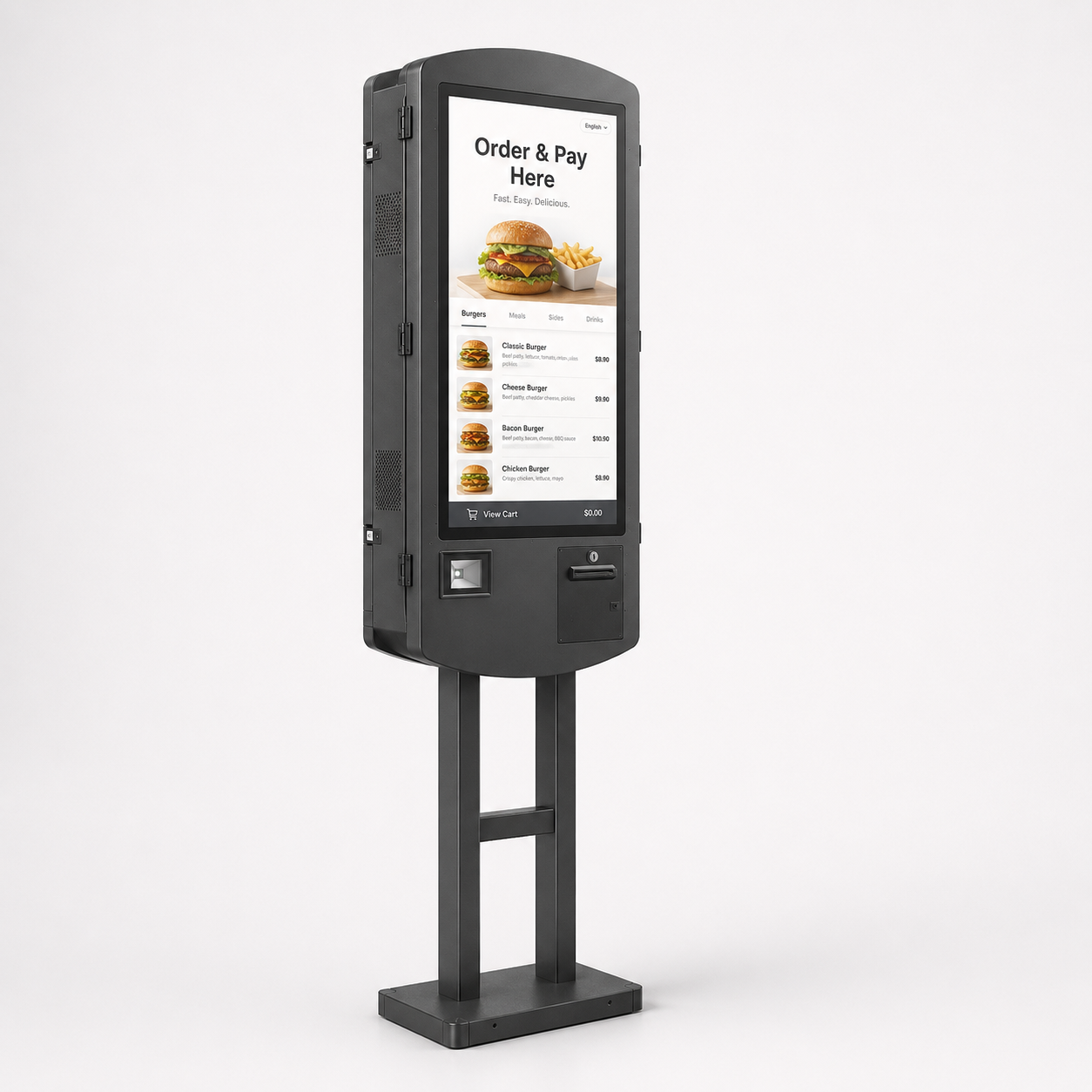

IP44 Dust & Splash Resistant Kiosk
IP44 dust & splash resistant configuration for selected indoor or semi-outdoor service environments.
Key Features
Designed as a flexible kiosk hardware platform for project-based self-service applications.
32″ PCAP Touchscreen
Large-format capacitive touchscreen for interactive self-service operation and customer-facing applications.
Android / Windows / Linux Optional
Flexible system options for different software platforms, project requirements, and integration environments.
Flexible Installation Options
Supports floor-standing, wall-mounted, double-sided, and customized installation configurations.
Single-Side / Double-Side Structure
Choose single-side service for standard deployment or double-side access for high-traffic areas.
IP44 Dust & Splash Resistant Optional
Optional IP44 configuration for selected indoor or semi-outdoor environments with dust and splash resistance needs.
Peripheral Integration Optional
Supports project-based integration of printer, scanner, NFC, camera, payment terminal bracket, and network modules.
Custom Housing Color / Logo
Black, gray, white, logo branding, and project-based appearance customization are available.
Project-Based Configuration
Hardware structure, system, modules, I/O, and installation details can be configured for specific project needs.
Peripheral Options
Peripheral modules are optional and can be configured based on the application, software platform, and project integration requirements.
Thermal Printer
QR / Barcode Scanner
NFC Reader
POS Terminal Bracket
Camera
Speaker
WiFi
Ethernet
4G Optional
Custom I/O
Technical Specifications
Key specifications for project evaluation, quotation, and kiosk hardware configuration.
32″
PCAP Touch
Android / Windows / Linux
Floor / Wall / Double-Side
| Model Reference | SK320 Series |
|---|---|
| Screen Size | 32″ |
| Touch | PCAP touch |
| System | Android OS / Windows OS / Linux OS |
| Installation | Floor-standing / Wall-mounted |
| Orientation | Portrait |
| Protection Rating | IP44 optional |
| Network | RJ45 / WiFi |
| Peripheral Options | Thermal printer / QR barcode scanner / NFC reader / POS payment terminal bracket / Camera / Speaker / WiFi / Ethernet / 4G / Custom I/O |
| Printer | 58 / 80mm thermal printer / Customized |
| Scanner | QR scanner |
| NFC | Optional |
| Camera | Optional |
| Speaker | Yes / Optional |
| Enclosure Color | Black / Gray / White |
| Logo Customization | Yes |
| Structure Customization | Yes |
| Power Input | 100V–250V |

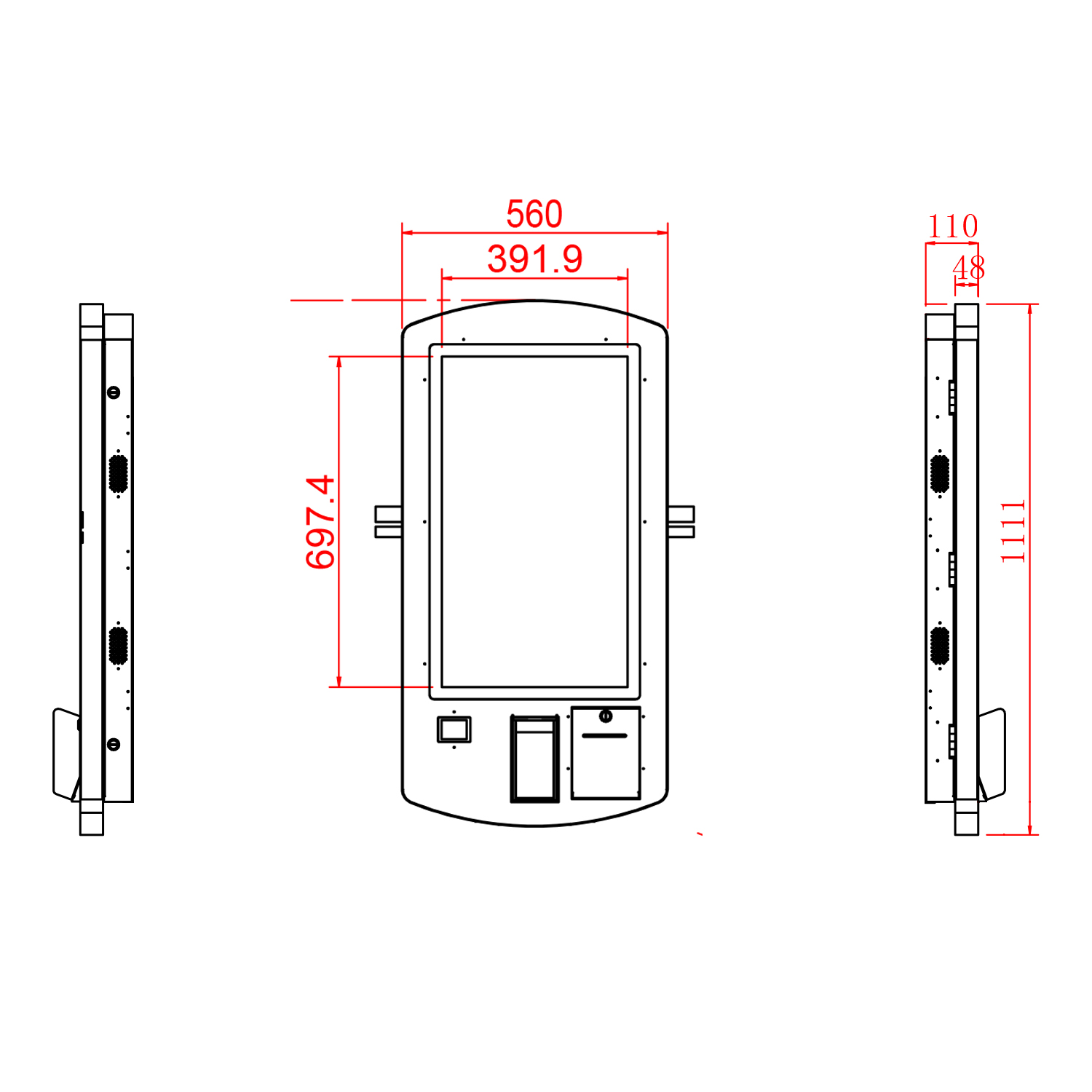

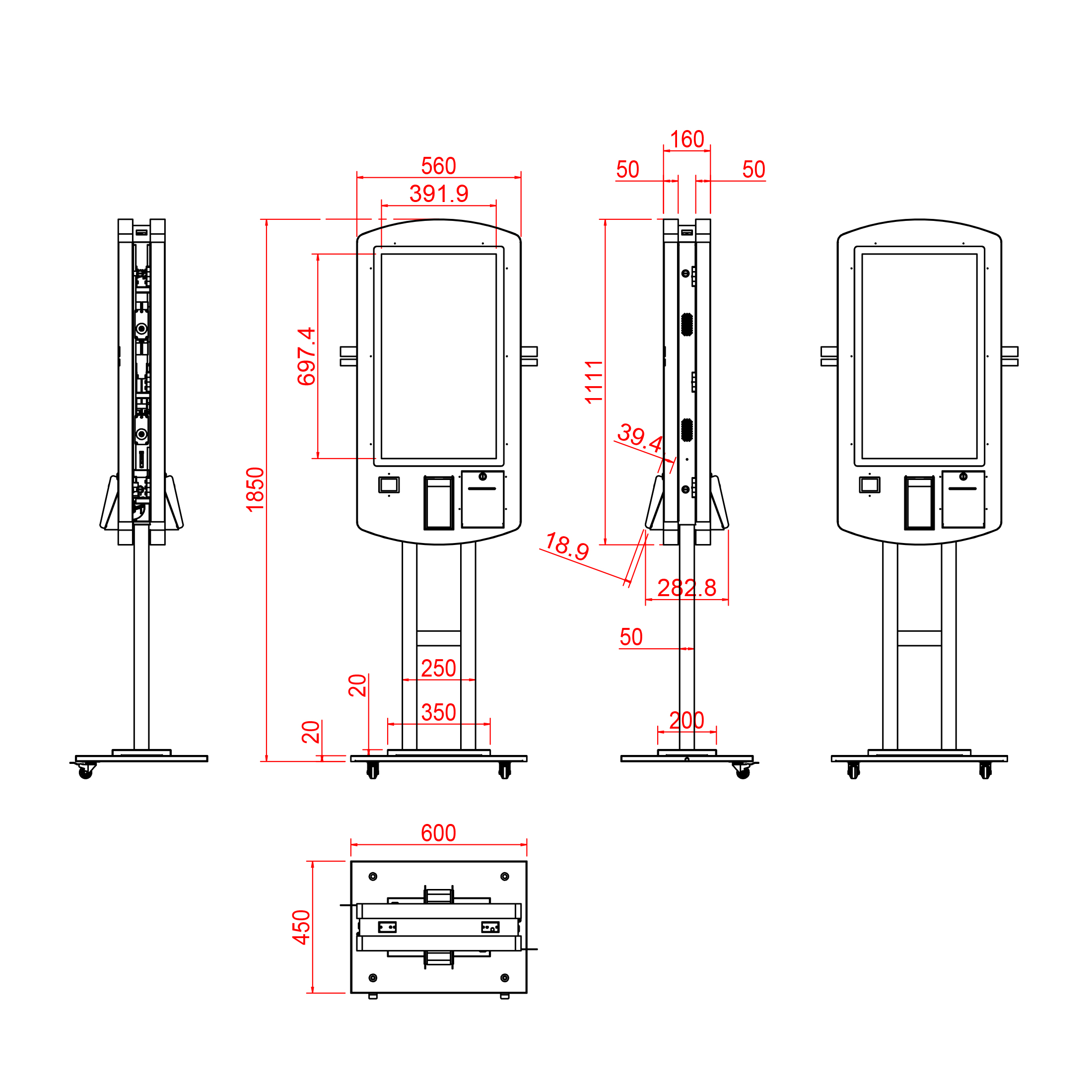

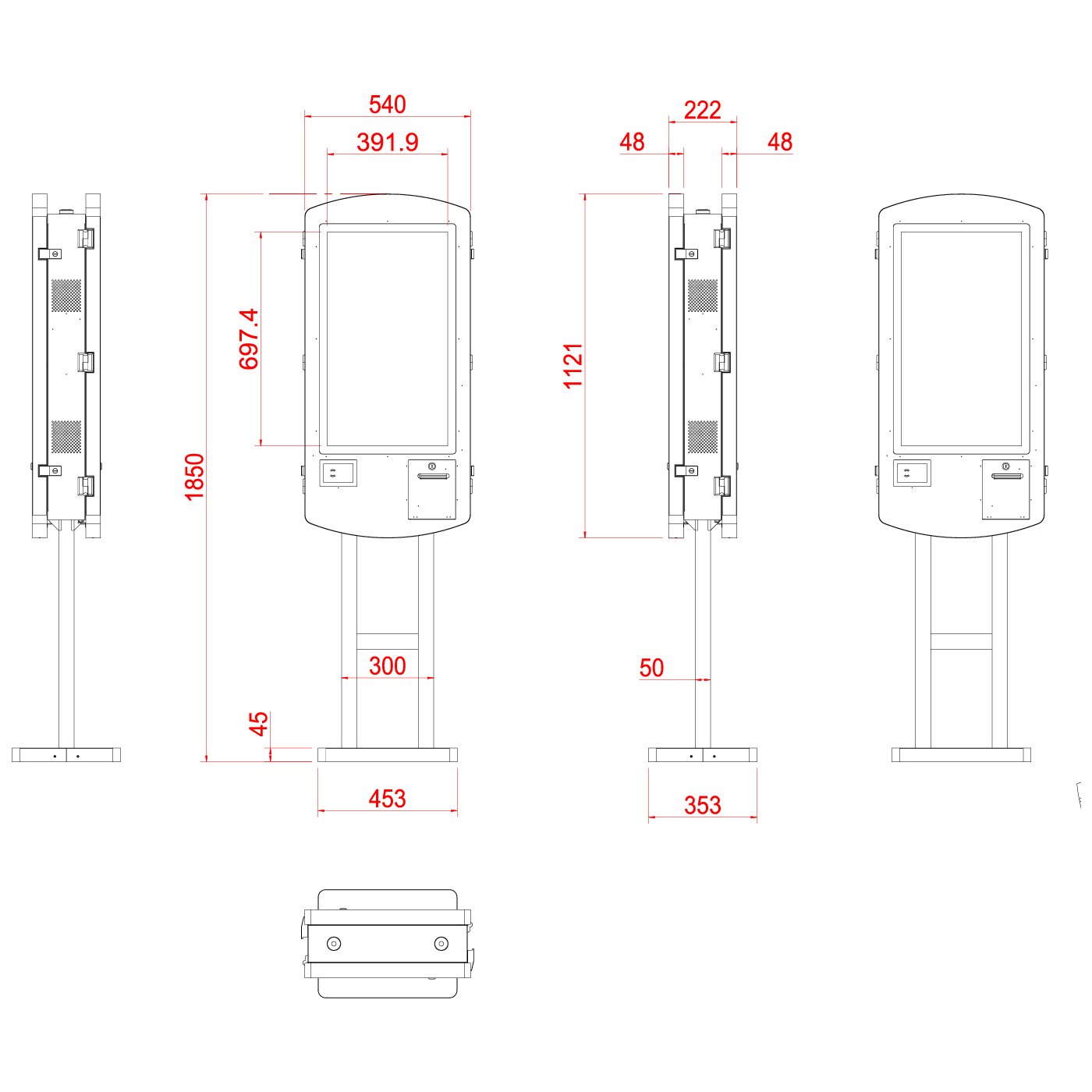

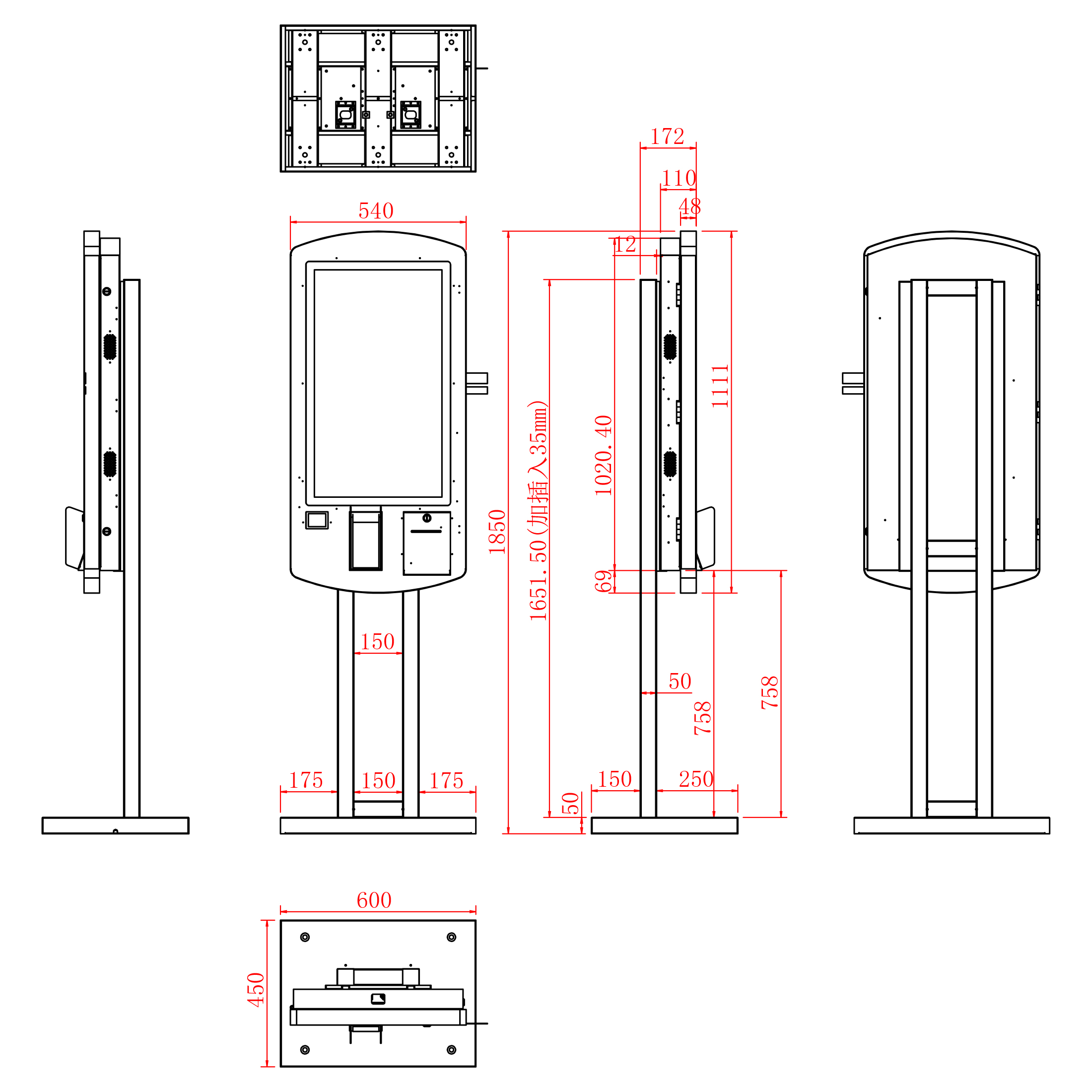

Dimensions & Installation Footprint
Select a configuration to view the corresponding dimension drawing.
Click a configuration thumbnail to enlarge the corresponding dimension drawing on the right.
Applications
Suitable for a wide range of interactive self-service projects in restaurants, retail, public venues, and commercial service environments.
Self-Ordering
Self-Check-In
Ticketing
Wayfinding
Payment Terminal
Queue Management
Retail Self-Service
Shopping Mall Service Point
