IP66 Wall-Mounted Outdoor Display
Weatherproof high-brightness outdoor LCD display for building facades, transportation stations, commercial entrances, outdoor walls, and public-facing digital signage projects.
Real Project Video
IP66 Wall-Mounted Outdoor Display
This video shows a completed IP66 wall-mounted outdoor digital signage project, highlighting product design, outdoor structure, installation details, and pre-shipment inspection.
Discuss a Similar ProjectProduct Gallery
Review product appearance, rear structure, interface area, and real outdoor application views.

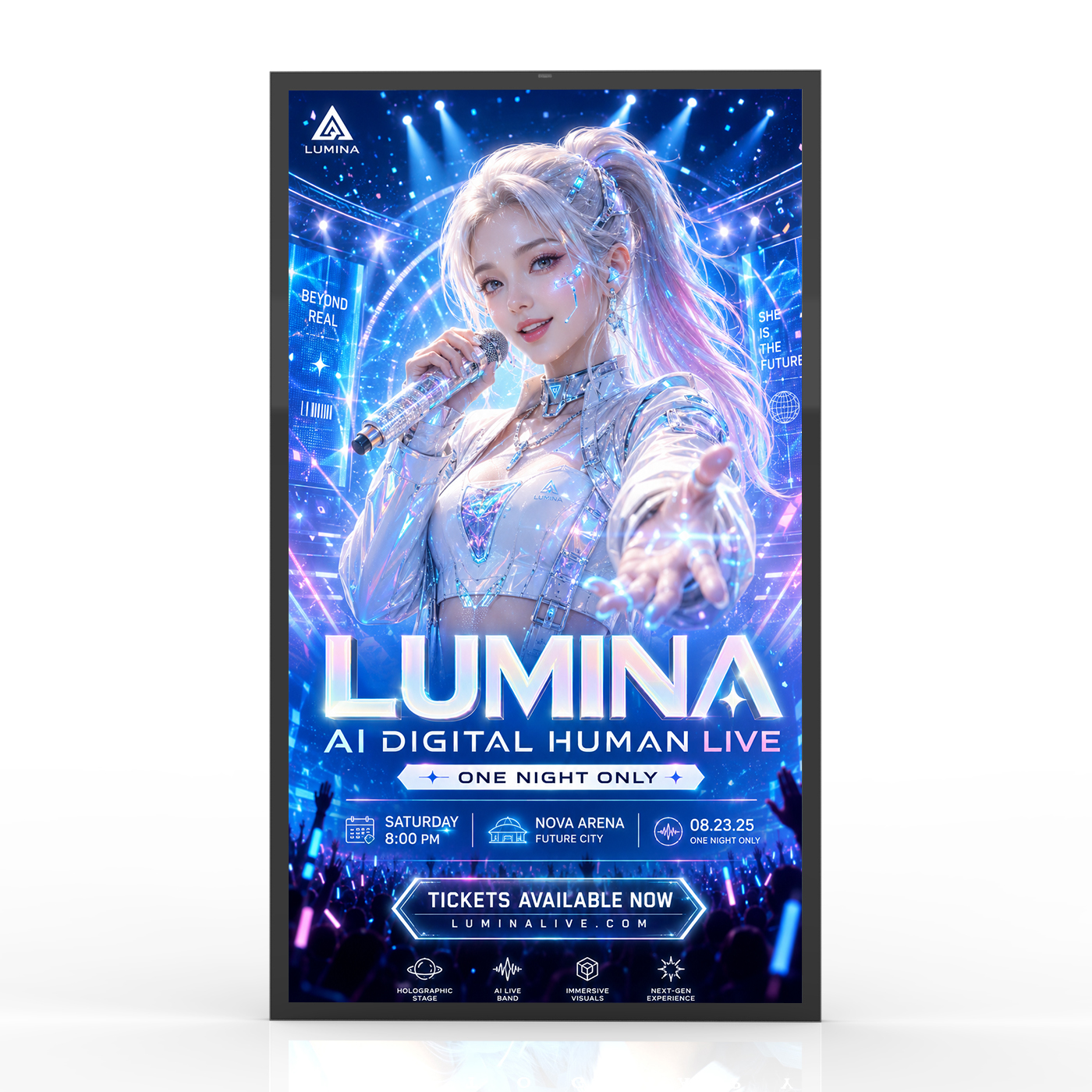

Front View #1
Front View #2

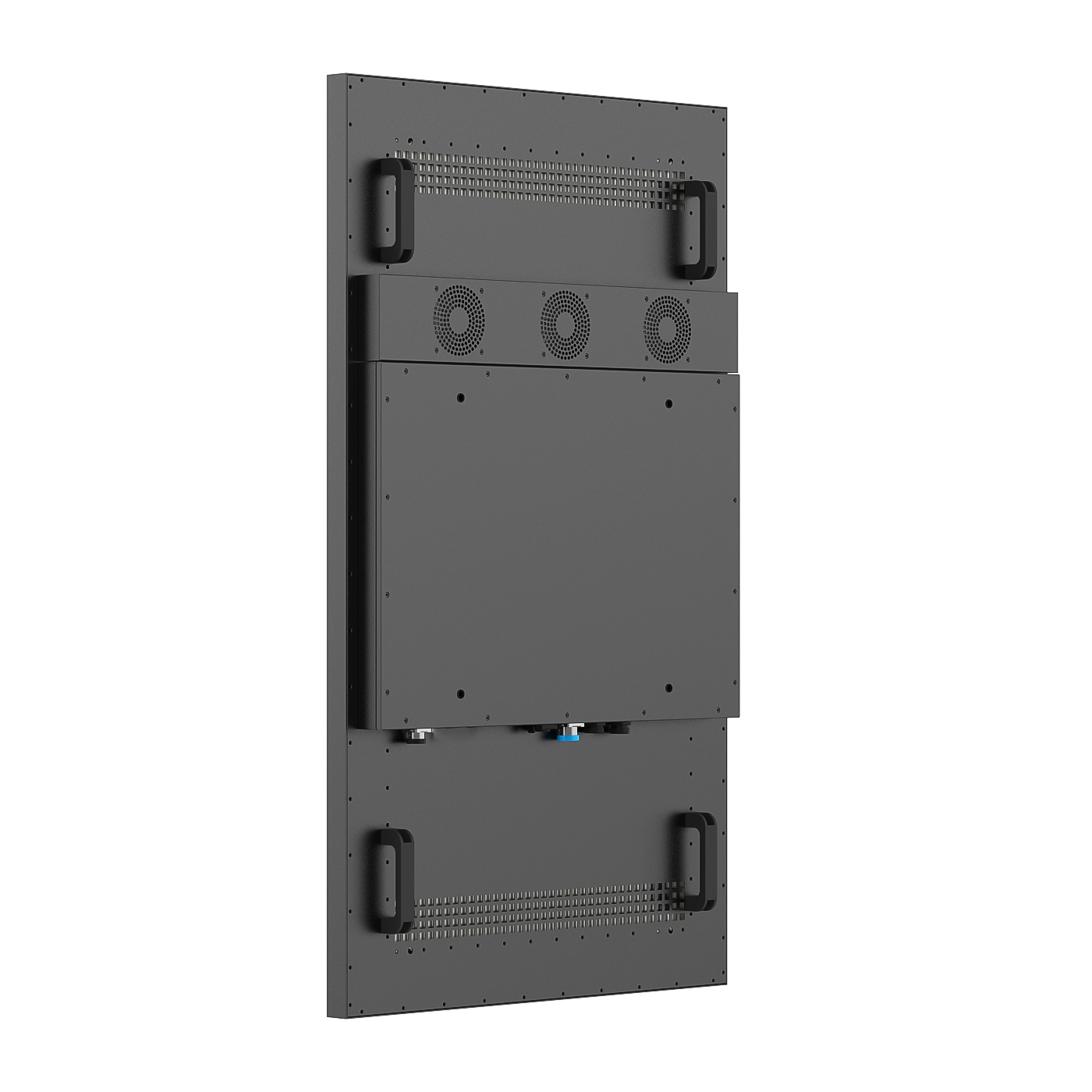

Rear Structure #1

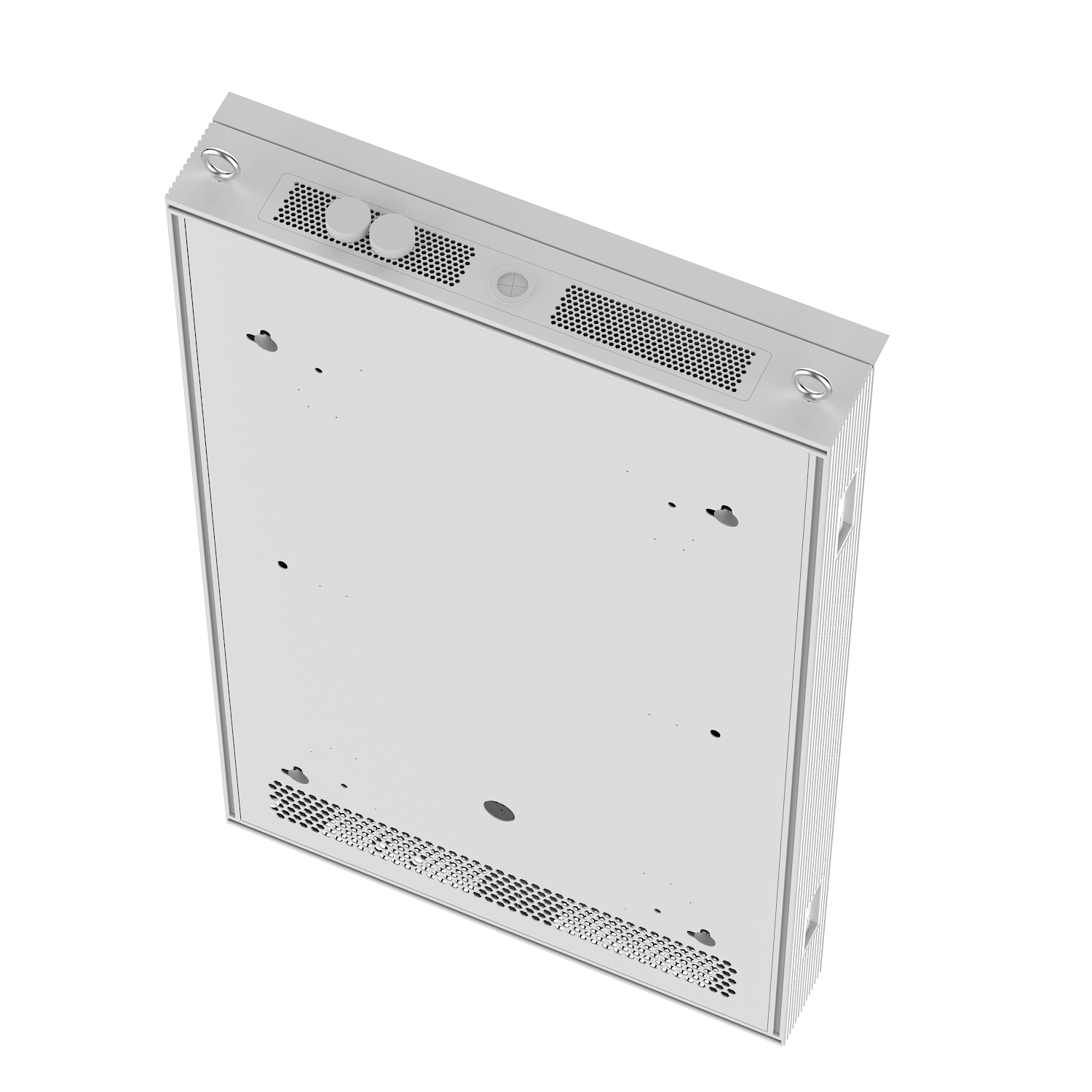

Rear Structure #2

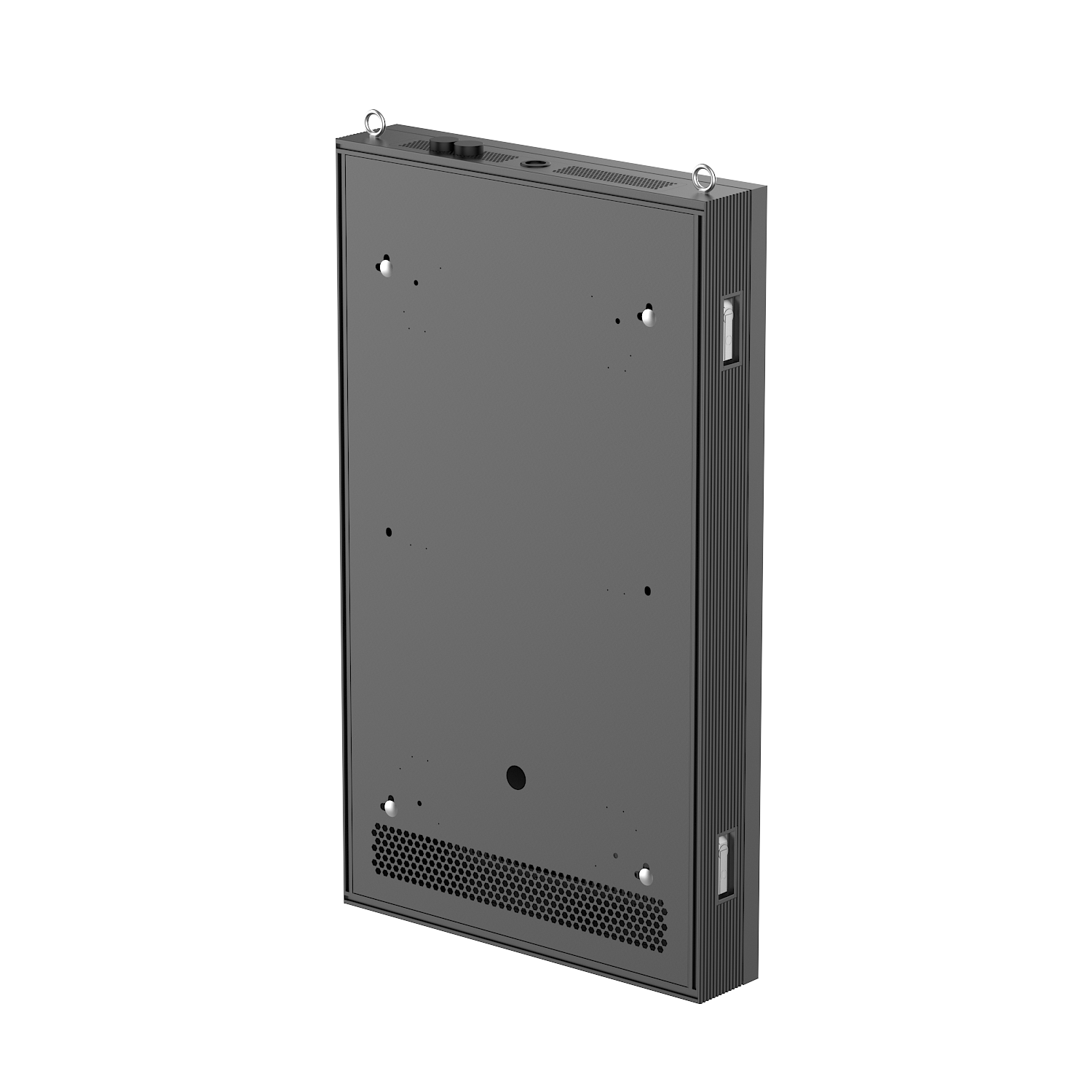

Rear Structure #3

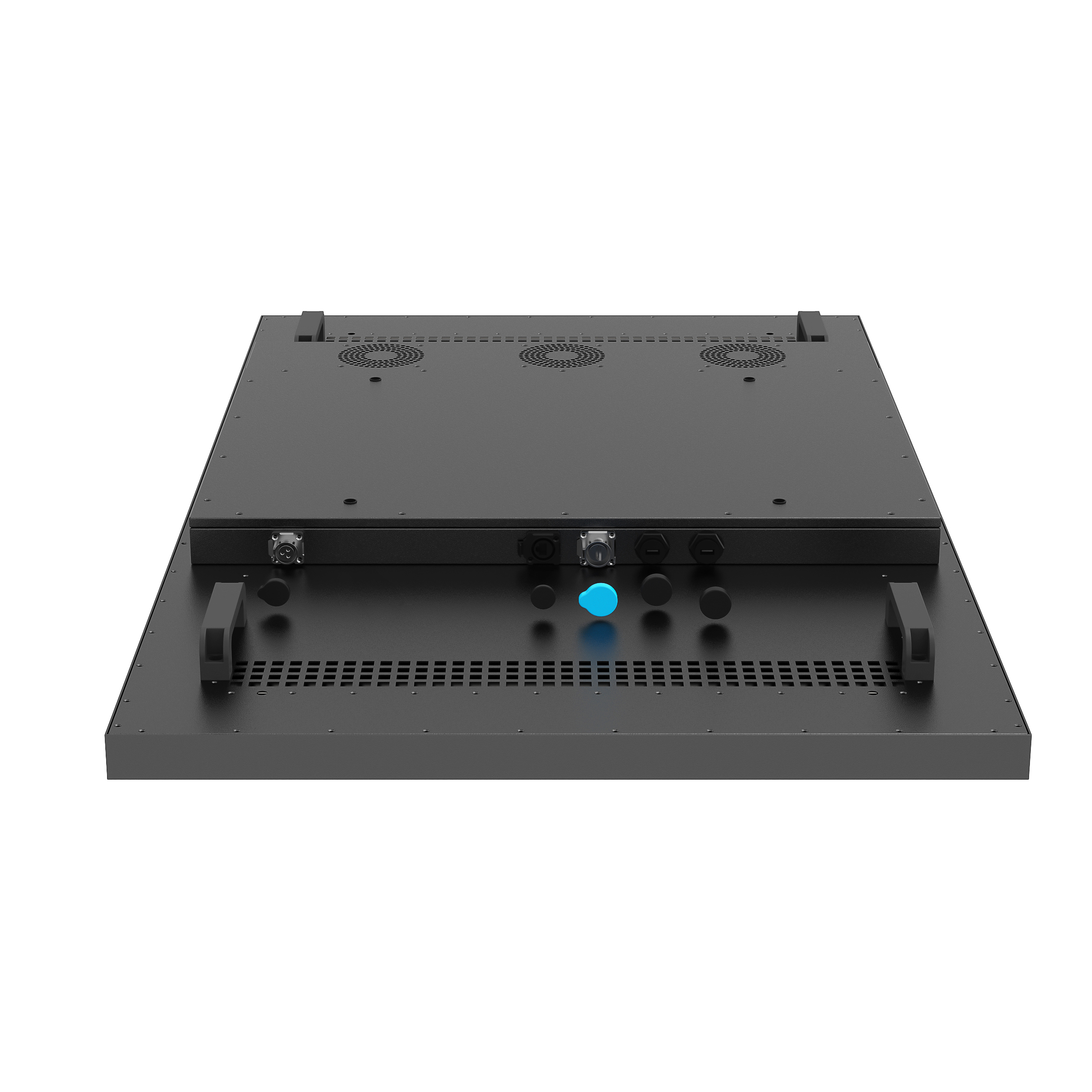

Interface View

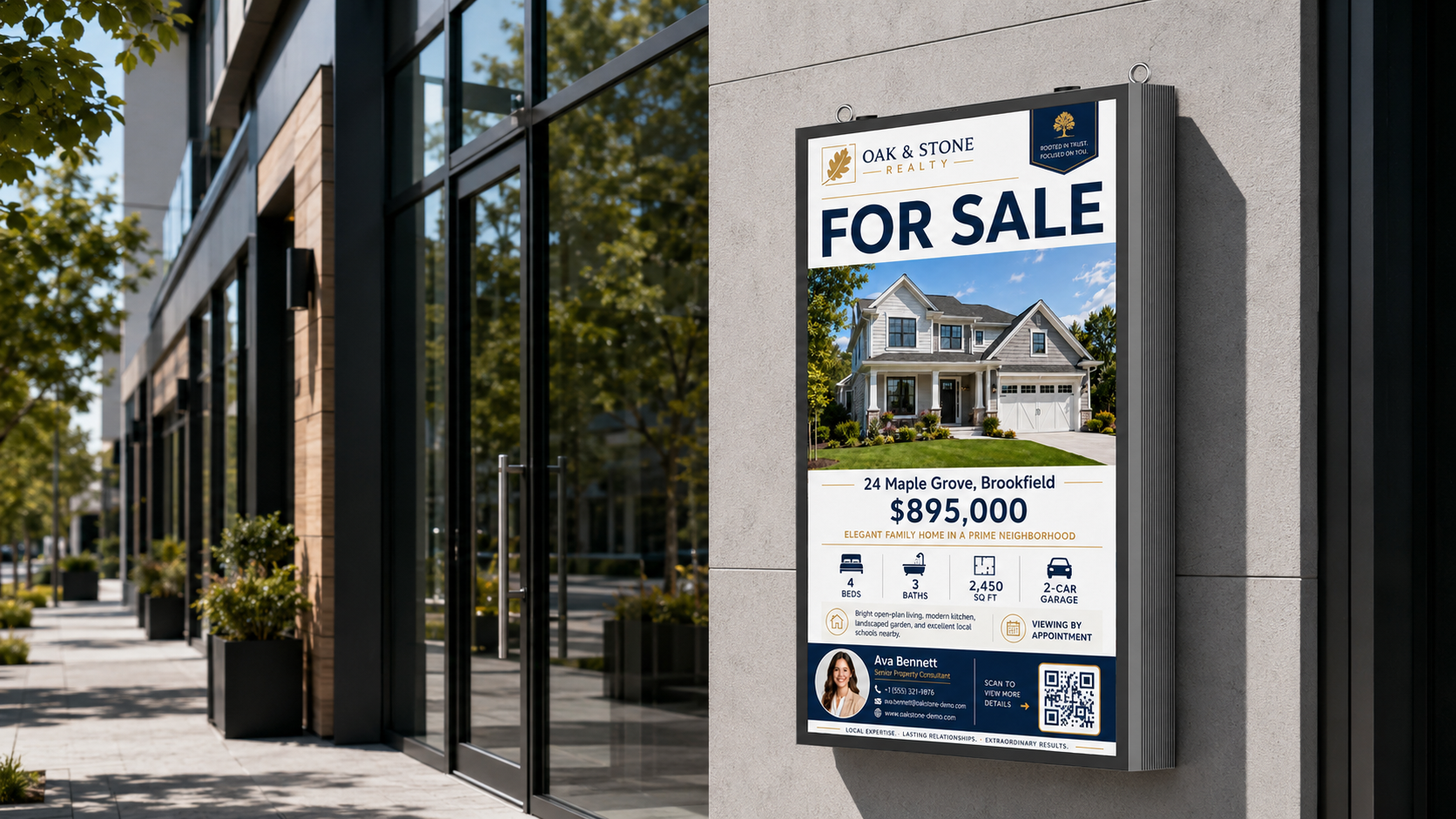

Application Scene
Key Features
Built for outdoor commercial environments where weather protection, visibility, thermal performance, and installation flexibility matter.
IP66 Weatherproof Outdoor Structure
Designed for outdoor wall-mounted applications with protection against rain, dust, moisture, and changing weather.
Sunlight-Readable High Brightness
Max 3000 nits brightness supports clear visibility in outdoor daylight and high ambient light.
Anti-Glare Glass + UV Film Protection
5mm AG glass combined with full-lamination UV film helps protect the LCD and improve outdoor durability.
Smart Temperature Control
Thermal design supports stable outdoor operation in heat, direct sunlight, and long daily commercial use.
UHD Display Performance
Supports up to UHD 3840 × 2160 resolution for sharp digital signage content and clear outdoor presentation.
Android / Windows / HDMI Input Optional
Flexible system options support signage software, media playback, external player input, and project integration.
PCAP Touch Optional
Optional PCAP touch supports interactive outdoor applications, wayfinding, public information, and customer service points.
Project-Based Customization
Supports enclosure color, system configuration, screen size, touch, orientation, and installation requirements.
Why It Works for Outdoor Projects
This wall-mounted outdoor display is designed for fixed outdoor installations where clear visibility, weather resistance, and long-term commercial operation are required.
Technical Specifications
Key specifications for project evaluation, quotation, and outdoor wall-mounted display configuration.
32″ / 43″ / 49″ / 55″ / 65″ / 75″
Max 3000 nits
IP66
Max UHD 3840 × 2160
Available Models
| Model Reference | Screen Size | Resolution |
|---|---|---|
| AS-WD320D-IP66 | 32″ | Full HD 1920 × 1080 |
| AS-WD430D-IP66 | 43″ | Full HD 1920 × 1080 |
| AS-WD490D-IP66 | 49″ | UHD 3840 × 2160 |
| AS-WD550D-IP66 | 55″ | UHD 3840 × 2160 |
| AS-WD650D-IP66 | 65″ | UHD 3840 × 2160 |
| AS-WD750D-IP66 | 75″ | UHD 3840 × 2160 |
| Screen Size | 32″ / 43″ / 49″ / 55″ / 65″ / 75″ |
|---|---|
| Brightness | Max 3000 nits |
| Resolution | Max UHD 3840 × 2160 |
| IP Rating | IP66 |
| Operating Temperature | -20°C to +50°C |
| Glass | 5mm AG glass combined with full-lamination UV film |
| UV Film | Yes |
| System | Android OS / Windows OS / Linux OS / HDMI input |
| Input | HDMI / USB / VGA / RJ45 |
| Touch | PCAP touch optional |
| Installation | Wall-mounted / Integrated |
| Orientation | Portrait / Landscape |
| Enclosure Color | Black / Gray / White |
| Structure Customization | Yes |
Dimensions & Installation Footprint
Select a screen size to view the corresponding dimension drawing. The default preview is the 55-inch model.
Click a size thumbnail to enlarge the corresponding dimension drawing on the right.
Installation & Structure
The wall-mounted IP66 outdoor display is designed for fixed wall installation, outdoor waterproof protection, cable management, and project-based mounting requirements.
Applications
This product is suitable for outdoor wall-mounted digital signage projects in commercial, transportation, and public-facing environments.
Outdoor Advertising
Building Entrance Signage
Transportation Station Display
Commercial Plaza Display
Public Information Display
