3 × 55″ Digital Drive-Thru Menu Board
Triple-screen IP66 digital drive-thru menu board for QSR restaurants, combining three 55-inch high-brightness outdoor displays for expanded menu presentation, pricing, promotions, meal combinations, and ordering information. Designed for drive-thru digital signage projects that require more screen space, daylight visibility, and outdoor weather protection.
Real Project Video
3 × 55″ IP66 Drive-Thru Digital Menu Board Project
This project video shows a completed 3 × 55″ drive-thru digital menu board before shipment, including the triple-screen layout, outdoor enclosure, front and rear structure, accessories, installation details, inspection process, and export packing.
- Project Type: Triple-Screen Digital Drive-Thru Menu Board
- Application: QSR Drive-Thru Ordering Lane
- Configuration: 3 × 55″ Outdoor LCD Displays
- Protection: IP66 Outdoor Enclosure
- Brightness: Up to 3000 nits
- Status: Pre-Shipment Inspection
Triple-Screen Drive-Thru Menu Board Gallery
Review the front, side, rear enclosure, and display details of the 3 × 55″ outdoor digital menu board for QSR drive-thru installations.

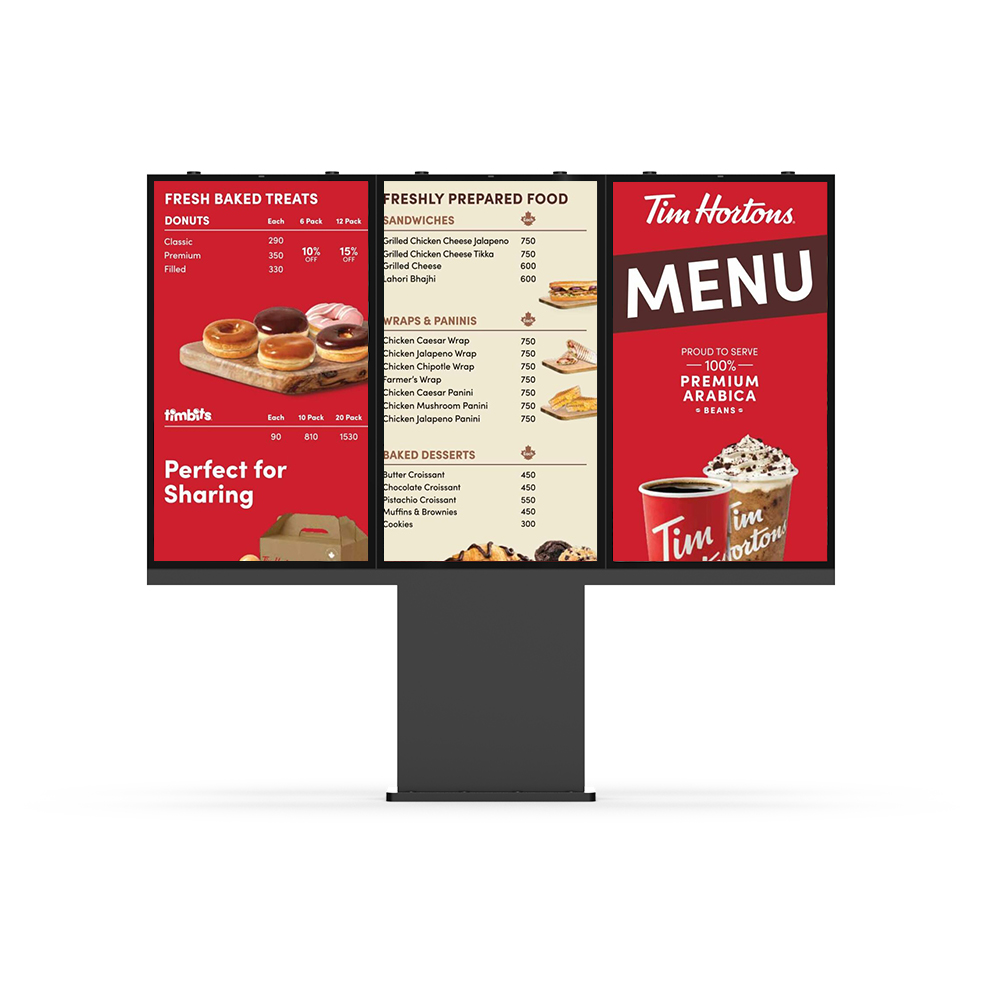

Front View

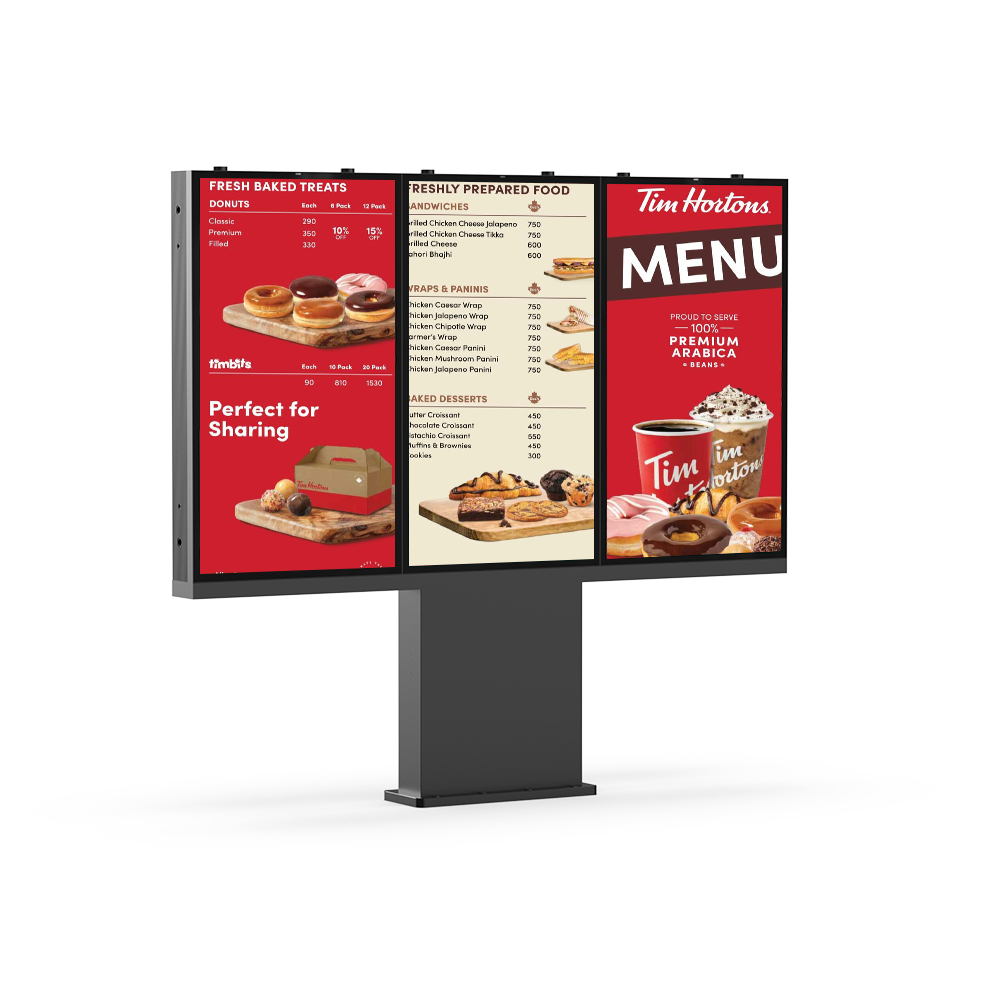

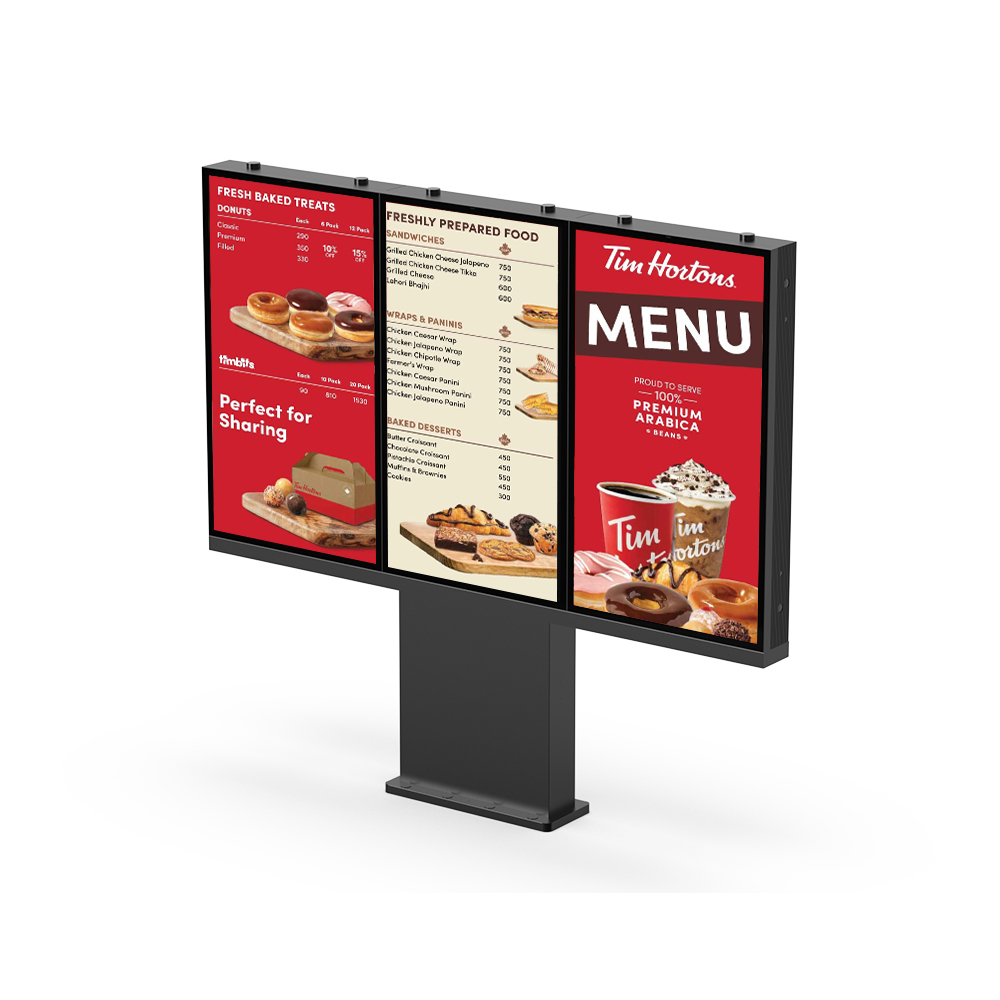

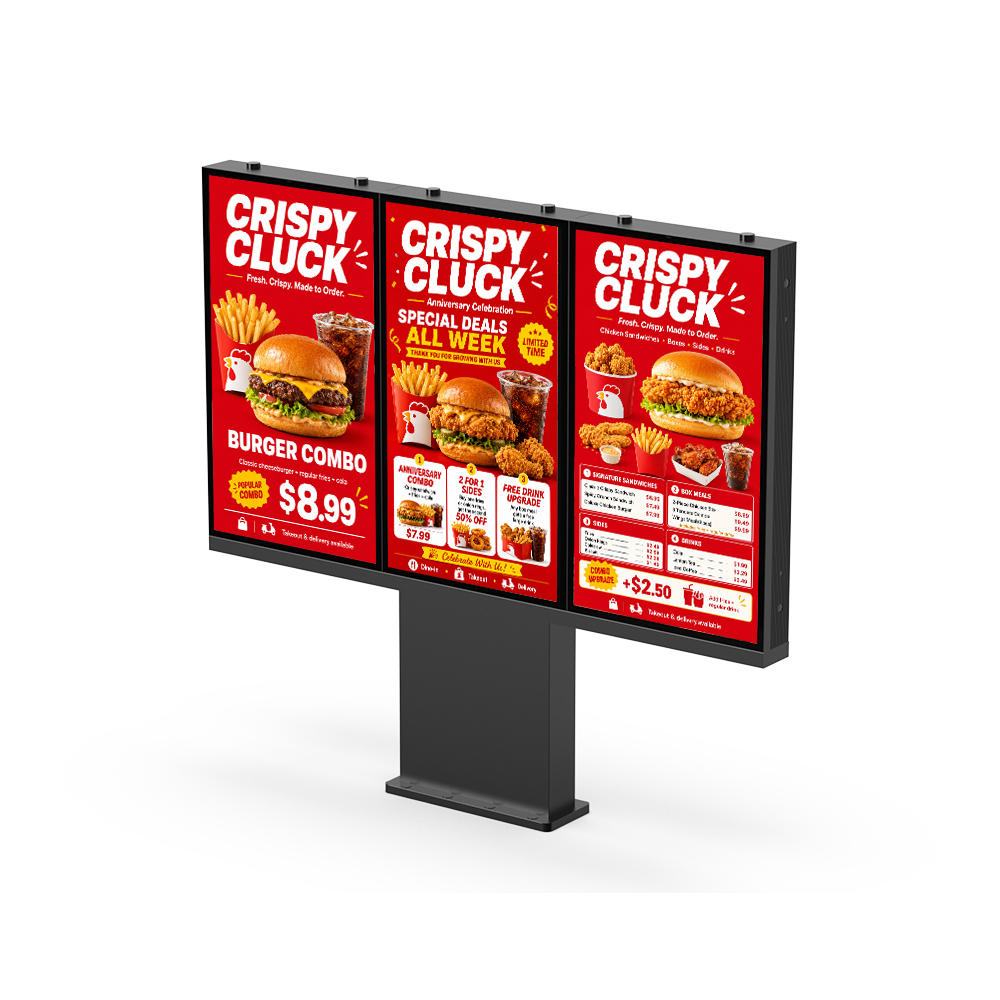

Side View

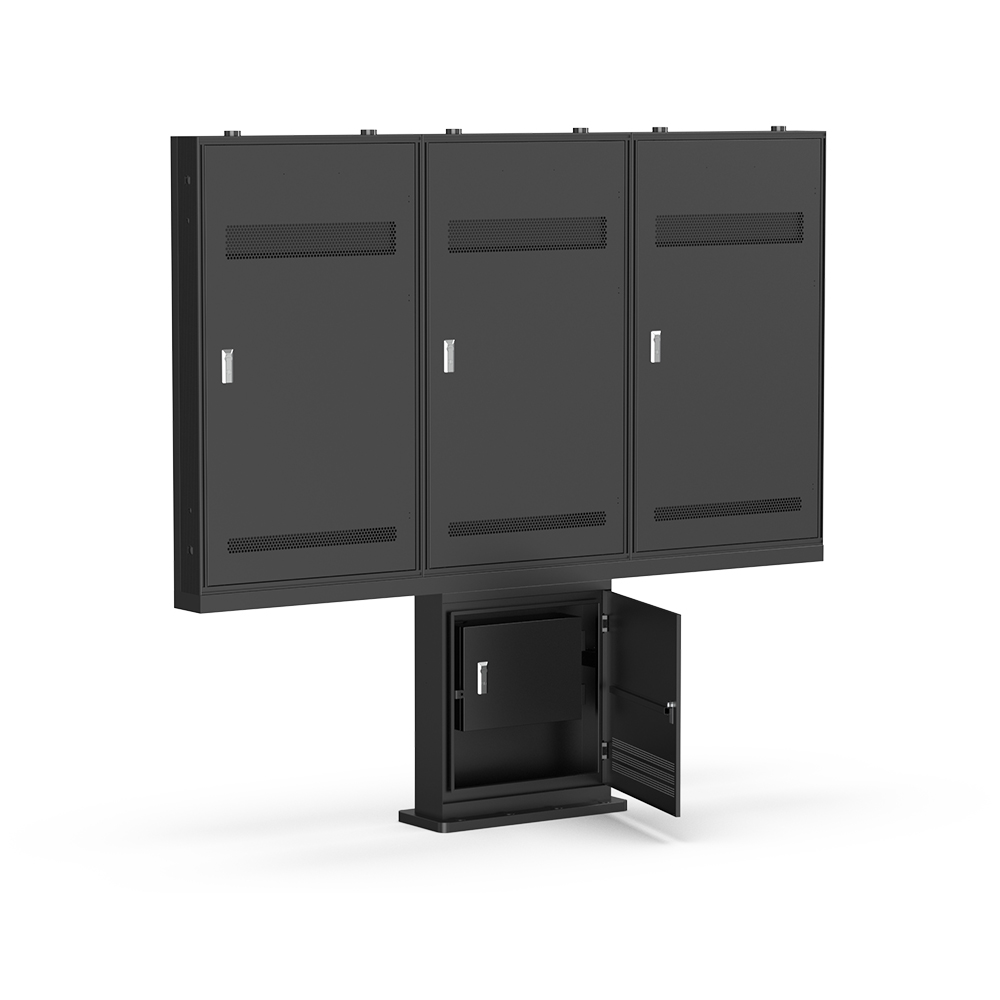

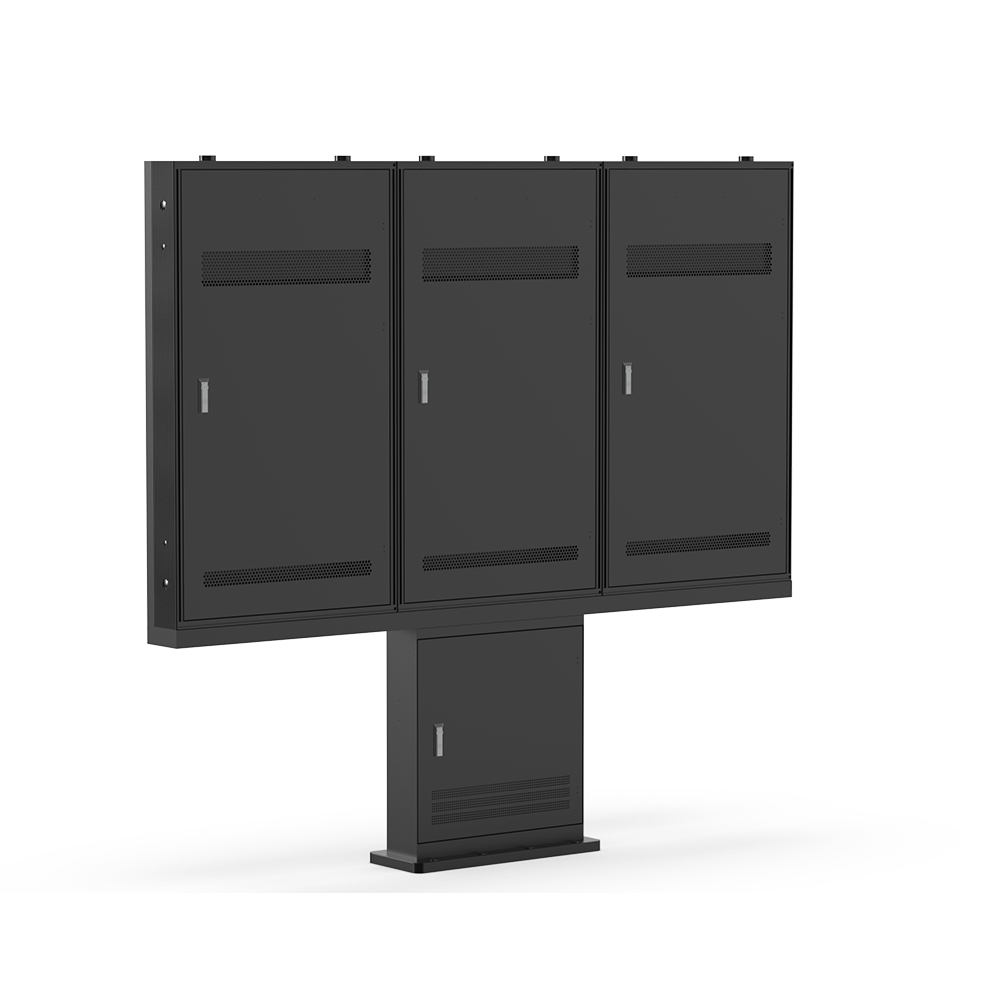

Rear Structure 1

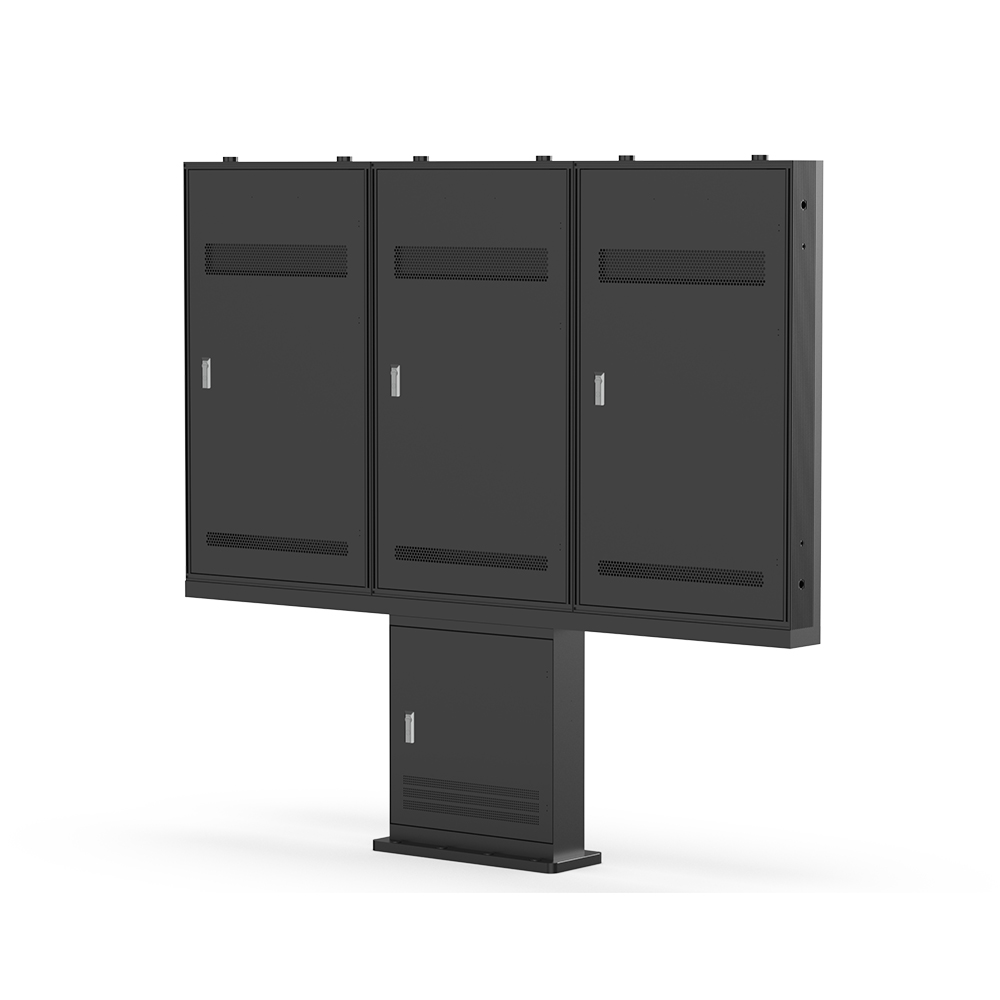

Rear Structure 2
Screen Close-Up
Key Features of the 3-Screen Outdoor Digital Menu Board
Designed for QSR drive-thru digital signage projects requiring expanded menu capacity, outdoor readability, IP66 protection, system integration, and long daily operating schedules.

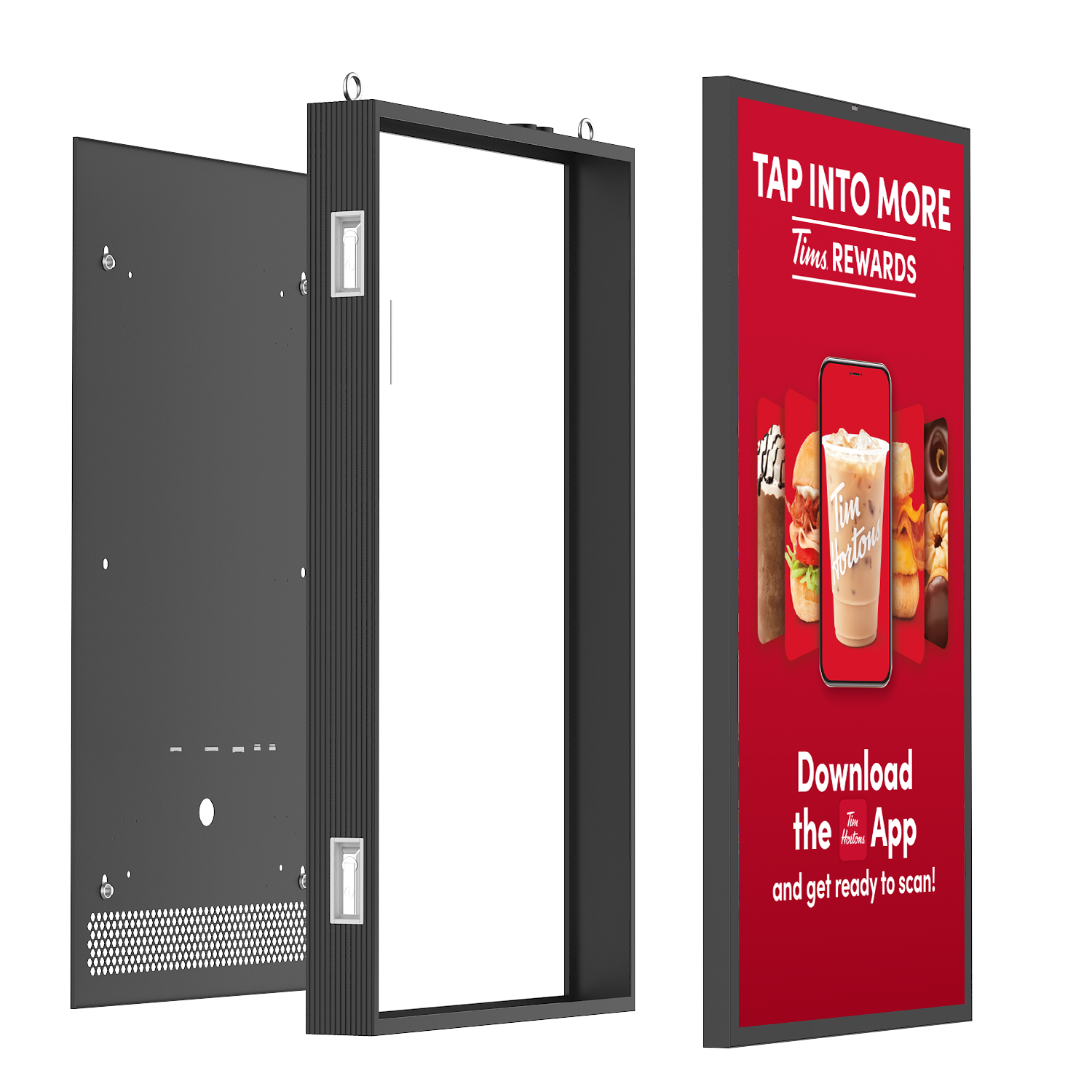

IP66 Outdoor Enclosure
IP66 enclosure protects the outdoor digital signage displays against rain, dust, and typical exterior conditions around restaurant drive-thru lanes.
High-Brightness 3000 nits LCD
Up to 3000 nits brightness helps menu items, pricing, product images, and promotions remain visible under outdoor daylight.
Expanded Three-Screen Menu Layout
Three 55-inch screens provide expanded digital menu space for larger menus, meal combinations, pricing, promotions, and featured products.
Anti-Glare Glass + UV Film
5mm AG glass combined with full-lamination UV film provides an additional protective layer for the outdoor LCD displays.
Outdoor Thermal Management
Thermal management is designed to support outdoor operation across the specified -20°C to +55°C operating temperature range.
Long-Hour Commercial Operation
Commercial display platform designed for the long daily operating schedules commonly required by QSR restaurants and drive-thru digital signage projects.
Digital Signage System Options
Android, Windows, Linux, HDMI, USB, and VGA options support different CMS, media player, and digital signage integration requirements.
Project-Oriented Structure
Floor-standing enclosure and support structure are designed for drive-thru installation, cable routing, inspection, and project maintenance.
Why Choose a Triple-Screen Drive-Thru Menu Board?
A 3 × 55″ digital drive-thru menu board is suited to QSR projects that need more menu capacity than single- or dual-screen configurations. The three-screen layout provides broader space for complete menu presentation, pricing, meal combinations, promotional content, and featured products.
3 × 55″ Drive-Thru Menu Board Specifications
Technical information for QSR digital signage project evaluation, quotation, product comparison, installation planning, and system configuration.
3 × 55″
Up to 3000 nits
IP66
UHD 3840 × 2160
| Model | AS-WD550D-IP66X3 |
|---|---|
| Product Type | Triple-Screen Digital Drive-Thru Menu Board |
| Screen Size | 55″ |
| Number of Screens | 3 |
| Brightness | Max 3000 nits |
| Resolution | UHD 3840 × 2160 |
| IP Rating | IP66 |
| Operating Temperature | -20°C to +55°C |
| Glass | 5mm AG glass combined with full-lamination UV film |
| UV Film | Yes |
| System | Android OS / Windows OS / Linux OS / HDMI input |
| Input | HDMI input optional / USB / VGA |
| Touch | PCAP touch optional |
| Installation | Concrete pedestal installation |
| Structure Customization | Yes |

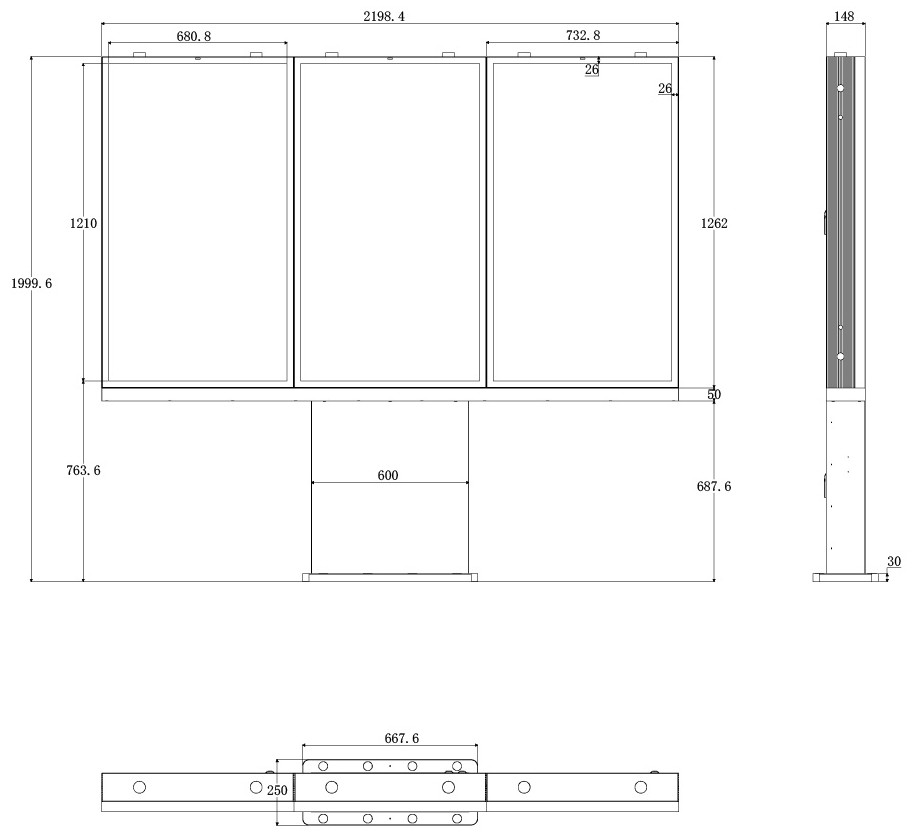

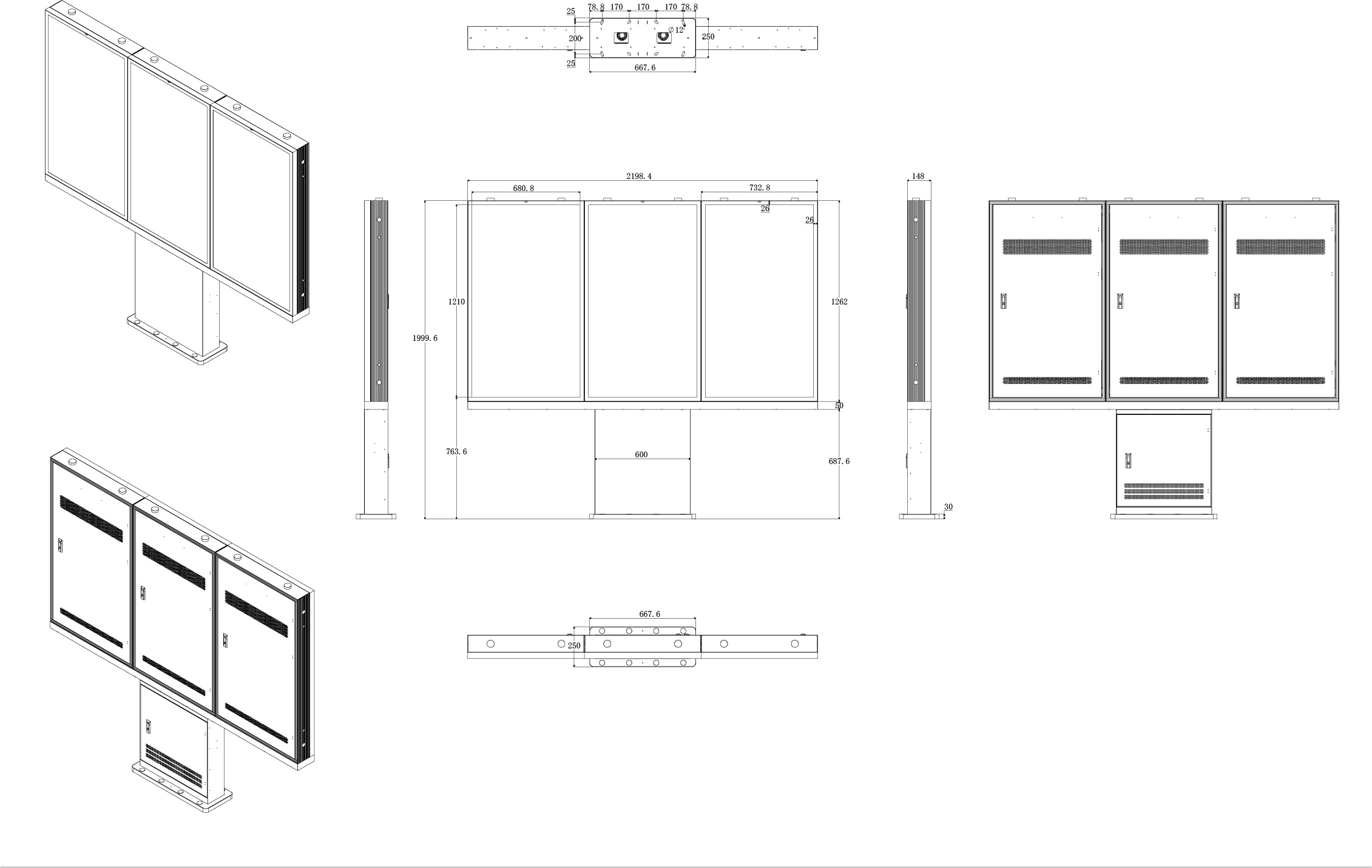

Dimensions & Installation Footprint
Dimensions help restaurant operators, signage integrators, and contractors evaluate drive-thru lane width, concrete pedestal layout, transportation requirements, cable routing, and installation clearance for the three-screen outdoor menu board.
Overall Size
2198.4 × 250 × 1999.6 mm
Screen Size
1210 × 680 mm
Structure Width
2198.4 mm
Structure Height
1999.6 mm
Structure Depth
148 mm
Installation Type
Concrete pedestal installation

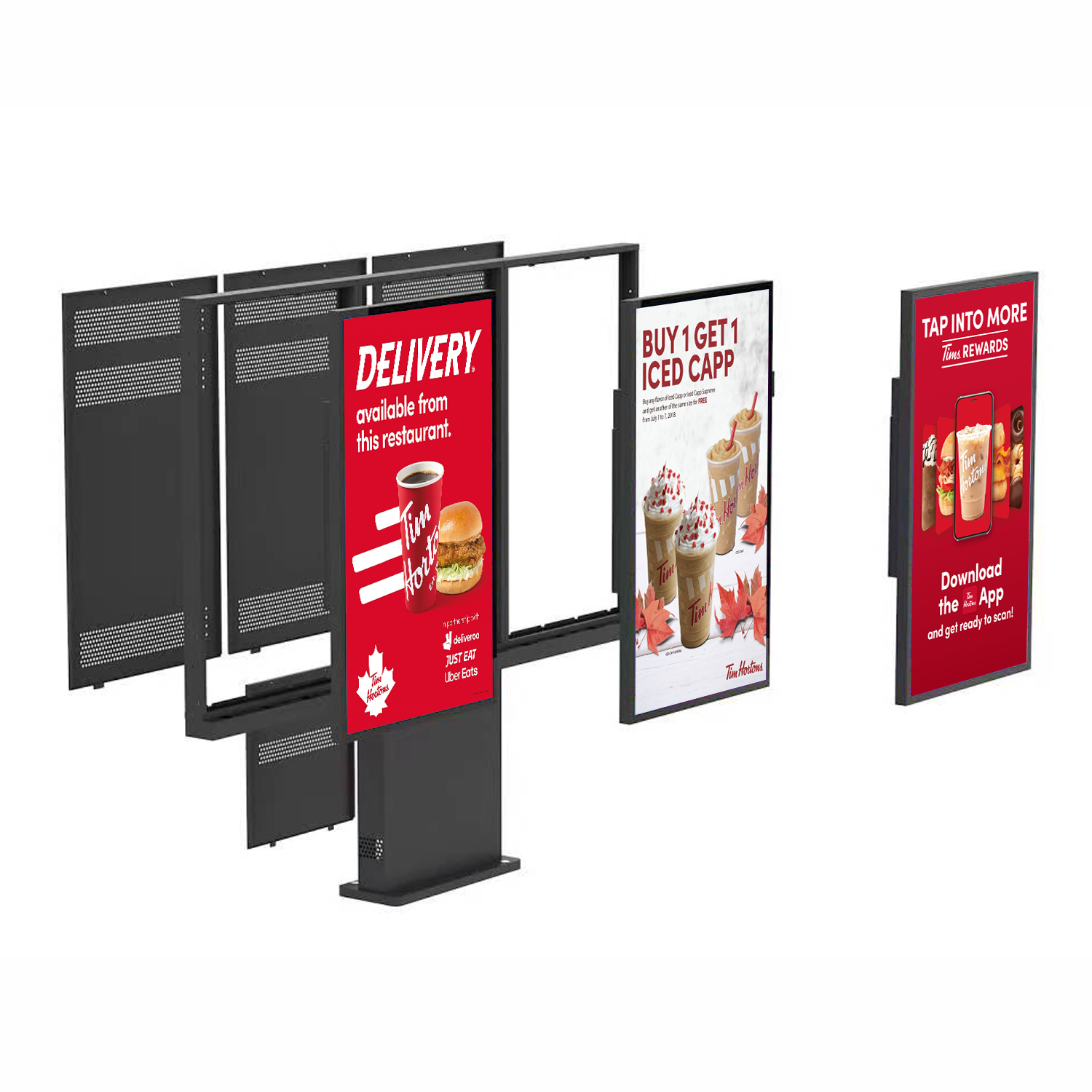

Triple-Screen Drive-Thru Installation & Structure
The 3-screen digital menu board uses a floor-standing outdoor structure designed for concrete pedestal installation, cable routing, weather protection, and stable QSR drive-thru deployment.
QSR & Restaurant Digital Signage Applications
The 3 × 55″ configuration is designed for QSR drive-thru ordering lanes and restaurant digital signage projects that require expanded outdoor menu space for multiple categories, pricing, promotions, and customer-facing information.
QSR Drive-Thru Ordering Lanes
Multi-Screen Outdoor Digital Menu Boards
Full Menu & Combo Presentation
Restaurant Exterior Digital Signage
Franchise & QSR Upgrade Projects
