IP66 Double-Sided Outdoor Digital Signage Totem
Double-sided high-brightness outdoor digital signage totem designed for locations where advertising, information, or promotional content needs to be visible from both directions. The IP66 floor-standing enclosure is suited to shopping mall entrances, commercial plazas, transportation stations, pedestrian areas, and street-level outdoor advertising projects.
Real Project Video
IP66 Double-Sided Outdoor Digital Signage Totem
This video shows a completed double-sided outdoor digital signage display, including the dual-display structure, side profile, enclosure details, installation features, and pre-shipment inspection.
Discuss a Similar ProjectDouble-Sided Outdoor Digital Signage Gallery
Review the front views, side profile, dual-display structure, and weatherproof enclosure details of this outdoor advertising totem.

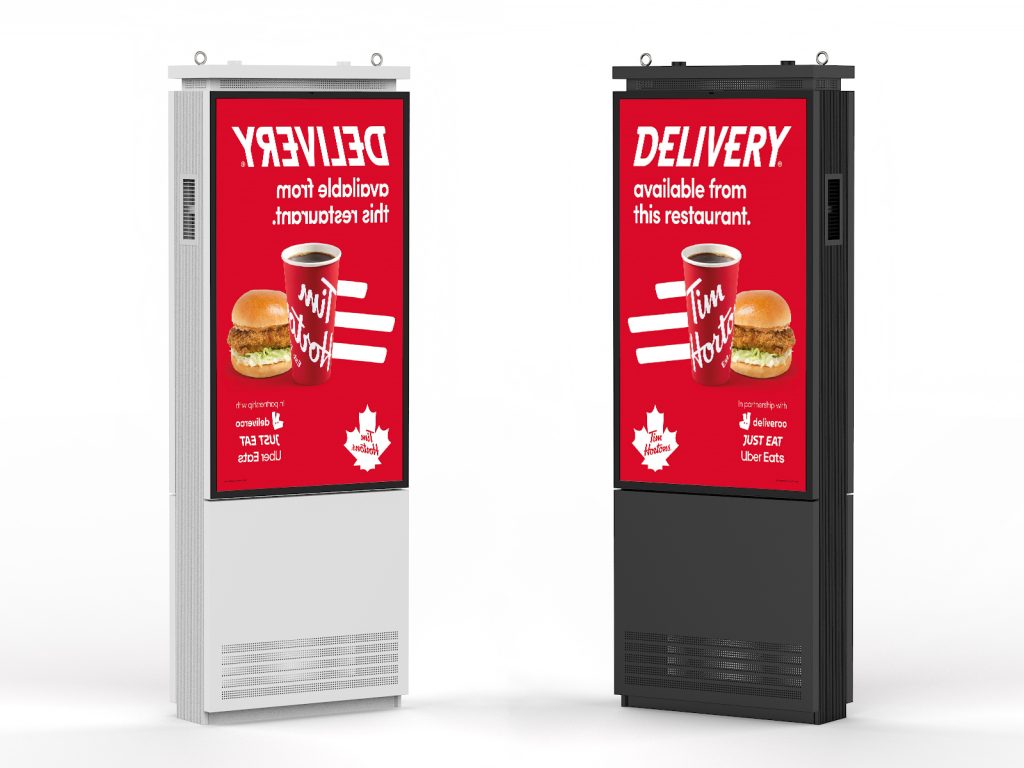

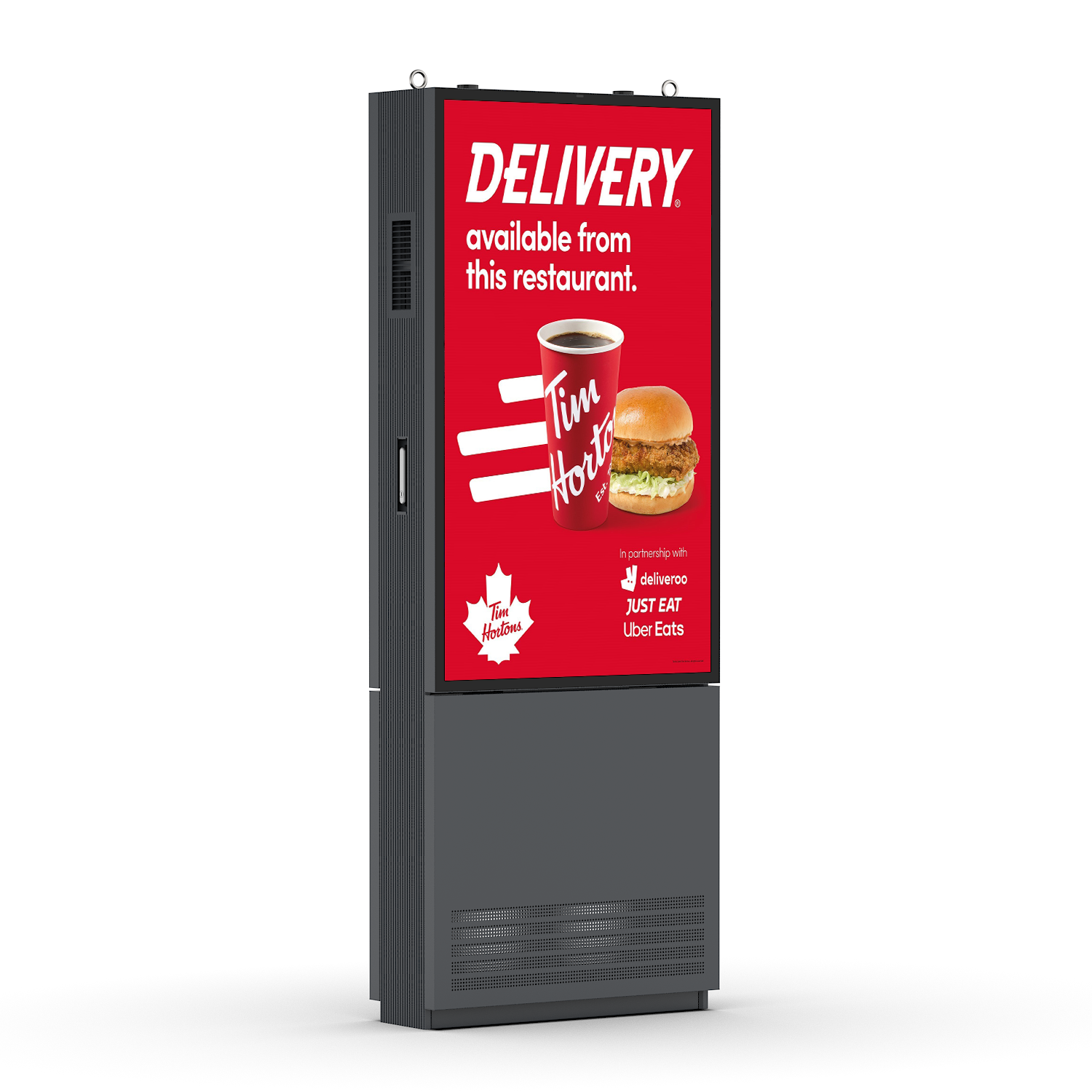

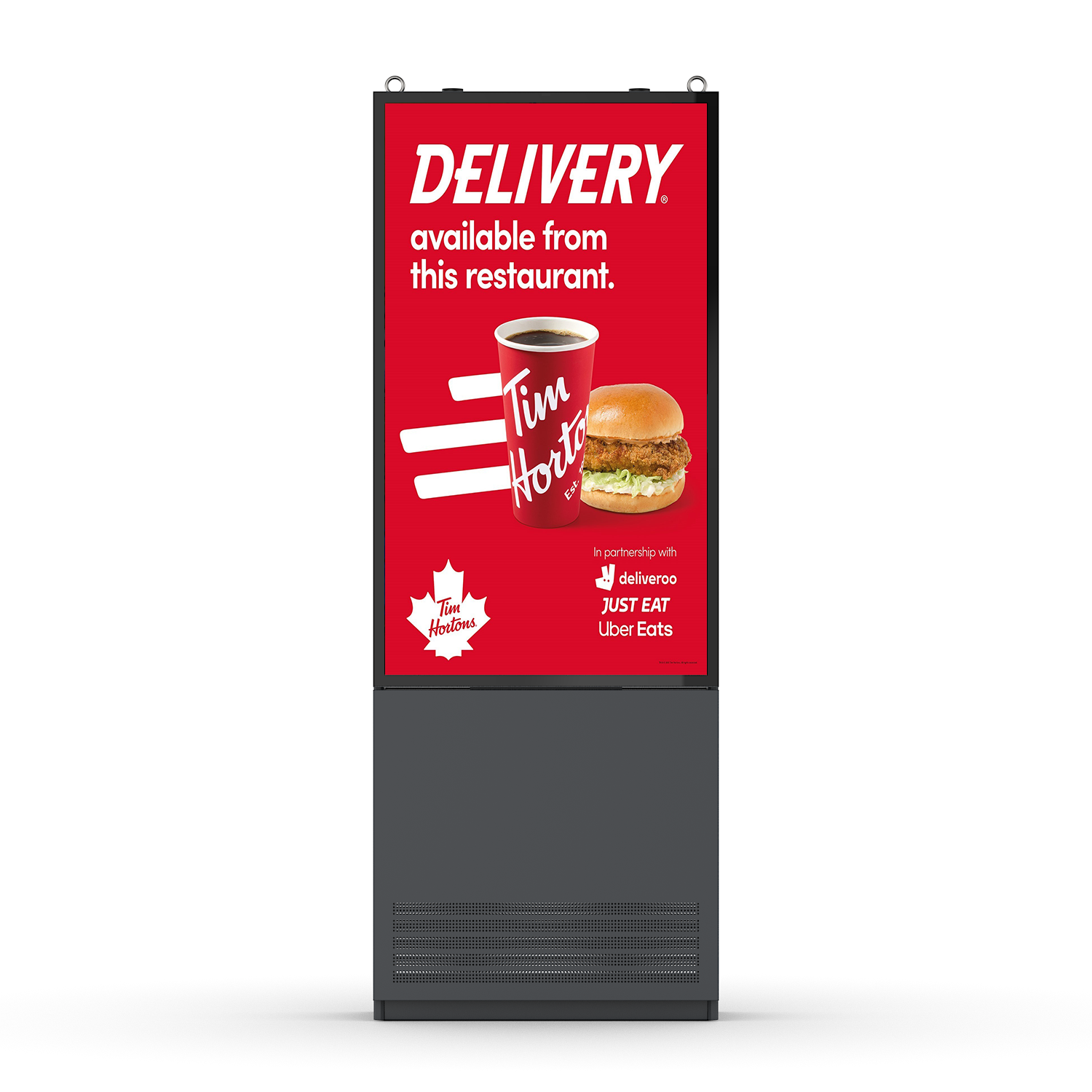

Front View #1

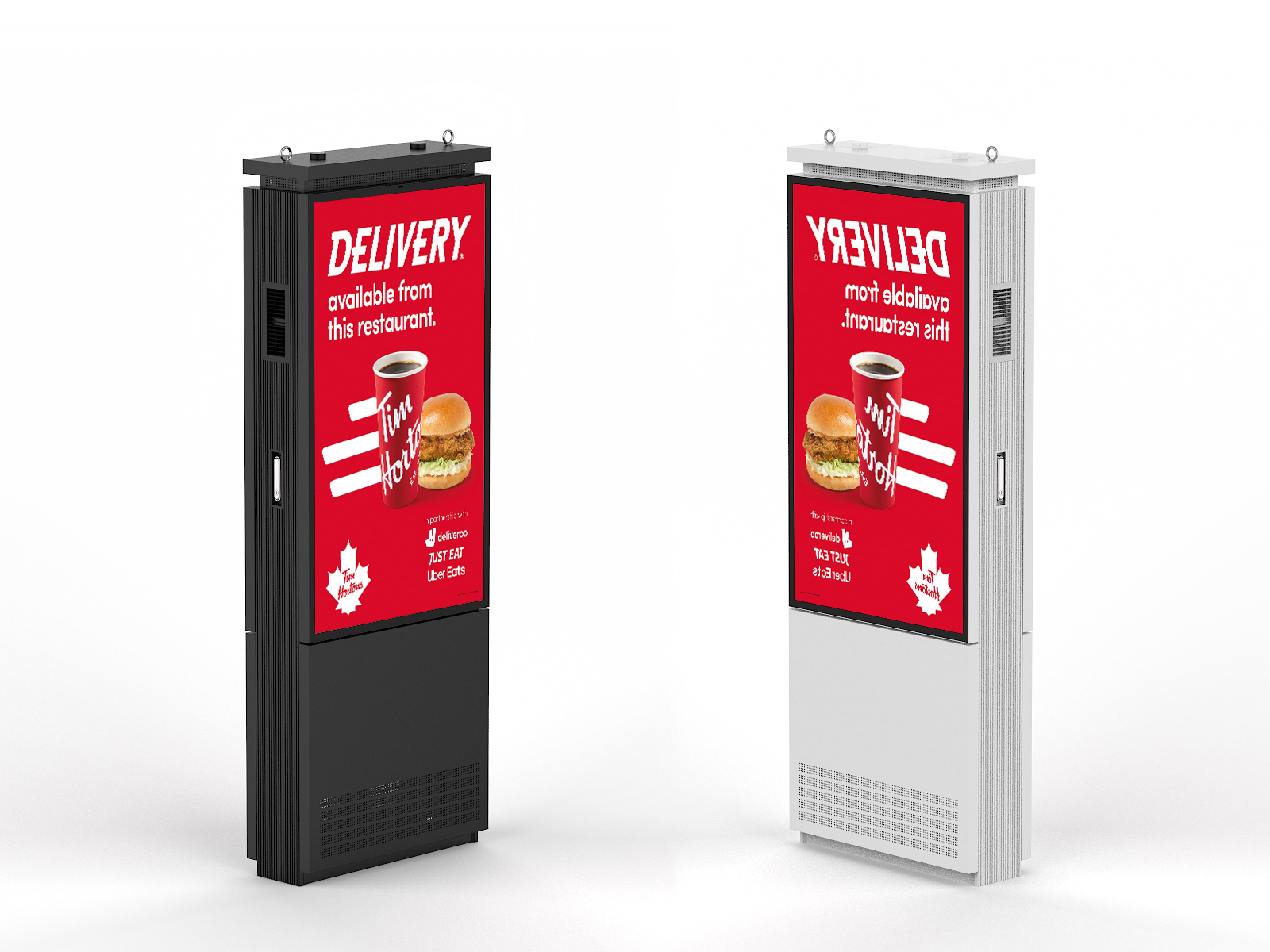

Front View #2

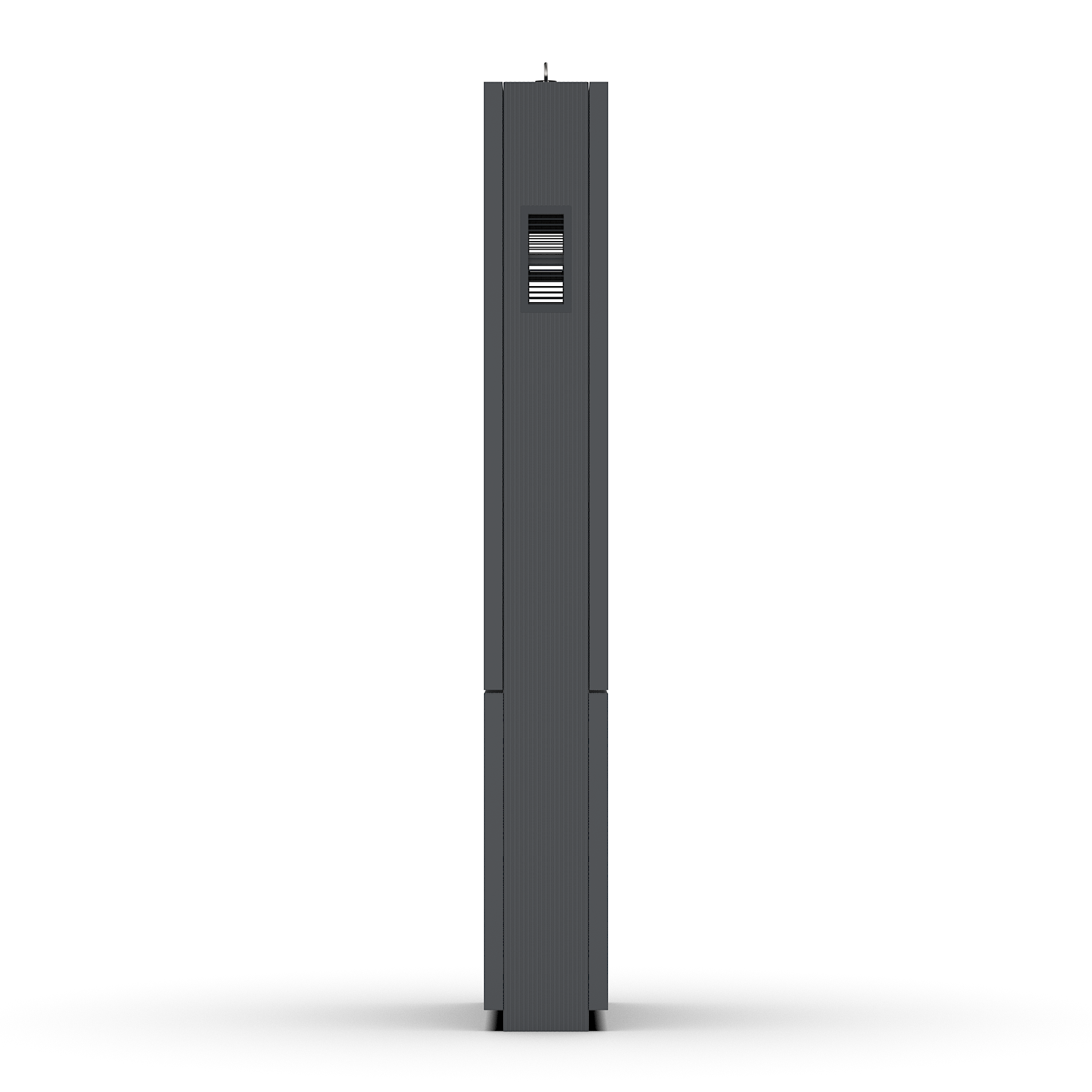

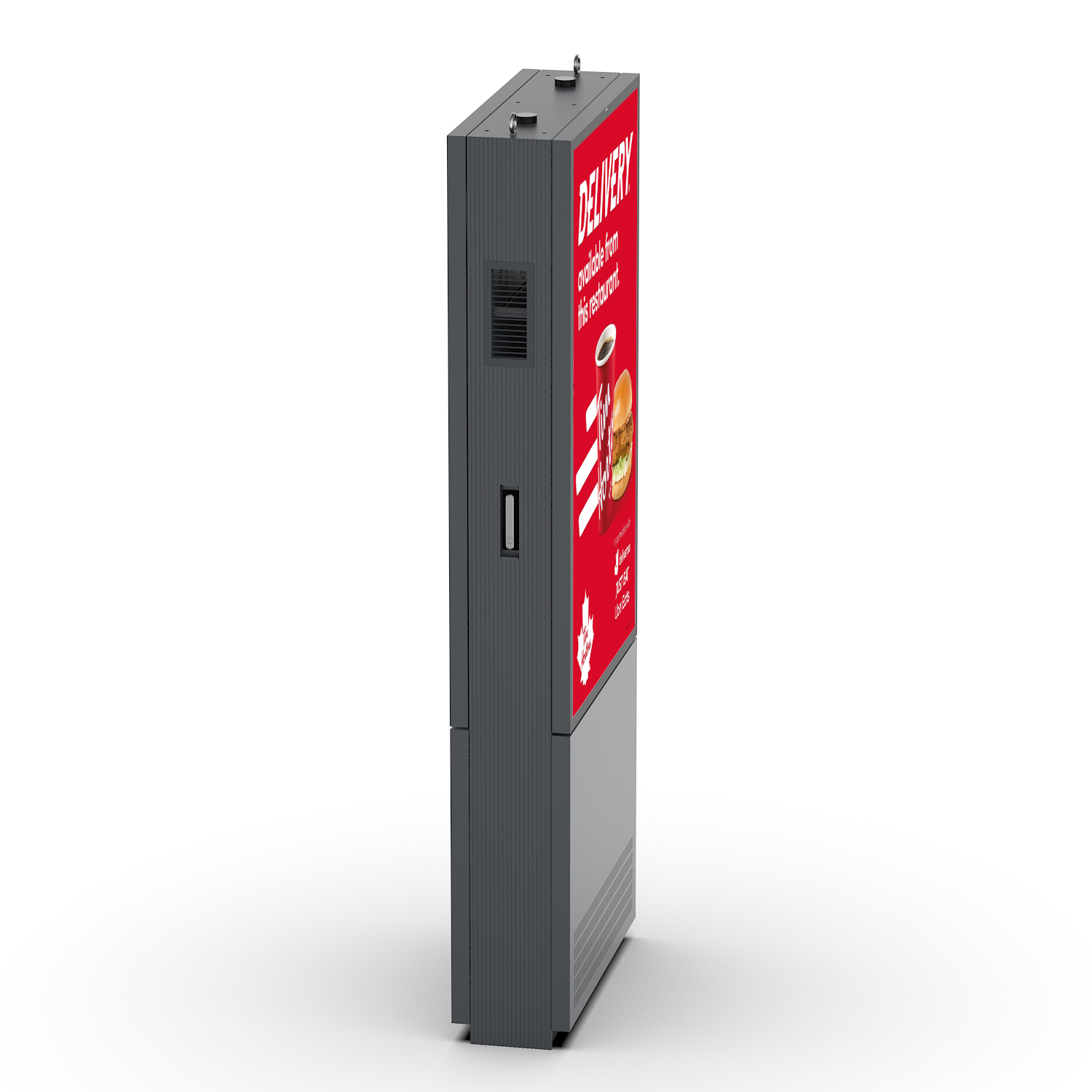

Side View

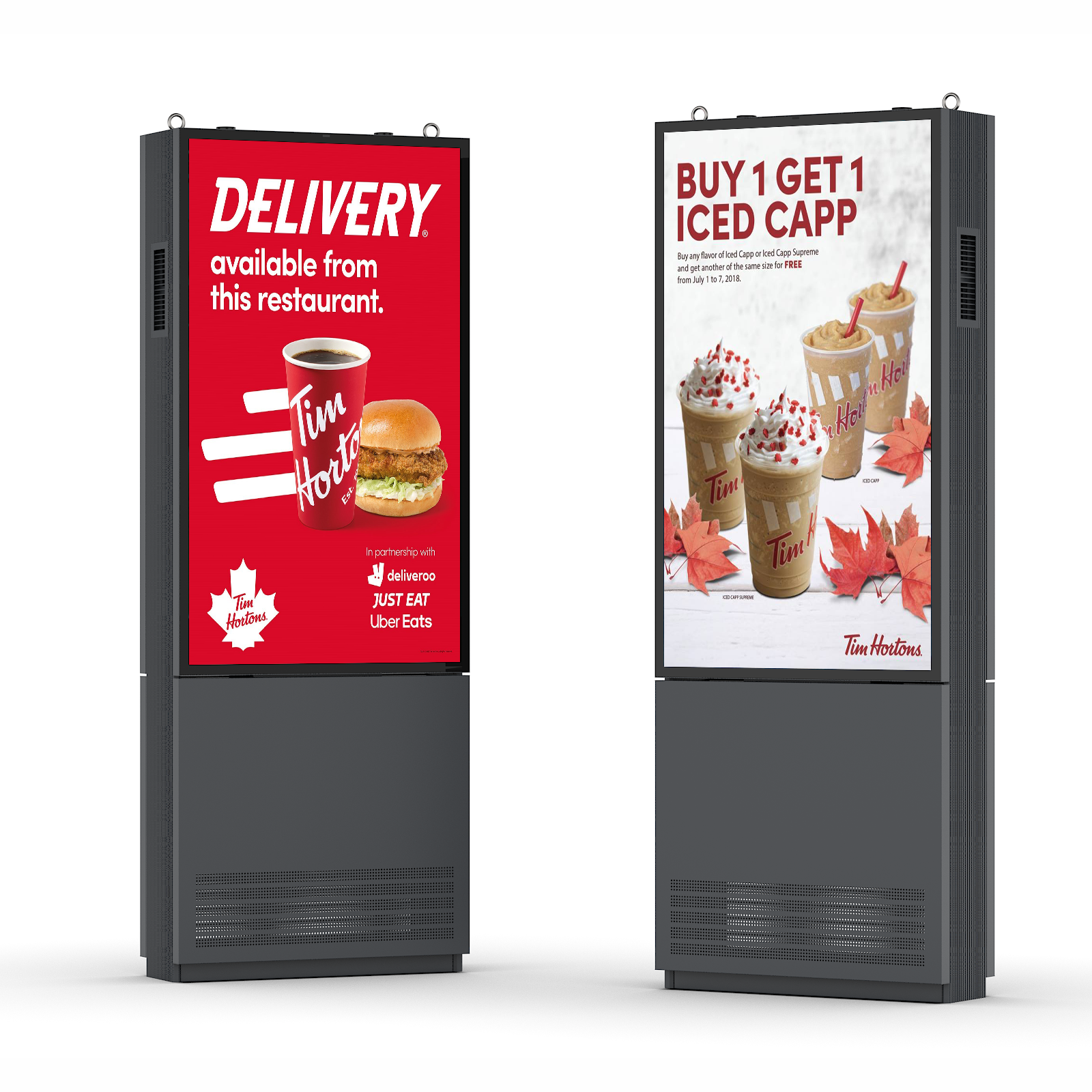

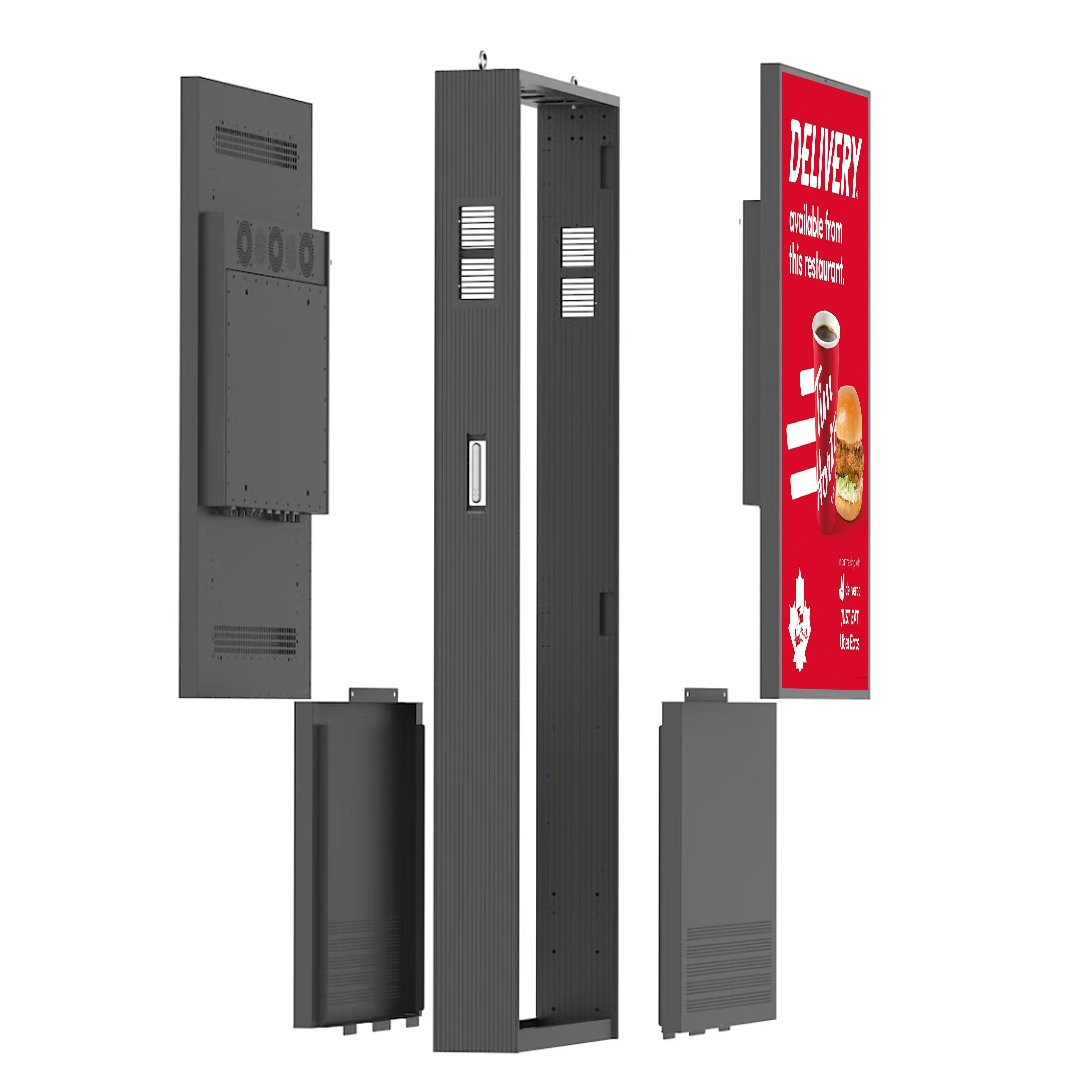

Double-Side Structure
Enclosure Detail
Key Features of the Double-Sided Outdoor Digital Signage Totem
Designed for outdoor commercial environments where two-way visibility, daylight readability, weather protection, thermal management, and digital signage system integration are important.
IP66 Weatherproof Enclosure
IP66 enclosure is designed to protect the dual-display system against rain, dust, moisture, and typical outdoor environmental exposure.
Double-Sided Digital Signage
Displays on both sides allow advertising and information content to reach people approaching from opposite directions in walkways, entrances, plazas, and transportation areas.
High-Brightness Outdoor LCD
Up to 3000 nits brightness helps advertising, promotional, wayfinding, and public information content remain visible in outdoor daylight and high ambient light.
Anti-Glare Glass + UV Film
5mm AG glass combined with full-lamination UV film provides an additional protective layer for the outdoor LCD displays.
Outdoor Thermal Management
Thermal management is designed to support outdoor operation across the specified -20°C to +50°C operating temperature range.
Full HD & 4K Display Options
Available models support Full HD or UHD 3840 × 2160 resolution, depending on screen size, for detailed advertising and digital signage content.
Flexible Digital Signage System Options
Android, Windows, Linux, HDMI, USB, VGA, and RJ45 options support digital signage software, external media players, content management systems, and project integration.
Project-Based Configuration
Screen size, enclosure color, system configuration, touch requirements, and structural details can be selected according to project needs.
Why Choose a Double-Sided Outdoor Digital Signage Totem?
A double-sided outdoor digital signage totem is suited to locations where pedestrian or visitor traffic approaches from two directions. Instead of leaving the rear side unused, both display surfaces can present advertising, wayfinding, public information, or promotional content.
Double-Sided Outdoor Digital Signage Specifications
Key specifications for outdoor advertising totem selection, digital signage project evaluation, quotation, system configuration, and installation planning.
43″ / 49″ / 55″ / 65″ / 75″
Up to 3000 nits
IP66
Up to UHD 3840 × 2160
Available Double-Sided Outdoor Totem Models
| Model Reference | Screen Size | Resolution |
|---|---|---|
| AS-WD430D-IP66-DS | 43″ | Full HD 1920 × 1080 |
| AS-WD490D-IP66-DS | 49″ | UHD 3840 × 2160 |
| AS-WD550D-IP66-DS | 55″ | UHD 3840 × 2160 |
| AS-WD650D-IP66-DS | 65″ | UHD 3840 × 2160 |
| AS-WD750D-IP66-DS | 75″ | UHD 3840 × 2160 |
| Product Type | Double-Sided Floor-Standing Outdoor Digital Signage Totem |
|---|---|
| Alternative Product Terms | Double-Sided Outdoor Digital Kiosk / Outdoor Advertising Totem |
| Screen Configuration | Double-Sided / 2 Displays |
| Screen Size | 43″ / 49″ / 55″ / 65″ / 75″ |
| Brightness | Max 3000 nits |
| Resolution | Max UHD 3840 × 2160 |
| IP Rating | IP66 |
| Operating Temperature | -20°C to +50°C |
| Glass | 5mm AG glass combined with full-lamination UV film |
| UV Film | Yes |
| System | Android OS / Windows OS / Linux OS / HDMI input |
| Input | HDMI / USB / VGA / RJ45 |
| Touch | PCAP touch optional |
| Installation | Floor-standing / Freestanding |
| Orientation | Portrait |
| Enclosure Color | Black / Gray / White |
| Structure Customization | Yes |

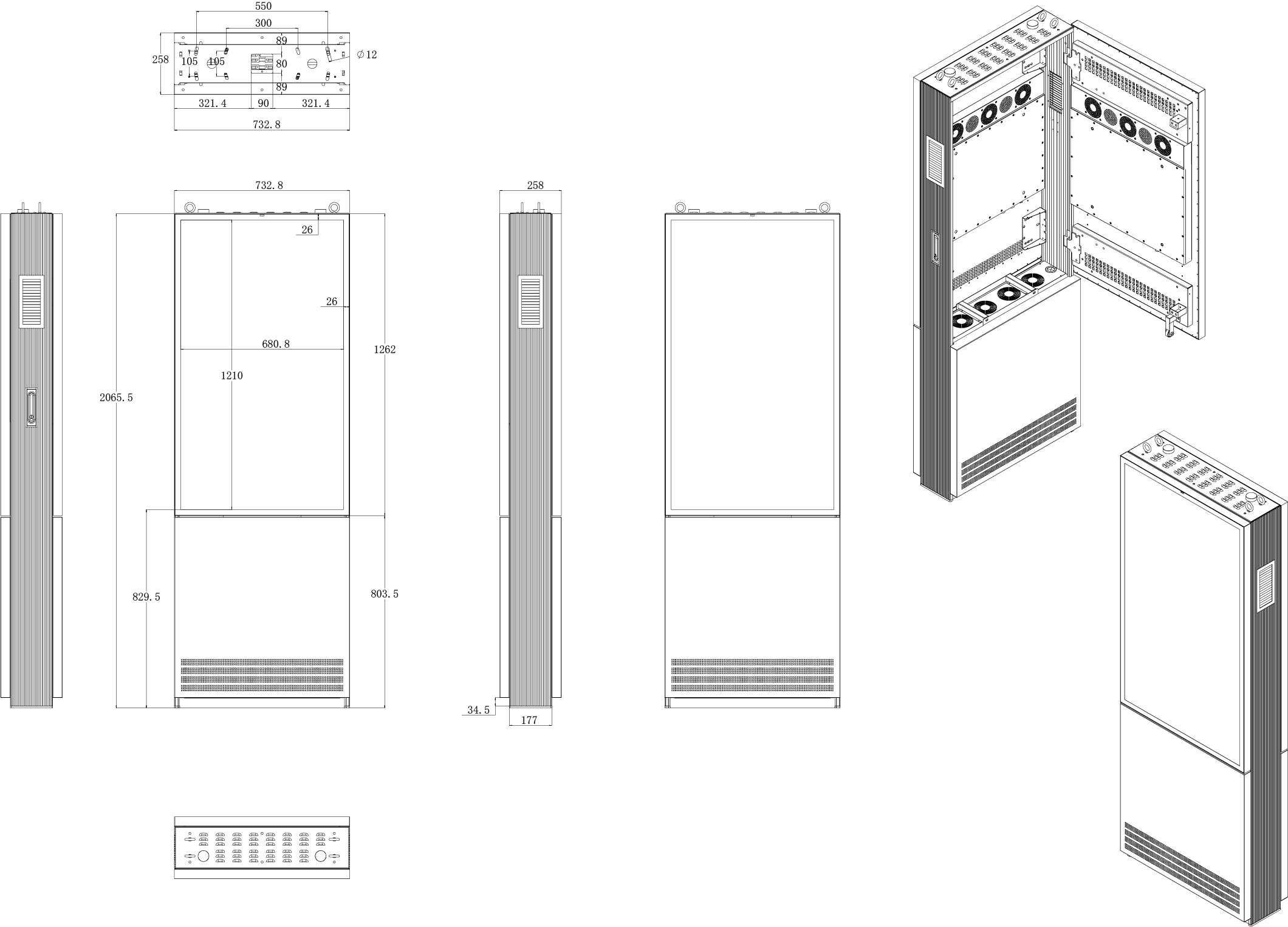

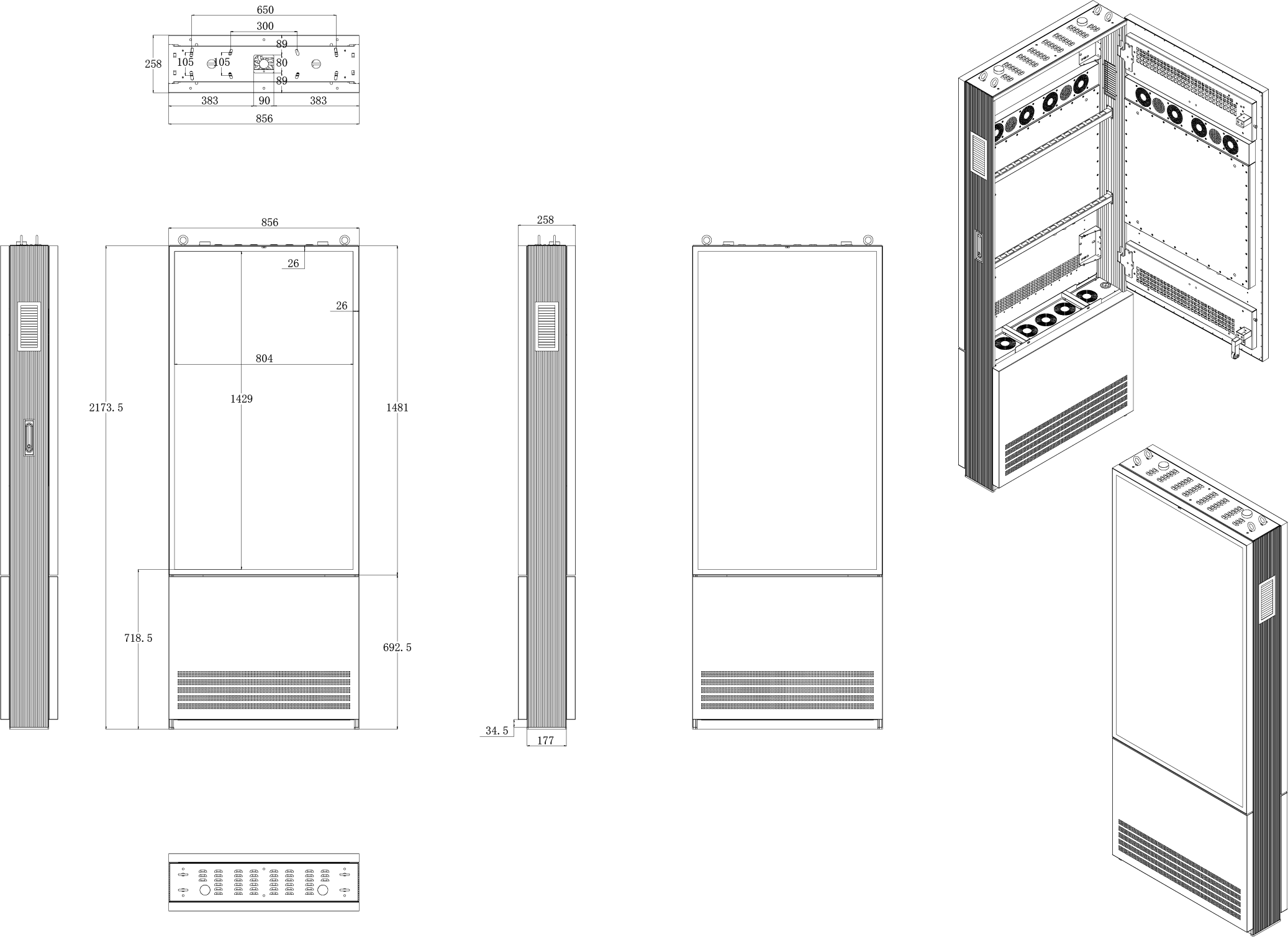

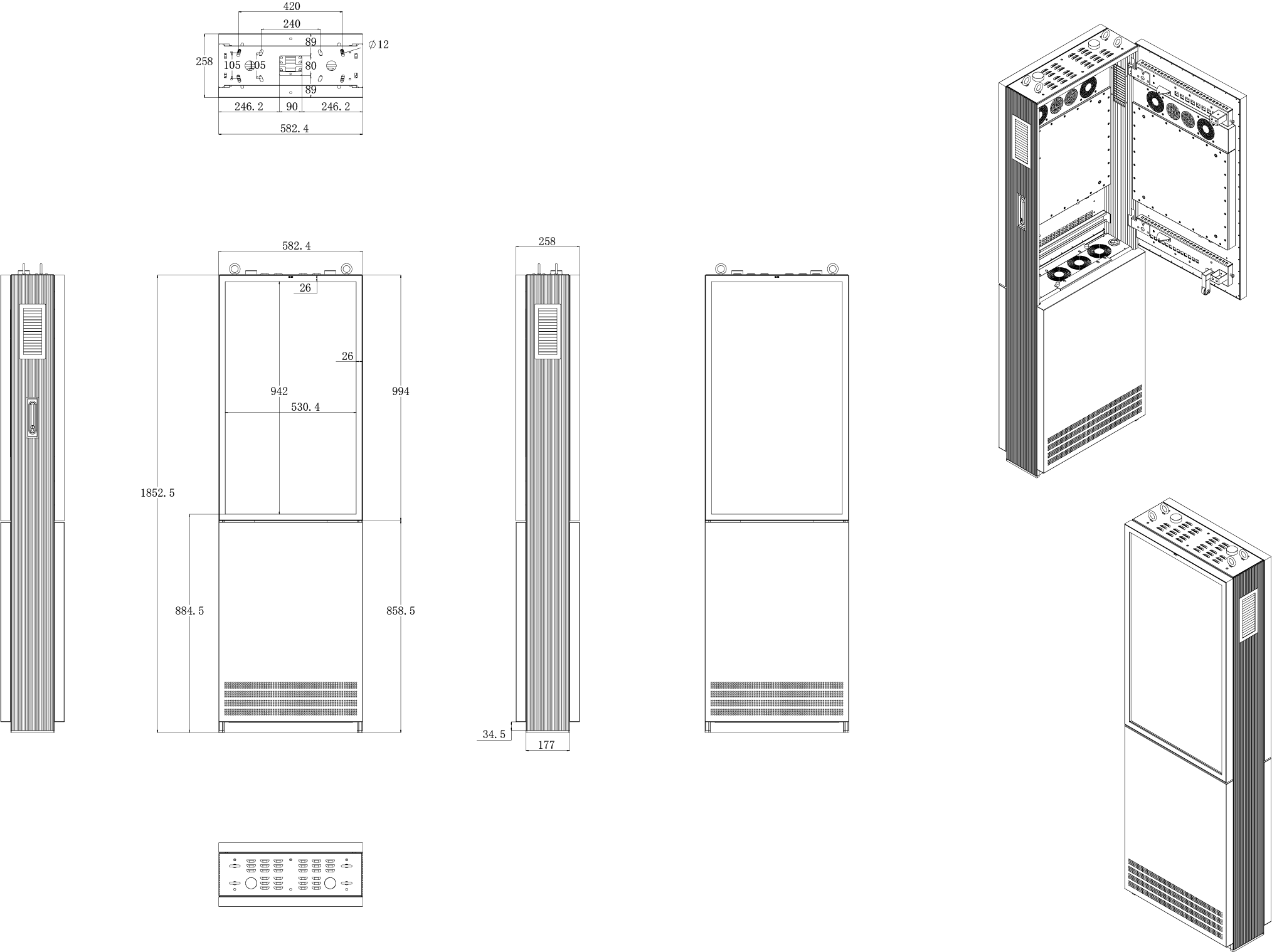

Double-Sided Outdoor Totem Dimensions by Screen Size
Select a 43″, 55″, 65″, or 75″ model to review the corresponding double-sided outdoor display dimension drawing. The default preview is the 55-inch model.
Click a size thumbnail to enlarge the corresponding dimension drawing on the right. The 49-inch model is available; its dimension drawing can be provided upon request.
Double-Sided Outdoor Digital Signage Installation
The IP66 double-sided signage totem uses a floor-standing structure designed for two-way visibility, fixed outdoor placement, cable routing, enclosure protection, and project-specific installation.
Double-Sided Outdoor Digital Signage Applications
This dual-display outdoor totem is suited to locations where advertising or information needs to be visible from both directions.
Two-Way Pedestrian Traffic Areas
Shopping Mall Entrance Totems
Double-Sided Advertising Totems
Transportation Digital Signage
Street-Level Outdoor Advertising
