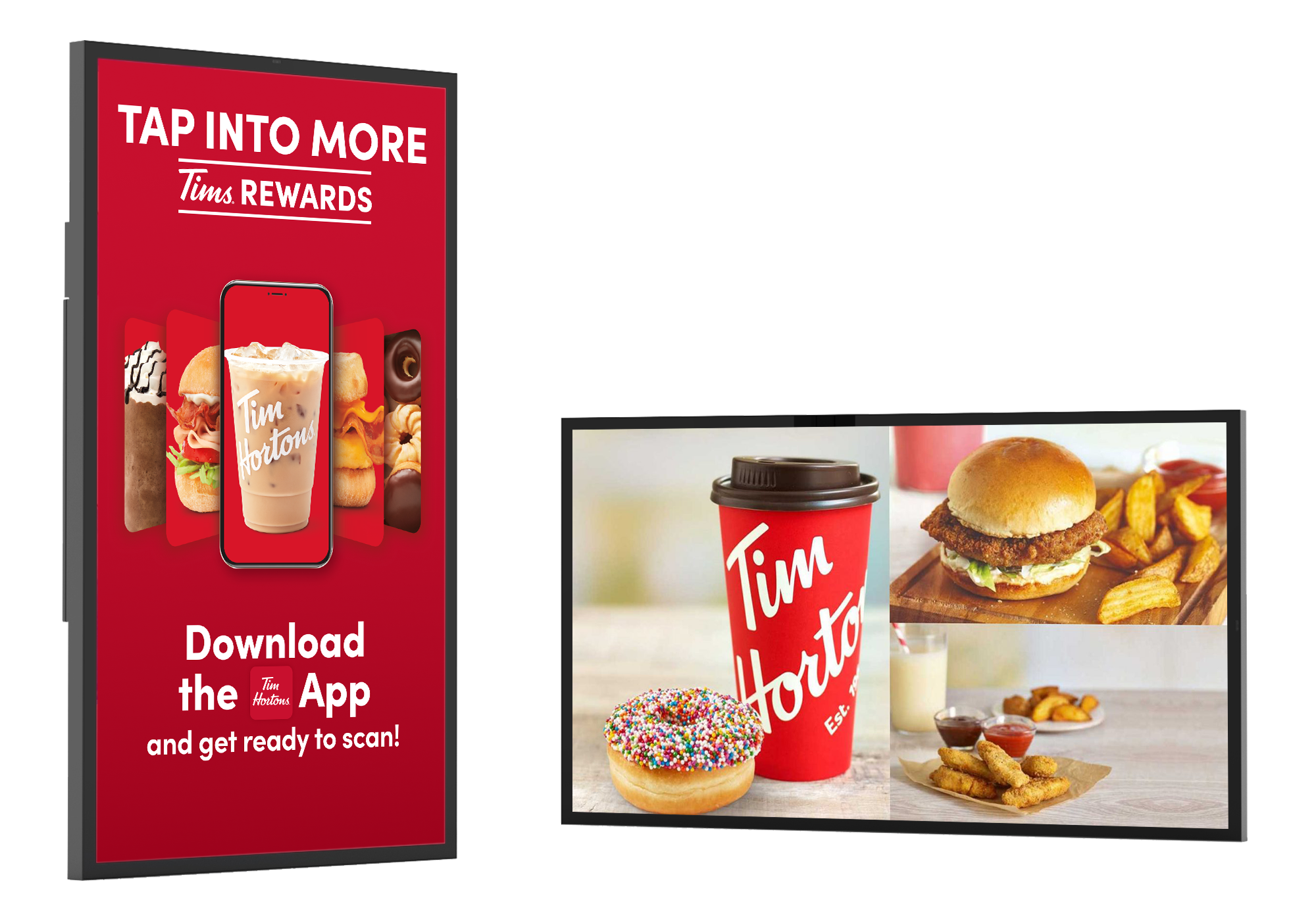

IP66 Wall-Mounted Outdoor Digital Signage Display
Weatherproof high-brightness outdoor LCD display for wall-mounted digital signage projects on building facades, transportation stations, commercial entrances, outdoor walls, public information points, and advertising locations. Available from 32″ to 75″ with up to 3000 nits brightness, portrait or landscape installation, and optional PCAP touch.
Real Project Video
IP66 Wall-Mounted Outdoor Digital Signage Project
This video shows a completed wall-mounted outdoor digital signage project, highlighting the IP66 enclosure, high-brightness display, rear structure, installation details, interface area, and pre-shipment inspection.
Discuss a Similar ProjectWall-Mounted Outdoor Digital Signage Gallery
Review product appearance, rear enclosure, interface area, installation structure, and real outdoor digital signage applications.
Front View #1
Transportation Application

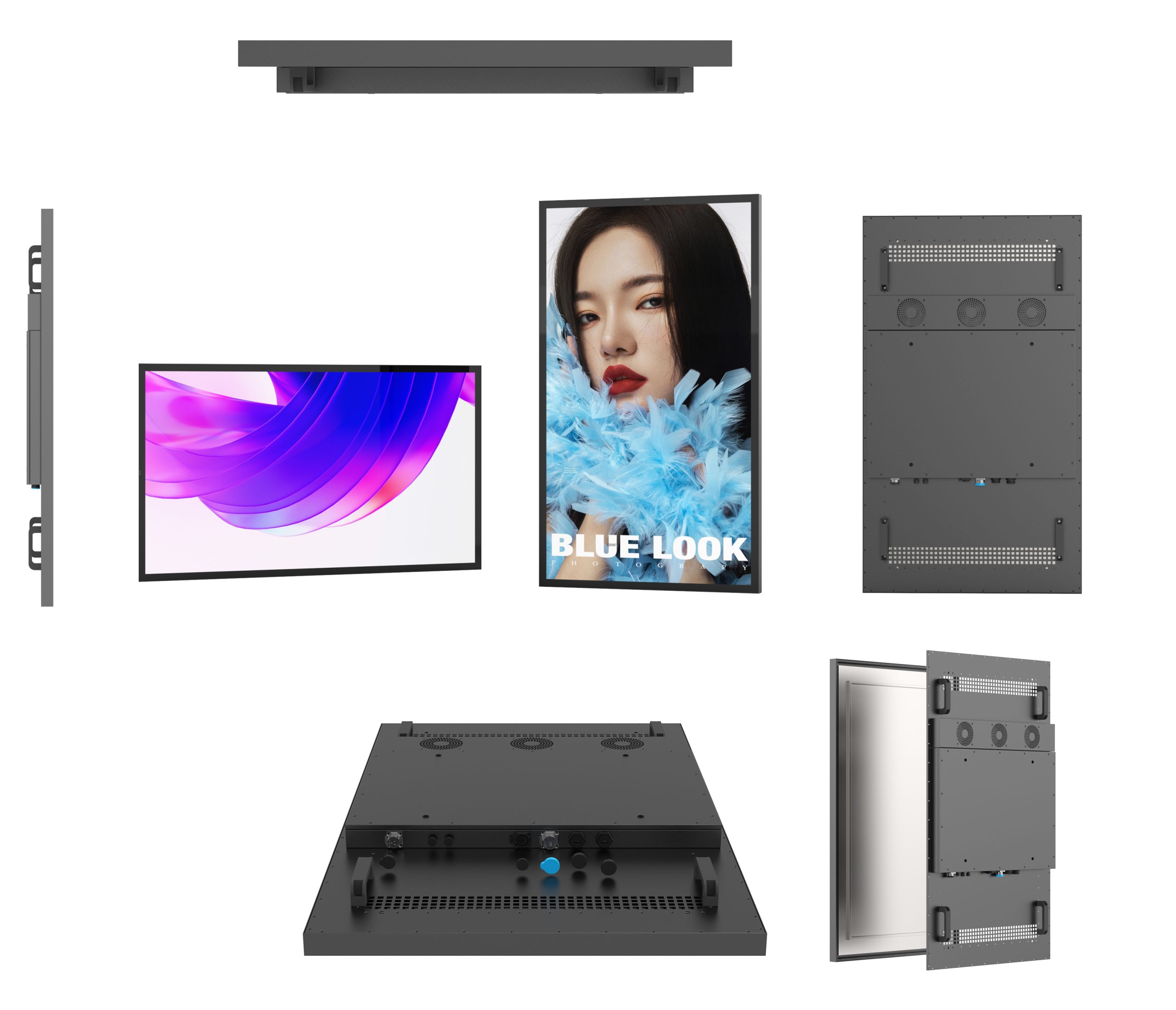

Side & Rear View

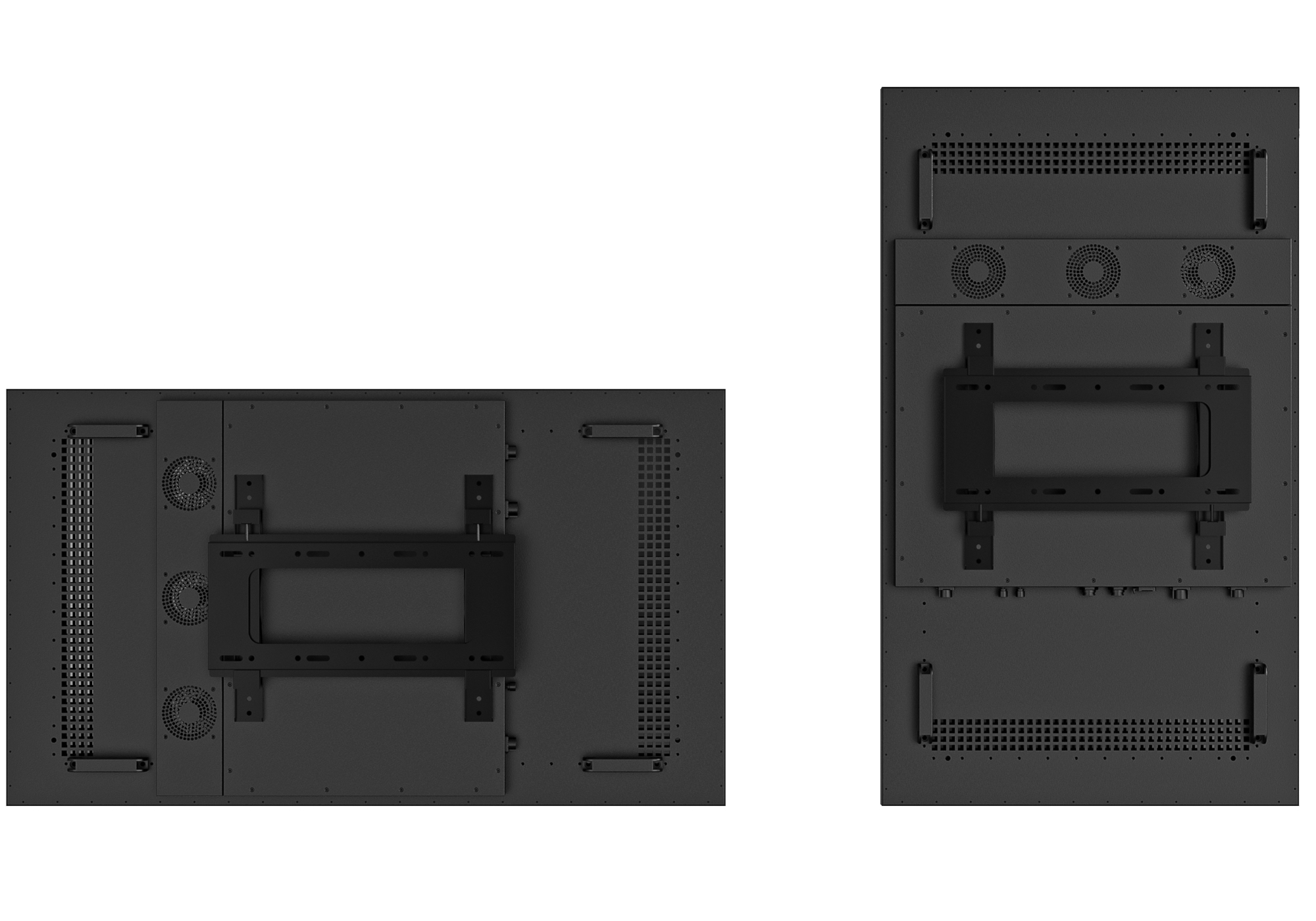

Rear Structure #1
Rear Structure #2

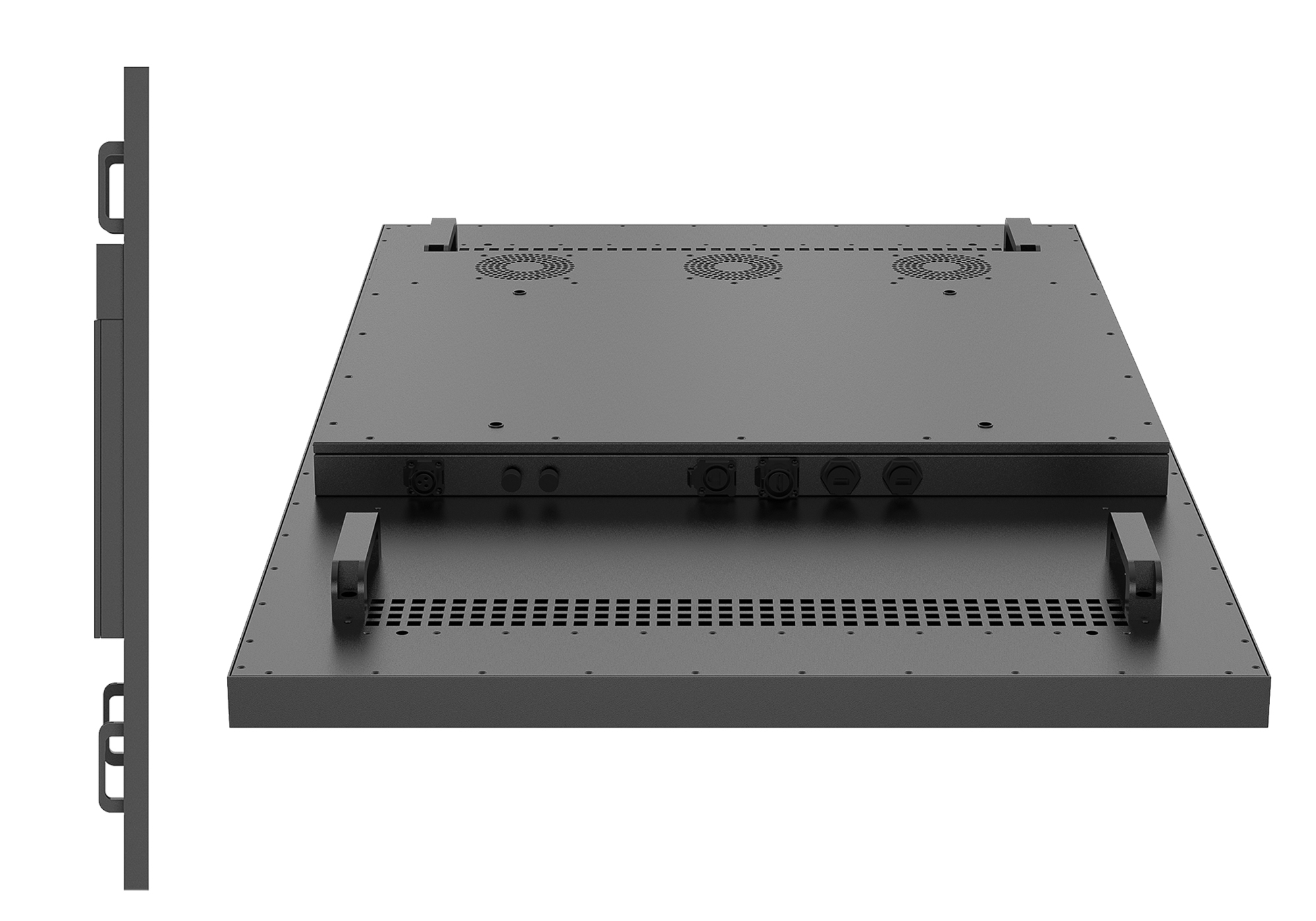

Interface View
Application Scene
Key Features of the IP66 Outdoor Digital Signage Display
Designed for commercial outdoor display projects where weather protection, daylight readability, thermal management, system integration, and wall-mounted installation flexibility are important.
IP66 Weatherproof Enclosure
IP66 enclosure is designed to protect the display against rain, dust, moisture, and typical outdoor environmental exposure in fixed wall-mounted installations.
High-Brightness Outdoor LCD
Up to 3000 nits brightness helps advertising, public information, wayfinding, and commercial content remain readable in outdoor daylight and high ambient light.
Anti-Glare Glass + UV Film
5mm AG glass combined with full-lamination UV film provides an additional protective layer for outdoor LCD applications.
Outdoor Thermal Management
Thermal management is designed to support outdoor operation across the specified -20°C to +50°C operating temperature range.
Full HD & 4K Display Options
Available models support Full HD or UHD 3840 × 2160 resolution, depending on screen size, for detailed commercial digital signage content.
Flexible Digital Signage System Options
Android, Windows, Linux, HDMI, USB, VGA, and RJ45 options support digital signage software, external media players, content management systems, and project integration.
PCAP Touch Optional
Optional PCAP touch supports interactive outdoor digital signage for wayfinding, public information, visitor guidance, and customer-facing applications.
Project-Based Configuration
Screen size, enclosure color, operating system, touch, orientation, and mounting requirements can be configured according to project needs.
Why Choose Wall-Mounted Outdoor Digital Signage?
Wall-mounted outdoor displays are suited to projects where digital content needs to be installed directly on a building facade, station wall, entrance area, or other fixed vertical surface without using a separate floor-standing structure.
Wall-Mounted Outdoor Digital Signage Specifications
Key specifications for outdoor digital signage project evaluation, model selection, quotation, system configuration, and installation planning.
32″ / 43″ / 49″ / 55″ / 65″ / 75″
Up to 3000 nits
IP66
Up to UHD 3840 × 2160
Available Outdoor Digital Signage Models
| Model Reference | Screen Size | Resolution |
|---|---|---|
| AS-WD320D-IP66 | 32″ | Full HD 1920 × 1080 |
| AS-WD430D-IP66 | 43″ | Full HD 1920 × 1080 |
| AS-WD490D-IP66 | 49″ | UHD 3840 × 2160 |
| AS-WD550D-IP66 | 55″ | UHD 3840 × 2160 |
| AS-WD650D-IP66 | 65″ | UHD 3840 × 2160 |
| AS-WD750D-IP66 | 75″ | UHD 3840 × 2160 |
| Product Type | Wall-Mounted Outdoor Digital Signage Display |
|---|---|
| Screen Size | 32″ / 43″ / 49″ / 55″ / 65″ / 75″ |
| Brightness | Max 3000 nits |
| Resolution | Max UHD 3840 × 2160 |
| IP Rating | IP66 |
| Operating Temperature | -20°C to +50°C |
| Glass | 5mm AG glass combined with full-lamination UV film |
| UV Film | Yes |
| System | Android OS / Windows OS / Linux OS / HDMI input |
| Input | HDMI / USB / VGA / RJ45 |
| Touch | PCAP touch optional |
| Installation | Wall-mounted / Integrated |
| Orientation | Portrait / Landscape |
| Enclosure Color | Black / Gray / White |
| Structure Customization | Yes |

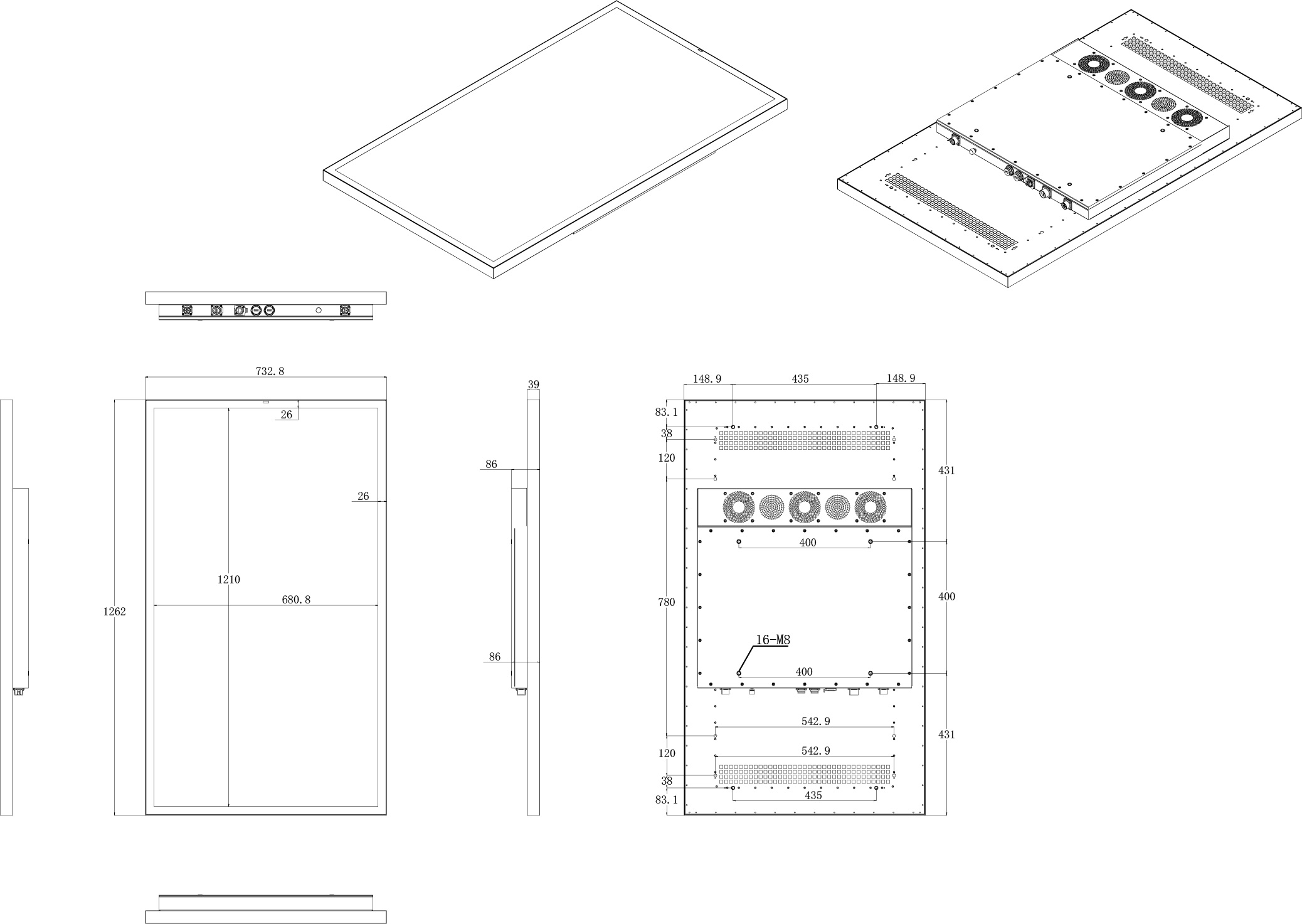

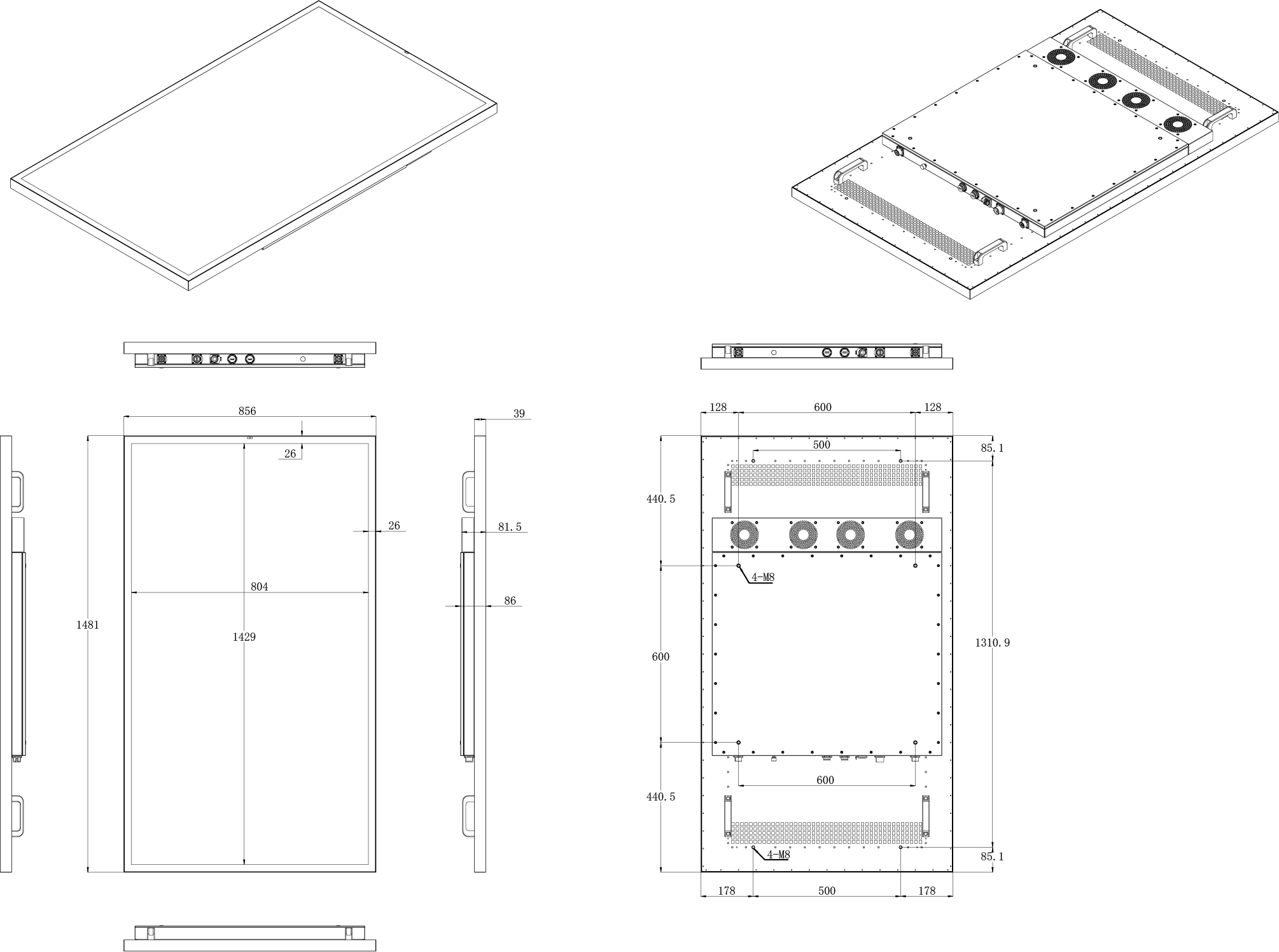

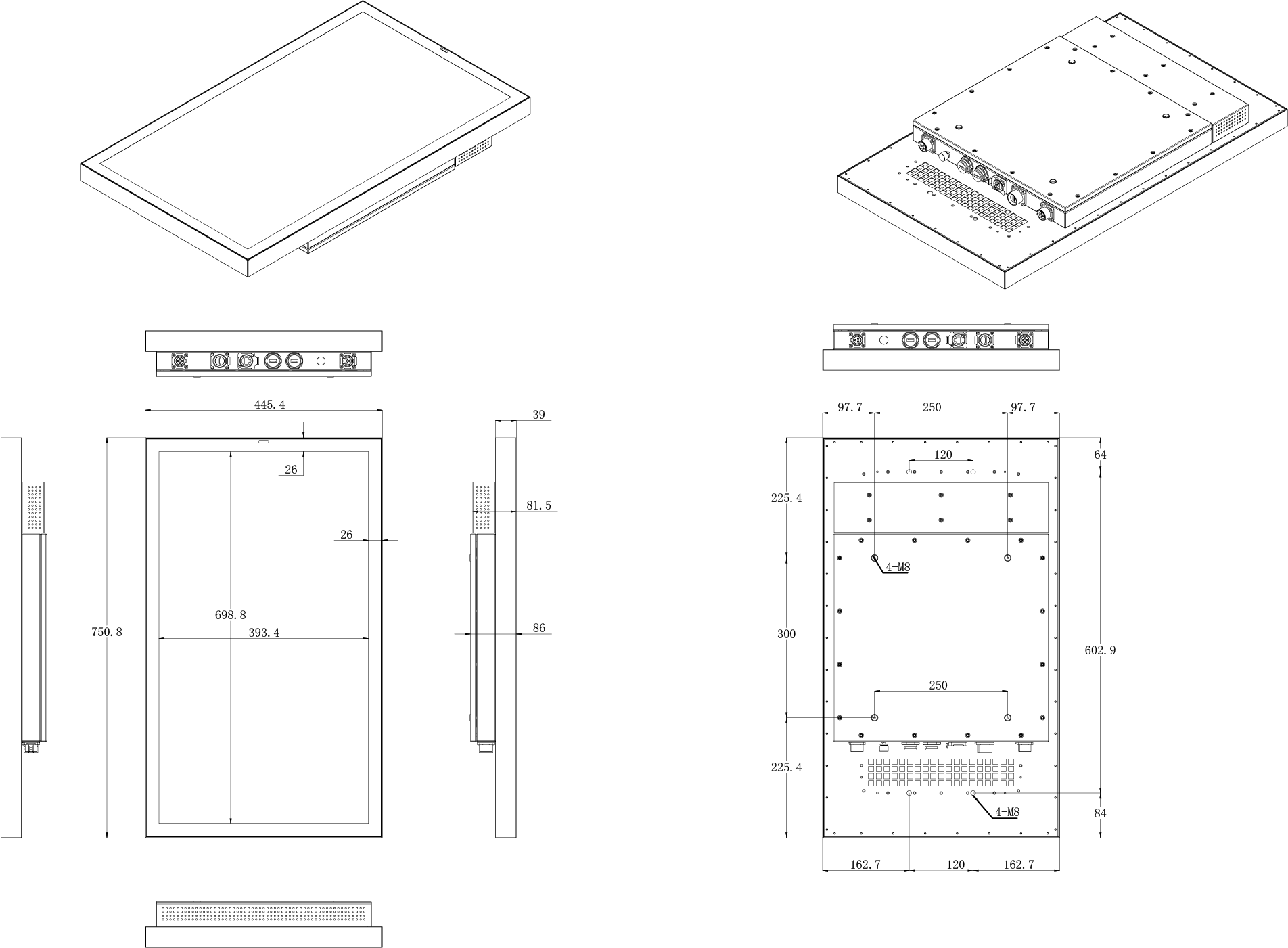

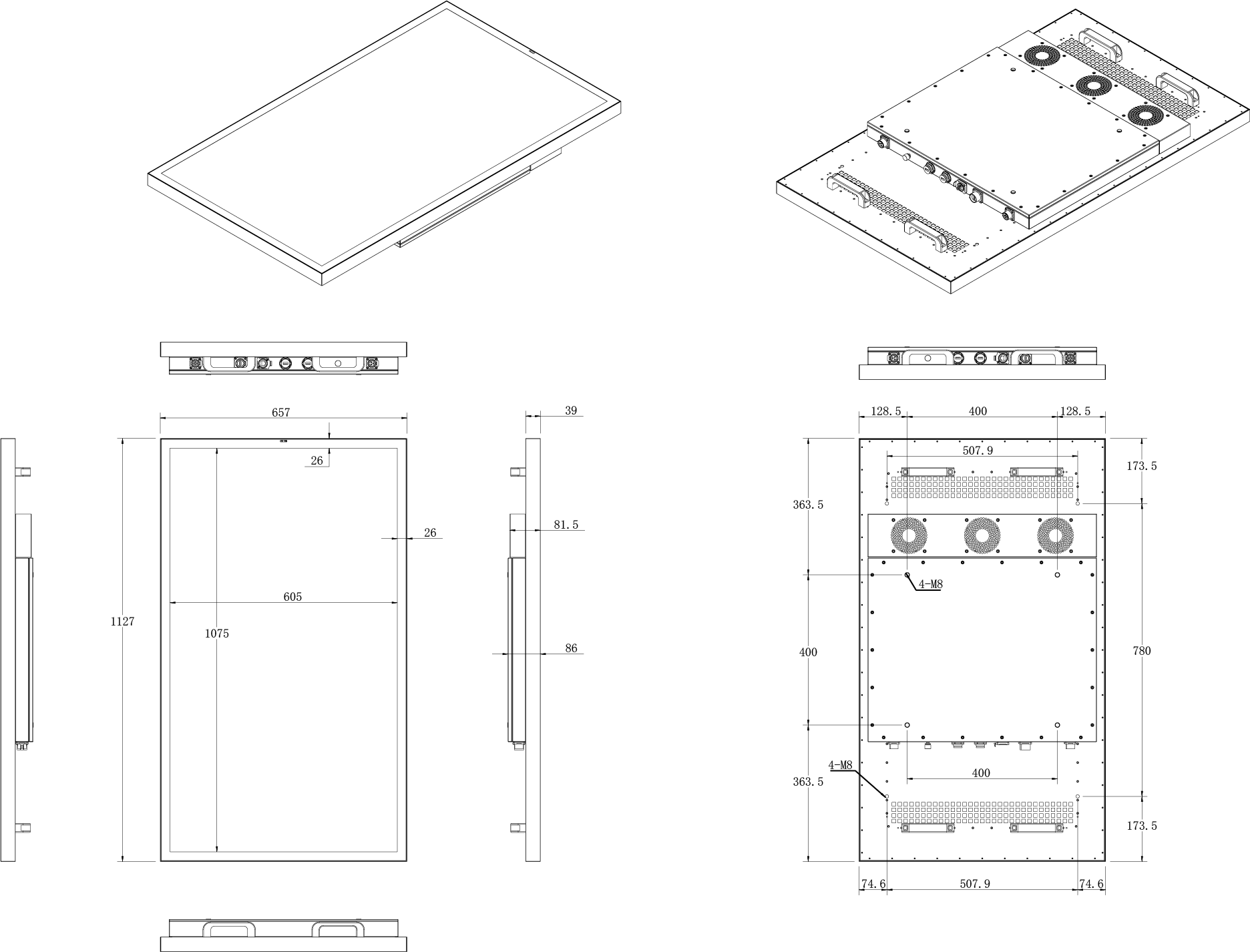

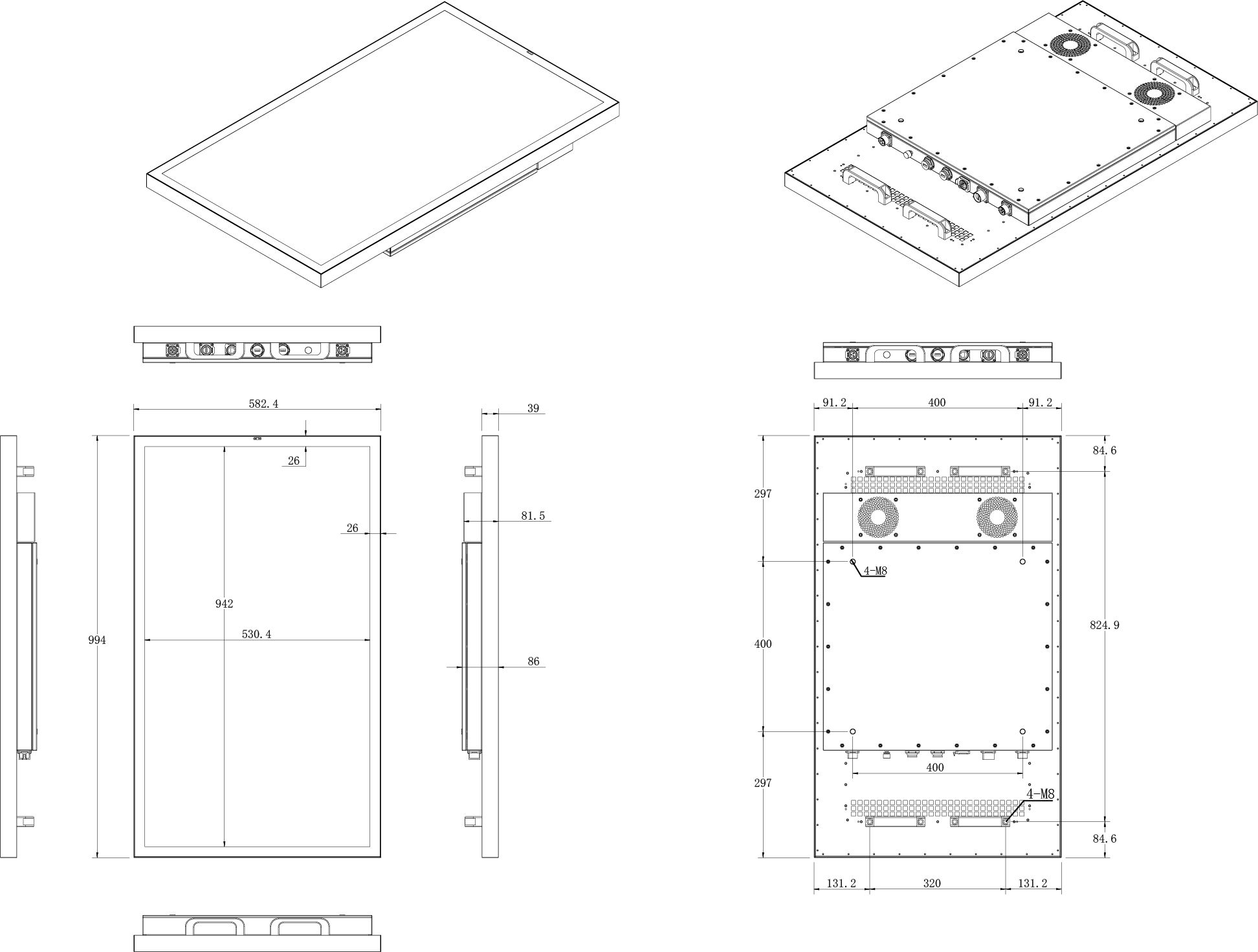

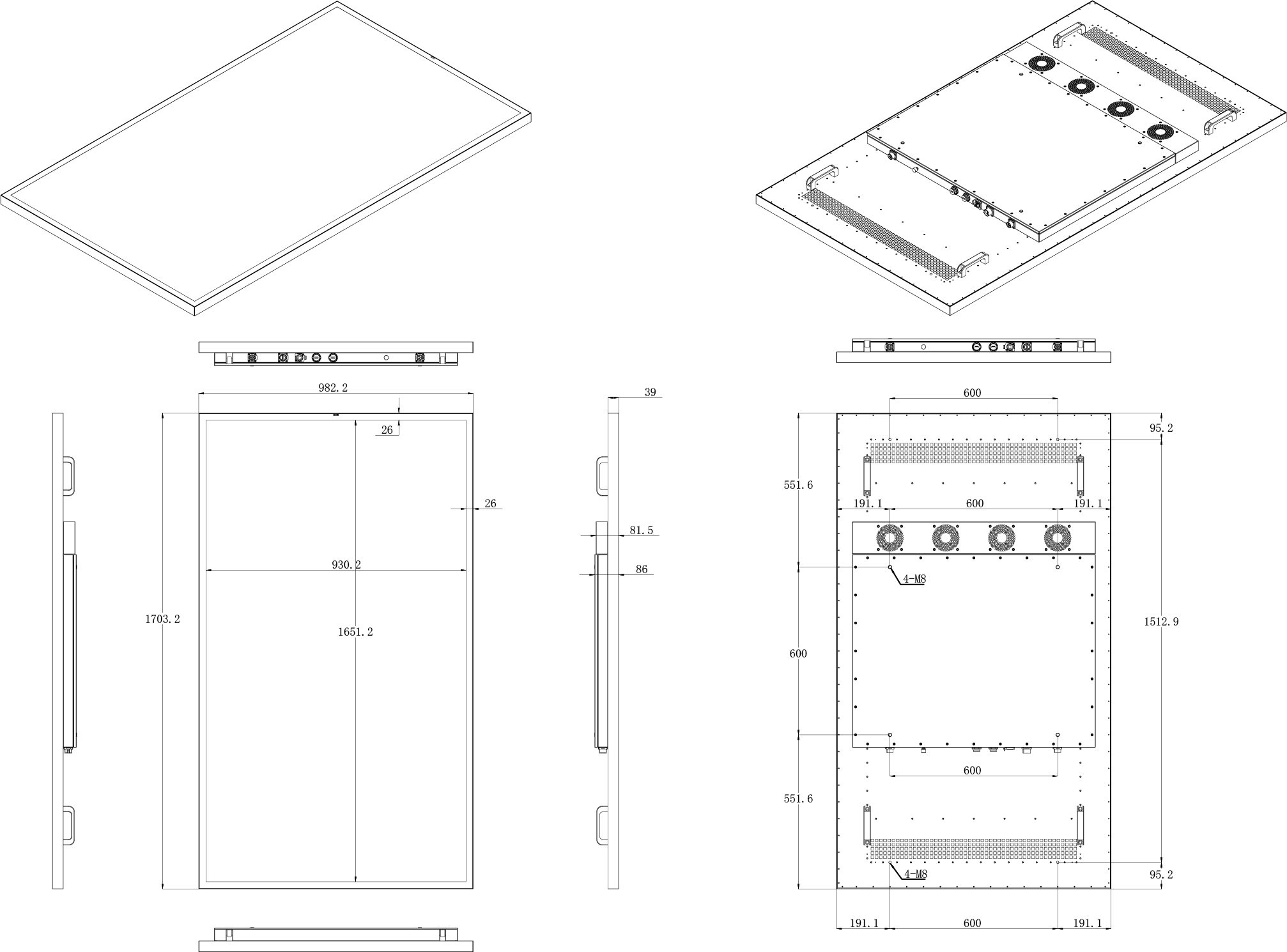

Outdoor Display Dimensions by Screen Size
Select a 32″, 43″, 49″, 55″, 65″, or 75″ model to review its corresponding wall-mounted outdoor display dimension drawing. The default preview is the 55-inch model.
Click a size thumbnail to enlarge the corresponding dimension drawing on the right.

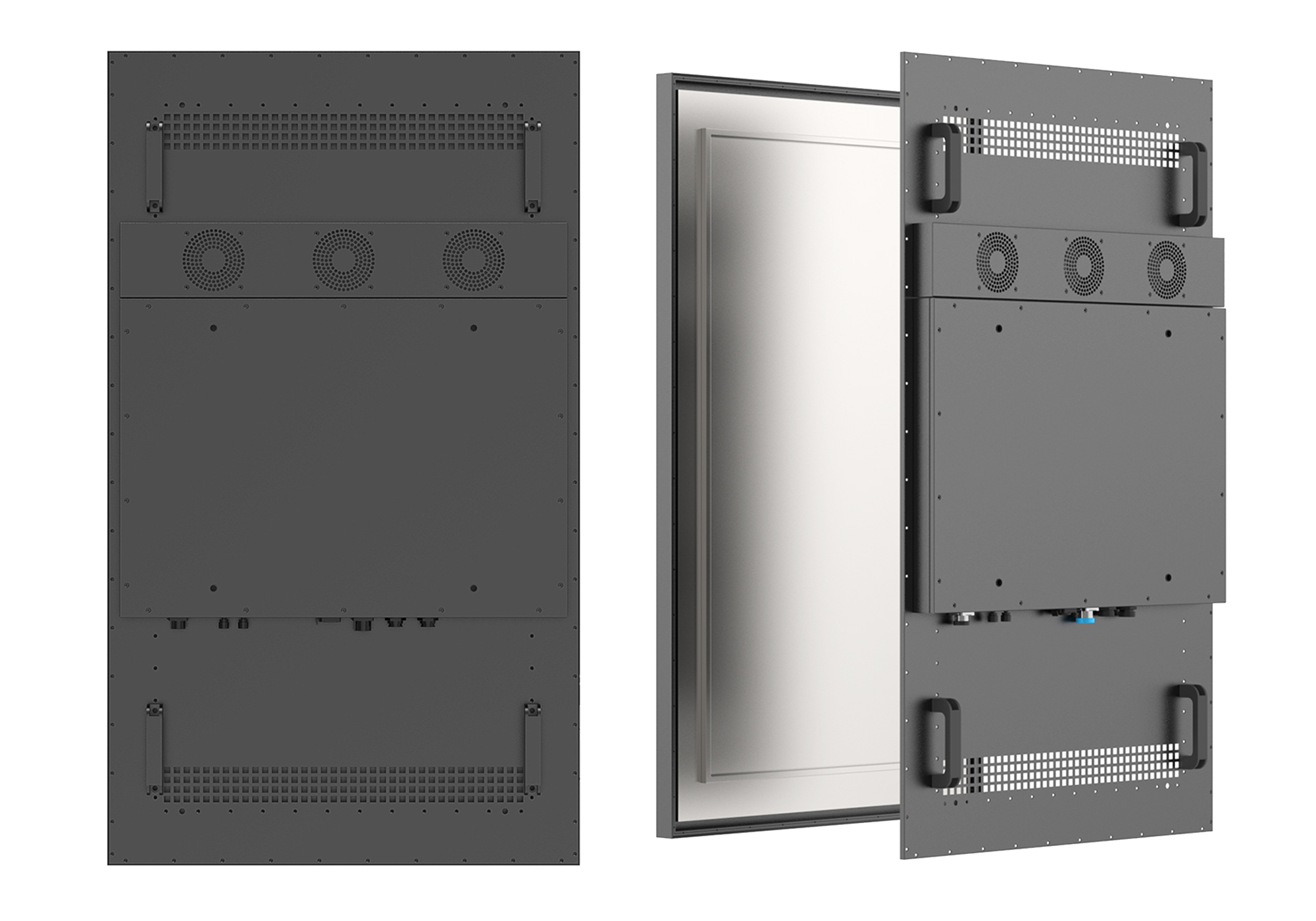

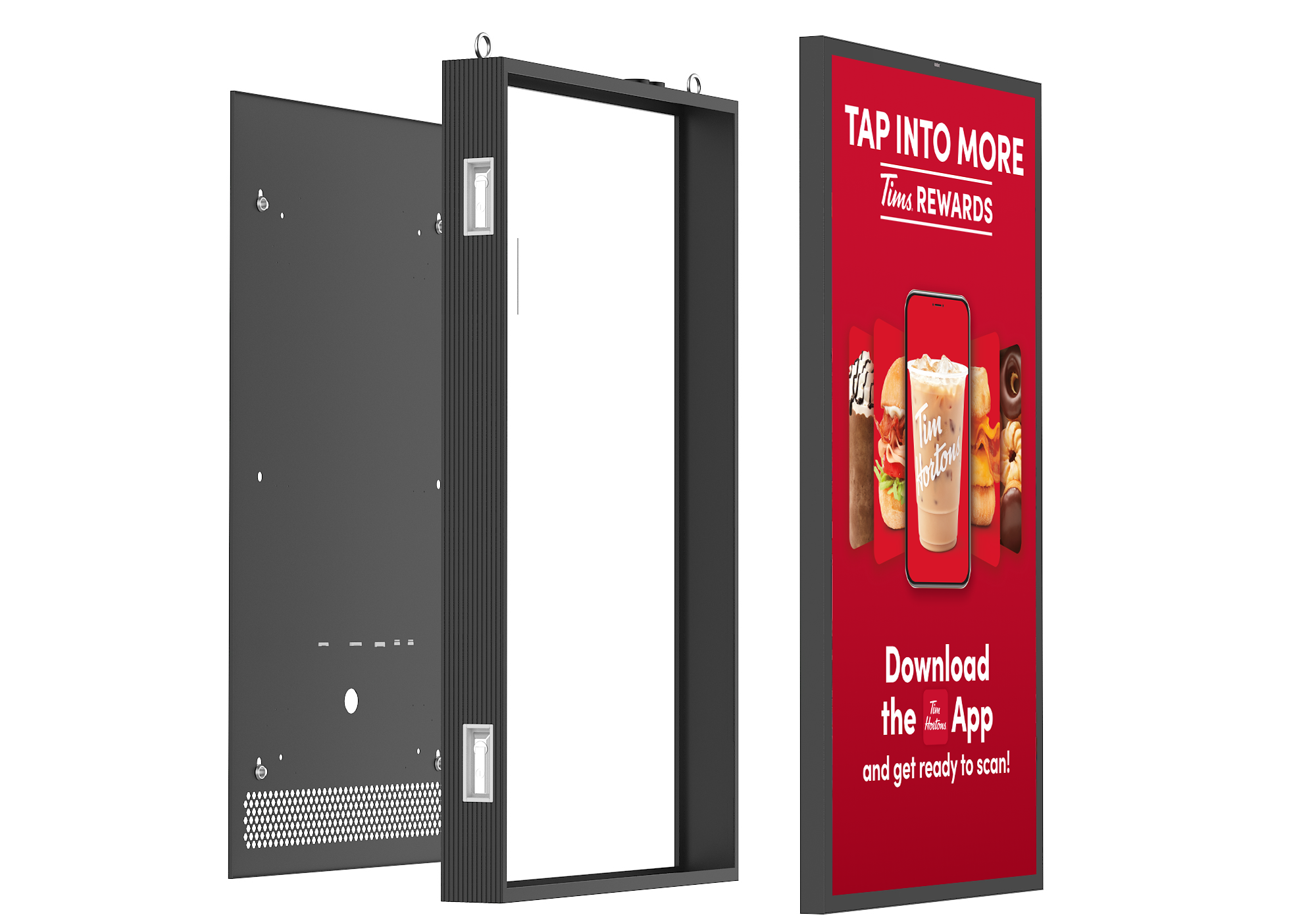

Wall-Mounted Outdoor Digital Signage Installation
The IP66 outdoor display is designed for fixed wall installation, cable routing, outdoor enclosure protection, inspection access, and project-specific mounting requirements.
Outdoor Digital Signage Applications
Wall-mounted IP66 displays can be used across advertising, transportation, commercial property, wayfinding, public information, and customer-facing outdoor display projects.
Outdoor Advertising Digital Signage
Building Entrance Digital Signage
Transportation Station Displays
Commercial Plaza Digital Signage
Public Information & Wayfinding
